Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMT13A3S-VKIT, AMT13A3S-V INCREMENTAL ENCO |
246 |
|
Datasheet |
AMT13A | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Voltage | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
ENA1J-B20-L00100LROTARY ENCODER OPTICAL 100PPR |
1,034 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
AEDM-5810-T06ROTARY ENCODER OPTICAL 2000PPR |
3,440 |
|
Datasheet |
- | Bulk | Active | Not Verified | Optical | 2000 | 4.5V ~ 5.5V | Hole for Shaft | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AEDM-5810-T12ROTARY ENCODER OPTICAL 2000PPR |
2,225 |
|
Datasheet |
- | Bulk | Active | Not Verified | Optical | 2000 | 4.5V ~ 5.5V | Hole for Shaft | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

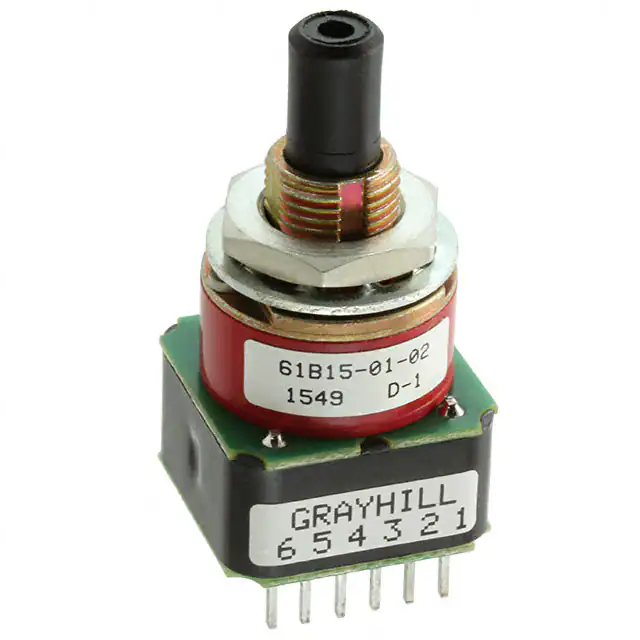

61B15-01-02ROTARY ENCODER OPTICAL 24PPR |
1,511 |
|
Datasheet |
61B | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|
HRPG-ASCA#54FROTARY ENCODER OPTICAL 120PPR |
181 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | 120 | 5V | 6mm Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
62A15-02-PROTARY ENCODER OPTICAL 24PPR |
2,963 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
|
ENS1J-B28-L00064LROTARY ENCODER OPTICAL 64PPR |
1,868 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 64 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
|
ENS1J-B20-L00256LROTARY ENCODER OPTICAL 256PPR |
2,387 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 256 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
AR25-A20TALUM CW 1024,THRU ID 20MM |
1,915 |
|
Datasheet |
- | Tray | Active | Not Verified | - | 1024 | - | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-A15TALUM CW 1024,THRU ID 15MM |
1,322 |
|
Datasheet |
- | Tray | Active | Not Verified | - | 1024 | - | - | - | No | No | - | - | - | - | - | - |
|
63K128ROTARY ENCODER OPTICAL 512PPR |
255 |
|
Datasheet |
63K | Bulk | Active | Not Verified | Optical | 512 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | PC Pin | 300M | - | - |
|
|
MERP11-15125BM7ENCODER, WITH PUSHBUTTON, 15/30 |
369 |
|
Datasheet |
MERP 11 | Tray | Active | - | Mechanical | 15 | 5V | 6mm Dia Flatted End | Pulse | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC10E1260502THROUGH SHAFT ENCODERS |
3,176 |
|
Datasheet |
EC10E | Bulk | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
2416191-1MINIATURE ENCODER, 51GF |
4,889 |
|
Datasheet |
- | Tray | Active | Not Verified | - | - | - | Hole for Shaft | SPST-NC | No | - | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
2416191-2MINIATURE ENCODER, 30GF |
3,881 |
|
Datasheet |
- | Tray | Active | Not Verified | - | - | - | Hole for Shaft | SPST-NC | No | - | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
MERS 7-12THOLLOW SHAFT ENCODER |
1,183 |
|
Datasheet |
MERS7 | Tape & Reel (TR) | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Pulse | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
MERS 7-24THOLLOW SHAFT ENCODER |
1,189 |
|
Datasheet |
MERS7 | Tape & Reel (TR) | Active | - | Mechanical | 24 | 5V | Hole for Shaft | Pulse | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC12D1524406INSULATED SHAFT ENCODERS |
1,234 |
|
Datasheet |
EC12D | Tray | Active | - | Incremental | 15 | 5V | 12mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4015K-N0018ROTARY ENCODER |
880 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
