Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEAT-9014-S06MAG ABS 14BITS SSI KIT 6MM SHAFT |
248 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AEAT-9016-S06MAG ABS 16BITS SSI KIT 6MM SHAFT |
280 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EMS22A50-M25-LD6ROTARY ENCODER MAGNETIC 1024PPR |
4,592 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 1024 | 5V | 6mm Dia Flatted End | Binary (Absolute) | No | - | Panel Mount | Vertical | PC Pin | - | - | - |
|
|
HEDS-5500#H14ROTARY ENCODER OPTICAL 400PPR |
180 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 400 | 5V | 5mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#C06ROTARY ENCODER OPTICAL 100PPR |
3,594 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/4" Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#F06ROTARY ENCODER OPTICAL 256PPR |
1,066 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 256 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5645#H06ROTARY ENCODER OPTICAL 400PPR |
4,730 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 400 | 5V | 1/4" Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#C06ROTARY ENCODER OPTICAL 100PPR |
1,518 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#I12ROTARY ENCODER OPTICAL 512PPR |
1,067 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 512 | 5V | 6mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A02ROTARY ENCODER OPTICAL 500PPR |
4,787 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | 3mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9018-S06MAG ABS 18BITS SSI KIT 6MM SHAFT |
136 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HEDM-5500#B13ROTARY ENCODER OPTICAL 1000PPR |
4,126 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | 1000 | 5V | 8mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5500#G05ROTARY ENCODER OPTICAL 360PPR |
2,797 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 360 | 5V | 3/16" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

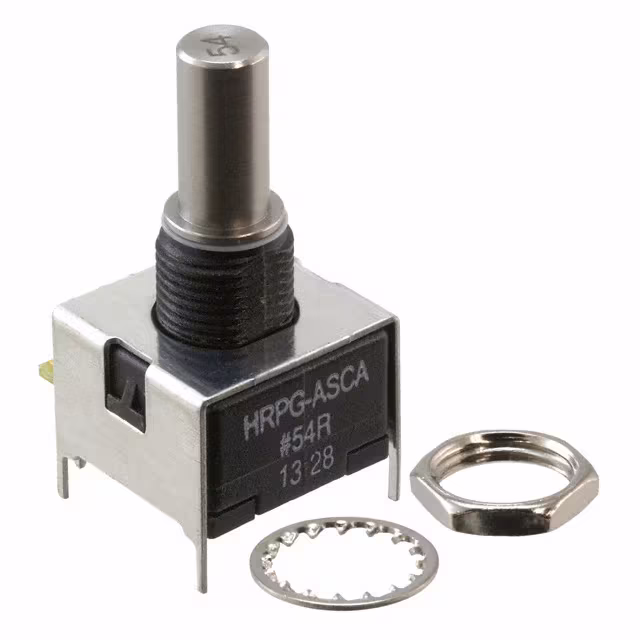

HRPG-ASCA#54RROTARY ENCODER OPTICAL 120PPR |
149 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | 120 | 5V | 6mm Dia Round End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5540#A14ROTARY ENCODER OPTICAL 500PPR |
139 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | 500 | 5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16RROTARY ENCODER OPTICAL 32PPR |
142 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AS20-M42M-K1120MM KITS 42B MT 5V 4MM RS485 |
117 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | 4.5V ~ 5.5V | Hole for Shaft | - | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-B1120MM KITS 42B MT 5V 4MM BISS |
118 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | 4.5V ~ 5.5V | Hole for Shaft | - | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AR25-AS1P-A18TPCBA CW 12MMTHRU H,SSI/485/ESL |
1,674 |
|
Datasheet |
- | Tray | Active | Not Verified | Optical | - | - | - | Digital, SSI | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

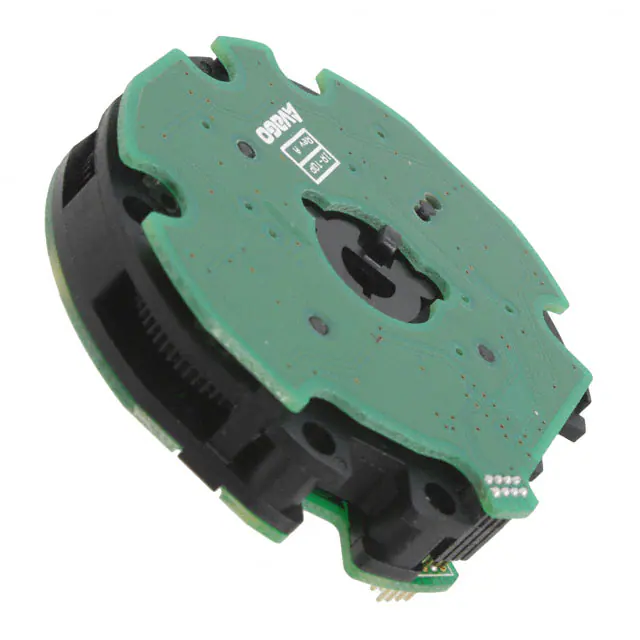

AEAT-84AD-LBSF0ROTARY ENCODER OPTICAL 16384PPR |
4,732 |
|
Datasheet |
AEAT-84AD | Bulk | Active | Not Verified | Optical | 16384 | 5V | 10mm Geared Center | Gray Code (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
