Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ16NBR1E-15KQA1-24CROTARY ENCODER INCREMENT 24PPR |
3,666 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ACZ16BR1E-20KQD1-24CROTARY ENCODER INCREMENT 24PPR |
967 |
|
Datasheet |
ACZ16 | Bulk | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ09BR2E-15KQA1-20C10PROTARY ENCODER INCREMENT 10PPR |
3,069 |
|
Datasheet |
ACZ09 | Box | Active | Not Verified | Incremental | 10 | 5V | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
KR9600-054KEYBOARD ENCODER |
1,499 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR9600-STDLJPKEYBOARD ENCODER |
3,037 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DPL12V2424A24KGDPL12 24P 24DET 24K GREEN |
3,349 |
|
Datasheet |
- | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR9600-010BIKEYBOARD ENCODER |
763 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DPL12SH2424A21F1LED ENCODER 12MM HORIZ SW BL/GR |
2,538 |
|
Datasheet |
- | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3499MAG ENC PAIR KIT 20D GEARMTRS |
243 |
|
Datasheet |
- | - | Active | Not Verified | Magnetic | 20 | 2.7V - 18V | External Magnet, Not Included | Digital, Quadtrature | No | No | Servo Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
3081MAG ENC PAIR KIT MICRO GEARMTRS |
220 |
|
Datasheet |
- | - | Active | Not Verified | Magnetic | 12 | 2.7V - 18V | External Magnet, Not Included | Digital, Quadtrature | No | No | Servo Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
1523MAG ENC PAIR KIT MINI GEARMTRS |
197 |
|
Datasheet |
- | - | Active | Not Verified | Magnetic | 12 | 2.7V - 18V | External Magnet, Not Included | Digital, Quadtrature | No | No | Servo Mount | Right Angle | Surface Mount (SMD,SMT) | - | - | - |
|
AEAT-8811-Q24ENHANCE PROG 16BITS IC MAGNETIC |
886 |
|
Datasheet |
- | Tube | Last Time Buy | Not Verified | Magnetic | Programmable | 4.5V ~ 5.5V | External Magnet, Not Included | Commutation, PWM, SPI, Quadrature with index (Incremental) | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
KR2376-012PKEYBOARD ENCODER |
181 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2590MICRO GEARMTR 2PK OPTICL ENC KIT |
123 |
|
Datasheet |
- | - | Active | Not Verified | Optical | 12 | 5V | Hole for Shaft | Digital, Quadtrature | No | No | Servo Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
|
KR2376-008BICDKEYBOARD ENCODER |
145 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ENC-01MOTOR ENCODER (SET OF 2) |
737 |
|
Datasheet |
- | Retail Package | Active | Not Verified | Mechanical | - | 4.5V ~ 24V | - | - | No | No | Chassis Mount, Motors | - | - | - | - | - |
|
|
25LB15-Q-ZROTARY ENCODER MECHANICAL 24PPR |
1,644 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 24 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
61C00-01-04-02ROTARY ENCODER OPTICAL |
3,607 |
|
Datasheet |
61C | Bulk | Active | Not Verified | Optical | - | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

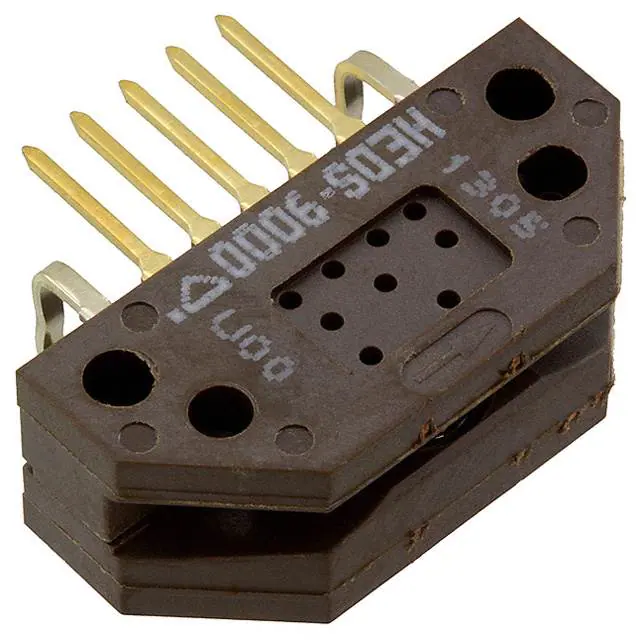

HEDS-9000#U00ROTARY ENCODER OPTICAL 2048PPR |
226 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 2048 | 5V | Codewheel Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
E8T-512-197-S-D-D-2E8T MINIATURE OPTICAL KIT ENCODE |
3,142 |
|
Datasheet |
- | Bulk | Active | Not Verified | Incremental | 512 | 4.5V ~ 5.5V | - | Quadrature (Incremental) | No | No | Surface Mount | Horizontal | Connector | - | - | - |
