Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-VEMF0324BROTARY ENCODER MECHANICAL 24PPR |
3,946 |
|
Datasheet |
EVQV | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW1J-B24-BC0024ROTARY ENCODER MECHANICAL 24PPR |
1,767 |
|
Datasheet |
ECW | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 1/4" Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

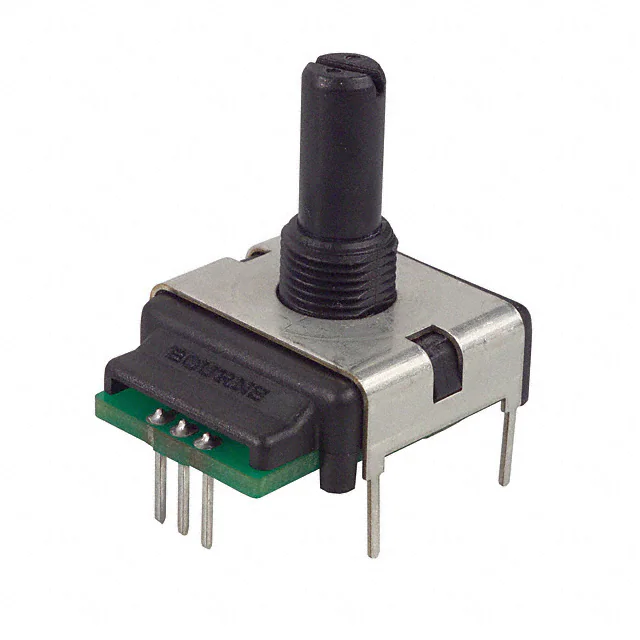

ECW1D-B24-BC0024ROTARY ENCODER MECHANICAL 24PPR |
3,995 |
|
Datasheet |
ECW | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 1/4" Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ENA1J-B28-L00064ROTARY ENCODER OPTICAL 64PPR |
1,675 |
|
Datasheet |
EN | Bulk | Obsolete | Not Verified | Optical | 64 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
ENA1J-B28-L00100ROTARY ENCODER OPTICAL 100PPR |
3,392 |
|
Datasheet |
EN | Bulk | Obsolete | Not Verified | Optical | 100 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
ENA1J-B28-L00128ROTARY ENCODER OPTICAL 128PPR |
2,935 |
|
Datasheet |
EN | Bulk | Obsolete | Not Verified | Optical | 128 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
ENC1J-D28-L00128ROTARY ENCODER OPTICAL 128PPR |
3,498 |
|
Datasheet |
EN | Bulk | Obsolete | Not Verified | Optical | 128 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
ENS1J-B28-L00256ROTARY ENCODER OPTICAL 256PPR |
3,688 |
|
Datasheet |
EN | Bulk | Obsolete | Not Verified | Optical | 256 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
EVQ-WKA001ROTARY ENCODER MECHANICAL 15PPR |
2,947 |
|
Datasheet |
EVQWK | Tape & Reel (TR) | Obsolete | Not Verified | Mechanical | 15 | - | Thumbwheel | Quadrature (Incremental) | Yes | Yes | PCB, Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|

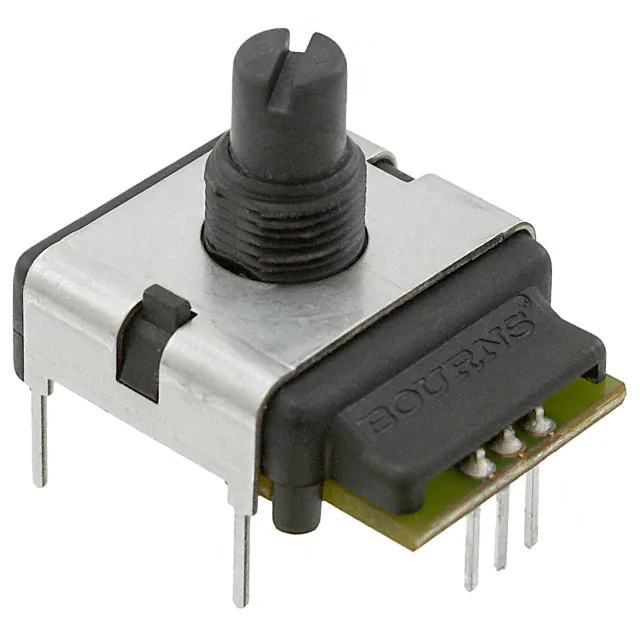

ECW1J-B16-BC0024ROTARY ENCODER MECHANICAL 24PPR |
2,669 |
|
Datasheet |
ECW | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 1/4" Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVE-GA1F1724MROTARY ENCODER MECHANICAL 24PPR |
3,503 |
|
Datasheet |
EVEG | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-GA1F2024BROTARY ENCODER MECHANICAL 24PPR |
4,512 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
288XAA5K162A2ROTARY ENCODER MECHANICAL 16PPR |
3,049 |
|
Datasheet |
288 | Bulk | Active | Not Verified | Mechanical | 16 | - | 6mm Dia Knurled End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
EVQ-WK4001ROTARY ENCODER MECHANICAL 15PPR |
4,710 |
|
Datasheet |
EVQWK | Bulk | Obsolete | Not Verified | Mechanical | 15 | - | Thumbwheel | Quadrature (Incremental) | Yes | Yes | PCB, Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
ECW0J-B36-BC0006ROTARY ENCODER MECHANICAL 6PPR |
1,403 |
|
Datasheet |
ECW | Bulk | Obsolete | Not Verified | Mechanical | 6 | - | 1/4" Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EVE-GA1F2012BROTARY ENCODER MECHANICAL 12PPR |
3,886 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

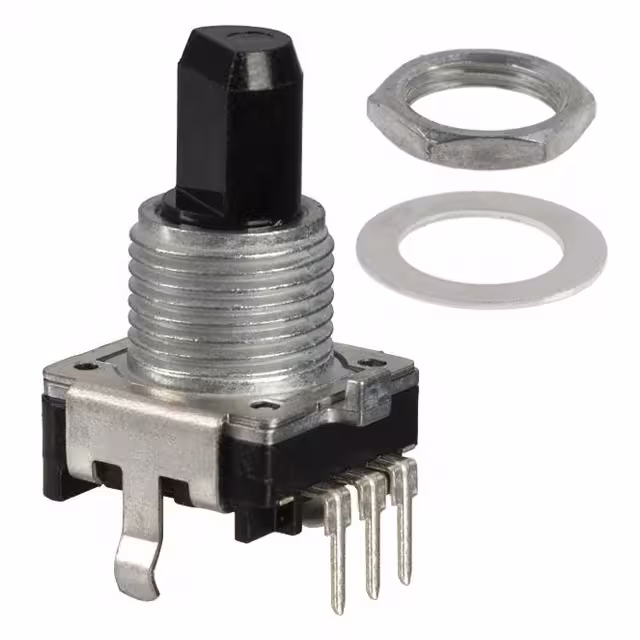

EVE-GC1F2012BROTARY ENCODER MECHANICAL 12PPR |
2,223 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-GE1F2012BROTARY ENCODER MECHANICAL 12PPR |
2,458 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-KC2F2024BROTARY ENCODER MECHANICAL 24PPR |
4,621 |
|
Datasheet |
EVEK | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
EVE-KE2F2024BROTARY ENCODER MECHANICAL 24PPR |
2,732 |
|
Datasheet |
EVEK | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
