Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5600#C12ROTARY ENCODER OPTICAL 100PPR |
1,186 |
|
Datasheet |
HEDS | - | Obsolete | Not Verified | Optical | 100 | 5V | 6mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
ENT1J-D20-L00256ROTARY ENCODER OPTICAL 256PPR |
4,509 |
|
Datasheet |
EN | - | Obsolete | Not Verified | Optical | 256 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
|
HEDS-5700#C10ROTARY ENCODER OPTICAL 100PPR |
1,985 |
|
Datasheet |
HEDS | - | Obsolete | Not Verified | Optical | 100 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | Yes | No | Panel Mount | Vertical | Terminal Pins | 1M | - | - |
|
|
EVE-GC1F2024BROTARY ENCODER MECHANICAL 24PPR |
3,402 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
62P22-H4SROTARY ENCODER OPTICAL 16PPR |
2,053 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-H0SROTARY ENCODER OPTICAL 16PPR |
3,060 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-H6SROTARY ENCODER OPTICAL 16PPR |
4,142 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
62P22-L0SROTARY ENCODER OPTICAL 16PPR |
2,531 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-L4SROTARY ENCODER OPTICAL 16PPR |
3,230 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-L6SROTARY ENCODER OPTICAL 16PPR |
3,556 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|

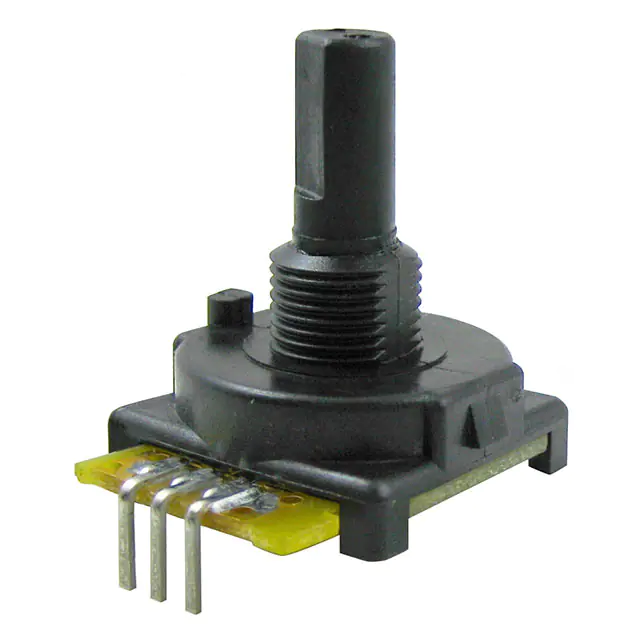

510E1A48F204PBROTARY ENCODER MECHANICAL 4PPR |
3,090 |
|
Datasheet |
510 | Bulk | Obsolete | Not Verified | Mechanical | 4 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

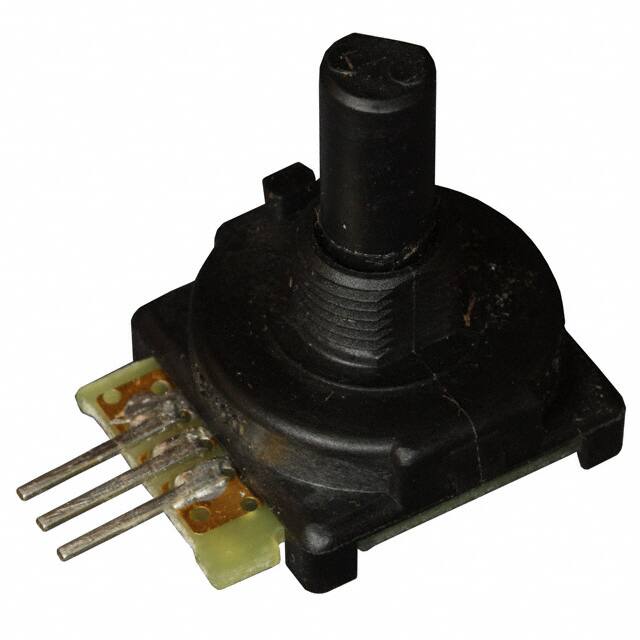

510E1A48F206PBROTARY ENCODER MECHANICAL 6PPR |
3,785 |
|
Datasheet |
510 | Bulk | Obsolete | Not Verified | Mechanical | 6 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
510E1A48F209PCROTARY ENCODER MECHANICAL 9PPR |
4,656 |
|
Datasheet |
510 | Bulk | Obsolete | Not Verified | Mechanical | 9 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

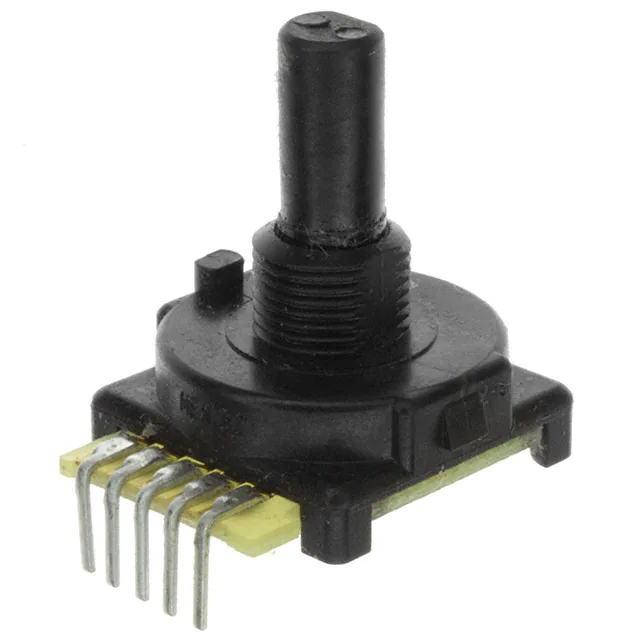

510E1A48F416PCROTARY ENCODER MECHANICAL 16PPR |
2,923 |
|
Datasheet |
510 | Bulk | Obsolete | Not Verified | Mechanical | 16 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

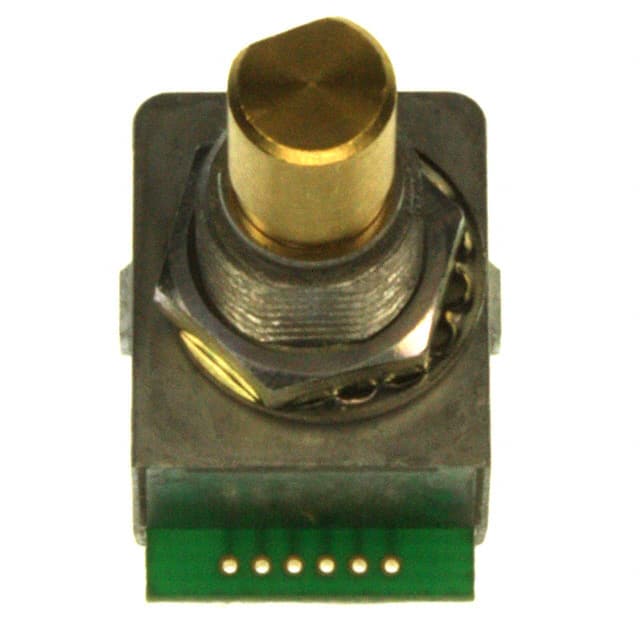

C14N32P-A3ROTARY ENCODER OPTICAL 32PPR |
3,648 |
|
Datasheet |
C14 | Box | Obsolete | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
EVQ-V0B00115BROTARY ENCODER MECHANICAL 15PPR |
4,472 |
|
Datasheet |
EVQV0 | Tray | Obsolete | Not Verified | Mechanical | 15 | - | 60mm Open Center | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
AEAS-7000-1GSG0ROTARY ENCODER OPTICAL 1024PPR |
2,417 |
|
Datasheet |
AEAS-7000 | Bulk | Obsolete | Not Verified | Optical | 1024 | 5V | 10mm Dia Flatted End | Gray Code (Absolute) | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
|

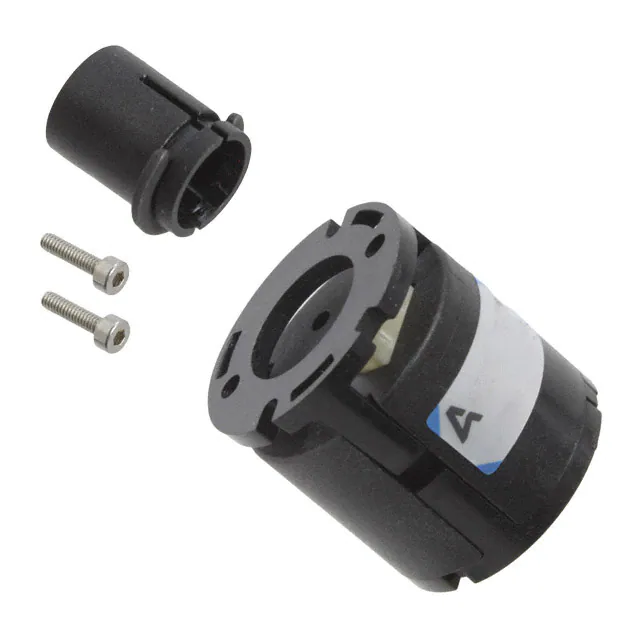

AEAT-6012-A06ROTARY ENCODER MAGNETIC 4096PPR |
1,670 |
|
Datasheet |
AEAT-60xx | Bulk | Obsolete | Not Verified | Magnetic | 4096 | 5V | 6mm Dia Round End | Binary (Absolute) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-86AD-LASC0ROTARY ENCODER OPTICAL 4096PPR |
4,099 |
|
Datasheet |
AEAT-86AD | Bulk | Obsolete | Not Verified | Optical | 4096 | 5V | 10mm Geared Center | Binary (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|
|
AEAT-86AD-LASF0ROTARY ENCODER OPTICAL 16384PPR |
2,484 |
|
Datasheet |
AEAT-86AD | Bulk | Obsolete | Not Verified | Optical | 16384 | 5V | 10mm Geared Center | Binary (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
