Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMT303LD-VROTARY ENCODER INCREMENT 250PPR |
1,077 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 250 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 400PPR |
1,038 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 400 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 500PPR |
4,961 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 500 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 512PPR |
4,690 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 512 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 800PPR |
3,567 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 800 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 1000PPR |
2,765 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 1000 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 1024PPR |
2,126 |
|
Datasheet |
AMT303 | Box | Obsolete | Verified | Incremental | 1024 | 5V | 2mm ~ 8mm Open Center | Commutation, CW, 2 Pole, with Line Driver | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
EVE-GA1F2224BROTARY ENCODER MECHANICAL 24PPR |
1,333 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
AS5140H-ASSTROTARY ENCODER MAGNETIC 512PPR |
3,288 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Not Verified | Magnetic | 512 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | PWM | No | No | Surface Mount | - | SMD (SMT) Tab | - | AEC-Q100 | Automotive |
|
EVE-GC2F2524MROTARY ENCODER MECHANICAL 24PPR |
3,443 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-KD2F3024MROTARY ENCODER MECHANICAL 24PPR |
2,353 |
|
Datasheet |
EVEK | Bulk | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|

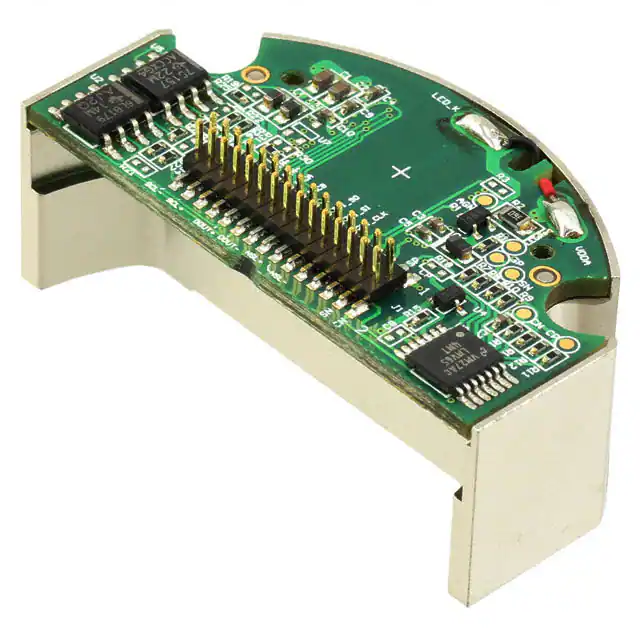

AEAT-9000-1GSH0ROTARY ENCODER OPTICAL 2048PPR |
4,434 |
|
Datasheet |
- | Bulk | Obsolete | Not Verified | Optical | 2048 | 5V | - | Binary (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

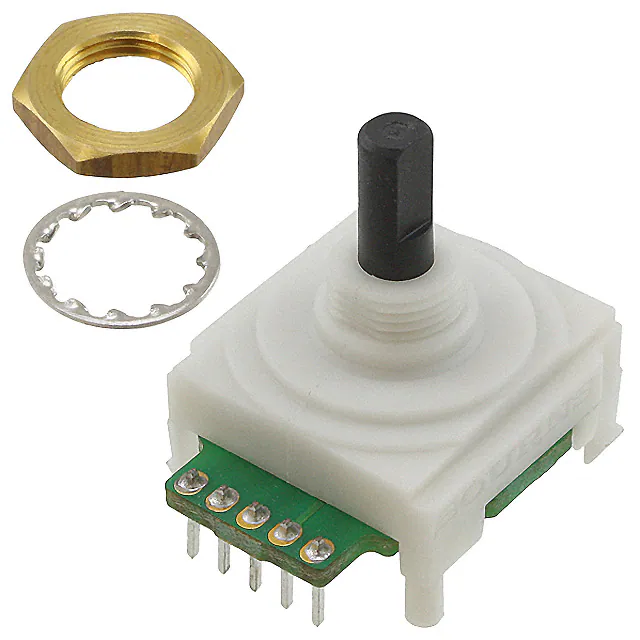

EPS1D-F19-AE0036LROTARY ENCODER MECHANICAL 36PPR |
2,112 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | 36 | - | 4.8mm Dia Flatted End | Quadrature (Incremental) | No | Yes | PCB, Surface Mount | Vertical | PC Pin | 200K | - | - |
|

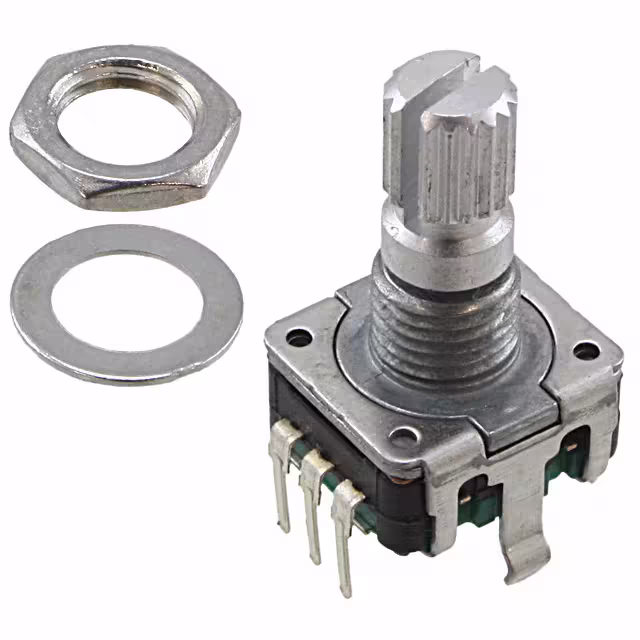

PEC11-4215K-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,261 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4220F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,966 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
4,050 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4220K-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,350 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4117F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,604 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,968 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-B24-EC0024LROTARY ENCODER MECHANICAL 24PPR |
1,028 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 24 | - | 1/4" Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
