Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC12-4217F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,237 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

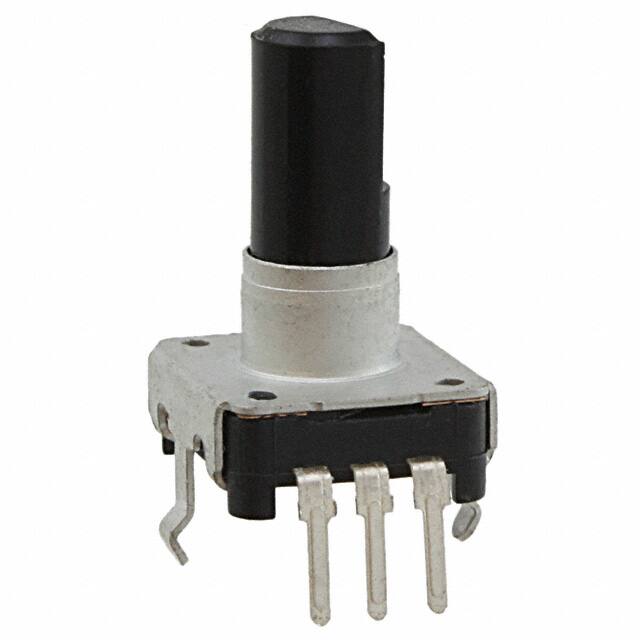

PEC12-4220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
4,103 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,805 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
3,716 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4015F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,166 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

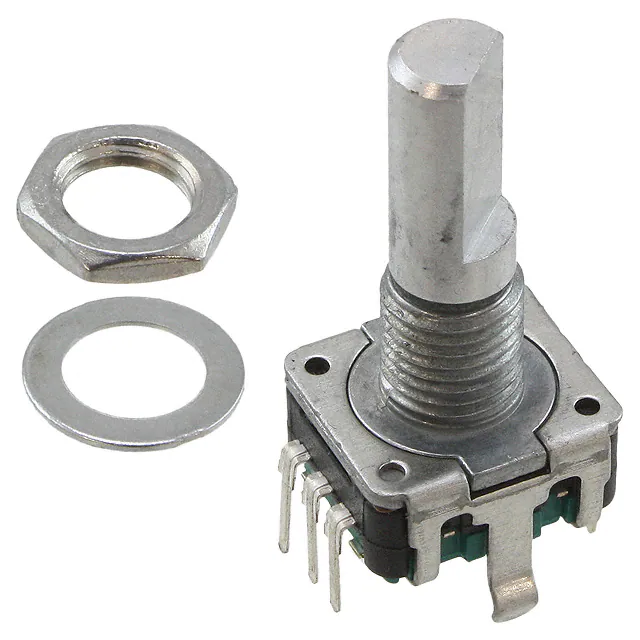

PEC11-4020F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,683 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4215F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,917 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
2,538 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4225F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,939 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4125F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,081 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12-4225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,589 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

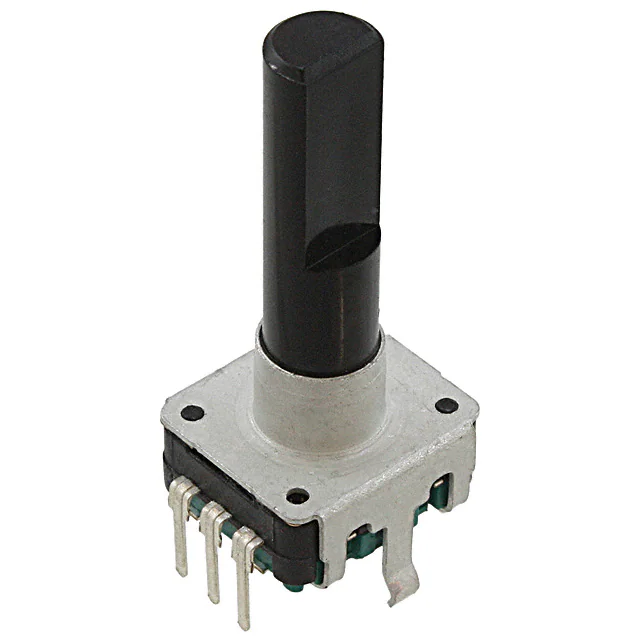

PEC12-4230F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,703 |
|
Datasheet |
PEC12 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4115F-S0018ROTARY ENCODER MECHANICAL 18PPR |
2,746 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4215F-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,623 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
3,879 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4215F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,526 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
5011000ROTARY ENCODER MECH 1000PPR |
3,993 |
|
Datasheet |
- | Box | Obsolete | Not Verified | Mechanical | 1000 | 5V ~ 28V | 3/8" Dia Flatted End | Digital, Open Collector | - | - | - | - | Cable | - | - | - |
|
PEC11-4015K-N0024ROTARY ENCODER MECHANICAL 24PPR |
3,387 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4015K-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,959 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4020F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,633 |
|
Datasheet |
PEC11 | Tray | Obsolete | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
