| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5600#E06ROTARY ENCODER OPTICAL 200PPR |
1,248 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 200 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

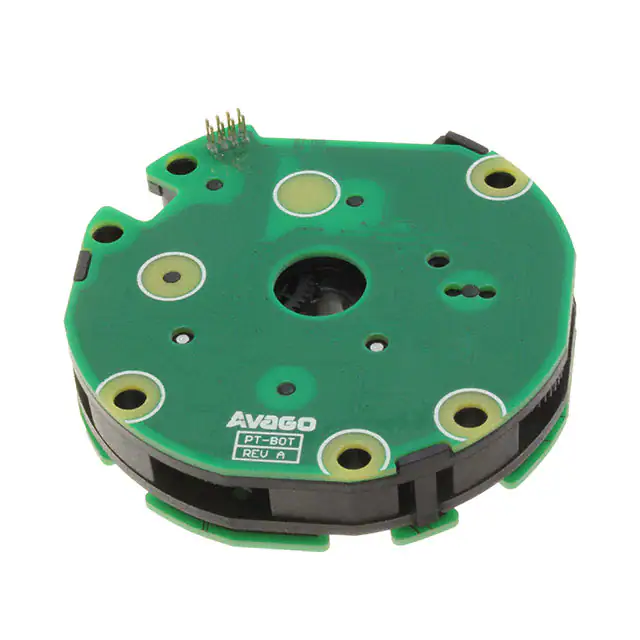

AEAT-84AD-LBSC0ROTARY ENCODER OPTICAL 4096PPR |
4,751 |
|
Datasheet |
AEAT-84AD | Bulk | Active | Not Verified | Optical | 4096 | 5V | 10mm Geared Center | Gray Code (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

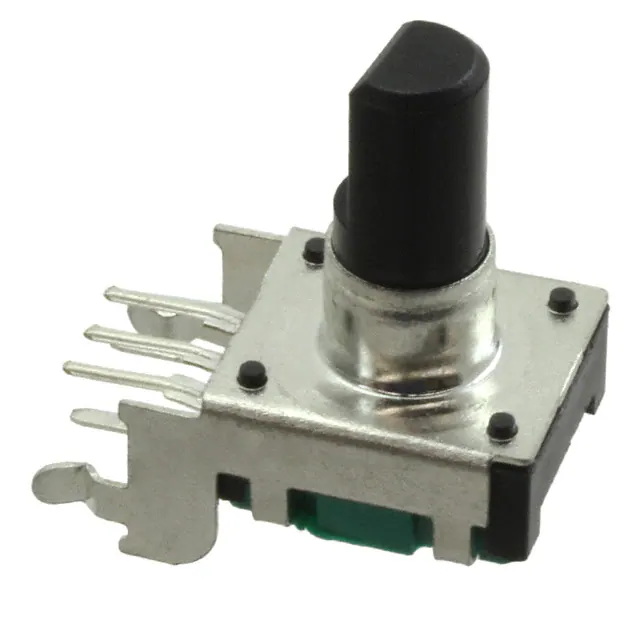

PEC12R-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
3,012 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC12R-3222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,806 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

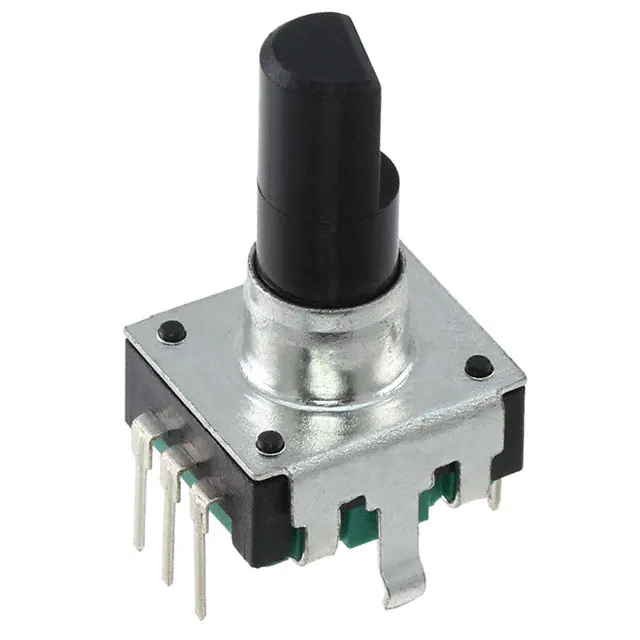

PEC12R-4222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,997 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
RIC11-22S16D5M-THINCR ENC, MECH, 20 PPR 20 DET, 5 |
4,565 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | 20 | 5V | 6mm Dia Flatted End | Quadrature, 2-Bit | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC05E1220202THROUGH SHAFT ENCODERS |
2,837 |
|
Datasheet |
EC05E | Tape & Reel (TR) | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
EVQ-V9C00116EROTARY ENCODER MECHANICAL 16PPR |
3,492 |
|
Datasheet |
- | Bulk | Active | Not Verified | Absolute | 16 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | - | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11H-4115F-S0020ROTARY ENCODER WITH BALL/SPRING |
3,946 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEL12D-4225S-S2024ROTARY ENCODER MECHANICAL 24PPR |
2,111 |
|
Datasheet |
PEL12D | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End, Illuminated | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC11E09244BSMETAL SHAFT ENCODERS |
4,511 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | 9 | 5V | 4.5mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC28A1870401RING TYP ENCODERS |
4,254 |
|
Datasheet |
EC28A | Tray | Active | - | - | 18 | 5V | 28mm Open Center | - | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW1J-C24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
4,434 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 24 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
PEC11D-4120F-S0015ROTARY ENCDER WITH DUAL CONCENTR |
4,408 |
|
Datasheet |
PEC11D | Tray | Active | Not Verified | Mechanical | 15 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
292V1X00AROTARY ENCODER OPTICAL 24PPR |
1,323 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | 24 | 4.95V ~ 5.5V | Hole for Shaft | Quadrature, 2-Bit | No | Yes | PCB, Through Hole | User Selectable | PC Pin | 3M | - | - |
|
62AG22-L5-PROTARY ENCODER OPTICAL 16PPR |
3,737 |
|
Datasheet |
62AG | Bulk | Active | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|
62AG22-H5-PROTARY ENCODER OPTICAL 16PPR |
1,102 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|

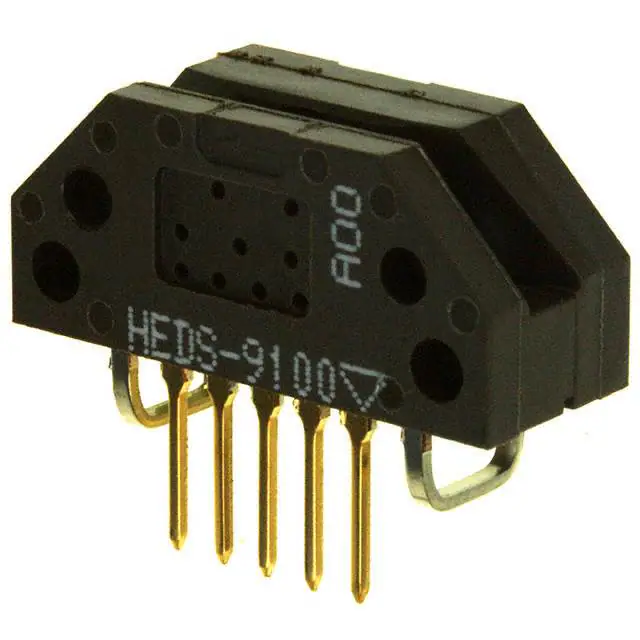

HEDS-9100#A00ROTARY ENCODER OPTICAL 500PPR |
4,464 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | Codewheel Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
ENA1J-B20-L00128LROTARY ENCODER OPTICAL 128PPR |
2,108 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 128 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22Q31-B28-LS3ROTARY ENCODER MAGNETIC 128PPR |
4,148 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 128 | 3.3V | 1/4" Dia Round End | Quadrature (Incremental) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
