| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENC1J-D28-L00064LROTARY ENCODER OPTICAL 64PPR |
4,215 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 64 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
HEDB-9100-C12ROTARY ENCODER OPTICAL 100PPR |
4,154 |
|
Datasheet |
HEDB-9100 | Bulk | Active | Not Verified | Optical | 100 | 5V | 6mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
HEDS-9140-B00ROTARY ENCODER OPTICAL 1000PPR |
3,126 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 1000 | 5V | Codewheel Not Included | Quadrature with Index (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
EMS22A50-D20-LT6ENCODER ROTARY MAGNETIC ABSOLUTE |
2,167 |
|
Datasheet |
EMS22A | Tray | Active | Not Verified | Magnetic | 1024 | 4.5V ~ 5.5V | 1/8" Dia Round End | Binary (Absolute) | No | No | Panel Mount | Vertical | PC Pin | 50M | - | - |
|
|
HEDM-5540-B11ROTARY ENCODER OPTICAL 1000PPR |
4,456 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | 1000 | 5V | 4mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
62N22-PROTARY ENCODER OPTICAL 16PPR |
2,781 |
|
Datasheet |
62N | Bulk | Active | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AEDL-5810-Z06ROTARY ENCODER OPTICAL 5000PPR |
3,537 |
|
Datasheet |
AEDL-5 | Tray | Active | Not Verified | Optical | 5000 | 4.5V ~ 5.5V | Shaft | Quadrature with Index (Incremental) | No | No | - | - | - | - | - | - |
|
63R32ROTARY ENCODER OPTICAL 32PPR |
4,342 |
|
Datasheet |
63R | Bulk | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
|
|
1069191ENCODER 3000PPR THRU HOLE SHAFT |
1,054 |
|
Datasheet |
- | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

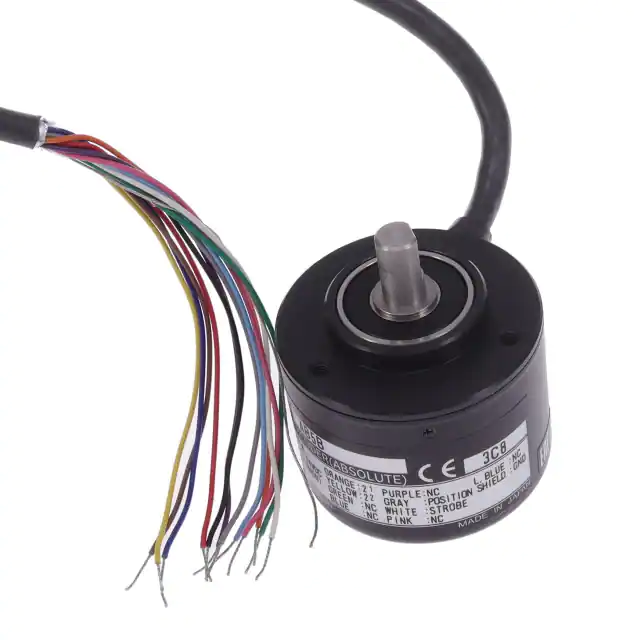

E6C3-AB5B 8P/R 2MROTARY ENCODER ABSOLUTE |
3,628 |
|
Datasheet |
E6C3-A | Bulk | Active | Not Verified | Absolute | - | - | - | - | - | - | - | - | Cable | - | - | - |
|
PEC11R-4025F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,405 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC05E1220401THROUGH SHAFT ENCODERS |
2,101 |
|
Datasheet |
EC05E | Tape & Reel (TR) | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11H-4225F-S0024ROTARY ENCODER WITH BALL/SPRING |
4,480 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11J-9220F-S001512 MM SMD INCREMENTAL ENCODER |
4,267 |
|
Datasheet |
PEC11J | Tray | Active | - | - | 15 | - | 6mm Dia Flatted End | Quadrature, 2-Bit | Yes | Yes | Surface Mount | Vertical | Gull Wing | 100K | - | - |
|
|
RING23-910205-TH10PPR 20DET, 5VDC, A/B, 2-BIT, 5 |
3,097 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RING23-920205-TH20PPR 20DET, 5VDC, A/B, 2-BIT, 5 |
1,046 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
COM-15141ROTARY ENCODER - ILLUMIN RGB |
2,938 |
|
Datasheet |
- | Bulk | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Flatted End | Gray Code (Absolute) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | - | - | - |
|
|
RING28-161530-TH15PPR 30DET, 5VDC, A/B, 2-BIT, 1 |
2,552 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RING35-203010-TH10PPR 30DET, 5VDC, A/B/C, 3-BIT, |
2,947 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EC35AH220502RING TYP ENCODERS |
2,080 |
|
Datasheet |
EC35A | Tray | Active | - | Incremental | 10 | 5V | 35mm Open Center | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
