| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-979433B-135-540-22FAN BLOWER 97.68X32.7MM 12VDC |
470 |
|
Datasheet |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 23.9 CFM (0.669m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 32.70mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.1dB(A) | 10.32 W | 3500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9S0612S4011FAN AXIAL 60X25MM 12VDC WIRE |
356 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
|
9S0612H4011FAN AXIAL 60X25MM 12VDC WIRE |
146 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 3900 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
CFM-A225V-122-340-20FAN AXIAL 120X25MM 12VDC WIRE |
739 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.94 W | 2200 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.357 lb (161.93 g) |
|
MR8032E24B-FSRFAN AXIAL 80X32MM 24VDC WIRE |
109 |
|
Datasheet |
MR8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 79.0 CFM (2.21m³/min) | 0.890 in H2O (221.7 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 50.4dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.32 lb (145.15 g) |
|
F8025E12B3-FSRFAN AXIAL 80X25MM 12VDC WIRE |
168 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 32.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
9S0912L4011FAN AXIAL 92X25MM 12VDC WIRE |
183 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 840 mW | 1750 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
|
9S0924L401FAN AXIAL 92X25MM 24VDC WIRE |
141 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 960 mW | 1750 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
OD6025-12HB01AFAN AXIAL 60X25MM 12VDC WIRE |
2,839 |
|
Datasheet |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.8 W | 3975 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|
109P0612K701FAN AXIAL 60X15MM 12VDC WIRE |
152 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.9 CFM (0.613m³/min) | 0.399 in H2O (99.3 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 3.12 W | 6500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.133 lb (60.33 g) |
|
CFM-8025BG-180-546-20FAN AXIAL 80X25.4MM 12VDC WIRE |
121 |
|
Datasheet |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.7dB(A) | 13.2 W | 8000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0824H4D01FAN AXIAL 80X25MM 24VDC WIRE |
228 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.68 W | 2900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
109P0412J301FAN AXIAL 40X28MM 12VDC WIRE |
137 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | - | 12500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.115 lb (52.16 g) |
|

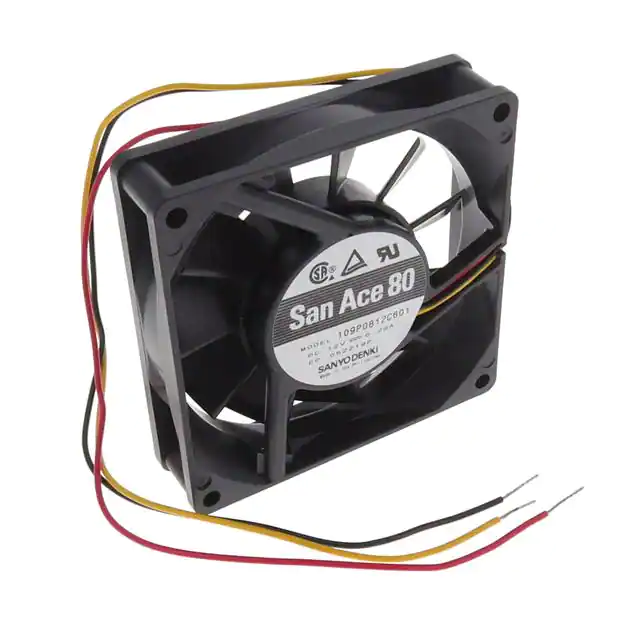

109P0812C601FAN AXIAL 80X20MM 12VDC WIRE |
137 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.8 CFM (1.06m³/min) | 0.185 in H2O (46.1 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.48 W | 3700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
9GA0412P3G011FAN AXIAL 40X28MM 12VDC WIRE |
167 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 4.68 W | 16500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
AFB0812VHBFAN AXIAL 80X15MM 12VDC WIRE |
267 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 39.2 CFM (1.10m³/min) | 0.188 in H2O (46.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 39.5dB(A) | 2.28 W | 3700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.128 lb (58.06 g) |
|

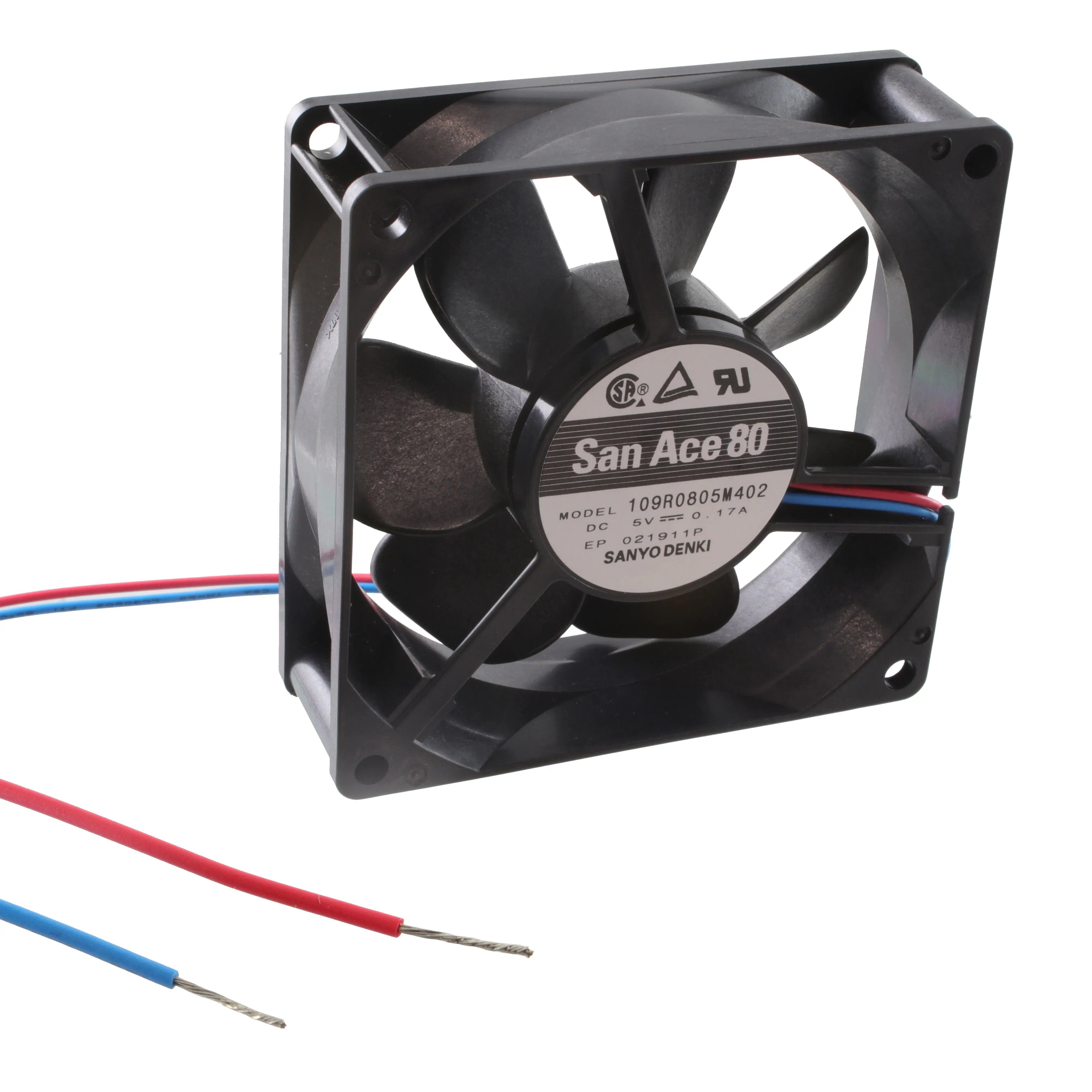

109R0805M402FAN AXIAL 80X25MM BALL 5VDC WIRE |
157 |
|
Datasheet |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 850 mW | 2350 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
109R0812F402FAN AXIAL 80X25MM 12VDC WIRE |
135 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.32 W | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

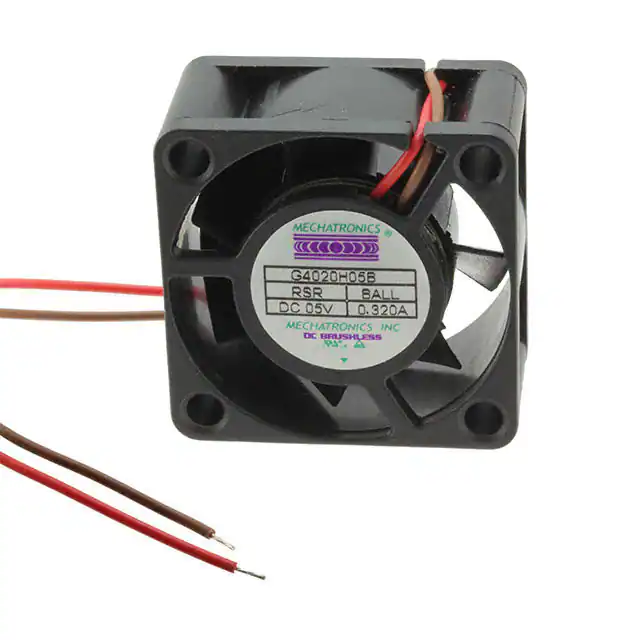

G4020H05B-RSR-EMFAN AXIAL 40X20MM BALL 5VDC WIRE |
422 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.062 lb (28.12 g) |
|
|
CFM-8025BG-260-484-20FAN AXIAL 80X25.4MM 24VDC WIRE |
374 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.4dB(A) | 7.2 W | 6000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
