| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0612J4021FAN AXIAL 60X25MM 12VDC WIRE |
181 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.64 W | 7600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
06015VE-24P-CT-00FAN AXIAL 60X15MM 24VDC WIRE |
166 |
|
Datasheet |
06015VE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.5dB(A) | 1.68 W | 5600 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
UF3H3-700BFAN AXIAL 17X3MM VAPO 3VDC WIRE |
1,126 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | 3.00mm | Tubeaxial | Auto Restart | 32.0dB(A) | 100 mW | 13000 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP58 - Dust Protected, Waterproof | 0.003 lb (1.36 g) |
|
06025VE-12Q-CT-00FAN AXIAL 60X25MM 12VDC WIRE |
105 |
|
Datasheet |
06025VE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 39.2 CFM (1.10m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.0dB(A) | 6 W | 9200 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|

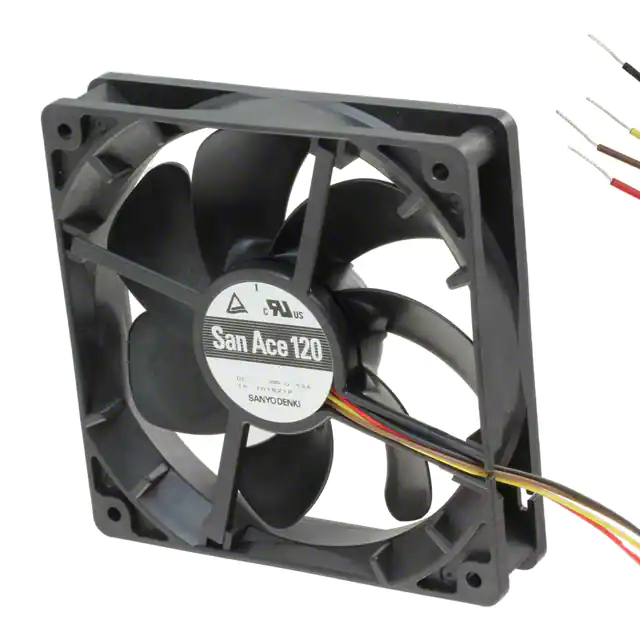

9S1212P4M011FAN AXIAL 119X25MM 12VDC WIRE |
302 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.56 W | 1850 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|

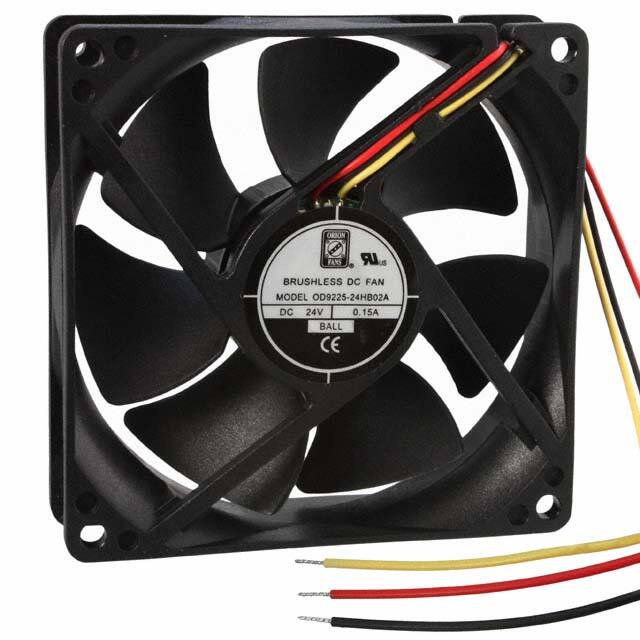

OD9225-24HB02AFAN AXIAL 92.5X25MM 24VDC WIRE |
103 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 53.0 CFM (1.48m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 35.0dB | - | 2900 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
FFB0412HHN-F00FAN AXIAL 40X28MM 12VDC WIRE |
726 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.2 CFM (0.370m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 1.32 W | 8000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
CFM-A238-13-20FAN AXIAL 120X38MM 12VDC WIRE |
2,137 |
|
Datasheet |
CFM-120 | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.5dB(A) | 21 W | 4600 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.656 lb (297.56 g) |
|
9G1248E401FAN AXIAL 119X25MM 48VDC WIRE |
238 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 7.68 W | 3650 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9WF0624H702FAN AXIAL 60X15MM 24VDC WIRE |
230 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.3 CFM (0.512m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 15.00mm | Tubeaxial | - | 44.0dB(A) | 2.88 W | 6800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.137 lb (62.14 g) |
|
OD9238-24HBFAN AXIAL 92.5X38MM 24VDC WIRE |
3,045 |
|
Datasheet |
OD9238 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 90.0 CFM (2.52m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 38.00mm | Tubeaxial | - | 50.0dB | 13.2 W | 4000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.463 lb (210.01 g) |
|
09225VA-12Q-AA-00FAN AXIAL 92X25MM 12VDC WIRE |
285 |
|
Datasheet |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 51.0dB(A) | 8.64 W | 5600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24K-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
169 |
|
Datasheet |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 35.5dB(A) | 2.64 W | 3200 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24Q-EA-00FAN AXIAL 92X25MM 24VDC WIRE |
108 |
|
Datasheet |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 51.0dB(A) | 9.12 W | 5600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
E1225E12B1-FSRFAN AXIAL 120X25MM 12VDC WIRE |
165 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
|
109R0612J4D01FAN AXIAL 60X25MM 12VDC WIRE |
123 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.64 W | 7600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.199 lb (90.26 g) |
|

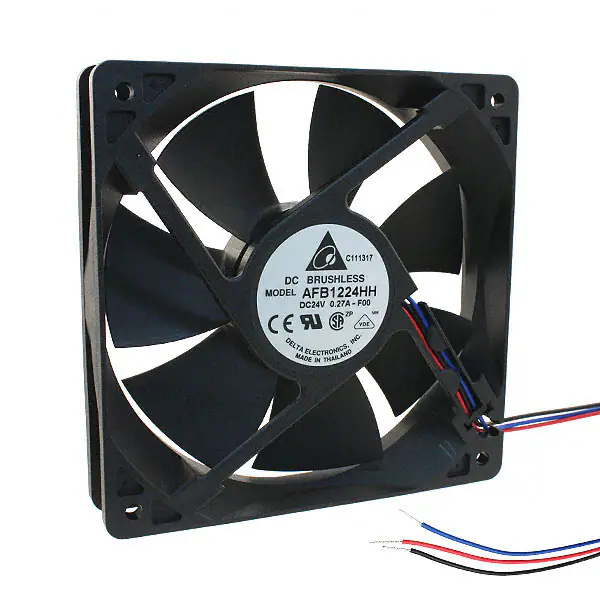

AFB1224HH-F00FAN AXIAL 120X25.4MM 24VDC WIRE |
1,342 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 4.32 W | 2800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|

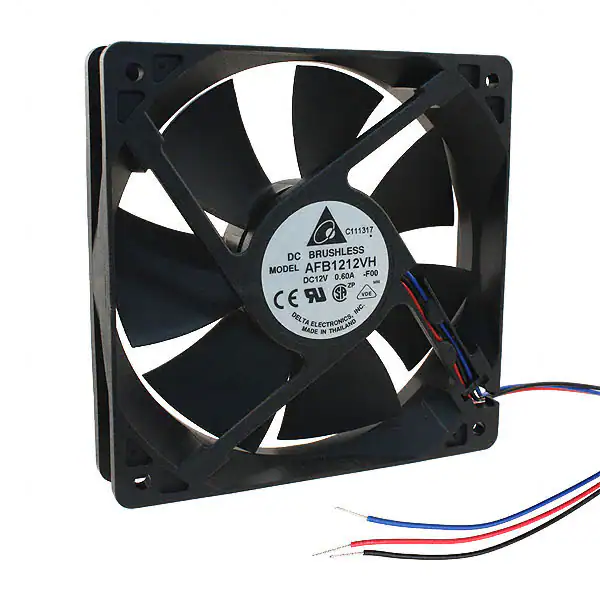

AFB1212VH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
274 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 103.8 CFM (2.91m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 4.8 W | 3100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
MD4028V12B1+6-FSRFAN AXIAL 40X28MM 12VDC WIRE |
251 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | cUL, TUV, UL | 4 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
9S1212L4011FAN AXIAL 119X25MM 12VDC WIRE |
114 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 960 mW | 1500 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
