| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0912P4G0011FAN AXIAL 92X25MM 12VDC WIRE |
141 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 4200 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

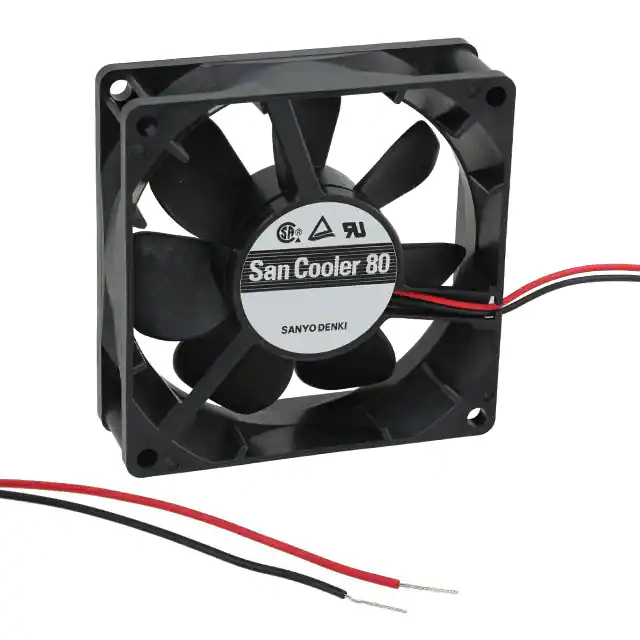

9A0812S402FAN AXIAL 80X25MM 12VDC WIRE |
101 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
FFB0912SH-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
325 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.396 in H2O (98.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 8.28 W | 4100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.286 lb (129.73 g) |
|

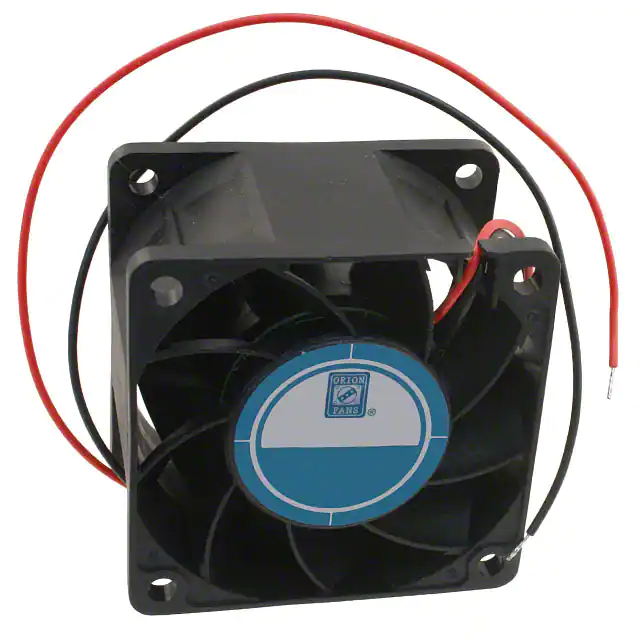

OD6038-12HBVXCFAN AXIAL 60X38MM 12VDC WIRE |
1,121 |
|
Datasheet |
OD6038 VA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 61.0 CFM (1.71m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 64.0dB | 17 W | 10000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

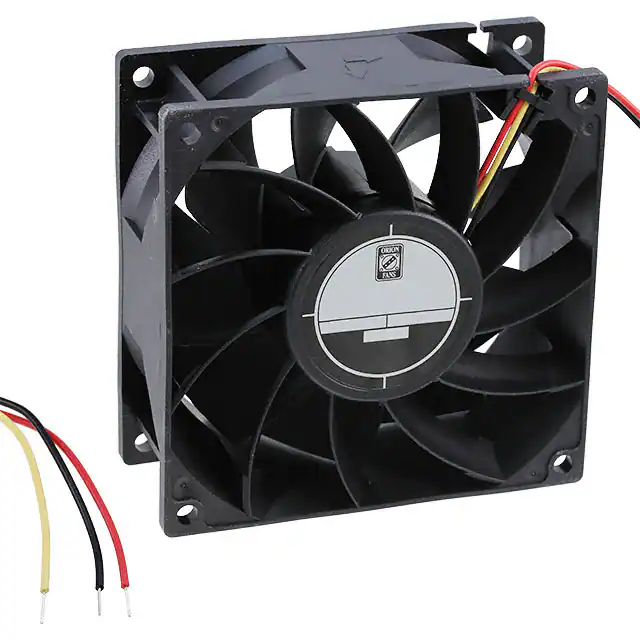

OD9238-24HB02AFAN AXIAL 92.5X38MM 24VDC WIRE |
605 |
|
Datasheet |
OD9238 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 90.0 CFM (2.52m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 50.0dB | 13.2 W | 4000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.463 lb (210.01 g) |
|
AFB1224HHFAN AXIAL 120X25.4MM 24VDC WIRE |
1,891 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 4.32 W | 2800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
AFB1212LFAN AXIAL 120X25.4MM 12VDC WIRE |
1,575 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 62.9 CFM (1.76m³/min) | 0.154 in H2O (38.4 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.68 W | 1900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
9G0912H202FAN AXIAL 92X32MM 12VDC WIRE |
130 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.76 W | 2850 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
UB3H3-500TCFAN BLOWER 17X3MM VAPO 3VDC WIRE |
178 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 0.218 CFM (0.006m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 12500 RPM | CE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.003 lb (1.36 g) |
|
F1238X24B1-FSR-L30FAN AXIAL 119X38MM 24VDC WIRE |
150 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | - | 3100 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.536 lb (243.13 g) |
|
9S1212M402FAN AXIAL 119X25MM 12VDC WIRE |
359 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | - | 24.0dB(A) | 1.56 W | 1850 RPM | CSA, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
MR8032E12B1+6-FSRFAN AXIAL 80X32MM 12VDC WIRE |
105 |
|
Datasheet |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.0 CFM (2.21m³/min) | 0.890 in H2O (221.7 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.4dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.32 lb (145.15 g) |
|
405F/2HFAN AXIAL 40X10MM 5VDC WIRE |
182 |
|
Datasheet |
400F | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | - | Sintec | 10.00mm | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 900 mW | 6000 RPM | CSA, UL, VDE | 3 Wire Leads | - | - | 0.038 lb (17.24 g) |
|
G1225H12B4-FSRFAN AXIAL 120X25MM 12VDC WIRE |
249 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 38.0dB(A) | - | 2400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
9S1212M401FAN AXIAL 119X25MM 12VDC WIRE |
218 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.56 W | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|

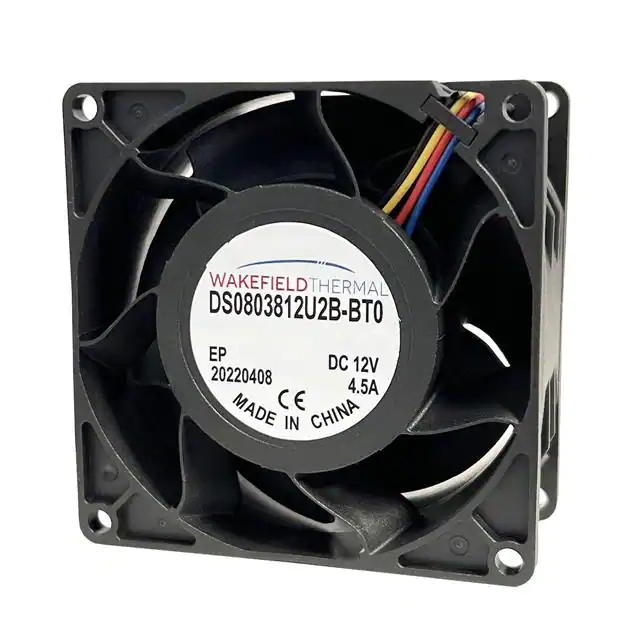

DS0803812U2B-BT0FAN AXIAL 80X38MM 12VDC WIRE |
355 |
|
Datasheet |
DS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 123.6 CFM (3.46m³/min) | 4.383 in H2O (1091.8 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 50.4 W | 15000 RPM | CE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

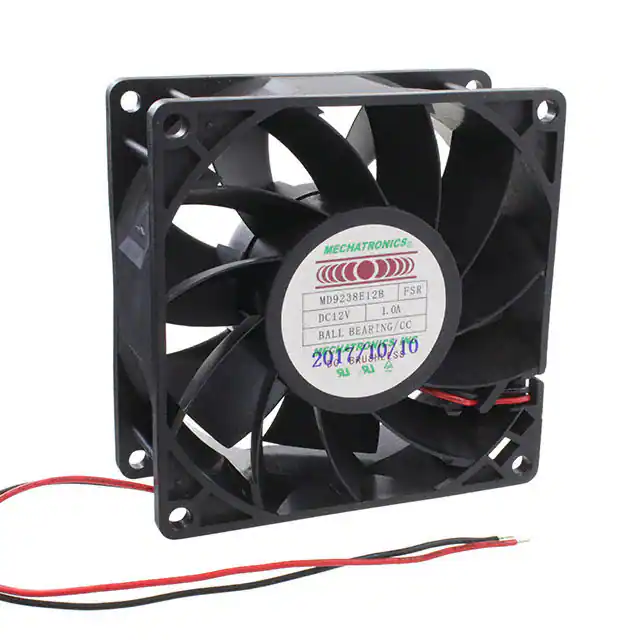

MD9238E12B-FSR-CCFAN AXIAL 92X38MM 12VDC WIRE |
138 |
|
Datasheet |
MD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 38.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | CE, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
UB3H3-500BFAN BLOWER 17X3MM VAPO 3VDC WIRE |
801 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 0.218 CFM (0.006m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 12500 RPM | CE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP58 - Dust Protected, Waterproof | 0.003 lb (1.36 g) |
|
AFB1224M-F00FAN AXIAL 120X25.4MM 24VDC WIRE |
616 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 2.88 W | 2200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
FFB0948VHFAN AXIAL 92X25.4MM 48VDC WIRE |
1,817 |
|
Datasheet |
FFB | Box | Active | 48VDC | Square - 92mm L x 92mm H | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 48.2dB(A) | 8.16 W | 3700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.286 lb (129.73 g) |
