| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

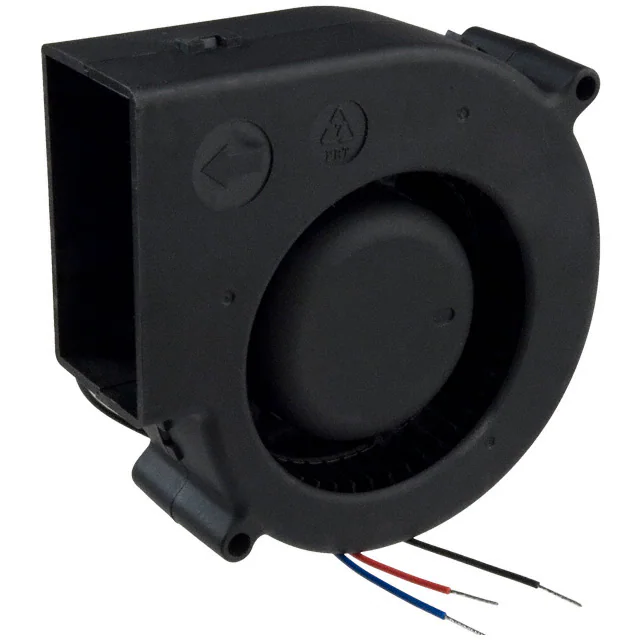

BFB1024H-F00FAN BLOWER 97.2X33MM 24VDC WIRE |
919 |
|
Datasheet |
BFB | Tray | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 9.6 W | 3600 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.353 lb (160.12 g) |
|
9G0624P4S016FAN AXL 60X25MM 24VDC RECT CONN |
328 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | - | 11000 RPM | - | 4 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
OD6025-48HBIP68FAN AXIAL 60X25MM 48VDC WIRE |
152 |
|
Datasheet |
OD6025 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 3.4 W | 3975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.141 lb (63.96 g) |
|
9G0924A201FAN AXIAL 92X32MM 24VDC WIRE |
987 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 7.2 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.375 lb (170.1 g) |
|
|
9G0924S201FAN AXIAL 92X32MM 24VDC WIRE |
314 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0912S201FAN AXIAL 92X32MM 12VDC WIRE |
118 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|

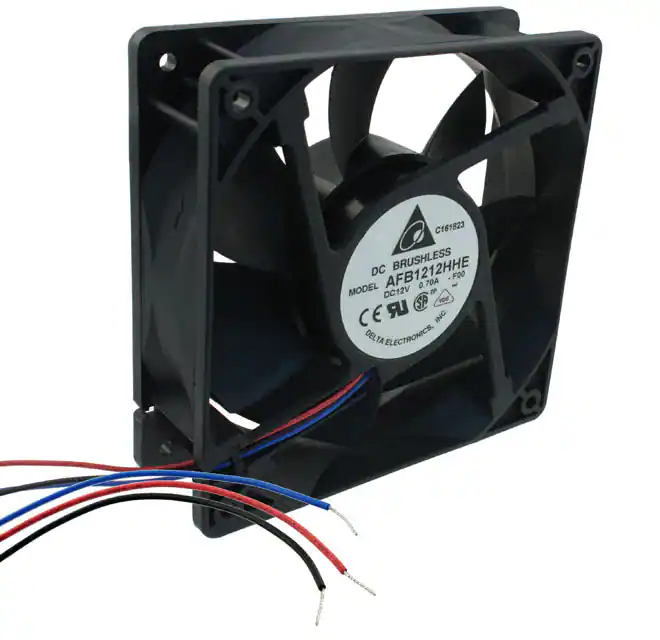

AFB1212HHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
1,419 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.52 W | 2900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
|

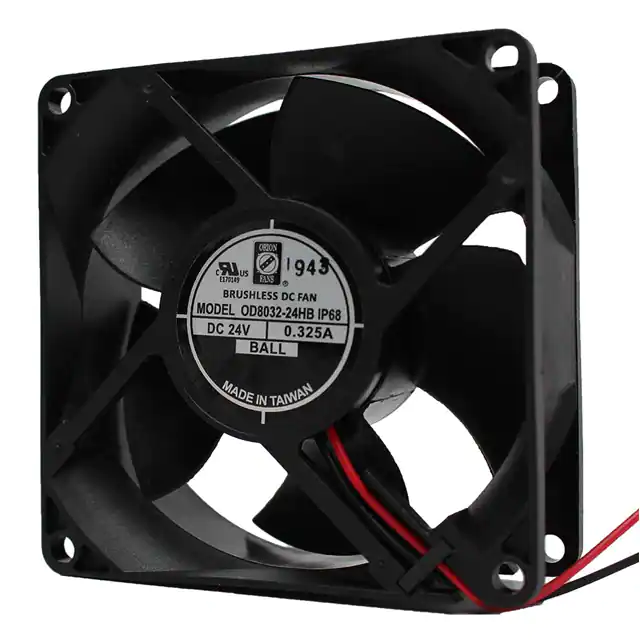

OD8032-24HBIP68FAN AXIAL 80X32MM 24VDC WIRE |
328 |
|
Datasheet |
OD8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | 0.730 in H2O (181.8 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 50.0dB | 7.8 W | 6000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.261 lb (118.39 g) |
|

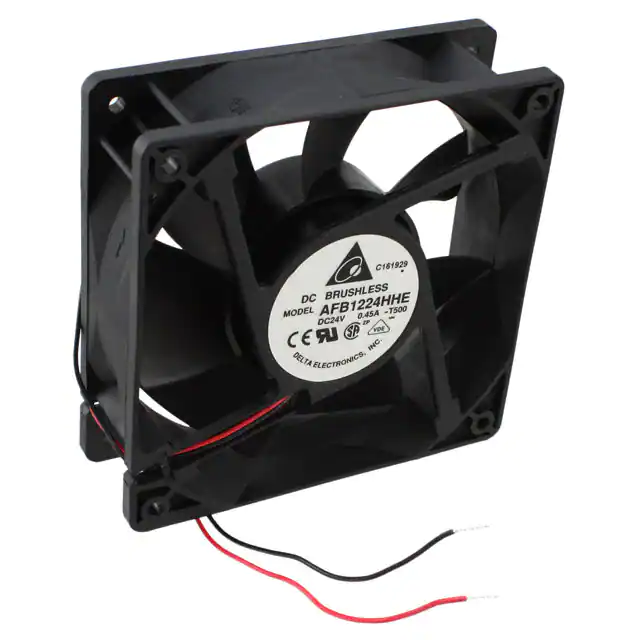

AFB1224HHE-T500FAN AXIAL 120X38MM 24VDC WIRE |
1,459 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 2900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.565 lb (256.28 g) |
|
OD8038-24HBIP68FAN AXIAL 80X38MM 24VDC WIRE |
557 |
|
Datasheet |
OD8038 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 69.4 CFM (1.94m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 49.0dB | 7.2 W | 5000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.461 lb (209.11 g) |
|
9G1224E102FAN AXIAL 119X38MM 24VDC WIRE |
564 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
PFB0612EHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
2,913 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 7.56 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
9G1224E1011FAN AXIAL 119X38MM 24VDC WIRE |
219 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
9S1212P4H01FAN AXIAL 120X25MM 12VDC WIRE |
130 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 86.5 CFM (2.42m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 4.68 W | 2700 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.309 lb (140.16 g) |
|
MS8038H24B1+6-FHRFAN AXIAL 80X38MM 24VDC WIRE |
101 |
|
Datasheet |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | - | 10000 RPM | - | 4 Wire Leads | - | - | 0.391 lb (177.35 g) |
|
|
04028DA-12V-A6K-G40X40X28MM, 12VDC, 29,500 RPM, 3 |
211 |
|
Datasheet |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 39.9 CFM (1.13m³/min) | 5.430 in H2O (1352.5 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 67.0dB | 36 W | 29500 RPM | CE, cULus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD9225-48HBIP68FAN AXIAL 92X25MM 48VDC WIRE |
180 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 32.0dB | 4.3 W | 2900 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.211 lb (95.71 g) |
|
9RA0912H4001FAN AXIAL 92X25MM 12VDC WIRE |
275 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.68 W | 3400 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
MR9238E12B1+6-FSRFAN AXIAL 92X38MM 12VDC WIRE |
146 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.437 lb (198.00 g) |
|
ODB7530-24HBFAN BLOWER 75X30MM 24VDC WIRE |
483 |
|
Datasheet |
ODB7530 | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 13.8 CFM (0.386m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 30.00mm | Blower | - | 41.7dB(A) | 4.8 W | 3400 RPM | cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
