| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9SG1224H102FAN AXIAL 119X38MM 24VDC WIRE |
1,530 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 142.0 CFM (3.98m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 11 W | 3400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
9SG1224P1G01FAN AXIAL 119X38MM 24VDC WIRE |
3,702 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
9SG1248G101FAN AXIAL 119X38MM 48VDC WIRE |
4,921 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
9SG1248P1G01FAN AXIAL 119X38MM 48VDC WIRE |
4,501 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|

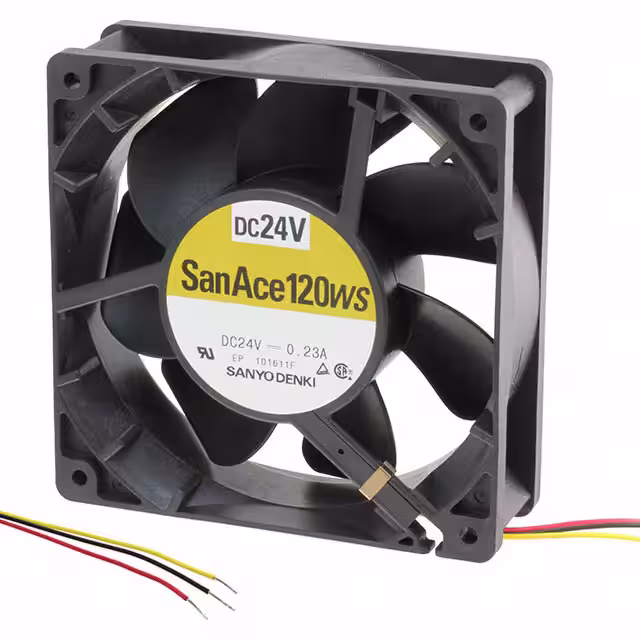

9WS1224H101FAN AXIAL 119X38MM 24VDC WIRE |
2,743 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.52 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP54 - Dust Protected, Water Resistant | 0.573 lb (259.91 g) |
|
CFM-9225-13-10FAN AXIAL 92X25.4MM 12VDC WIRE |
3,213 |
|
Datasheet |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 49.8dB(A) | 6 W | 4200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.212 lb (96.16 g) |
|
CFM-6015-13-20FAN AXIAL 60X15.4MM 12VDC WIRE |
2,835 |
|
Datasheet |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.0dB(A) | 2.64 W | 5100 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.089 lb (40.37 g) |
|
|
CFM-6015-13-22FAN AXIAL 60X15.4MM 12VDC WIRE |
3,535 |
|
Datasheet |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 2.64 W | 5100 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.089 lb (40.37 g) |
|
CFM-7010-13-20FAN AXIAL 70X10.6MM 12VDC WIRE |
4,171 |
|
Datasheet |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 10.60mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.6dB(A) | 3.24 W | 4400 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.083 lb (37.65 g) |
|
|
CFM-7010-13-22FAN AXIAL 70X10.6MM 12VDC WIRE |
1,250 |
|
Datasheet |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 10.60mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.6dB(A) | 3.24 W | 4400 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.083 lb (37.65 g) |
|

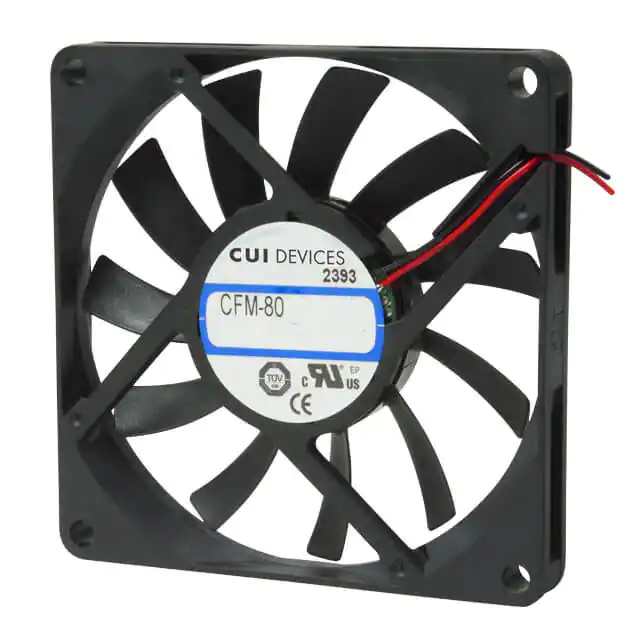

CFM-8015-13-20FAN AXIAL 80X15.4MM 12VDC WIRE |
4,736 |
|
Datasheet |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.8dB(A) | 2.88 W | 3500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|
|
CFM-9225-13-20FAN AXIAL 92X25.4MM 12VDC WIRE |
2,934 |
|
Datasheet |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.8dB(A) | 6 W | 4200 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.212 lb (96.16 g) |
|
|
CFM-9225-13-22FAN AXIAL 92X25.4MM 12VDC WIRE |
3,460 |
|
Datasheet |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.8dB(A) | 6 W | 4200 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.212 lb (96.16 g) |
|
AFC0912DB-F00FAN AXIAL 92X15MM 12VDC WIRE |
3,499 |
|
Datasheet |
AFC | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | 3.72 W | 3300 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.154 lb (69.85 g) |
|
THB0848BEB51FAN AXIAL 80X38MM 48VDC WIRE |
2,115 |
|
Datasheet |
THB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 127.5 CFM (3.57m³/min) | 4.543 in H2O (1132.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 33.6 W | 15000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.434 lb (196.86 g) |
|

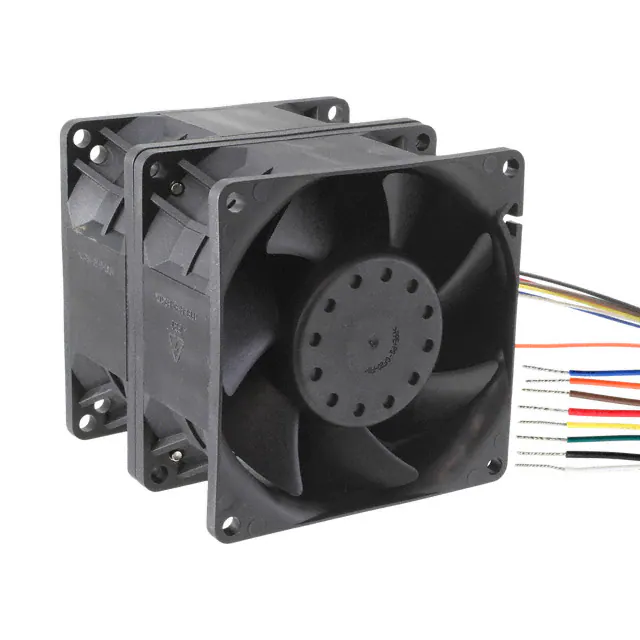

GFC0848DWB74FAN AXIAL DUAL 80X80MM 48VDC |
3,079 |
|
Datasheet |
GFC | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 175.0 CFM (4.90m³/min) | 4.470 in H2O (1113.4 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.5dB(A) | 74.88 W | 12500 Front, 11000 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | IP51 - Dust Protected | 0.855 lb (387.82 g) |
|

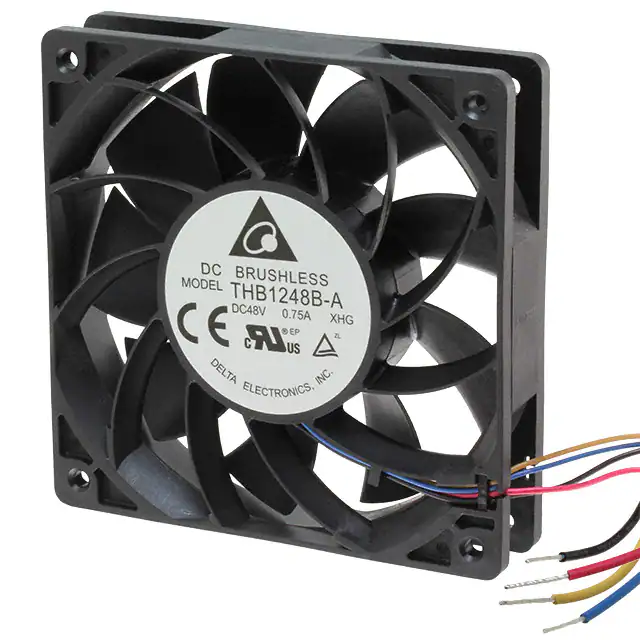

THB1248B-AXHGFAN AXIAL 120X25.4MM 48VDC WIRE |
4,052 |
|
Datasheet |
THB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 186.6 CFM (5.22m³/min) | 0.962 in H2O (239.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 19.2 W | 5300 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP54 - Dust Protected, Water Resistant | 0.437 lb (198.00 g) |
|

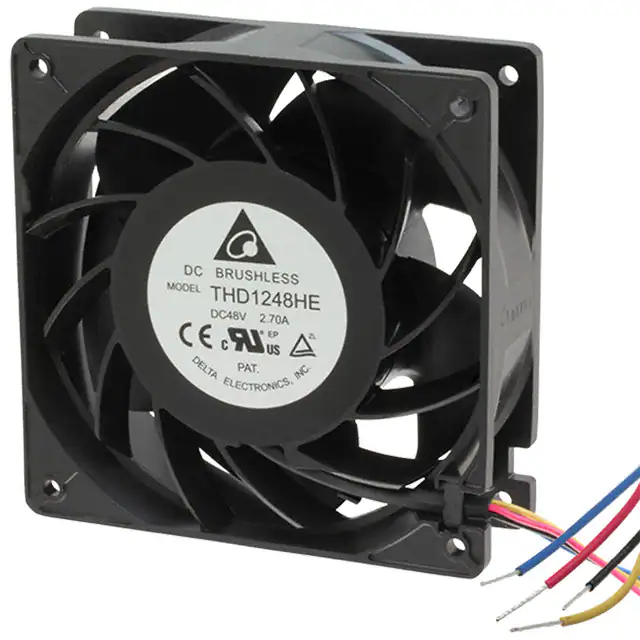

THD1248HEFAN AXIAL 120X38MM 48VDC WIRE |
2,023 |
|
Datasheet |
THD - Bionic Blade | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 287.0 CFM (8.03m³/min) | 4.400 in H2O (1096.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 105.82 W | 10900 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (499.0 g) |
|
THB2048HG-AFAN AXIAL 208X50.8MM 48VDC WIRE |
4,958 |
|
Datasheet |
THB | Box | Obsolete | 48VDC | Round - 208mm Dia | 690.3 CFM (19.33m³/min) | 4.141 in H2O (1031.4 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 201.6 W | 7700 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 2.9 lbs (1.3 kg) |
|

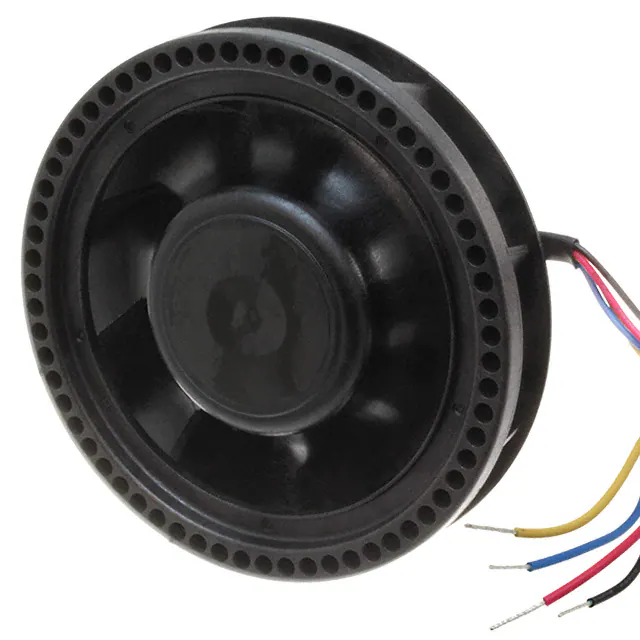

TCA1048AB0CFAN IMP MTRZD 100X24.8MM 48VDC |
1,723 |
|
Datasheet |
TCA | Box | Obsolete | 48VDC | Round - 100mm Dia | 68.8 CFM (1.93m³/min) | 1.895 in H2O (472.0 Pa) | Ball | 24.80mm | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 18.72 W | 6700 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.309 lb (140.16 g) |
