| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4414FNNFAN AXIAL 119X25.4MM 24VDC WIRE |
303 |
|
Datasheet |
4400FN | Box | Active | 24VDC | Square - 119mm L x 119mm H | 117.7 CFM (3.30m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 52.0dB(A) | 8.5 W | 4850 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

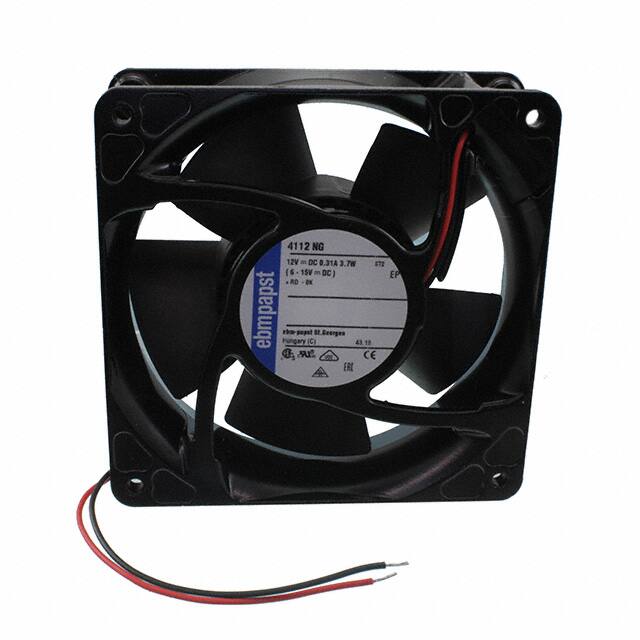

4112NGFAN AXIAL 119X38MM 12VDC WIRE |
452 |
|
Datasheet |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Sleeve | 38.00mm | Tubeaxial | - | - | - | - | - | 2 Wire Leads | - | - | - |
|
9LG0924H4002FAN AXIAL 92X25MM 24VDC WIRE |
2,056 |
|
Datasheet |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.68 W | 3150 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9LG0912H4002FAN AXIAL 92X25MM 12VDC WIRE |
1,334 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.8 W | 3150 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
3218JHFAN AXIAL 92X38MM 48VDC WIRE |
3,123 |
|
Datasheet |
3200J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 9.5 W | 6800 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9LG0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
123 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 5500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|

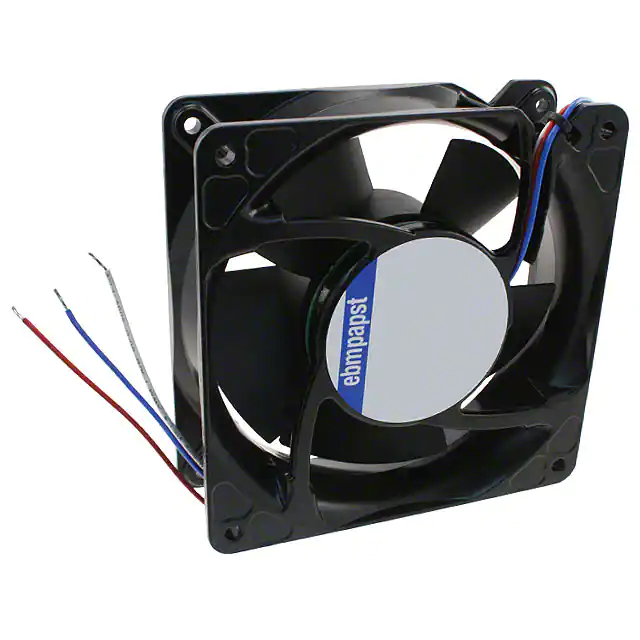

4118N/2H3FAN AXIAL 119X38MM 48VDC WIRE |
1,530 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 182.4 CFM (5.11m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 65.0dB(A) | 19.5 W | 6000 RPM | - | 3 Wire Leads | - | - | 0.86 lb (390.09 g) |
|
4118NH4FAN AXIAL 119X38MM 48VDC WIRE |
1,287 |
|
Datasheet |
4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 208.9 CFM (5.85m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 67.0dB(A) | 28 W | 6800 RPM | - | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.86 lb (390.09 g) |
|
9TN48P1H01FAN AXIAL 150X35MM 48VDC WIRE |
1,016 |
|
Datasheet |
San Ace C150 | Box | Active | 48VDC | Square - 150mm L x 150mm H | 135.0 CFM (3.78m³/min) | 1.570 in H2O (391.1 Pa) | Ball | 35.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|

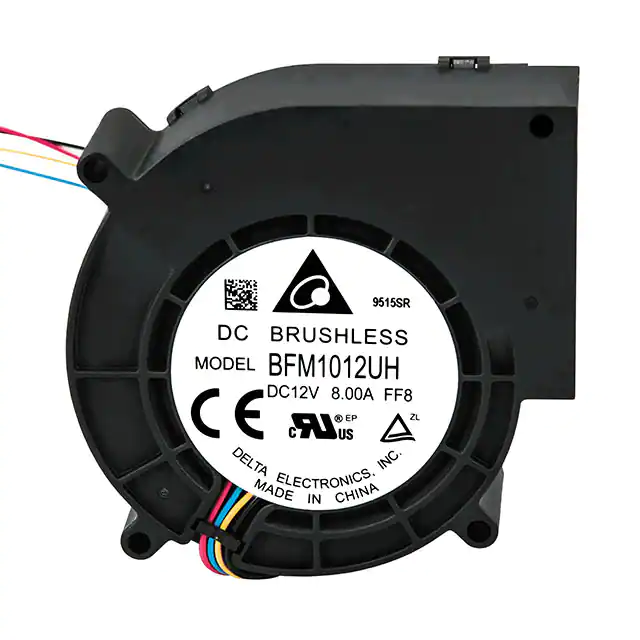

BFM1012UHFF8FAN BLOWER 96.6X32.9MM 12VDC |
427 |
|
Datasheet |
BFM - High-Perfomance | Box | Active | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 66.0 CFM (1.85m³/min) | 6.806 in H2O (1695.3 Pa) | Ball | 32.90mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 69.6 W | 8700 RPM | CE, cURus, TUV | 8 Position Rectangular Connector | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
16003387AFAN BLWR 80X32.4MM 24V WT24Z7-E2 |
578 |
|
Datasheet |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 20.0 CFM (0.560m³/min) | - | Ball | 32.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 56.8dB(A) | 10.2 W | 5300 RPM | CE, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08080EA-12S-E6D-280X80X80MM, 12VDC, 15,800/16,300 |
3,703 |
|
Datasheet |
08080EA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 141.0 CFM (3.95m³/min) | 10.000 in H2O (2490.8 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 118 W | 15800 RPM Front, 16300 RPM Rear | CE, cULus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
19031074AFAN AXIAL 127X38.1MM 12V GL12B4 |
190 |
|
Datasheet |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 16 W | 3200 RPM | CE, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
|
4418FNHFAN AXIAL 119X25.4MM 48VDC WIRE |
2,619 |
|
Datasheet |
4400FN | Box | Active | 48VDC | Square - 119mm L x 119mm H | 132.4 CFM (3.71m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 55.0dB(A) | 12 W | 5400 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

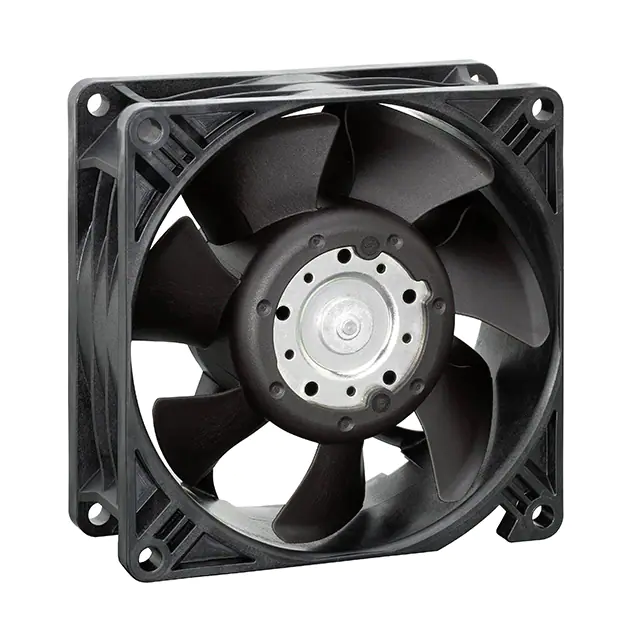

3254J/2H3PFAN AXIAL 92X38MM 24VDC WIRE |
423 |
|
Datasheet |
S-Panther 3250J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 158.0 CFM (4.42m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 35 W | 7450 RPM | CE, CSA, UL, VDE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
|
3258J/2HHPFAN AXIAL 92X38MM 48VDC WIRE |
3,576 |
|
Datasheet |
S-Panther 3250J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 138.0 CFM (3.86m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 59.0dB(A) | 24 W | 6650 RPM | CSA, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9GA1212P4S001FAN AXIAL 120X25.4MM 12VDC WIRE |
4,879 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.32 W | 5400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
4312UFAN AXIAL 119X32MM 12VDC WIRE |
135 |
|
Datasheet |
4300U | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | UL | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.485 lb (219.99 g) |
|
|
9GA1224G4001FAN AXIAL 120X25.4MM 24VDC WIRE |
437 |
|
Datasheet |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.28 W | 6400 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|

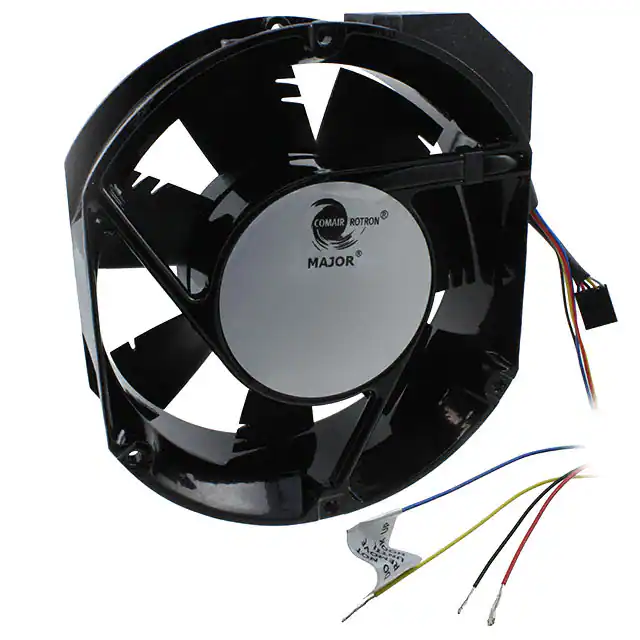

19039692AFAN AXIAL 171.4X50.8MM JQD24Z3A2 |
266 |
|
Datasheet |
Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.1dB(A) | 35 W | 4450 RPM | CE, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | - |
