| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

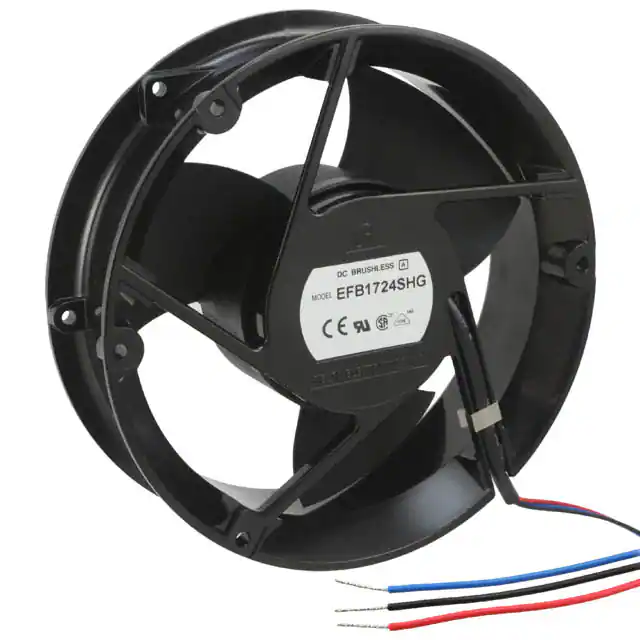

EFB1724SHG-F00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,136 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 28.08 W | 4300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
4114NH5FAN AXIAL 119X38MM 24VDC WIRE |
2,400 |
|
Datasheet |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 230.0 CFM (6.44m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | 45 W | 7500 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
8315100138FAN AXIAL 80X38MM 48VDC WIRE |
3,928 |
|
Datasheet |
AxiForce | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 103.0 CFM (2.88m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 24 W | 13200 RPM | - | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
RG90-18/12NFAN BLOWER CF 135X38MM 12VDC |
4,669 |
|
Datasheet |
RG90DC | Bulk | Active | 12VDC | Square - 135mm L x 135mm H | 32.4 CFM (0.907m³/min) | - | Ball | 38.00mm | Blower, Centrifugal | - | 55.0dB(A) | 6 W | - | - | 2 Wire Leads | - | - | 0.97 lb (439.98 g) |
|
RG90-18/14NFAN BLOWER CF 135X38MM 24VDC |
3,000 |
|
Datasheet |
RG90DC | Bulk | Active | 24VDC | Square - 135mm L x 135mm H | 32.4 CFM (0.907m³/min) | - | Ball | 38.00mm | Blower, Centrifugal | - | 55.0dB(A) | 5.5 W | - | - | 2 Wire Leads | - | - | 0.97 lb (439.98 g) |
|
19041286AFAN AXIAL 172X50.8MM JQD48Z6E6X |
218 |
|
Datasheet |
Major | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 36 W | 4560 RPM | CSA, UL | 4 Position Rectangular Connector | 14 ~ 167°F (-10 ~ 75°C) | - | 1.8 lbs (816.5 g) |
|
FFB1224XHE-TM50FAN AXIAL 120X38MM 24VDC WIRE |
3,416 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 73.5dB(A) | 78 W | 6300 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 1.1 lbs (499.0 g) |
_Series.JPG)
|
6224N/2FAN AXIAL 171.5X50.8MM 24VDC |
2,411 |
|
Datasheet |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 18 W | 3400 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 162°F (-20 ~ 72°C) | - | 1.8 lbs (816.5 g) |
|
|
174441BK0FAN AXIAL 172X38.5MM 48VDC RECT |
101 |
|
Datasheet |
OD172SAPL | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 38.50mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.3dB(A) | 24 W | 3950 RPM | CE, cURus, TUV, UR | 4 Position Rectangular Connector | -4 ~ 149°F (-20 ~ 65°C) | - | 1.7 lbs (760.0 g) |
|
|
109E1724C501FAN AXIAL 172X51MM 24VDC WIRE |
3,911 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 55.2 W | 4800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.7 lbs (780.0 g) |
|
9LG1424H5001FAN AXIAL 140X51MM 24VDC WIRE |
1,164 |
|
Datasheet |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 13.2 W | 4100 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
7212NFAN AXIAL 150X55MM 12VDC WIRE |
3,565 |
|
Datasheet |
7200N | Bulk | Active | 12VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 55.00mm | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -13 ~ 162°F (-25 ~ 72°C) | - | 1.6 lbs (725.7 g) |
|

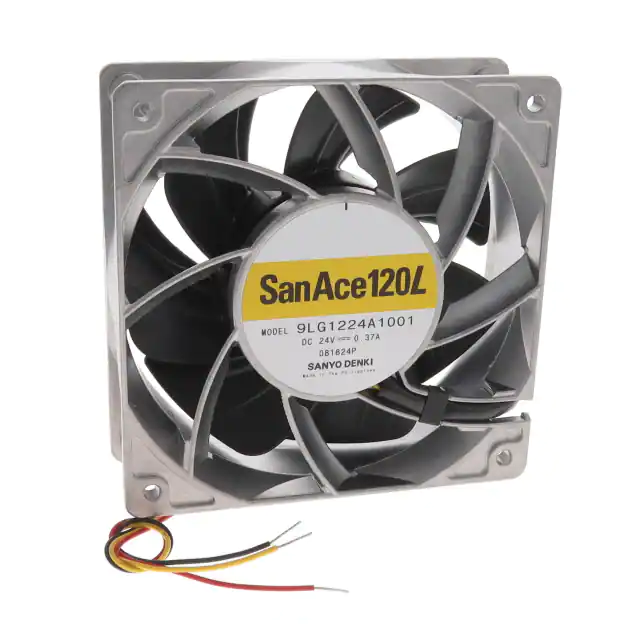

9LG1224M1001FAN AXIAL 120X38MM 24VDC WIRE |
353 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.64 W | - | - | 3 Wire Leads | - | - | - |
|
OD172SAP-24HBXCIP68FAN AXIAL 172X51.6MM 24VDC WIRE |
2,322 |
|
Datasheet |
OD172SAP XC | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 152mm H | 323.0 CFM (9.04m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 51.60mm | Tubeaxial | Auto Restart | 63.5dB | 50.4 W | 4400 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 1.3 lbs (600.0 g) |
|
RLF100-11/18FAN BLOWER CF 127X25.4MM 48VDC |
4,185 |
|
Datasheet |
RLF100 | Bulk | Active | 48VDC | Square/Rounded - 127mm L x 127mm H | 37.7 CFM (1.06m³/min) | - | Ball | 25.40mm | Blower, Centrifugal | Locked Rotor Protection | 64.0dB | 8.6 W | 5100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP54 - Dust Protected, Water Resistant | - |
|
9LG1212P1S001FAN AXIAL 119X38MM 12VDC WIRE |
4,148 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.926 lb (420.03 g) |
|
RL90-18/18NHFAN BLOWER 121X37MM 48VDC WIRE |
1,526 |
|
Datasheet |
RL90N | Box | Active | 48VDC | Square/Rounded - 121mm L x 121mm H | 32.4 CFM (0.907m³/min) | - | Ball | 37.00mm | Blower | - | 69.0dB(A) | 15 W | - | - | 2 Wire Leads | - | - | 0.93 lb (421.84 g) |
|
RG125-19/12NFAN BLOWER CF 180X40MM 12VDC |
412 |
|
Datasheet |
RG125N | Bulk | Active | 12VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | 0.723 in H2O (180.0 Pa) | Ball | 40.00mm | Blower, Centrifugal | - | 58.0dB(A) | 5 W | 2550 RPM | - | 2 Wire Leads | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
|
OD172SAP-24HBXCIP69KFAN AXIAL 172X51.6MM 24VDC WIRE |
2,064 |
|
Datasheet |
OD172SAP XC | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 152mm H | 323.0 CFM (9.04m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 51.60mm | Tubeaxial | Auto Restart | 63.5dB | 50.4 W | 4400 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 1.3 lbs (600.0 g) |
|
OD172SAP-12HBXCFAN AXIAL 172X50.8MM 12VDC WIRE |
3,533 |
|
Datasheet |
OD172S XC | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 277.0 CFM (7.76m³/min) | 1.140 in H2O (284.0 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart | 62.0dB | - | 3900 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
