| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6318/2TDHPFAN AXIAL 172X50.8MM 48VDC WIRE |
3,923 |
|
Datasheet |
6300TD | Bulk | Active | 48VDC | Round - 172mm Dia | 353.1 CFM (9.89m³/min) | - | Ball | 50.80mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 41 W | 6000 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|

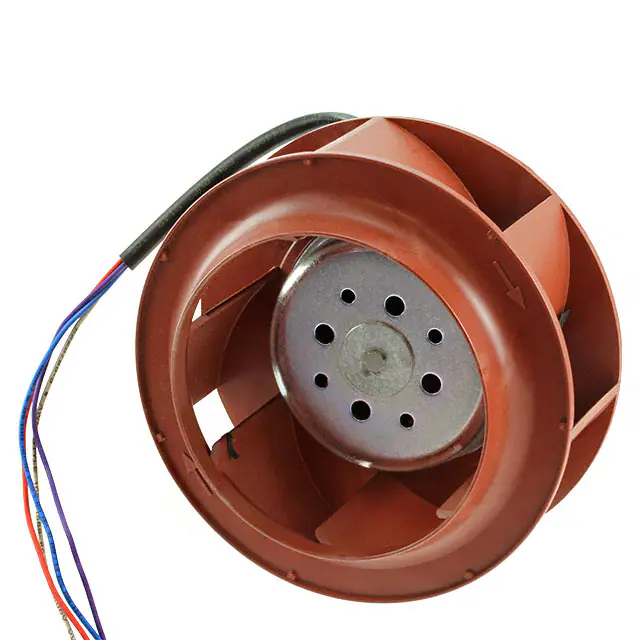

RER133-41/18/2TDLOUFAN IMP MTRZD 133X91MM 48VDC |
2,949 |
|
Datasheet |
RER133TD | Bulk | Active | 48VDC | Round - 133mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 91.00mm | Motorized Impellers | - | - | 30.1 W | 4000 RPM | UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 1.6 lbs (725.7 g) |
|
TF029B-1000-FFAN BLOWER 49.4X33.6MM 24VDC |
1,145 |
|
Datasheet |
TF029B | Tray | Active | 24VDC | Rectangular/Rounded - 49.4mm L x 41.5mm H | 3.5 CFM (0.098m³/min) | 8.030 in H2O (2000.0 Pa) | Aerodynamic | 33.60mm | Blower, Centrifugal | - | 65.0dB(A) | 14.9 W | 36000 RPM | - | 5 Wire Leads | 32 ~ 122°F (0 ~ 50°C) | - | 0.121 lb (54.88 g) |
|
W2G130-AA33-01FAN AXIAL 150X55MM 24VDC WIRE |
200 |
|
Datasheet |
W2G130 | Box | Active | 24VDC | Round - 150mm Dia | 203.0 CFM (5.68m³/min) | - | Ball | 55.00mm | Tubeaxial | - | 51.0dB(A) | 16 W | 3150 RPM | - | 2 Wire Leads | - | - | 2 lbs (907.2 g) |
|
|
W2G130-AA33-20FAN AXIAL 150X55MM 24VDC WIRE |
1,421 |
|
Datasheet |
W2G130 | Box | Active | 24VDC | Round - 150mm Dia | 203.0 CFM (5.68m³/min) | - | Ball | 55.00mm | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 14 W | - | - | 3 Wire Leads | - | - | 2.2 lbs (997.9 g) |
|
5318/2TDH4PFAN AXIAL 140X50.8MM 48VDC WIRE |
197 |
|
Datasheet |
5300TD | Box | Active | 48VDC | Square - 140mm L x 140mm H | 394.3 CFM (11.04m³/min) | - | Ball | 50.80mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 144 W | 9200 RPM | - | 4 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 2 lbs (907.2 g) |
|
RER133-41/18/2TDPFAN IMP MTRZD 133X91MM 48VDC |
278 |
|
Datasheet |
RER133TD | Box | Active | 48VDC | Round - 133mm Dia | 332.4 CFM (9.31m³/min) | - | Ball | 91.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 87 W | 6000 RPM | - | 4 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 2 lbs (907.2 g) |
|
6314/2TDHHP-015FAN AXIAL 171.5X50.8MM 24VDC |
4,077 |
|
Datasheet |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 160mm H | 418.2 CFM (11.71m³/min) | - | Ball | 50.80mm | Tubeaxial | - | 69.0dB(A) | 67 W | 7000 RPM | - | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 2.1 lbs (952.5 g) |
|
109E2024AS001FAN AXIAL 200X70MM 24VDC WIRE |
1,996 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 317.8 CFM (8.90m³/min) | 1.153 in H2O (287.1 Pa) | Ball | 70.00mm | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 45.6 W | 3200 RPM | CSA, TUV, UR | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 3.9 lbs (1.8 kg) |
|
2218F/2TDHHOFAN AXIAL 220X50.8MM 48VDC WIRE |
1,461 |
|
Datasheet |
2200FTD | Box | Active | 48VDC | Round - 220mm Dia | 553.0 CFM (15.48m³/min) | - | Ball | 50.80mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 48 W | 5000 RPM | UL | 4 Wire Leads | -13 ~ 158°F (-25 ~ 70°C) | - | 2.3 lbs (1 kg) |
|

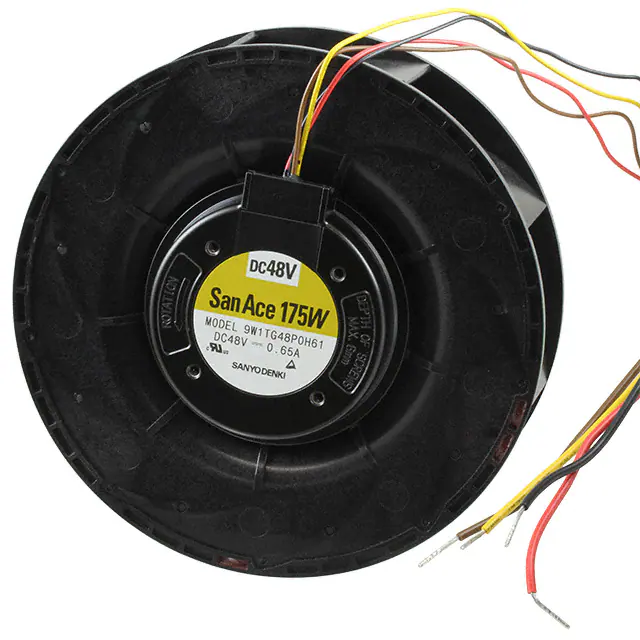

9W1TG48P0H61FAN IMP MTRZD 175X69MM 48VDC |
3,363 |
|
Datasheet |
San Ace 175W | Box | Active | 48VDC | Round - 175mm Dia | 318.0 CFM (8.90m³/min) | 1.441 in H2O (358.9 Pa) | Ball | 69.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 31.2 W | 3100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP54 - Dust Protected, Water Resistant | 1.7 lbs (771.1 g) |
|
R1G175-AB41-02FAN IMP MTRZD 175X69MM 48VDC |
4,839 |
|
Datasheet |
R1G175 | Bulk | Active | 48VDC | Round - 175mm Dia | 330.0 CFM (9.24m³/min) | - | Ball | 69.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 34 W | 3100 RPM | CCC, CSA, UL, VDE | 4 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | - | 1.6 lbs (725.7 g) |
|
9EC2048A001FAN AXIAL 200X70MM 48VDC WIRE |
1,781 |
|
Datasheet |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 519.0 CFM (14.53m³/min) | 2.570 in H2O (640.1 Pa) | Ball | 70.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 68.0dB(A) | 105.6 W | 4800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 3.9 lbs (1.8 kg) |
|
9GP5724P5H001FAN AXIAL 172X51MM 24VDC WIRE |
3,740 |
|
Datasheet |
San Ace 172GP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 434.0 CFM (12.15m³/min) | 4.017 in H2O (1000.6 Pa) | Ball | 51.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 120 W | 8000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
9TGA48P0G001FAN IMP MTRZD 175X69MM 48VDC |
129 |
|
Datasheet |
San Ace C175 | Bulk | Active | 48VDC | Round - 175mm Dia | 622.0 CFM (17.42m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | 69.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 168 W | 5700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.6 lbs (725.7 g) |
|
W1G180-AB47-01FAN AXIAL 200X70MM 48VDC WIRE |
168 |
|
Datasheet |
W1G180 | Bulk | Active | 48VDC | Round - 200mm Dia | 544.4 CFM (15.24m³/min) | - | Ball | 70.00mm | Tubeaxial | - | 69.0dB(A) | 100 W | 4600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | - | 4 lbs (1.8 kg) |
|
CFM-4010B-150-195-20FAN AXIAL 40X10.5MM 12VDC WIRE |
490 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.5dB(A) | 600 mW | 5000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04010SS-05M-AT-00FAN AXIAL 40X10MM 5VDC WIRE |
508 |
|
Datasheet |
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.6 CFM (0.157m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.0dB | 650 mW | 6500 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-04020BBLW11FAN AXIAL 40X20MM BALL 5VDC WIRE |
485 |
|
Datasheet |
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 20.00mm | Tubeaxial | - | 30.0dB(A) | 700 mW | 6200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
CFM-4010C-180-296-20FAN AXIAL 40X10.5MM 12VDC WIRE |
525 |
|
Datasheet |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | 10.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.6dB(A) | 1.08 W | 8000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
