| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

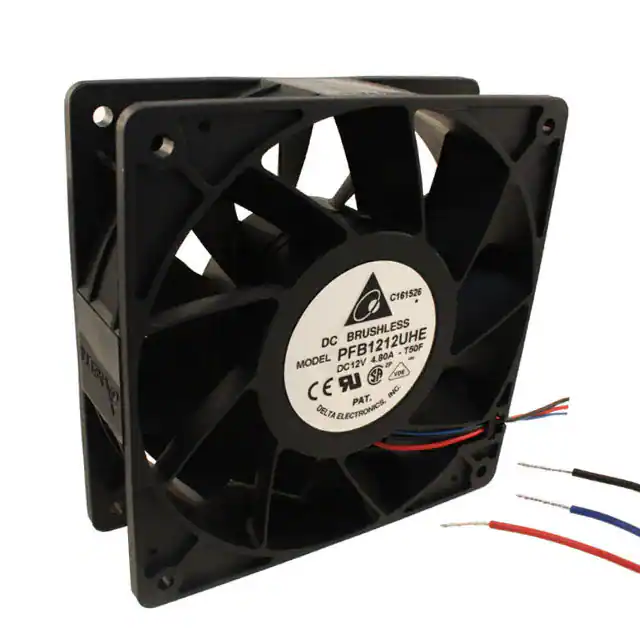

PFB1212UHE-T50FFAN AXIAL 120X38MM 12VDC WIRE |
1,297 |
|
Datasheet |
PFB | Bulk | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.838 lb (380.11 g) |
|
9CRA0612P6G001FAN AXIAL DUAL 60X56MM 12VDC |
2,536 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.2 CFM (1.63m³/min) | 2.490 in H2O (620.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 15.6 W | 13500 Front, 11400 Rear | cURus, TUV | 3 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
8315100136FAN AXIAL 80X38MM 12VDC WIRE |
153 |
|
Datasheet |
AxiForce | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 103.0 CFM (2.88m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 26 W | 13200 RPM | - | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
4418HFAN AXIAL 119X38MM 48VDC WIRE |
3,615 |
|
Datasheet |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 141.3 CFM (3.96m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 8.6 W | 4300 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
612NGMIFAN AXIAL 60X25.4MM 12VDC WIRE |
3,825 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Sintec | 25.40mm | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.7 W | 4100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.146 lb (66.22 g) |
|
|
4418NFAN AXIAL 119X38MM 48VDC WIRE |
3,709 |
|
Datasheet |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 120.7 CFM (3.38m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.4 W | 3650 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
17000300AFAN AXIAL 127X38.1MM GL12Z3 |
2,240 |
|
Datasheet |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 192.0 CFM (5.38m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 59.4dB(A) | 31.6 W | 4100 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

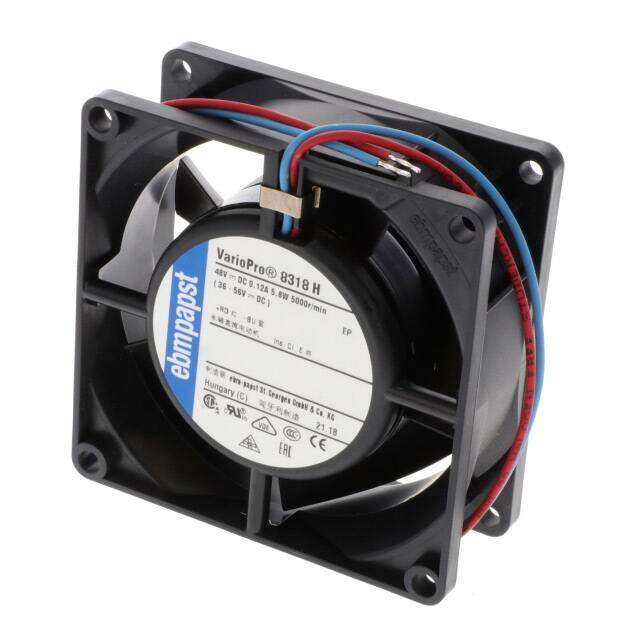

8318HFAN AXIAL 80X32MM 48VDC WIRE |
2,384 |
|
Datasheet |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 6.2 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
19031083AFAN AXIAL 172X50.8MM 12V PQ12B4 |
3,321 |
|
Datasheet |
Patriot | Bulk | Active | 12VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 51.2dB(A) | 25.2 W | 3400 RPM | CE, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
17001159AFAN AXIAL 12VDC MSD12K3E2X-E3 |
116 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.8dB(A) | 11 W | 3400 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
8315100130FAN AXIAL 80X38MM 12VDC WIRE |
4,307 |
|
Datasheet |
AxiForce | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 126.5 CFM (3.54m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 46 W | 16500 RPM | - | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

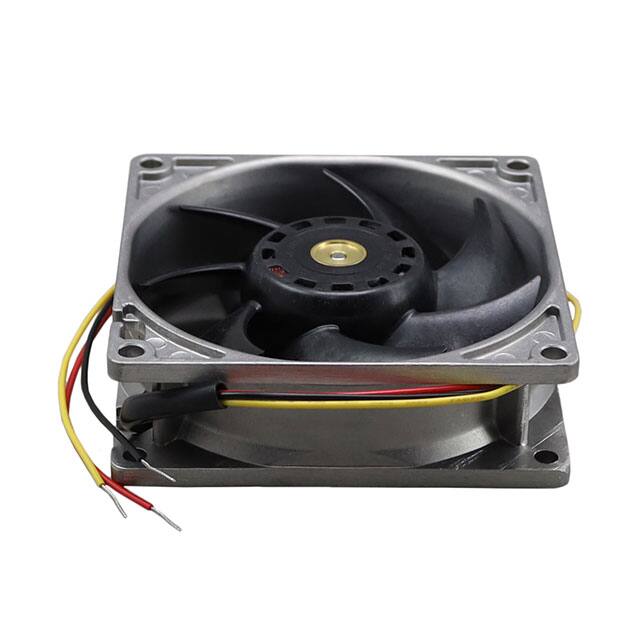

9LG0824M4001FAN AXIAL 80X25MM 24VDC WIRE |
2,341 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 960 mW | - | - | 3 Wire Leads | - | - | - |
|
|
GFC0948SS-00F4NFAN AXIAL DUAL 92X56MM 48VDC |
4,142 |
|
Datasheet |
GFC | Box | Not For New Designs | 48VDC | Square - 92mm L x 92mm H | 155.2 CFM (4.35m³/min) | 4.920 in H2O (1225.5 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 48 W | 11000 Front, 11200 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PFR0848HE-02EM2FAN AXIAL 80X38MM 48VDC WIRE |
231 |
|
Datasheet |
PFR | Box | Not For New Designs | 48VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 7.142 in H2O (1779.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 48 W | 16800 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RFA1312P3G001FAN AXIAL 136X28MM 12VDC WIRE |
1,787 |
|
Datasheet |
San Ace 136RF | Bulk | Active | 12VDC | Round - 136mm Dia | 74.3 CFM (2.08m³/min) | 1.140 in H2O (284.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 49.0dB(A) | 3 W | 5450 RPM | cURus, TUV | 4 Wire Leads | -13 ~ 158°F (-25 ~ 70°C) | - | - |
|

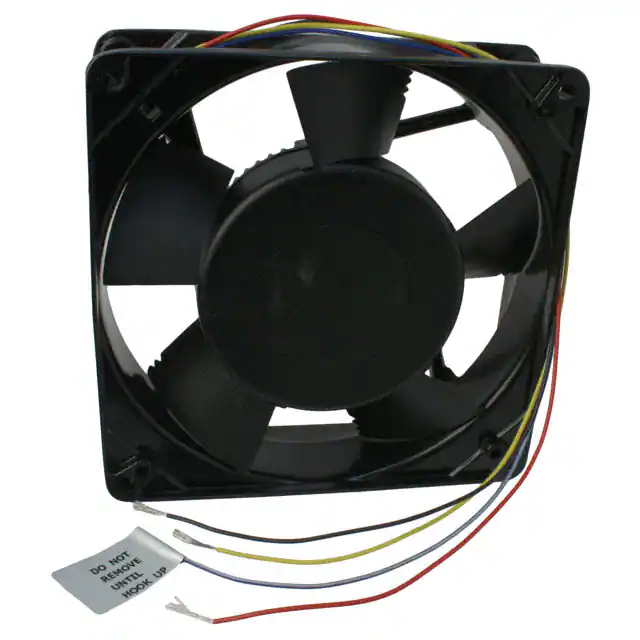

19031239AFAN AXIAL 127X38.1MM 48V GL48R7 |
190 |
|
Datasheet |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 38.10mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 15 W | 3250 RPM | CE, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
3258J/2HHPUFAN AXIAL 92X38MM 48VDC WIRE |
1,495 |
|
Datasheet |
3250JU | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 138.0 CFM (3.86m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 59.0dB(A) | 24 W | 6650 RPM | UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.529 lb (239.95 g) |
|
|
3258J/2H3PUFAN AXIAL 92X38MM 48VDC WIRE |
4,656 |
|
Datasheet |
3250JU | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 158.0 CFM (4.42m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 33.6 W | 7450 RPM | UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.529 lb (239.95 g) |
|
CFM-A751BF-125-460-20FAN AXIAL 172X51.5MM 12VDC WIRE |
246 |
|
Datasheet |
CFM-A7BF | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 180.5 CFM (5.11m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 51.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | 10.08 W | 2500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
8318/17FAN AXIAL 80X32MM 48VDC WIRE |
1,696 |
|
Datasheet |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 32.00mm | Tubeaxial | - | 35.0dB(A) | 2.9 W | 3300 RPM | CCC, CE, CSA, EAC, UL, VDE | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
