| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8214JH3FAN AXIAL 80X38MM 24VDC WIRE |
4,383 |
|
Datasheet |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 112.0 CFM (3.14m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 66.0dB(A) | 26 W | 12000 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
|

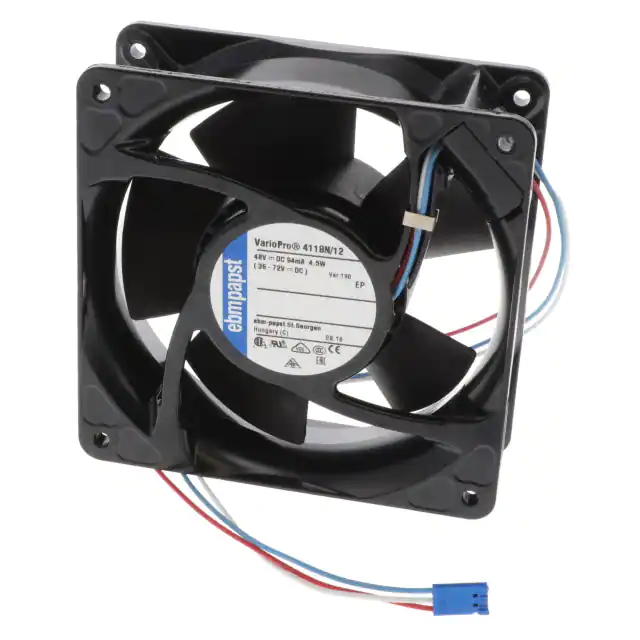

4118N/12-190FAN AXIAL 119X38MM 48VDC WIRE |
103 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | - | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 65.0dB(A) | 5 W | 3200 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
8314UFAN AXIAL 80X32MM 24VDC WIRE |
3,760 |
|
Datasheet |
8300U | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 36.0dB(A) | 2.7 W | 3300 RPM | UL | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.375 lb (170.1 g) |
|
5218NHFAN AXIAL 127X38MM 48VDC WIRE |
1,377 |
|
Datasheet |
5200N | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 148.3 CFM (4.15m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 51.0dB(A) | 10 W | 3650 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | - | 0.683 lb (309.8 g) |
|

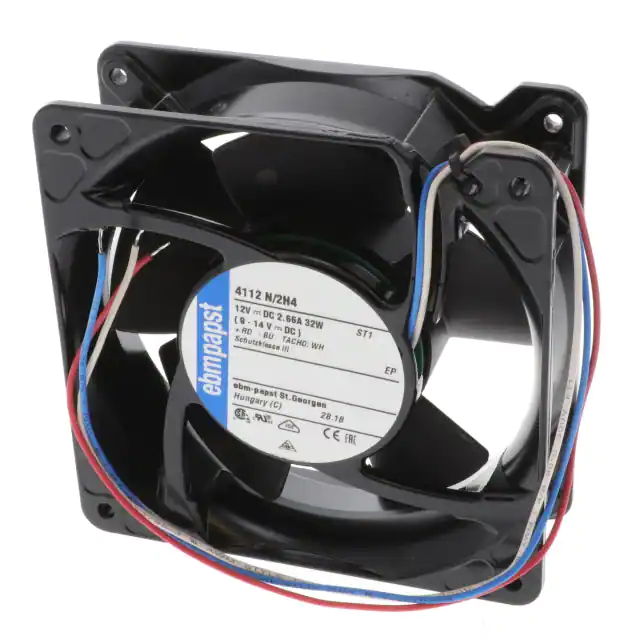

4112N/2H4FAN AXIAL 119X38MM 12VDC WIRE |
3,563 |
|
Datasheet |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 209.0 CFM (5.85m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 67.0dB(A) | 32 W | 6800 RPM | CSA, UL | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

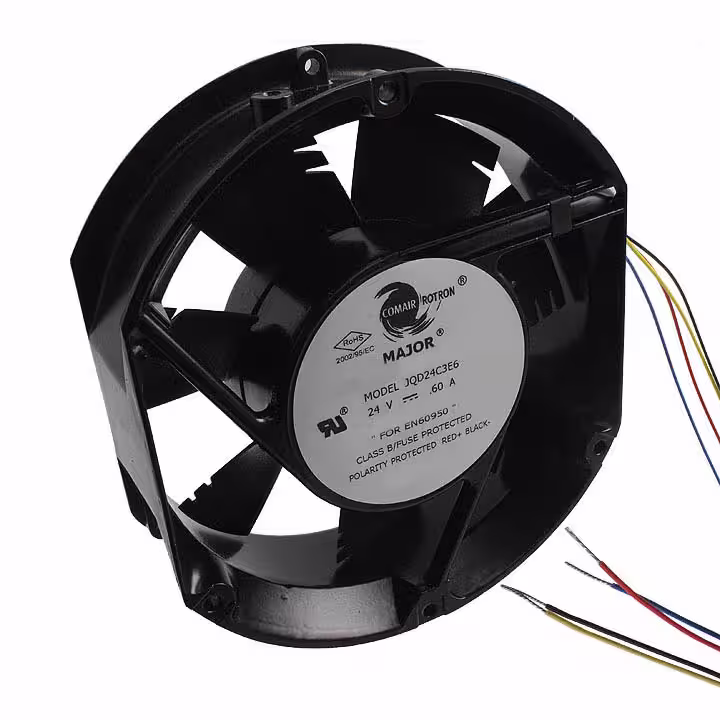

16005460AFAN AXIAL 171.4X50.8MM JQD24C3E6 |
1,382 |
|
Datasheet |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 200.0 CFM (5.60m³/min) | - | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.8dB(A) | 14.4 W | 3000 RPM | CE, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4891HQ-EFP5D62B1-1C01U-G99DC BLOWER, 247X243X138MM, 2 BALL |
4,214 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

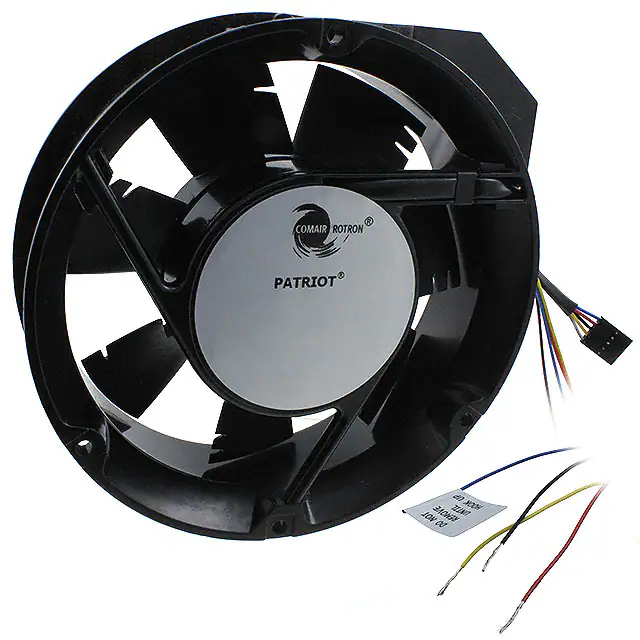

19039696AFAN AXIAL 171.4X50.8MM PQD48Z3A2 |
209 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 35 W | 4450 RPM | CE, cUL, UL | 5 Position Rectangular Connector | -40 ~ 185°F (-40 ~ 85°C) | - | - |
|
8314/19HFAN AXIAL 80X32MM 24VDC WIRE |
3,052 |
|
Datasheet |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 48.0dB(A) | 6.4 W | 5000 RPM | CSA, UL, VDE | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
17001180AFAN AXIAL 48VDC GLD48U3E2X-E3 |
1,785 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 240.0 CFM (6.72m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 5200 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

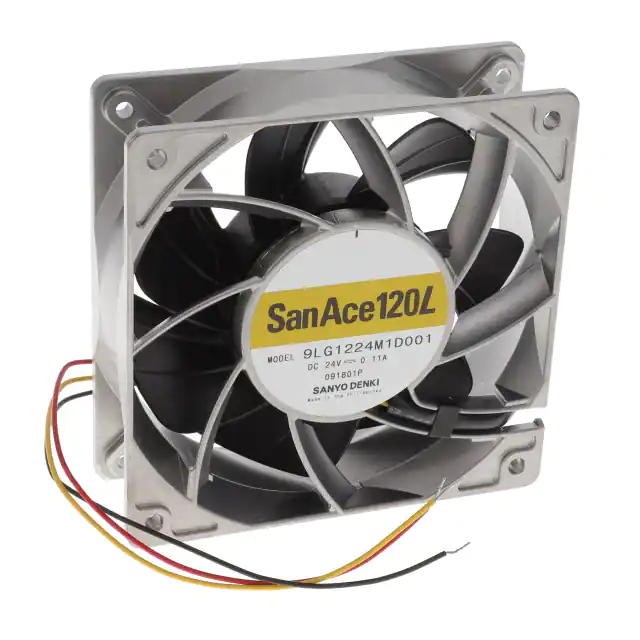

9LG1224M1D001FAN AXIAL 120X38MM 24VDC WIRE |
1,505 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | - | 2.64 W | - | - | 3 Wire Leads | - | - | - |
|
|
17001198AFAN AXIAL 48VDC PQD48U3E2X-E3 |
3,199 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 332.0 CFM (9.30m³/min) | - | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
19031263AFAN AXIAL 172X50.8MM 24V PQ24B7 |
140 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 24 W | 3500 RPM | CE, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
|
17250VA-48P-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
115 |
|
Datasheet |
17250VA | Bulk | Active | 48VDC | Round - 172.7mm Dia | 282.0 CFM (7.90m³/min) | 0.930 in H2O (231.7 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart | 56.0dB | 26.4 W | 3750 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4312/2UFAN AXIAL 119X32MM 12VDC WIRE |
1,095 |
|
Datasheet |
4300U | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | 2800 RPM | UL | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.573 lb (259.91 g) |
|
OD172SAP-24HHTBFAN AXIAL 172X51MM 24VDC TERM |
193 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart | 57.0dB(A) | - | 3900 RPM | cURus, TUV | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
8212JH3FAN AXIAL 80X38MM 12VDC WIRE |
4,685 |
|
Datasheet |
8200J | Box | Active | 12VDC | Square - 80mm L x 80mm H | 112.0 CFM (3.14m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 66.0dB(A) | 25 W | 12000 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.03 g) |
|
|
OD172SAP-24HHB01AFAN AXIAL 172X51MM 24VDC WIRE |
192 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.0dB(A) | - | 3900 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9CRL0612P0G001FAN AXIAL DUAL 60X76MM 12VDC |
4,546 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 70.6 CFM (1.98m³/min) | 4.000 in H2O (996.3 Pa) | Ball | 76.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 27.6 W | 16500 Front, 13000 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.662 lb (300.28 g) |
|
|
8212JH4FAN AXIAL 80X38MM 12VDC WIRE |
3,961 |
|
Datasheet |
8200J | Box | Active | 12VDC | Square - 80mm L x 80mm H | 131.0 CFM (3.67m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 71.0dB(A) | 39 W | 14000 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.44 lb (199.58 g) |
