| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4412F/2MFAN AXIAL 119X25.4MM 12VDC WIRE |
1,434 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 5.3 W | 2900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
GFM0812DS-SMB7RFAN AXIAL DUAL 80X56MM 12VDC |
3,243 |
|
Datasheet |
GFM - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 93.2 CFM (2.61m³/min) | 4.485 in H2O (1117.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.3dB(A) | 28.8 W | 12500 Front, 11000 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 0.631 lb (286.22 g) |
|
9WPA0812P4G001FAN AXIAL 80X25.2MM 12VDC WIRE |
4,993 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
9GA1224P4G001FAN AXIAL 120X25.4MM 24VDC WIRE |
4,755 |
|
Datasheet |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.28 W | 6400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
19031090AFAN AXIAL 171.5X50.8MM JQ24B4 |
4,905 |
|
Datasheet |
Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 24 W | 3425 RPM | CE, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
9GV1424P1H001FAN AXIAL 140X38MM 24VDC WIRE |
2,438 |
|
Datasheet |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|

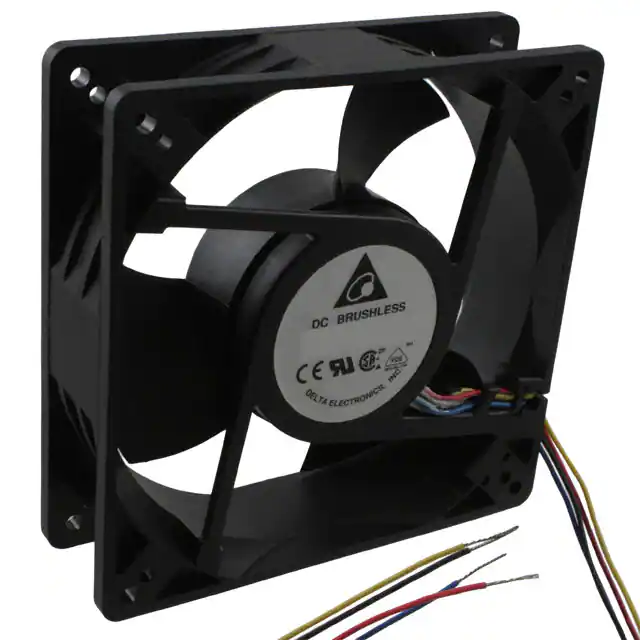

EFB1324SHE-EPFAN AXIAL 127X38MM 24VDC WIRE |
3,811 |
|
Datasheet |
EFB | Box | Active | 24VDC | Square - 127mm L x 127mm H | 200.0 CFM (5.60m³/min) | 0.757 in H2O (188.6 Pa) | Ball | 38.00mm | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 18 W | 4600 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP56 - Dust Protected, Water Resistant | 0.816 lb (370.13 g) |
|

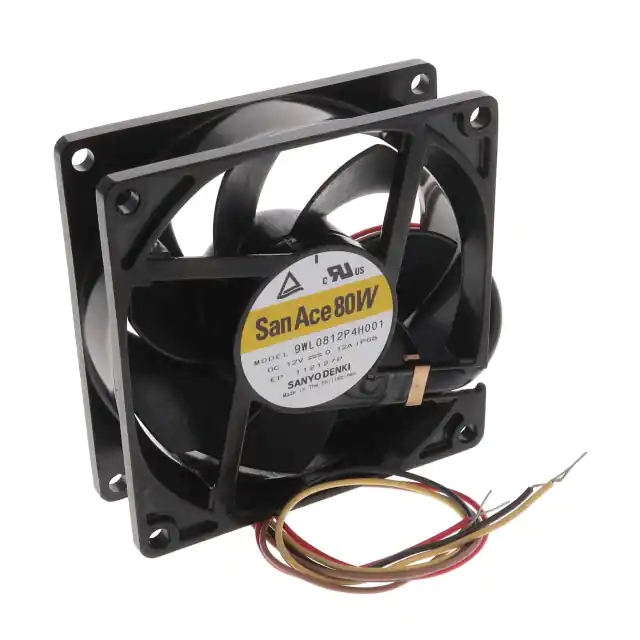

9WL0812P4H001FAN AXIAL 80X25MM 12VDC WIRE |
1,839 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.331 lb (150.14 g) |
|
OD172SAP-24HHB10AFAN AXIAL 172X51MM 24VDC WIRE |
1,818 |
|
Datasheet |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | - | 3900 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
9WL0924P4S001FAN AXIAL 92X25MM 24VDC WIRE |
1,856 |
|
Datasheet |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.375 lb (170.1 g) |
|
7114NFAN AXIAL 150X38MM 24VDC WIRE |
1,473 |
|
Datasheet |
7100N | Bulk | Active | 24VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 55.0dB(A) | 12 W | 2850 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -13 ~ 162°F (-25 ~ 72°C) | - | 1.4 lbs (635.0 g) |
|
6424HFAN AXIAL 172X50.8MM 24VDC TERM |
3,186 |
|
Datasheet |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 282.5 CFM (7.91m³/min) | - | Ball | 50.80mm | Tubeaxial | - | 63.0dB(A) | 26 W | 4000 RPM | - | 2 Terminals | -4 ~ 131°F (-20 ~ 55°C) | - | 1.7 lbs (771.1 g) |
|
9WV1224P1H001FAN AXIAL 120X38MM 24VDC WIRE |
4,748 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.4 CFM (5.11m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 19.2 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.97 lb (439.98 g) |
|
9CRA0912P0G001FAN AXIAL DUAL 92X76MM 12VDC |
4,951 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 205.0 CFM (5.74m³/min) | 6.630 in H2O (1651.4 Pa) | Ball | 76.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 81.0dB(A) | 108 W | 13300 Front, 12200 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 1.1 lbs (510.0 g) |
|
OD180APL-24MBFAN AXIAL 180X65MM 24VDC WIRE |
1,656 |
|
Datasheet |
OD180APL | Bulk | Active | 24VDC | Square - 180mm L x 180mm H | 375.0 CFM (10.50m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 65.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.0dB | 24 W | 2800 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9LG1212P1G001FAN AXIAL 119X38MM 12VDC WIRE |
4,683 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.926 lb (420.03 g) |
|
OD254AP-24MTBFAN AXIAL 254X89MM 24VDC TERM |
3,595 |
|
Datasheet |
OD254 | Bulk | Active | 24VDC | Round - 254mm Dia | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 89.00mm | Tubeaxial | Auto Restart | 47.0dB | 24 W | 2000 RPM | cURus, TUV | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

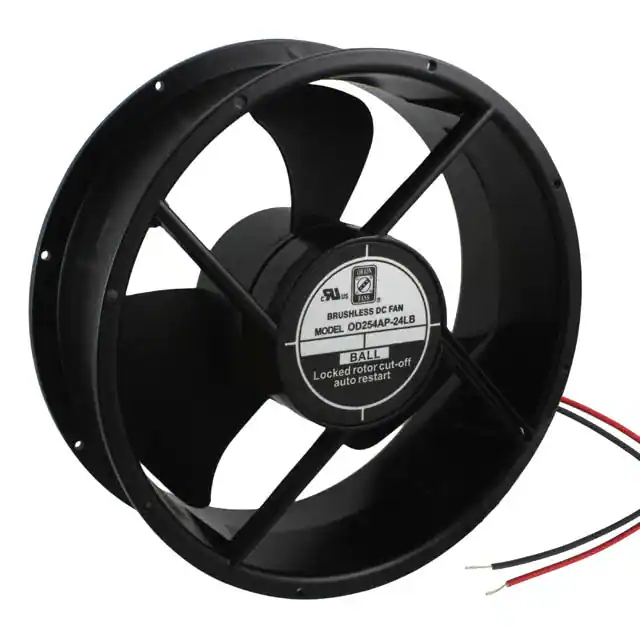

OD254AP-24LBFAN AXIAL 254X89MM 24VDC WIRE |
3,522 |
|
Datasheet |
OD254 | Box | Active | 24VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 89.00mm | Tubeaxial | Auto Restart | 39.0dB | 13 W | 1500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9WL1424P5G001FAN AXIAL 140X51MM 24VDC WIRE |
1,963 |
|
Datasheet |
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 1.653 lb (750.0 g) |
|
RER175-42/14/2TDMLPUFAN IMP MTRZD 175X69MM 24VDC |
3,904 |
|
Datasheet |
RER175TDU | Bulk | Active | 24VDC | Round - 175mm Dia | 353.0 CFM (9.88m³/min) | - | Ball | 69.00mm | Motorized Impellers | - | - | 48 W | 3400 RPM | UL | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 1.7 lbs (771.1 g) |
