| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WG5748P5H001FAN AXIAL 172X51MM 48VDC WIRE |
4,996 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.5 CFM (11.49m³/min) | 3.090 in H2O (769.7 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 78 W | 6500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 1.9 lbs (860.0 g) |
|
R1G220-AB73-52FAN IMP MTRZD 220X71MM 48VDC |
4,041 |
|
Datasheet |
R1G220 | Bulk | Active | 48VDC | Round - 220mm Dia | 597.4 CFM (16.73m³/min) | - | Ball | 71.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 100 W | 3100 RPM | CCC, CSA, UL | 4 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | - | 3.1 lbs (1.4 kg) |
|
RG160-28/18N/2TDPU-331FAN BLOWER CF 220X56MM 48VDC |
2,239 |
|
Datasheet |
RG160NTDU | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 182.5 CFM (5.11m³/min) | 3.252 in H2O (810.0 Pa) | Ball | 56.00mm | Blower, Centrifugal | Auto Restart, Capacitor, PWM Control, Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 57.6 W | 4270 RPM | CCC, CE, EAC, UL | 5 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 3.5 lbs (1.6 kg) |
|
9TGA24P0H001FAN IMP MTRZD 175X69MM 24VDC |
4,084 |
|
Datasheet |
San Ace C175 | Bulk | Active | 24VDC | Round - 175mm Dia | 541.0 CFM (15.15m³/min) | 3.330 in H2O (829.5 Pa) | Ball | 69.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 115 W | 4950 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.6 lbs (725.7 g) |
|
W1G200-HH77-52FAN AXIAL 225X80MM BALL 24VDC |
1,268 |
|
Datasheet |
W1G200 | Bulk | Active | 24VDC | Square - 225mm L x 225mm H | 641.6 CFM (17.96m³/min) | - | Ball | 80.00mm | Tubeaxial | - | 60.0dB(A) | 55 W | 2950 RPM | CSA, EAC, UL | Terminal Block | -13 ~ 140°F (-25 ~ 60°C) | - | 4.7 lbs (2.1 kg) |
|
2218F/2TDH4PFAN AXIAL 220X50.8MM 48VDC WIRE |
4,427 |
|
Datasheet |
2200FTD | Box | Active | 48VDC | Round - 220mm Dia | 718.0 CFM (20.10m³/min) | - | Ball | 50.80mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 103 W | 6500 RPM | UL | 4 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 2.3 lbs (1 kg) |
|
W3G300-ME46-01FAN AXIAL 330X76.7MM 26VDC RECT |
3,414 |
|
Datasheet |
W2G300 | Bulk | Active | 26VDC | Round - 330mm Dia | 1570.0 CFM (44.46m³/min) | - | Ball | 76.70mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | - | 3000 RPM | EAC | 4 Position Rectangular Connector | -40 ~ 185°F (-40 ~ 85°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 4.4 lbs (2 kg) |
|

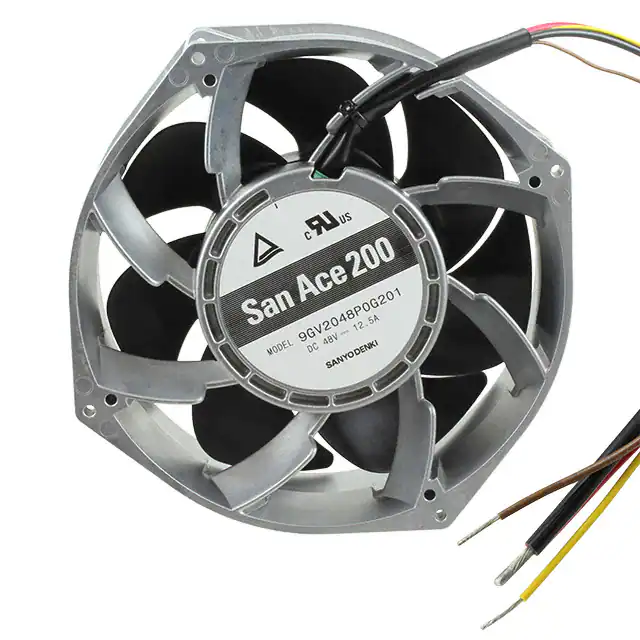

9GV2048P0G201FAN AXIAL 200X70MM 48VDC WIRE |
3,737 |
|
Datasheet |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 1112.0 CFM (31.14m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | 70.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 81.0dB(A) | 600 W | 8000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 3.9 lbs (1.8 kg) |
|
D1G133-AB39-52FAN BLOWER CF 171X215.0MM 48VDC |
3,821 |
|
Datasheet |
D1G133 | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 180mm H | - | - | Ball | 215.0mm | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 105 W | 1780 RPM | CCC, CSA, EAC, UL | 4 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | IP42 | - |
|

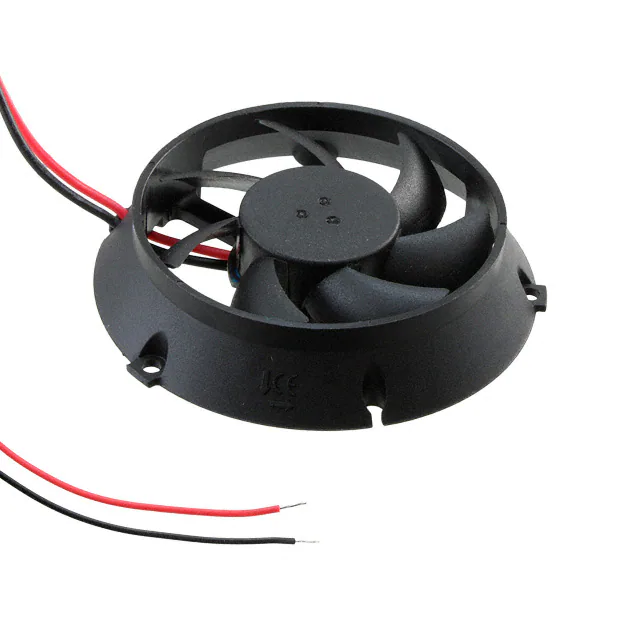

HA40101V3-E00U-A99FAN AXIAL 44.5X10.6MM 12VDC |
3,542 |
|
Datasheet |
MagLev® HA | Tray | Active | 12VDC | Round - 44.5mm Dia | 4.5 CFM (0.126m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | 10.60mm | Tubeaxial | Auto Restart | 31.1dB(A) | 320 mW | 3900 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.026 lb (11.79 g) |
|
|
CFM-4020CF-195-342DC AXIAL FAN, 40 MM SQUARE, 20 M |
2,451 |
|
Datasheet |
CFM-40CF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | 20.00mm | Tubeaxial | Auto Restart | 34.2dB(A) | 1.92 W | 9500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04010SS-12N-AA-00FAN AXIAL 40X10MM 12VDC WIRE |
3,318 |
|
Datasheet |
04010SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | 10.00mm | Tubeaxial | Auto Restart | 29.0dB | 710 mW | 7500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-7015V-123-215FAN AXIAL 70X15MM 12VDC WIRE |
2,551 |
|
Datasheet |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | 15.00mm | Tubeaxial | Auto Restart | 21.5dB(A) | 660 mW | 2300 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.091 lb (41.28 g) |
|
4143/MF60151VX-1000U-A99FAN AXIAL 60X15MM VAPO 12VDC |
2,705 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | Auto Restart | 36.2dB(A) | 2.22 W | 5400 RPM | cURus, TUV | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.079 lb (35.83 g) |
|
|
CFM-2507CF-050-089-22DC AXIAL FAN, 25 MM SQUARE, 7 MM |
4,788 |
|
Datasheet |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.1 CFM (0.031m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | 7.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 9.0dB(A) | 300 mW | 5000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-2507CF-0140-313DC AXIAL FAN, 25 MM SQUARE, 7 MM |
2,176 |
|
Datasheet |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 3.1 CFM (0.087m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | 7.00mm | Tubeaxial | Auto Restart | 31.4dB(A) | 1.75 W | 14000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-2006CF-0100-189DC AXIAL FAN, 20 MM SQUARE, 6 MM |
4,601 |
|
Datasheet |
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 0.600 CFM (0.017m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | 6.50mm | Tubeaxial | Auto Restart | 18.9dB(A) | 400 mW | 10000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8015CF-220-213-20FAN AXIAL 80X15.4MM 24VDC WIRE |
2,100 |
|
Datasheet |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 1.44 W | 2000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-2006CF-1100-189-22DC AXIAL FAN, 20 MM SQUARE, 6 MM |
2,781 |
|
Datasheet |
CFM-20CF | Box | Active | 12VDC | Square - 19.9mm L x 19.9mm H | 0.600 CFM (0.017m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | 6.50mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 18.9dB(A) | 600 mW | 10000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06015SS-24N-AT-00FAN AXIAL 60X15MM 24VDC WIRE |
4,790 |
|
Datasheet |
06015SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 22.6 CFM (0.633m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | 15.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 2.4 W | 4200 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
