| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4028BG-1250-617FAN AXIAL 40X28MM 12VDC WIRE |
1,908 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 30.5 CFM (0.854m³/min) | 3.820 in H2O (951.5 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart | 61.7dB(A) | 21.12 W | 25000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9BD12SA6-1FAN BLOWER 76X20MM 12VDC WIRE |
3,441 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 4500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|

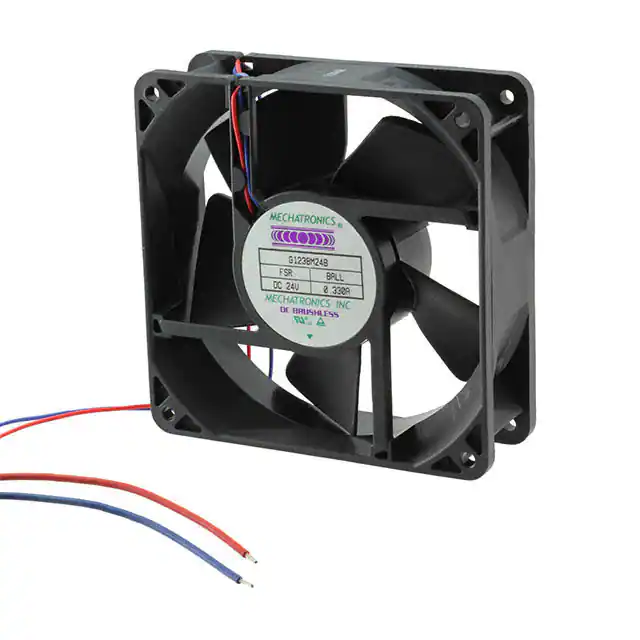

G1238M24B-FSRFAN AXIAL 119X38MM 24VDC WIRE |
4,592 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.74 lb (335.66 g) |
|
9GA0624M702FAN |
3,878 |
|
Datasheet |
San Ace 60 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | - | - |
|
9RA0612J4001FAN AXIAL 60X25MM 12VDC WIRE |
4,268 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.2 W | 7700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0624H4D001FAN |
4,143 |
|
Datasheet |
San Ace 60 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|
MS9225M12B-FSR-2EMFAN AXIAL 92X25MM 12VDC WIRE |
1,910 |
|
Datasheet |
MS9225-S | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (55.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 43.0dB(A) | - | 3500 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.225 lb (102.06 g) |
|
MD9238H24B1-FSRFAN AXIAL 92X38MM 24VDC WIRE |
3,471 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.5dB(A) | - | 4400 RPM | CE, TUV, UL | 3 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
MR3010H05B1+6-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
2,795 |
|
Datasheet |
MA3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | - | 4 Wire Leads | - | - | - |
|
F1238M12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
2,311 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.0dB(A) | - | 2300 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.536 lb (243.13 g) |
|
|
F1238S05B-FSRFAN AXIAL 119X38MM 5VDC WIRE |
2,072 |
|
Datasheet |
F1238-S | Bulk | Active | 5VDC | Square - 119mm L x 119mm H | 83.0 CFM (2.32m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 34.0dB(A) | - | 1800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.536 lb (243.13 g) |
|
|
MS9225H24B-FSR-2EMFAN AXIAL 92X25MM 24VDC WIRE |
1,957 |
|
Datasheet |
MS9225-S | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 73.6 CFM (2.06m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 49.0dB(A) | - | 4500 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.225 lb (102.06 g) |
|
9S0812L402FAN AXIAL 80X25MM 12VDC WIRE |
2,749 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 600 mW | 2000 RPM | CSA, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
|
OD8038-24HHBVXEThermal Products |
1,459 |
|
Datasheet |
OD8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 66.5dB(A) | 45.6 W | 8925 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
9RA0648P4J0011FAN AXIAL 60X25MM 48VDC WIRE |
4,060 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 7700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0624P4J001FAN AXIAL 60X25MM 24VDC WIRE |
1,815 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.32 W | 7700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0624P4J0011FAN AXIAL 60X25MM 24VDC WIRE |
3,300 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.32 W | 7700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
08025VE-24P-GTD-0FAN AXIAL 80X25.4MM 24VDC WIRE |
1,033 |
|
Datasheet |
08025VE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 73.1 CFM (2.05m³/min) | 0.761 in H2O (189.6 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.0dB(A) | 6.72 W | 7000 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
B1232H12B-BSRFAN BLOWER 120X32MM 12VDC WIRE |
2,578 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 32.00mm | Blower | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.705 lb (319.78 g) |
|
9S1212F4011FAN AXIAL 119X25MM 12VDC WIRE |
1,104 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 2.28 W | 2200 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
