| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
07525GA-24N-AA-00FAN BLOWER 75.7X25MM 24VDC WIRE |
3,612 |
|
Datasheet |
07525GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 9.5 CFM (0.266m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 25.00mm | Blower | Auto Restart | 43.0dB | 3.36 W | 3600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MD1238H12B-FSRFAN AXIAL 120X38MM 12VDC WIRE |
4,843 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 57.8dB(A) | - | 3800 RPM | cUL, UL | 2 Wire Leads | - | - | 0.906 lb (410.95 g) |
|
109P0412F601FAN AXIAL 40X20MM 12VDC WIRE |
2,440 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.08 W | 6500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.101 lb (45.81 g) |
|
AFB1212M-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
2,931 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 2.16 W | 2200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
9A0812S4D01FAN AXIAL 80X25MM 12VDC WIRE |
1,962 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
9G0624G1021FAN AXIAL 60X38MM 24VDC WIRE |
2,207 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 20.4 W | 11800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
G9232X12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
2,441 |
|
Datasheet |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 32.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.335 lb (151.95 g) |
|
109R0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
3,587 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.32 W | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
F8025L12B-FSR-EMFAN AXIAL 80X25MM 12VDC WIRE |
3,750 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 29.0 CFM (0.812m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.0dB(A) | - | 1800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.174 lb (78.93 g) |
|
|
109R0824S4021FAN AXIAL 80X25MM 24VDC WIRE |
3,517 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
G9232X36B-FSRFAN AXIAL 92X32MM 36VDC WIRE |
4,606 |
|
Datasheet |
G9232 | Bulk | Active | 36VDC | Square - 92mm L x 92mm H | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 32.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.335 lb (151.95 g) |
|
AFB0812M-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
4,480 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 2700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
109R0824S4D011FAN AXIAL 80X25MM 24VDC WIRE |
3,338 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

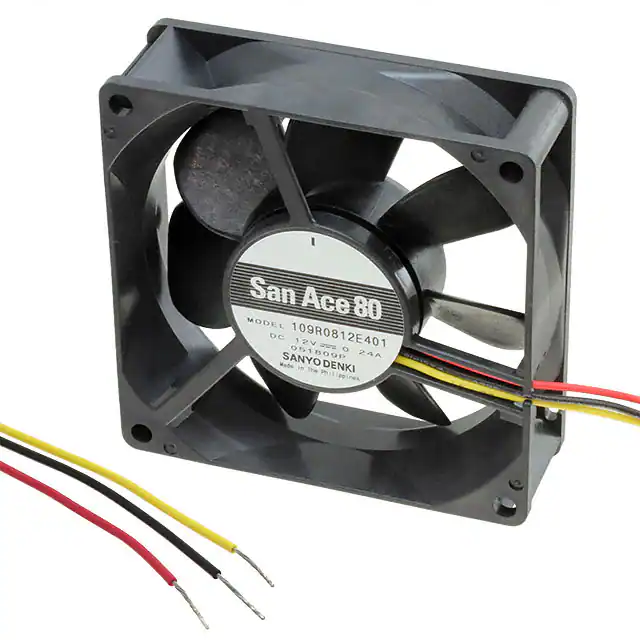

109R0812E401FAN AXIAL 80X25MM 12VDC WIRE |
1,267 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 46.3 CFM (1.30m³/min) | 0.232 in H2O (57.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.243 lb (110.22 g) |
|
MR1225E24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
1,914 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 56.6dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.275 lb (124.74 g) |
|
E1225E24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
4,626 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
|
E1225M12B-FSRFAN AXIAL 120X25MM 12VDC WIRE |
4,240 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 67.0 CFM (1.88m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
109R0605H401FAN AXIAL 60X25MM BALL 5VDC WIRE |
1,821 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.7 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
CFM-4020BG-1185-523-20FAN AXIAL 40X20MM 12VDC WIRE |
3,375 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 22.5 CFM (0.630m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.7dB(A) | 8.64 W | 18500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
09225VA-24Q-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
4,894 |
|
Datasheet |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 51.0dB(A) | 9.12 W | 5600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
