| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1225-24HBXE10ADC FAN - 24V 120 X 120 X 25MM - |
3,641 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 133.8 CFM (3.79m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 55.2dB(A) | 21 W | 4950 RPM | CE, cURus, TUV, UR | 4 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9G0912G1011FAN AXIAL 92X38MM 12VDC WIRE |
1,690 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
9RA0824H1001FAN AXIAL 80X38MM 24VDC WIRE |
3,439 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9G0824G1D01FAN AXIAL 80X38MM 24VDC WIRE |
4,345 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 13.4 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9GA0924J4D01FAN AXIAL 92X25.2MM 24VDC WIRE |
1,579 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 4.8 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
OD1238-24HBIP69KFAN AXIAL 120X38MM 24VDC WIRE |
1,714 |
|
Datasheet |
OD1238-IP69K | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 12 W | 2895 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 0.572 lb (259.45 g) |
|
9GV0812P1F031FAN AXIAL 80X38MM 12VDC WIRE |
2,304 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 108.0 CFM (3.02m³/min) | 1.210 in H2O (301.4 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|

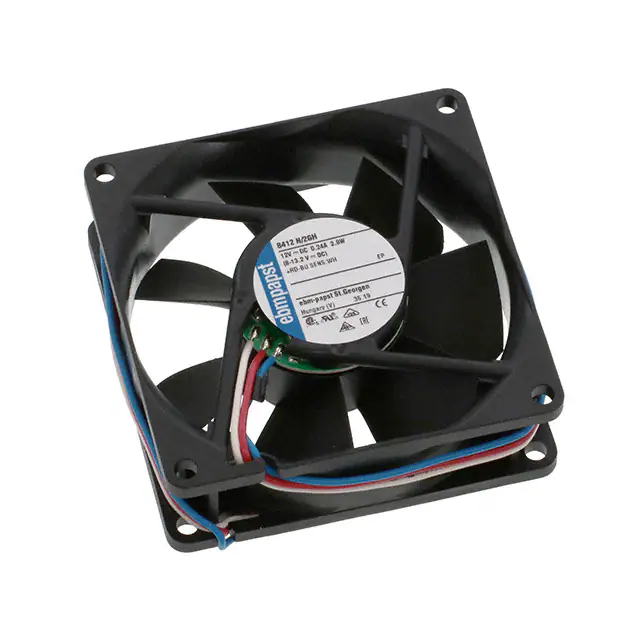

8412N/2GHFAN AXIAL 80X25.4MM 12VDC WIRE |
4,731 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 47.0 CFM (1.32m³/min) | - | Sintec | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 2.2 W | - | - | 3 Wire Leads | 158°F (70°C) | - | - |
|
OD1238-12MB01FAN AXIAL 120X38.5MM 12VDC WIRE |
2,003 |
|
Datasheet |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 38.50mm | Tubeaxial | Speed Sensor (Tach) | 41.0dB | 4 W | 2540 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RA1224G4001FAN AXIAL 120X25MM 24VDC WIRE |
4,136 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6.72 W | 4500 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1212G4001FAN AXIAL 120X25MM 12VDC WIRE |
1,565 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6.6 W | 4500 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1212E4001FAN AXIAL 120X25MM 12VDC WIRE |
1,542 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.92 W | 4000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1224P4G0011FAN AXIAL 120X25MM 24VDC WIRE |
4,242 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6.72 W | 4500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
612NGNFAN AXIAL 60X25.4MM 12VDC WIRE |
3,862 |
|
Datasheet |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 41.0dB(A) | 2.1 W | - | - | 2 Wire Leads | 158°F (70°C) | - | - |
|
|
612NGHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,664 |
|
Datasheet |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.3 CFM (0.708m³/min) | 0.363 in H2O (90.5 Pa) | Sintec | 25.40mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | 2.4 W | 5600 RPM | CE, CSA, EAC, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
OD1238-24H3BFAN AXIAL 120X38MM 24VDC WIRE |
4,399 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 178.0 CFM (4.98m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 54.0dB(A) | 22.1 W | 4190 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

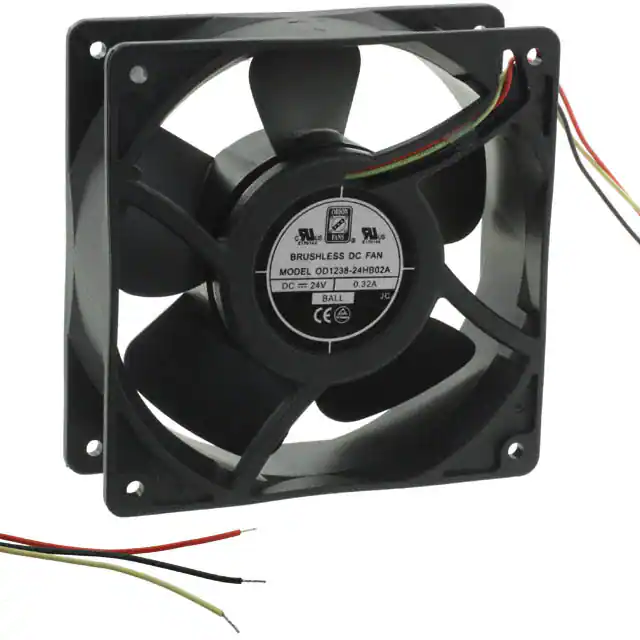

OD1238-24HB02AFAN AXIAL 120X38MM 24VDC WIRE |
2,542 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.1dB(A) | 12 W | 2895 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.572 lb (259.45 g) |
|
9BMB24K201FAN BLOWER 97.1X33MM 24VDC WIRE |
4,031 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 38.88 W | 6850 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.419 lb (190.06 g) |
|
9G1212H1D01FAN AXIAL 119X38MM 12VDC WIRE |
3,196 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
|
9G1212G101FAN AXIAL 119X38MM 12VDC WIRE |
1,213 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
