| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4010B-265-251FAN AXIAL 40X10.5MM 24VDC WIRE |
2,356 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 25.1dB(A) | 1.44 W | 6500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
1,590 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.56 W | 2900 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
G4020H24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE |
3,682 |
|
Datasheet |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.062 lb (28.12 g) |
|
06020SA-12T-AA-00FAN AXIAL 60X20MM 12VDC WIRE |
3,105 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 42.5dB | 2.88 W | 6400 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
F6025E24B1-FHRFAN AXIAL 60X25MM 24VDC WIRE |
4,087 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.139 lb (63.05 g) |
|

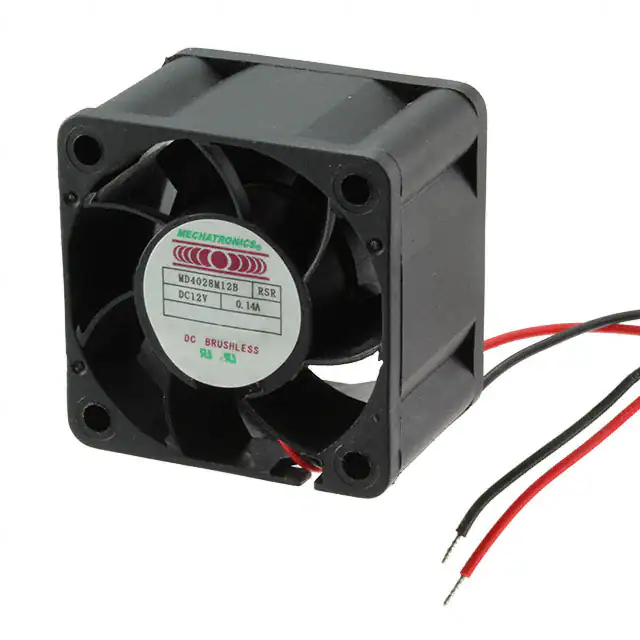

MD4028M12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
2,862 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.403 in H2O (100.4 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 37.2dB(A) | - | 8000 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
F8025S12B2-FHR-TTLFAN AXIAL 80X25MM 12VDC WIRE |
2,890 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 22.0dB(A) | - | 2000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.182 lb (82.55 g) |
|
G5015M05B-RSRFAN AXIAL 50X15MM BALL 5VDC WIRE |
4,682 |
|
Datasheet |
G5015 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 15.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 24.0dB(A) | - | 4500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.077 lb (34.93 g) |
|
06020SA-12T-EL-00FAN AXIAL 60X20MM 12VDC WIRE |
4,666 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.5dB | 2.88 W | 6400 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08015JE-12M-BA-F0FAN AXIAL 80X15MM 12VDC WIRE |
4,662 |
|
Datasheet |
08015JE | Box | Active | 12VDC | Square - 80mm L x 80mm H | 22.2 CFM (0.622m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 32.0dB | 1.2 W | 2800 RPM | - | 2 Wire Leads | -40 ~ 104°F (-40 ~ 40°C) | - | - |
|
CFM-A225B-020-350FAN AXIAL 120X25.4MM 5VDC WIRE |
4,154 |
|
Datasheet |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 37.8dB(A) | 2.85 W | 2000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G4010E12B1-RSR-WS-SFAN AXIAL 40X10.3MM 12VDC WIRE |
4,364 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 10.30mm | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.026 lb (11.79 g) |
|

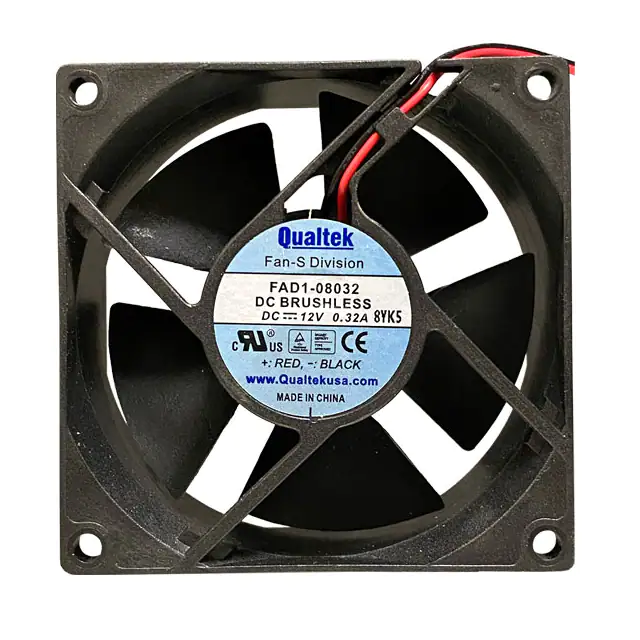

FAD1-08032CBMW12FAN AXIAL 80.5X32MM 12VDC WIRE |
2,060 |
|
Datasheet |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 44.8 CFM (1.25m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 32.00mm | Tubeaxial | - | 36.7dB(A) | 1.92 W | 3400 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.238 lb (107.95 g) |
|

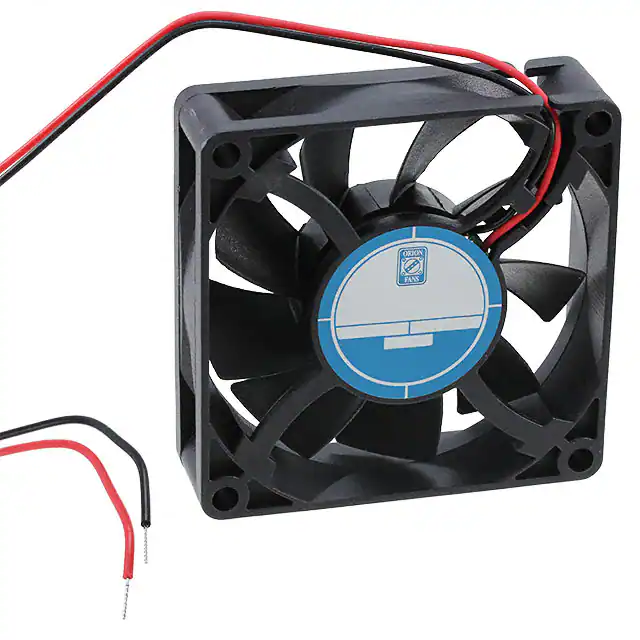

OD7020-12HBFAN AXIAL 70X20MM 12VDC WIRE |
1,462 |
|
Datasheet |
OD7020 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 41.0 CFM (1.15m³/min) | - | Ball | 20.00mm | Tubeaxial | - | 41.5dB | 5.16 W | 4500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
9RA0624G40011FAN AXIAL 60X25MM 24VDC WIRE |
3,954 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 5600 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
CFM-9232B-140-461FAN AXIAL 92.2X32MM 12VDC WIRE |
3,426 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 46.2dB(A) | 6.24 W | 4000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

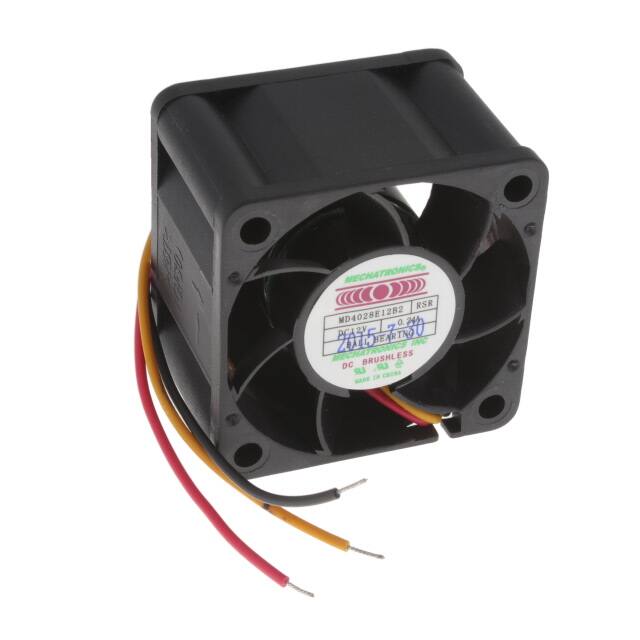

MD4028E12B2-RSRFAN AXIAL 40X28MM 12VDC WIRE |
3,671 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
G9225X12B-FGRFAN AXIAL 92X25MM 12VDC WIRE |
4,414 |
|
Datasheet |
G9225-G | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 34.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.218 lb (98.88 g) |
|
CBM-979433S-130-507FAN BLOWER 97X33MM 12VDC WIRE |
1,128 |
|
Datasheet |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | 33.00mm | Blower | Auto Restart | 43.5dB(A) | 6.48 W | 3000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
E9225H24B-FSR-L20FAN AXIAL 92X25MM 24VDC WIRE |
3,261 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.245 lb (111.13 g) |
