| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0824G40011FAN AXIAL 80X25MM 24VDC WIRE |
3,463 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9A0612S402FAN AXIAL 60X25MM 12VDC WIRE |
1,613 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
|
9A0624G4021FAN AXIAL 60X25MM 24VDC WIRE |
3,474 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.176 lb (80.00 g) |
|
FAD1-12025CBHW12FAN AXIAL 120X25.5MM 12VDC WIRE |
2,917 |
|
Datasheet |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 87.9 CFM (2.46m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 25.50mm | Tubeaxial | - | 39.1dB(A) | 3.48 W | 2200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.344 lb (156.04 g) |
|
06025SA-12T-ET-D0FAN AXIAL 60X25MM 12VDC WIRE |
3,260 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 37.8 CFM (1.06m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB | 5.2 W | 7500 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-9232B-130-398FAN AXIAL 92.2X32MM 12VDC WIRE |
4,921 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 39.9dB(A) | 3.84 W | 3000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SE-12Q-FT-DWFAN AXIAL 92X25MM 12VDC WIRE |
2,180 |
|
Datasheet |
09225SE | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.293 in H2O (73.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB(A) | 3 W | 3900 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | - |
|
9A0612G401FAN AXIAL 60X25MM 12VDC WIRE |
1,825 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.176 lb (80.00 g) |
(4028BG).jpg)
|
CFM-4020BG-1100-389-22FAN AXIAL 40X20MM 12VDC WIRE |
3,994 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.9dB(A) | 2.4 W | 10000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0912G402FAN AXIAL 92X25MM 12VDC WIRE |
2,186 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 4.68 W | 3900 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
9A0812F401FAN AXIAL 80X25MM 12VDC WIRE |
1,188 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.32 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
9A0812H401FAN AXIAL 80X25MM 12VDC WIRE |
2,847 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.56 W | 2900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|

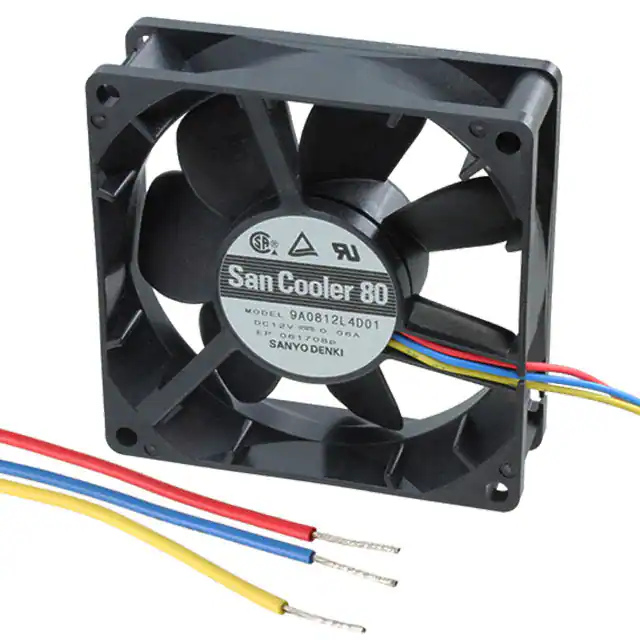

9A0812L4D01FAN AXIAL 80X25MM 12VDC WIRE |
4,904 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 720 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
9A0912G401FAN AXIAL 92X25MM 12VDC WIRE |
1,426 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.68 W | 3900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
9A0624S401FAN AXIAL 60X25MM 24VDC WIRE |
3,719 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.92 W | 4600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
E9225X12B1+6-FSRFAN AXIAL 92X25MM 12VDC WIRE |
1,134 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.245 lb (111.13 g) |
|
109P0605H702FAN AXIAL 60X15MM BALL 5VDC WIRE |
2,999 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.3 W | 4100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
9A0912M4011FAN AXIAL 92X25MM 12VDC WIRE |
4,015 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2250 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
|
9A0912S4011FAN AXIAL 92X25MM 12VDC WIRE |
3,377 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.24 W | 3550 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
G9225S05B2-FSRFAN AXIAL 92X25MM BALL 5VDC WIRE |
2,072 |
|
Datasheet |
G9225 | Bulk | Active | 5VDC | Square - 92mm L x 92mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 23.0dB(A) | - | 1600 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.218 lb (98.88 g) |
