| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1225M12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
1,097 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 67.0 CFM (1.88m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.436 lb (197.77 g) |
|
G1225E24B-FSR-EMFAN AXIAL 120X25MM 24VDC WIRE |
4,839 |
|
Datasheet |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.436 lb (197.77 g) |
|
9G0924G102FAN AXIAL 92X38MM 24VDC WIRE |
3,147 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 13.2 W | 5000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
414/2FAN AXIAL 40X20MM 24VDC WIRE |
3,834 |
|
Datasheet |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 1 W | 6000 RPM | CSA, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.06 lb (27.22 g) |
|
9RA0824H4001FAN AXIAL 80X25MM 24VDC WIRE |
1,132 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
MS6038H12B1+6-FSRFAN AXIAL 60X38MM 12VDC WIRE |
100 |
|
Datasheet |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | - | 11000 RPM | - | 4 Wire Leads | - | - | 0.231 lb (104.78 g) |
|
109R0812G4D01FAN AXIAL 80X25MM 12VDC WIRE |
2,317 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.44 W | 4500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.243 lb (110.22 g) |
|
|
9RA0812G4001FAN AXIAL 80X25MM 12VDC WIRE |
3,501 |
|
Datasheet |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9G0924H101FAN AXIAL 92X38MM 24VDC WIRE |
2,048 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 7.2 W | 4000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
|
9G0912H1D011FAN AXIAL 92X38MM 12VDC WIRE |
1,328 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 6.96 W | 4000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
BFB0712L-F00FAN BLOWER 75.7X30MM 12VDC WIRE |
3,027 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 7.0 CFM (0.196m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 30.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 1900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.211 lb (95.71 g) |
|
412/2H-048FAN AXIAL 40X20MM 12VDC WIRE |
4,261 |
|
Datasheet |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1 W | 7000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 122°F (-20 ~ 50°C) | IP20 | - |
|

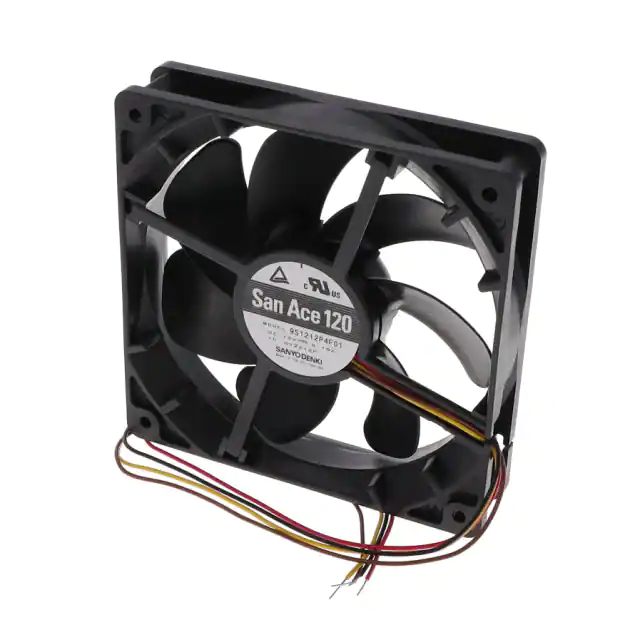

9S1212P4F01FAN AXIAL 119X25MM 12VDC WIRE |
1,964 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 2.28 W | 2200 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
DB1203212H2B-2T0FAN BLOWER 119X32MM 12VDC WIRE |
1,710 |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 119mm L x 119mm H | 32.1 CFM (0.899m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection | 49.0dB(A) | 13.32 W | 2800 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
08025DA-24P-AA-00FAN AXIAL 80X25.4MM 24VDC WIRE |
1,755 |
|
Datasheet |
08025DA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 55.0dB | 6.48 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.265 lb (120.2 g) |
|
|
08025DA-12P-AA-00FAN AXIAL 80X25.4MM 12VDC WIRE |
4,838 |
|
Datasheet |
08025DA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 72.4 CFM (2.03m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 53.0dB | 5.88 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.265 lb (120.2 g) |
|
09225VE-12Q-CT-00FAN AXIAL 92X25MM 12VDC WIRE |
2,937 |
|
Datasheet |
09225VE | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 8.64 W | 5600 RPM | CE, cULus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
9G0924S2D01FAN AXIAL 92X32MM 24VDC WIRE |
1,985 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9G0912S2D01FAN AXIAL 92X32MM 12VDC WIRE |
2,289 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9G0912S2011FAN AXIAL 92X32MM 12VDC WIRE |
2,970 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
