| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0912A201FAN AXIAL 92X32MM 12VDC WIRE |
3,662 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 6.96 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9G0924A2D01FAN AXIAL 92X32MM 24VDC WIRE |
2,540 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 7.2 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.375 lb (170.1 g) |
|
9G0948M2021FAN AXIAL 92X32MM 48VDC WIRE |
1,331 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 25.0dB(A) | 2.4 W | 2100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
CFM-A238BF-165-635FAN AXIAL 120X38MM 12VDC WIRE |
3,929 |
|
Datasheet |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 213.8 CFM (6.98m³/min) | 1.430 in H2O (356.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 63.5dB(A) | 33.36 W | 6500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09232VE-24R-CTS-0FAN AXIAL 92X32MM 24VDC WIRE |
2,308 |
|
Datasheet |
09232VE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 7000 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|

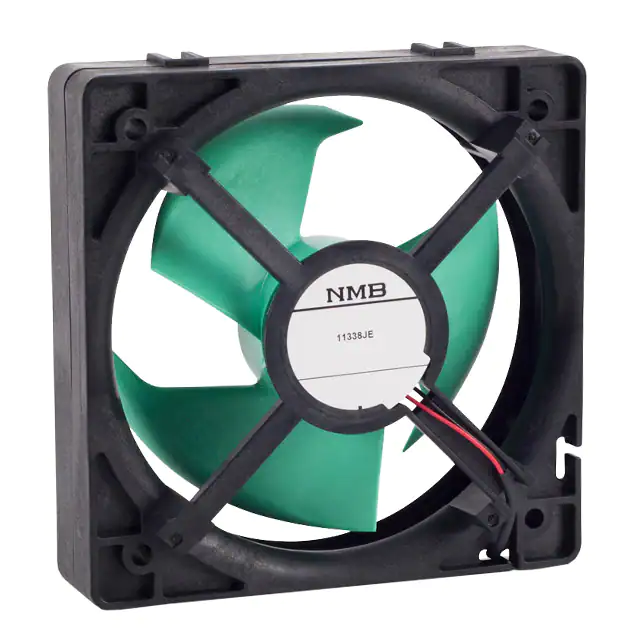

11338JE-12L-BA-F0FAN AXIAL 113X45.5MM 12VDC WIRE |
4,672 |
|
Datasheet |
11338JE | Box | Active | 12VDC | Square - 113mm L x 113mm H | 52.5 CFM (1.47m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 45.50mm | Tubeaxial | Auto Restart | 32.5dB | 1.56 W | 2900 RPM | - | 2 Wire Leads | -40 ~ 104°F (-40 ~ 40°C) | - | 0.375 lb (170.1 g) |
|
MR1238L24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
3,165 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 58.5dB(A) | - | 3500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.838 lb (380.11 g) |
|
9RA0912G4001FAN AXIAL 92X25MM 12VDC WIRE |
2,113 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 4200 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

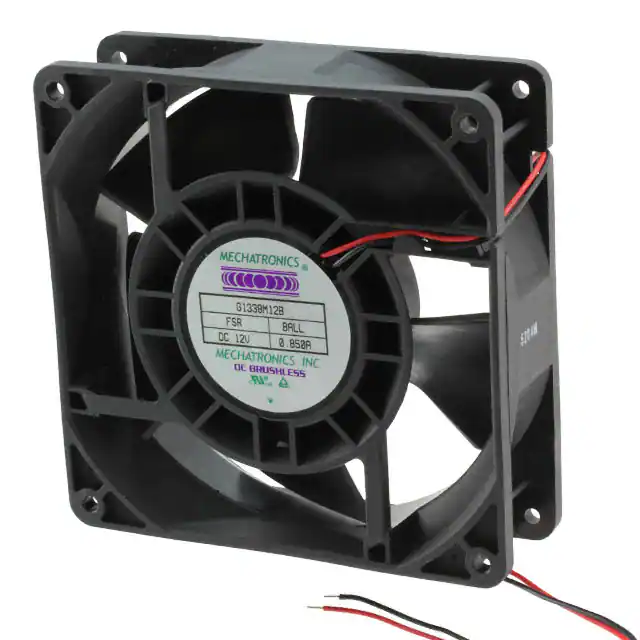

G1338M12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
3,903 |
|
Datasheet |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 122.1 CFM (3.42m³/min) | 0.460 in H2O (114.6 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.784 lb (355.62 g) |
|
9WF0424H601FAN AXIAL 40X20MM 24VDC WIRE |
1,635 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 2.64 W | 13100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.111 lb (50.35 g) |
|

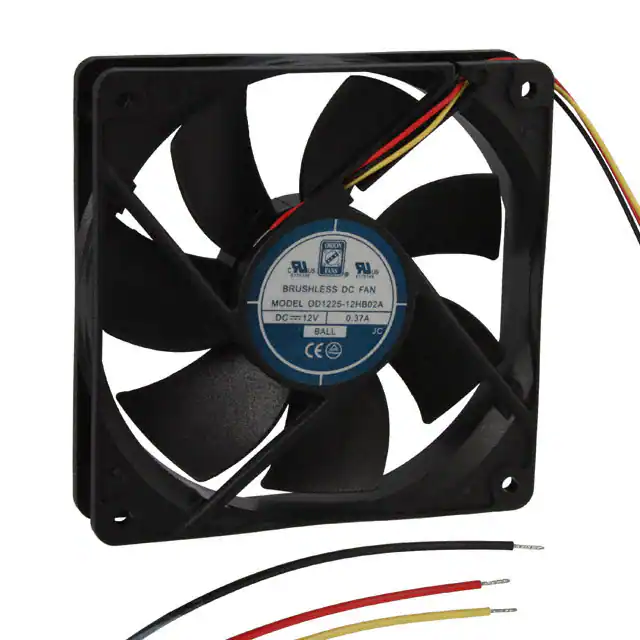

OD1225-12HB02AFAN AXIAL 120X25MM 12VDC WIRE |
4,856 |
|
Datasheet |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB(A) | 5.4 W | 3100 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|
|
9GA0924W4D01FAN AXIAL 92X25MM 24VDC WIRE |
4,311 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | - | 2.16 W | - | - | 3 Wire Leads | - | - | - |
|
|
9RA0924F4001FAN AXIAL 92X25MM 24VDC WIRE |
1,086 |
|
Datasheet |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2850 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0924G4001FAN AXIAL 92X25MM 24VDC WIRE |
4,194 |
|
Datasheet |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 4200 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
MS9238H24B1+6-FHRFAN AXIAL 92X38MM 24VDC WIRE |
2,846 |
|
Datasheet |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 8000 RPM | - | 4 Wire Leads | - | - | 0.446 lb (202.3 g) |
|
9G1224F402FAN AXIAL 119X25MM 24VDC WIRE |
4,830 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 25.00mm | Tubeaxial | - | 35.0dB(A) | 2.4 W | 2250 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9G1224H4021FAN AXIAL 119X25MM 24VDC WIRE |
2,726 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 25.00mm | Tubeaxial | - | 40.0dB(A) | 4.08 W | 2850 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
|
9G1212H402FAN AXIAL 119X25MM 12VDC WIRE |
2,803 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 25.00mm | Tubeaxial | - | 40.0dB(A) | 3.72 W | 2850 RPM | CSA, TUV, UL | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.529 lb (239.95 g) |
|

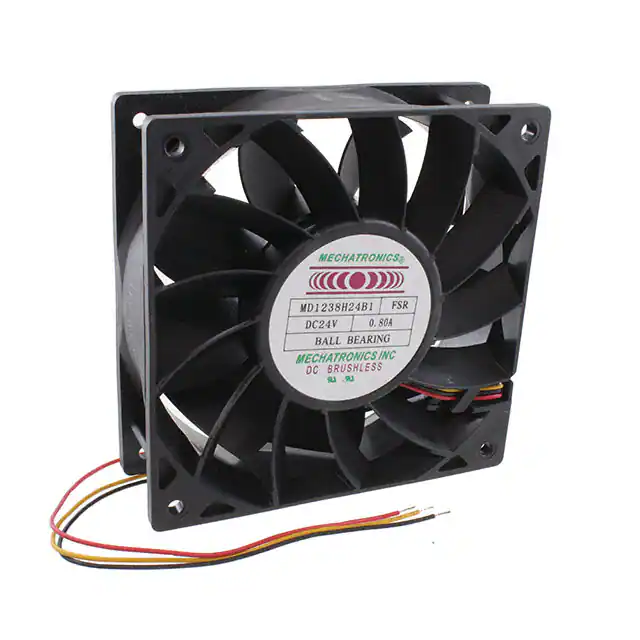

MD1238H24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
2,576 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 57.8dB(A) | - | 3800 RPM | cUL, UL | 3 Wire Leads | - | - | 0.906 lb (410.95 g) |
|
OD6025-48HBIP69KFAN AXIAL 60X25MM 48VDC WIRE |
2,883 |
|
Datasheet |
OD6025-IP69K | Box | Active | 48VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 3.4 W | 3975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 0.141 lb (63.96 g) |
