| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8038S-240-449FAN AXIAL 80X37.6MM 24VDC WIRE |
3,026 |
|
Datasheet |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | 37.60mm | Tubeaxial | Auto Restart | 45.0dB(A) | 5.76 W | 4000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MB6010X12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
1,128 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 10.20mm | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5300 RPM | cUL, UL | 2 Wire Leads | - | - | 0.059 lb (26.76 g) |
|

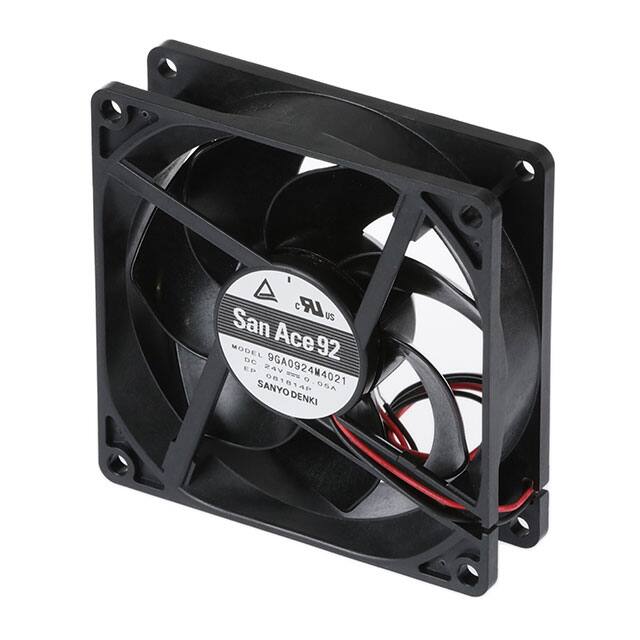

9GA0924M4021FAN AXIAL 92X25MM 24VDC WIRE |
3,614 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | - | 1.2 W | - | - | 2 Wire Leads | - | - | - |
|
09225SA-12L-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,382 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 25.0dB | 1.2 W | 2400 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G8015E24B1-RGR-TTLFAN AXIAL 80X15.3MM 24VDC WIRE |
3,869 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 15.30mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 4400 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.128 lb (58.06 g) |
|
G4015H24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
3,279 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 15.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.051 lb (23.13 g) |
|
|
G8015X24B1-RGR-L40FAN AXIAL 80X15.3MM 24VDC WIRE |
1,148 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.30mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.128 lb (58.06 g) |
|
08020SA-24N-EL-00FAN AXIAL 80X20MM 24VDC WIRE |
3,564 |
|
Datasheet |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 20.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
B1232H12B-BSR-E-CC-IM4FAN BLOWER 120X32MM 12VDC WIRE |
4,528 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 32.00mm | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.706 lb (320.24 g) |
|
E9225X24B-FSR-L17FAN AXIAL 92X25MM 24VDC WIRE |
2,865 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.245 lb (111.13 g) |
6025BF).jpg)
|
CFM-6025BF-235-274-22FAN AXIAL 60X25.4MM 24VDC WIRE |
4,303 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.44 W | 3500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
F8025M12B3-FSRFAN AXIAL 80X25MM 12VDC WIRE |
4,207 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 29.0dB(A) | - | 2100 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
F1238M12B3-FSRFAN AXIAL 119X38MM 12VDC WIRE |
4,739 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Thermistor | 38.0dB(A) | - | 2300 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.536 lb (243.13 g) |
|
F6025E12B3-RSRFAN AXIAL 60X25MM 12VDC WIRE |
4,743 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 36.0dB(A) | - | 4600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|
9A0612G4021FAN AXIAL 60X25MM 12VDC WIRE |
3,114 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.176 lb (80.00 g) |
|
MR9225E24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,565 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 50.8dB(A) | - | 4400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.264 lb (119.75 g) |
|
9GA0912F402FAN AXIAL 92X25MM 12VDC WIRE |
1,741 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | - | 1.68 W | - | - | 2 Wire Leads | - | - | - |
|
109P0424H646FAN AXIAL 40X20MM 24VDC |
1,476 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | - | 8300 RPM | CSA, TUV, UL | 2 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | 0.101 lb (45.81 g) |
|
9A0612F4011FAN AXIAL 60X25MM 12VDC WIRE |
4,458 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.08 W | 3200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
9A0912S4021FAN AXIAL 92X25MM 12VDC WIRE |
1,886 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.24 W | 3550 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
