| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MH4028E12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
1,243 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.5 CFM (0.685m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 15000 RPM | - | 2 Wire Leads | - | - | 0.089 lb (40.37 g) |
|
9A0612G4D01FAN AXIAL 60X25MM 12VDC WIRE |
4,879 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.176 lb (80.00 g) |
|
F6025H12B-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
4,246 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.139 lb (63.05 g) |
|
9GA0812L20021FAN AXIAL 80X32MM 12VDC WIRE |
3,092 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | - | 960 mW | - | - | 2 Wire Leads | - | - | - |
|
MR9232H12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
3,084 |
|
Datasheet |
MR9232 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 85.0 CFM (2.38m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 49.7dB(A) | - | 4400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.331 lb (150.14 g) |
|
|
F6025X24B3-RHRFAN AXIAL 60X25MM 24VDC WIRE |
3,978 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 42.0dB(A) | - | 5800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|
9GA0812L2001FAN AXIAL 80X32MM 12VDC WIRE |
1,616 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 960 mW | - | - | 3 Wire Leads | - | - | - |
|

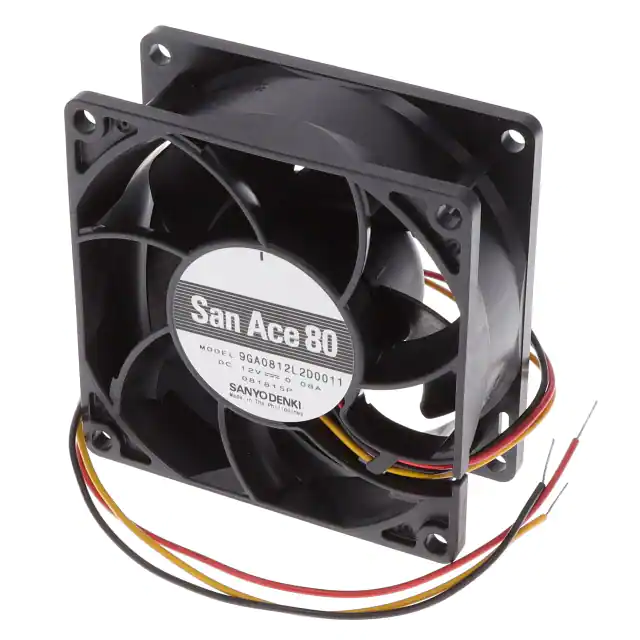

9GA0812L2D0011FAN AXIAL 80X32MM 12VDC WIRE |
3,145 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | - | 960 mW | - | - | 3 Wire Leads | - | - | - |
|
9GA0812L20011FAN AXIAL 80X32MM 12VDC WIRE |
3,519 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 960 mW | - | - | 3 Wire Leads | - | - | - |
|
9A0912G4D011FAN AXIAL 92X25MM 12VDC WIRE |
4,326 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 4.68 W | 3900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
MS2507M12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC |
4,626 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | 7.40mm | Tubeaxial | - | 24.0dB(A) | - | 10000 RPM | CE, cUL, TUV, UL | - | - | - | 0.011 lb (4.99 g) |
|
|
MS2507L12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC |
3,023 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | 7.40mm | Tubeaxial | - | 20.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | - | - | - | 0.011 lb (4.99 g) |
|
CFM-9232S-150-509FAN AXIAL 92.2X32MM 12VDC WIRE |
1,874 |
|
Datasheet |
CFM-92S | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 102.8 CFM (2.88m³/min) | 0.620 in H2O (154.4 Pa) | Sleeve | 32.00mm | Tubeaxial | Auto Restart | 51.0dB(A) | 10.9 W | 5000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RA0824H40011FAN AXIAL 80X25MM 24VDC WIRE |
4,250 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
109R0612F402FAN AXIAL 60X25MM 12VDC WIRE |
4,603 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.08 W | 3200 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
G8032X12B-RSRFAN AXIAL 80X32MM 12VDC WIRE |
3,745 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.286 lb (129.73 g) |
|
CFM-8038B-150-498FAN AXIAL 80X37.6MM 12VDC WIRE |
4,711 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 37.60mm | Tubeaxial | Auto Restart | 49.8dB(A) | 6.84 W | 5000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

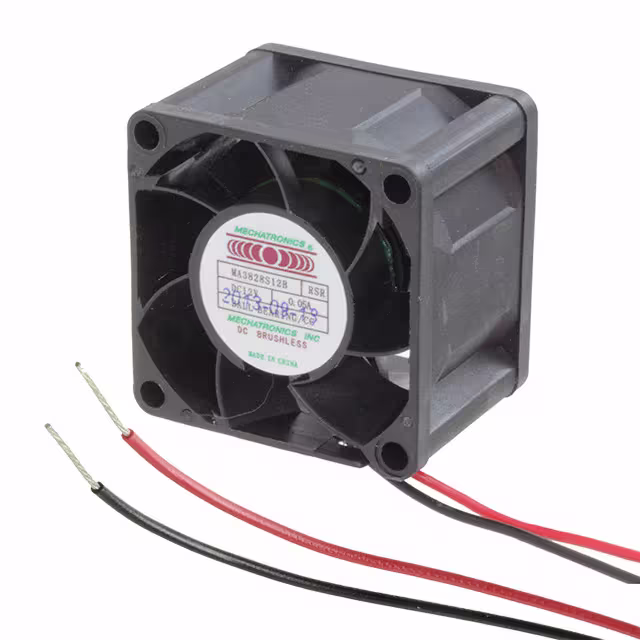

MA3828S12B-RSR-CCFAN AXIAL 38X28MM 12VDC WIRE |
3,411 |
|
Datasheet |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 28.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 30.8dB(A) | - | 5000 RPM | cUL, UL | 2 Wire Leads | - | - | 0.078 lb (35.38 g) |
|
G4020H05B-RSR-CC-TEF-L4FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,810 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.062 lb (28.12 g) |
|
G4015M24B-RSR-CCFAN AXIAL 40X15MM 24VDC WIRE |
2,629 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 15.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 23.0dB(A) | - | 6000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.051 lb (23.13 g) |
