| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD0412MX-K90(XT1)DC,40X6,12V,MED,HYPRO |
4,144 |
|
Datasheet |
AD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.6 CFM (0.129m³/min) | 0.063 in H2O (15.7 Pa) | Hypro | 6.80mm | Tubeaxial | - | 26.7dB(A) | 0.6 W | 5500 RPM | CE, cUR, TUV, UR | 2 Wire Leads | - | - | - |
|
|
FD8025S12W9-61-2RSC1DC Axial Fan 80x80x25mm 12VDC |
1,101 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 12VDC | Square - 80mm L x 80mm H | 56.8 CFM (1.59m³/min) | 0.248 in H2O (61.8 Pa) | Sleeve | 25.00mm | Tubeaxial | Auto Restart | 42.4dB(A) | 4.8 W | 4000 RPM | cUL, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
|
CFR1B5H-SFAN MICR BLOWER 43.8X23.5MM 5VDC |
2,539 |
|
Datasheet |
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 43.8mm L x 23mm H | - | 0.190 in H2O (46.1 Pa) | Ball | 23.50mm | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 840 mV | 8000 RPM | CE, cUL, TUV, UL | - | -10°C ~ 70°C | - | - |
|
|
FD4028B12W11-3RDC Axial Fan 40x40x28mm 12VDC |
2,094 |
|
Datasheet |
- | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 14.7 CFM (0.412m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 28.00mm | Tubeaxial | - | 44.0dB(A) | 3.12 W | 11500 RPM | cUL, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.053 lb (24.04 g) |
|
|
FD4010B24W5-71-2NSC2DC Axial Fan 40x40x10mm 24VDC |
1,571 |
|
Datasheet |
71 | Tape & Box (TB) | Active | 24VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.157m³/min) | 0.098 in H2O (24.5 Pa) | Ball | 10.00mm | Tubeaxial | - | 24.5dB(A) | 1.44 W | 5400 RPM | CE, cUL, TUV, UL | 2 Wire Leads With Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
FD4010B12W7-81-2N3DC Axial Fan 40x40x10mm 12VDC |
1,105 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 8.6 CFM (0.241m³/min) | 0.126 in H2O (31.3 Pa) | Ball | 10.00mm | Tubeaxial | - | 27.5dB(A) | 1.56 W | 6000 RPM | cUL, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
|
FD9225B12W7-84-4JC4DC Axial Fan 92x92x25mm 12VDC |
1,768 |
|
Datasheet |
84 | Tape & Box (TB) | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 98.0 CFM (2.74m³/min) | 0.374 in H2O (93.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control | 47.8dB(A) | 6 W | 4200 RPM | CE, cUL, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
FD1225L12W3-73-2RDC Fan 120x120x25mm 12VDC |
1,046 |
|
Datasheet |
73 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 58.7 CFM (1.64m³/min) | 0.059 in H2O (14.7 Pa) | Hypro | 25.00mm | Tubeaxial | Auto Restart | 25.6dB(A) | 1.92 W | 1500 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
|
FD4028B12W1-81-3RDC Axial Fan 40x40x28mm 12VDC |
4,098 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart | 31.7dB(A) | 1.44 W | 5500 RPM | cUL, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.053 lb (24.04 g) |
|
|
FD1238B24W3-61-3RYDC Axial Fan 120x120x38mm 24VDC |
3,311 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 24VDC | Square - 120mm L x 120mm H | 103.4 CFM (2.90m³/min) | 0.213 in H2O (53.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 39.8dB(A) | 4.08 W | 2400 RPM | cUL, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
FBD9733B24W7-81-3RC2DC Axial Blowers 97x94x33mm 24VD |
2,082 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 24VDC | Rectangular/Round - 97mm L x 94mm H | 27.2 CFM (0.762m³/min) | 1.347 in H2O (335.5 Pa) | Ball | 33.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.3dB(A) | 13.92 W | 3500 RPM | CE, cUL, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
FD9238B12W5-81-2RX.CDC Axial Fan 92x92x38mm 12VDC |
3,477 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 81.8 CFM (2.29m³/min) | 0.287 in H2O (71.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.2dB(A) | 4.8 W | 3200 RPM | cUL, TUV, UL | 2 Wire Leads | 14 ~ 104°F (-10 ~ 40°C) | IP54 - Dust Protected, Water Resistant | - |
|
|
FBD9733B24W7-81-3RC3DC Axial Blowers 97x94x33mm 24VD |
2,139 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 24VDC | Rectangular/Round - 97mm L x 94mm H | 27.2 CFM (0.762m³/min) | 1.347 in H2O (335.5 Pa) | Ball | 33.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.3dB(A) | 13.92 W | 3500 RPM | CE, cUL, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
FD1225B12W2-61-2R1DC Axial Fans 120x120x25mm 12VDC |
3,426 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 12VDC | Square - 120.1mm L x 120.1mm H | 66.1 CFM (1.85m³/min) | 0.102 in H2O (25.5 Pa) | Ball | 25.00mm | Tubeaxial | - | 33.5dB(A) | 2.16 W | 1700 RPM | CE, cUL, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.362 lb (164.2 g) |
|

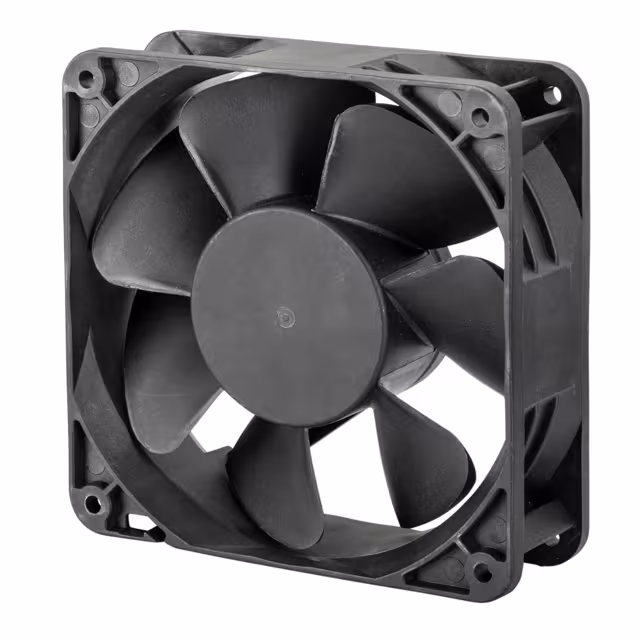

G1238L12BPLB1-7FAN AXIAL 120X38MM 12VDC WIRE |
2,098 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 104.4 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 39.8dB(A) | 3.48 W | 2600 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
FD4015B12W5-61-4JC1DC Axial Fan 40x40x15mm 12VDC |
2,321 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart, PWM Control | 30.0dB(A) | 2.2 W | 6500 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.111 lb (50.35 g) |
|
|
FD4010B12W5-83-2N4DC Axial Fan 40x40x10mm 12VDC |
1,366 |
|
Datasheet |
83 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 10.00mm | Tubeaxial | - | 30.5dB(A) | 1.92 W | 6600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
FD1238B12W3-62-2R1DC Axial Fan 120x120x38mm 12VDC |
2,383 |
|
Datasheet |
62 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 130.6 CFM (3.66m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 43.3dB(A) | 6.96 W | 2900 RPM | CE, cUL, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
FD4015B24W5-61-2RSC2DC Axial Fan 40x40x15mm 24VDC |
2,644 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 29.0dB(A) | 2.4 W | 6500 RPM | cUL, TUV, UL | 2 Wire Leads With Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
FD1238B12W3-62-2RC1DC Axial Fan 120x120x38mm 12VDC |
4,682 |
|
Datasheet |
62 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 130.6 CFM (3.66m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 43.3dB(A) | 6.96 W | 2900 RPM | CE, cUL, TUV, UL | 2 Wire Leads With Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
