| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

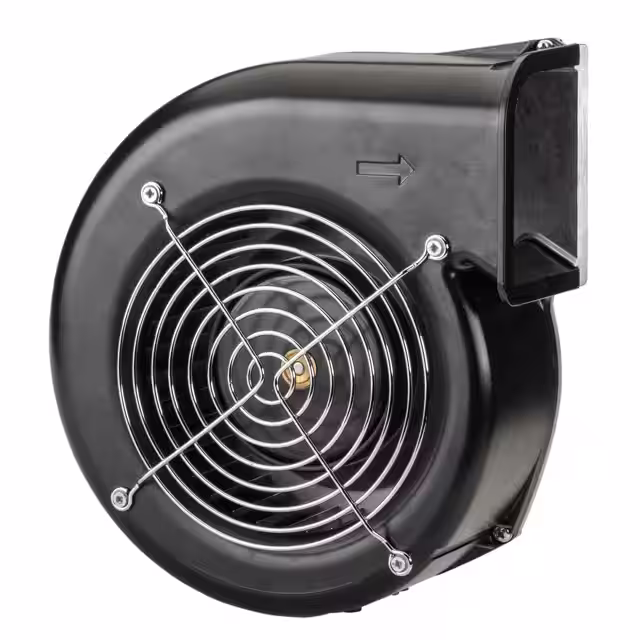

P1970H48BALA2A-38FAN BLOWER 193X72MM 48VDC WIRE |
2,526 |
|
Datasheet |
TITAN | Bulk | Active | 48VDC | Rectangular/Round - 193mm L x 177mm H | 127.7 CFM (3.62m³/min) | 2.020 in H2O (503.1 Pa) | Ball | 72.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 55.5dB(A) | 42.05 W | 1800 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8025V-232-330FAN AXIAL 80X25MM 24VDC WIRE |
1,029 |
|
Datasheet |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart | 33.0dB(A) | 1.8 W | 3200 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
04015SS-12N-AA-00FAN AXIAL 40X15MM 12VDC WIRE |
4,679 |
|
Datasheet |
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | 15.00mm | Tubeaxial | Auto Restart | 32.0dB | 720 mW | 8300 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MF40201V2-1000U-G99FAN AXIAL 40X20MM 12VDC WIRE |
4,962 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 20.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 540 mW | 6000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.064 lb (29.03 g) |
|

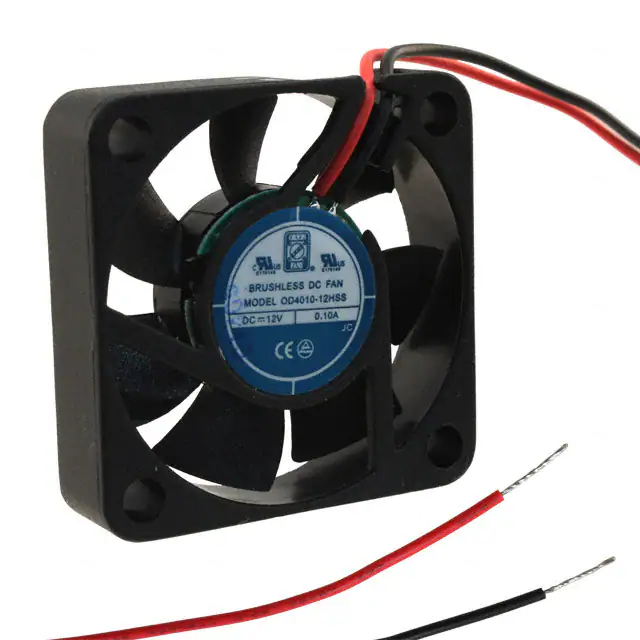

OD4010-12HSSFAN AXIAL 40X10.5MM 12VDC WIRE |
3,311 |
|
Datasheet |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | 10.50mm | Tubeaxial | Auto Restart | 33.2dB | 720 mW | 8000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
|
MF50152VX-1000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
1,237 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | Auto Restart | 38.1dB(A) | 1.32 W | 7200 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
CFM-6025V-231-167-20FAN AXIAL 60X25MM 24VDC WIRE |
1,520 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.7dB(A) | 680 mW | 3100 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.099 lb (44.91 g) |
|
|
06025SA-12N-AL-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,664 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB | 1.8 W | 4700 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
MF25060V1-1000U-A99FAN AXIAL 25X6.5MM 5VDC WIRE |
1,763 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 24.8dB(A) | 580 mW | 13000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.012 lb (5.44 g) |
|

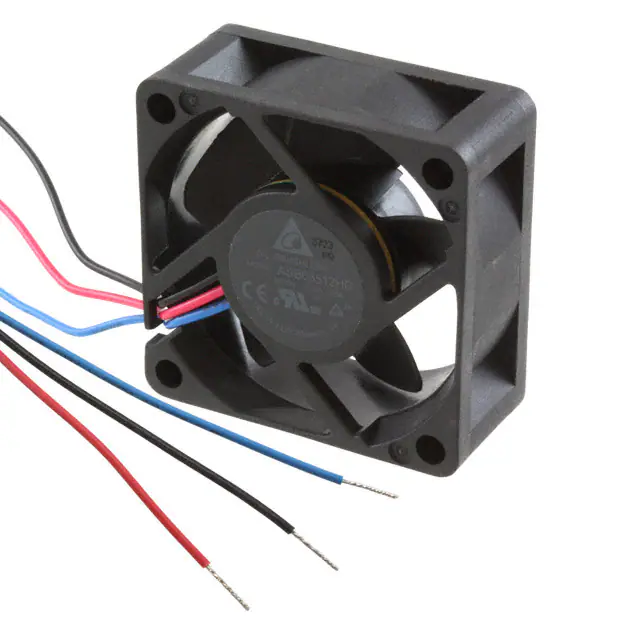

ASB03512HB-F00FAN AXIAL 35X15MM 12VDC WIRE |
1,822 |
|
Datasheet |
ASB | Box | Active | 12VDC | Square - 35mm L x 35mm H | 9.5 CFM (0.266m³/min) | 0.327 in H2O (81.4 Pa) | Sleeve | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 1.32 W | 11000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.031 lb (14.06 g) |
|
|
08025SA-12N-EL-D0FAN AXIAL 80X25MM 12VDC WIRE |
2,824 |
|
Datasheet |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB | 1.7 W | 3100 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-12M-ET-D0FAN AXIAL 80X25MM 12VDC WIRE |
3,652 |
|
Datasheet |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 1.08 W | 2700 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
MF30101V2-1000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
4,790 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.6 CFM (0.129m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 20.0dB(A) | 390 mW | 8600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
EFB0412HHD16VFAN AXIAL 40X20MM 12VDC |
3,993 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.2 W | 8200 RPM | CE, cURus, VDE | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
|
06015VA-12P-AT-00FAN AXIAL 60X15MM 12VDC WIRE |
4,597 |
|
Datasheet |
06015VA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.5dB | 1.6 W | 5600 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

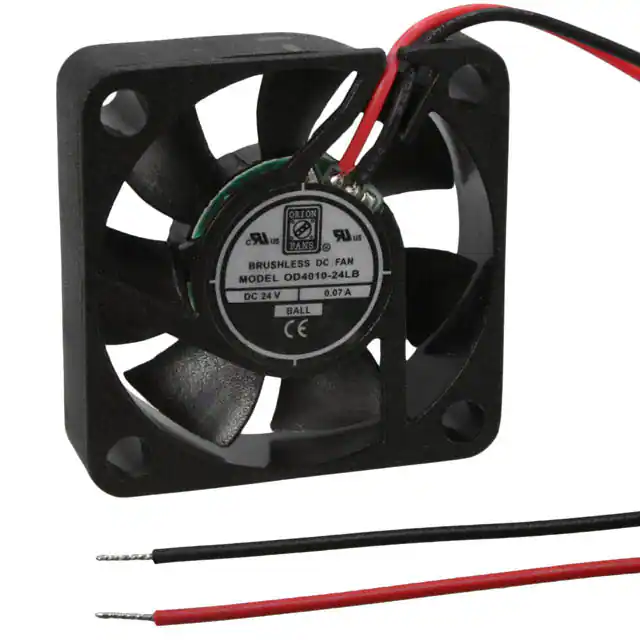

OD4010-24LBFAN AXIAL 40X10.5MM 24VDC WIRE |
2,006 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 20.1dB | 730 mW | 4000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

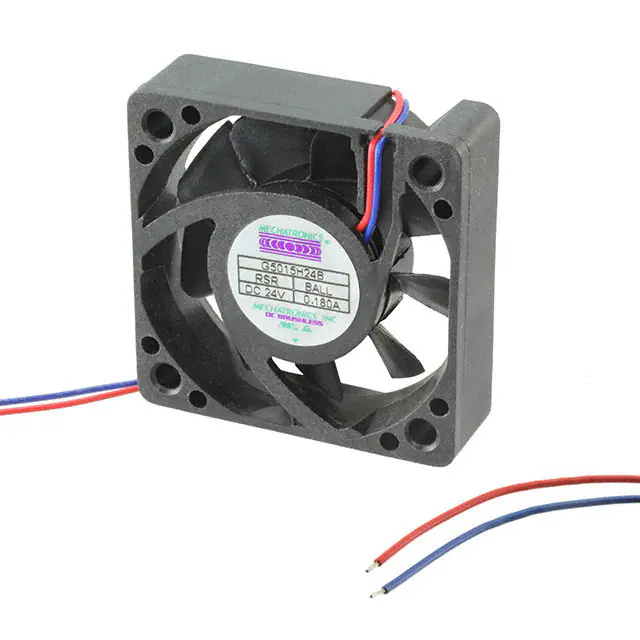

G5015H24B-RSRFAN AXIAL 50X15MM 24VDC WIRE |
3,239 |
|
Datasheet |
G5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 15.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 5500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.077 lb (34.93 g) |
|
|
CFM-8025V-148-447FAN AXIAL 80X25MM 12VDC WIRE |
1,178 |
|
Datasheet |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | 25.00mm | Tubeaxial | Auto Restart | 44.7dB(A) | 4.29 W | 4800 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
08020SA-12J-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
3,171 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 27.0dB | 600 mW | 2600 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
06025SA-24S-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
3,325 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.5dB | 4.1 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
