DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFR1212GHEEVTFAN AXL 120X38MM 12VDC RECT CONN |
372 |
|
Datasheet |
QFR | Box | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 21.6 W | 6000 RPM | CE, CSA, UL, VDE | 4 Position Rectangular Connector | 14 ~ 140°F (-10 ~ 60°C) | - | 0.728 lb (330.22 g) |
|
PFB0824UHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
1,049 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 18.48 W | 7500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.441 lb (200.03 g) |
|

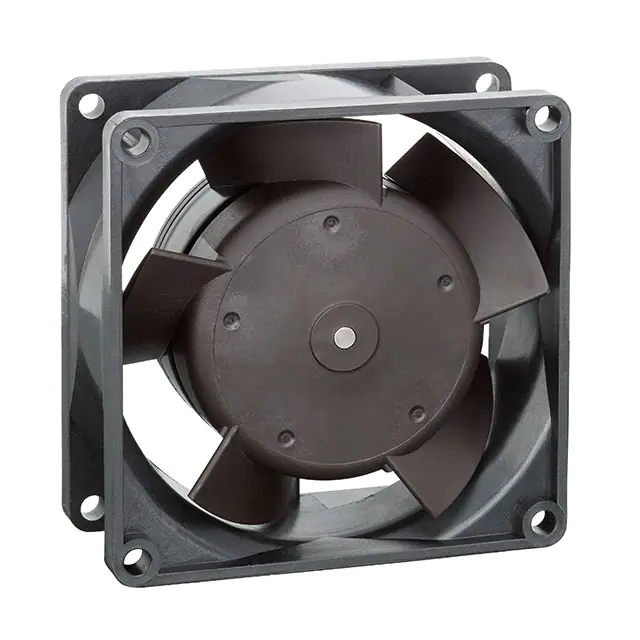

8314FAN AXIAL 80X32MM 24VDC WIRE |
237 |
|
Datasheet |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3300 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.375 lb (170.1 g) |
|
9CRA0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
799 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
OD1238-12MBXJ10AFAN AXIAL 120X38MM 12VDC WIRE |
600 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 207.0 CFM (5.80m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB | 27.6 W | 5000 RPM | cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.827 lb (375.12 g) |
|
4414FFAN AXIAL 119X25.4MM 24VDC WIRE |
324 |
|
Datasheet |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 43.0dB(A) | 5 W | 2900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.38 lb (172.37 g) |
|

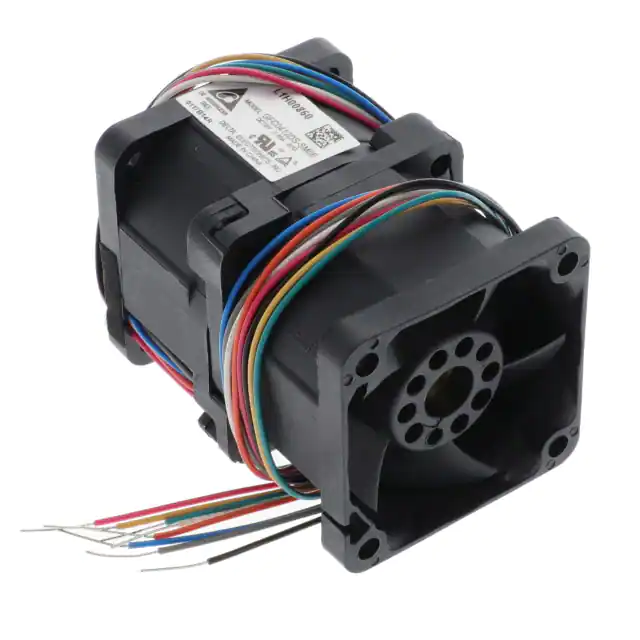

GFC0412DS-SM06B0GFAN AXIAL DUAL 40X56MM 12VDC |
1,616 |
|
Datasheet |
GFC | Box | Not For New Designs | 12VDC | Square - 40mm L x 40mm H | 37.6 CFM (1.05m³/min) | 4.110 in H2O (1023.8 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 27.24 W | 23000 Front, 20500 Rear | cURus, TUV | 4 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 0.183 lb (83.01 g) |
|

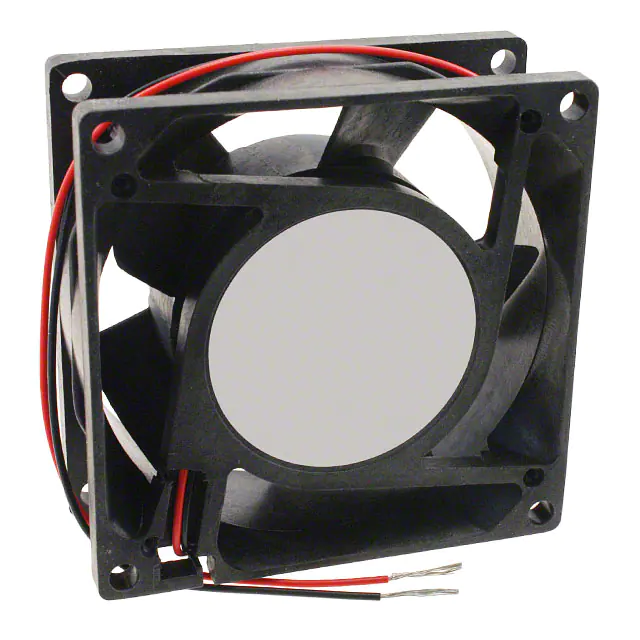

19030614AFAN AXIAL 80X32MM 24VDC ST24K3 |
2,412 |
|
Datasheet |
Sprint | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.325 in H2O (80.9 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.2dB(A) | 4.5 W | 4200 RPM | UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.397 lb (180.08 g) |
|
PFB0824DHEYDGFAN AXIAL 80X38MM 24VDC WIRE |
1,465 |
|
Datasheet |
PFB | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 9000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.03 g) |
|
9GV0812P1F03FAN AXIAL 80X38MM 12VDC WIRE |
156 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 108.0 CFM (3.02m³/min) | 1.210 in H2O (301.4 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|
4314FAN AXIAL 119X32MM 24VDC WIRE |
1,263 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.485 lb (219.99 g) |
|
TFA0412CNP8FAN AXIAL 40X28MM 12VDC WIRE |
177 |
|
Datasheet |
TFA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 22.2 CFM (0.622m³/min) | 1.566 in H2O (390.1 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6 W | 16500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

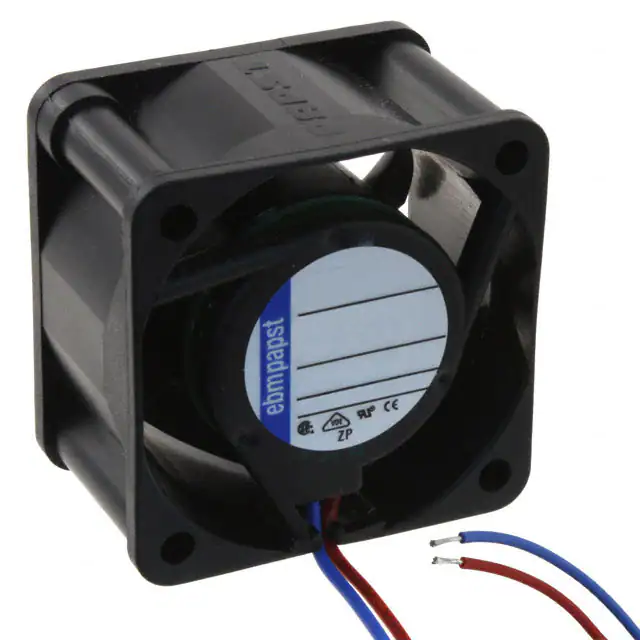

414JHHFAN AXIAL 40X25.4MM 24VDC WIRE |
2,963 |
|
Datasheet |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 46.0dB(A) | 3.6 W | 13000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
OD1238-48HBVXC10AFAN AXIAL 120X38MM 48VDC WIRE |
1,085 |
|
Datasheet |
OD1238 VA | Box | Active | 48VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB | 48 W | 5000 RPM | cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.780 lb (353.80 g) |
|

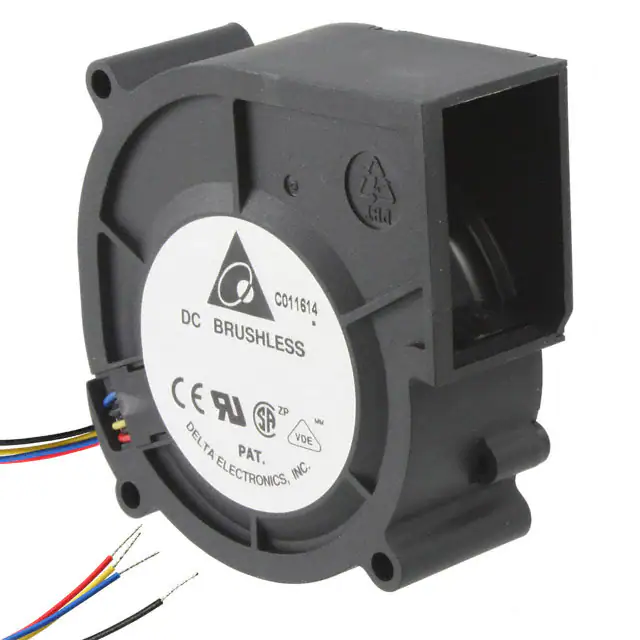

BCB0812UHN-TP09FAN BLOWER 80X30MM 12VDC WIRE |
2,264 |
|
Datasheet |
BCB | Box | Not For New Designs | 12VDC | Rectangular/Rounded - 80mm L x 75mm H | 30.2 CFM (0.846m³/min) | 3.675 in H2O (915.4 Pa) | Ball | 30.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.3dB(A) | 27.6 W | 10800 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.309 lb (140.16 g) |
|
9G1224E101FAN AXIAL 119X38MM 24VDC WIRE |
1,090 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
8414N/2HFAN AXIAL 80X25.4MM 24VDC WIRE |
278 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 3600 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.211 lb (95.71 g) |
|
RL48-19/14FAN BLOWER 75.2X27MM 24VDC WIRE |
790 |
|
Datasheet |
RL48 | Box | Active | 24VDC | Rectangular/Rounded - 75.2mm L x 75.5mm H | 16.5 CFM (0.462m³/min) | - | Ball | 27.00mm | Blower | - | 51.0dB(A) | 3.3 W | 4400 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.165 lb (74.84 g) |
|
9CRH0412P5J001FAN AXIAL DUAL 40X56MM 12VDC |
102 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 32.9 CFM (0.921m³/min) | 6.830 in H2O (1701.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 30.24 W | 29500 Front, 25500 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
9BMB12P2F01FAN BLOWER 97.1X33MM 12VDC WIRE |
291 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 4500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.419 lb (190.06 g) |
