DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

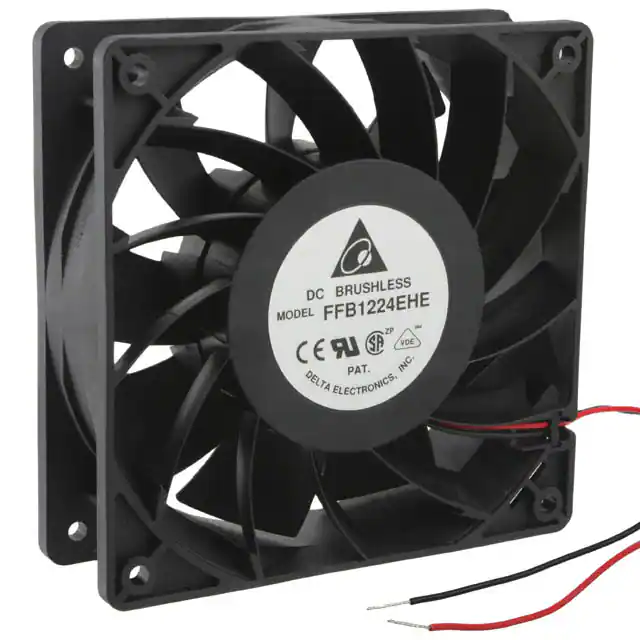

FFB1224EHEFAN AXIAL 120X38MM 24VDC WIRE |
287 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 24 W | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 122°F (-10 ~ 50°C) | - | 0.816 lb (370.13 g) |
|
9GV0824P1G031FAN AXIAL 80X38MM 24VDC WIRE |
3,662 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 10200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|
FFB1224EHE-F00FAN AXIAL 120X38MM 24VDC WIRE |
349 |
|
Datasheet |
FFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 24 W | 4000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 122°F (-10 ~ 50°C) | - | 0.816 lb (370.13 g) |
.F.GN.jpg)
|
PMD1212PMB1-A.(2).F.GNFAN AXIAL 120X38MM 12VDC WIRE |
105 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 54.0dB(A) | 19.2 W | 4200 RPM | CE, CUR, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.727 lb (329.76 g) |
|
614N/2HH-169FAN AXIAL 60X25.4MM 24VDC WIRE |
175 |
|
Datasheet |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 31.8 CFM (0.890m³/min) | 0.538 in H2O (134.0 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 3 W | 6850 RPM | CE, CSA, EAC, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|
9G0648P4S001FAN AXIAL 60X25MM 48VDC WIRE |
512 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.223 in H2O (304.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.64 W | 11000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
414JFAN AXIAL 40X25.4MM 24VDC WIRE |
302 |
|
Datasheet |
400J | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.2 CFM (0.314m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 39.0dB(A) | 2.4 W | 10300 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.111 lb (50.35 g) |
|

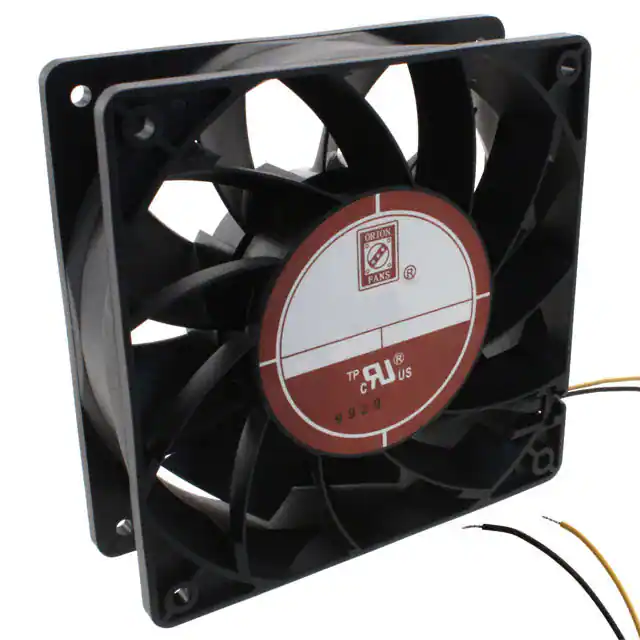

OD1238-48HBVXCFAN AXIAL 120X38MM 48VDC WIRE |
610 |
|
Datasheet |
OD1238 VA | Box | Active | 48VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 65.0dB | 48 W | 5000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AFB1224SHE-CR00FAN AXIAL 120X38MM 24VDC WIRE |
1,148 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 55.5dB(A) | 14.88 W | 4100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
612NHH-118FAN AXIAL 60X25.4MM 12VDC WIRE |
1,647 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 2.9 W | 6800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|
4414FMFAN AXIAL 119X25.4MM 24VDC WIRE |
882 |
|
Datasheet |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 82.4 CFM (2.31m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 38.0dB(A) | 3.2 W | 2400 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.386 lb (175.09 g) |
|
8318FAN AXIAL 80X32MM 48VDC WIRE |
819 |
|
Datasheet |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 36.0dB(A) | 2.6 W | 3300 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.375 lb (170.1 g) |
|
|
9GA0812P1H611FAN AXIAL 80X38MM 12VDC WIRE |
560 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
|
|
9GA0812P1H61FAN AXIAL 80X38MM 12VDC WIRE |
241 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
|

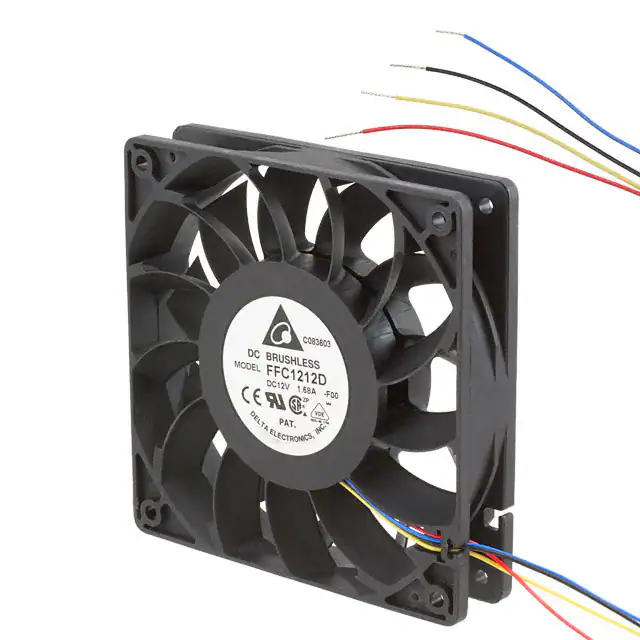

FFC1212D-F00FAN AXIAL 120X25MM 12VDC WIRE |
2,262 |
|
Datasheet |
FFC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.4dB(A) | 17.4 W | 4000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
9CRE0412P5J03FAN AXIAL DUAL 40X56MM 12VDC |
231 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.8 W | 15800 Front, 12200 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
GF80251B1-000U-AE9FAN AXIAL 80X25MM 12VDC WIRE |
327 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 47.5dB(A) | 3.96 W | 4800 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.231 lb (104.78 g) |
|
|
8314HFAN AXIAL 80X32MM 24VDC WIRE |
451 |
|
Datasheet |
8300 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 48.0dB(A) | 6 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.375 lb (170.1 g) |
|

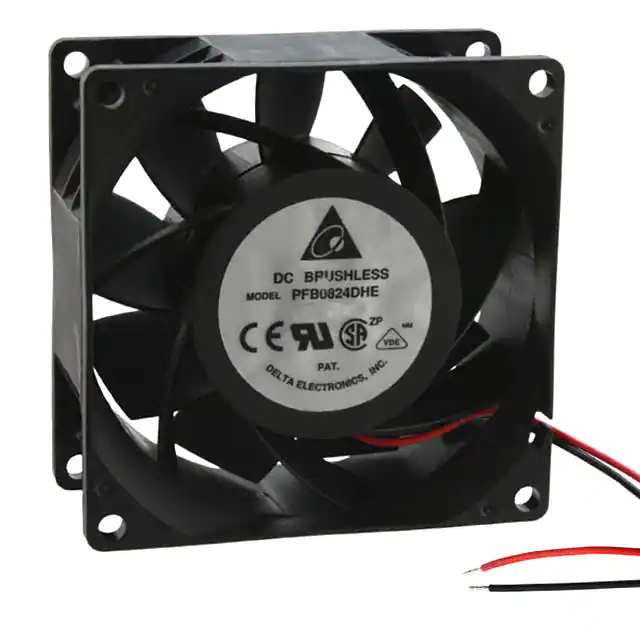

PFB0824DHEFAN AXIAL 80X38MM 24VDC WIRE |
2,151 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 32.4 W | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
9GV0848P1G03FAN AXIAL 80X38MM 48VDC WIRE |
1,785 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 40.32 W | 10200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
