DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

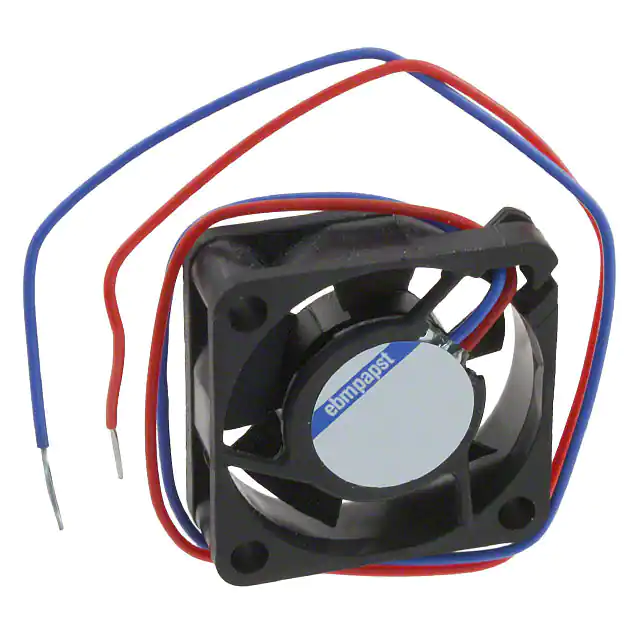

255NFAN AXIAL 25X8MM 5VDC WIRE |
821 |
|
Datasheet |
250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | 8.00mm | Tubeaxial | - | 16.0dB(A) | 400 mW | 9600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.011 lb (4.99 g) |
|
|
252NFAN AXIAL 25X8MM 12VDC WIRE |
165 |
|
Datasheet |
250 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | 8.00mm | Tubeaxial | - | 15.0dB(A) | 500 mW | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.011 lb (4.99 g) |
.GN.jpg)
|
PMB1297PYB1-AY.(2).GNFAN BLOWER 97.2X33MM 12VDC WIRE |
853 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 33.00mm | Blower | Auto Restart | 55.8dB(A) | 8.6 W | 3600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.408 lb (185.07 g) |
|
9HV0612P1J0011FAN AXIAL 60X38MM 12VDC WIRE |
1,053 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 66.4 CFM (1.86m³/min) | 7.000 in H2O (1743.6 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 32.4 W | 21700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.298 lb (135.17 g) |
|
9G0824G101FAN AXIAL 80X38MM 24VDC WIRE |
1,201 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.4 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0812H101FAN AXIAL 80X38MM 12VDC WIRE |
147 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 10.8 W | 5700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9G0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
631 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6 W | 9500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
MS1238E48B-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
269 |
|
Datasheet |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 68.0dB(A) | - | 5000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.667 lb (302.55 g) |
|
MS1238E24B-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
233 |
|
Datasheet |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 68.0dB(A) | - | 5000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.667 lb (302.55 g) |
|

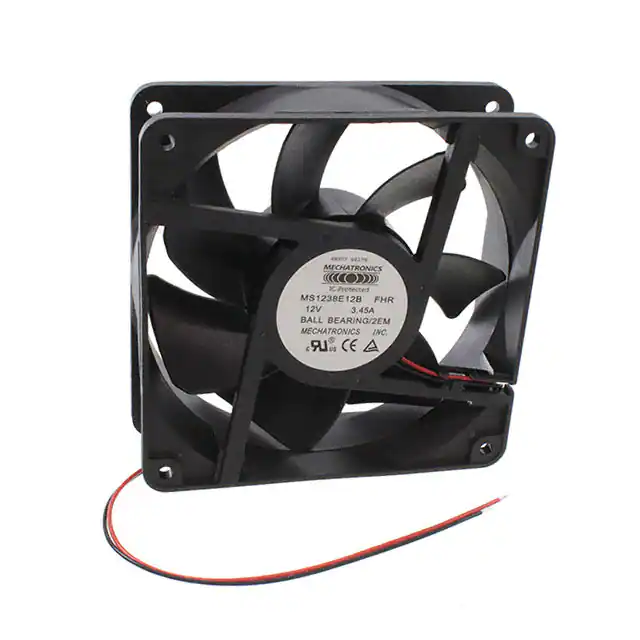

MS1238E12B-FHR-2EMFAN AXIAL 120X38MM 12VDC WIRE |
173 |
|
Datasheet |
MS1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 68.0dB(A) | - | 5000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.667 lb (302.55 g) |
|
OD6038-24HHBXC10AFAN AXIAL 60X38MM 24VDC WIRE |
958 |
|
Datasheet |
OD6038 XC | Box | Active | 24VDC | Square - 60mm L x 60mm H | 86.0 CFM (2.41m³/min) | 2.950 in H2O (734.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 30 W | 16000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
9RA1212G40011FAN AXIAL 120X25MM 12VDC WIRE |
132 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6.6 W | 4500 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

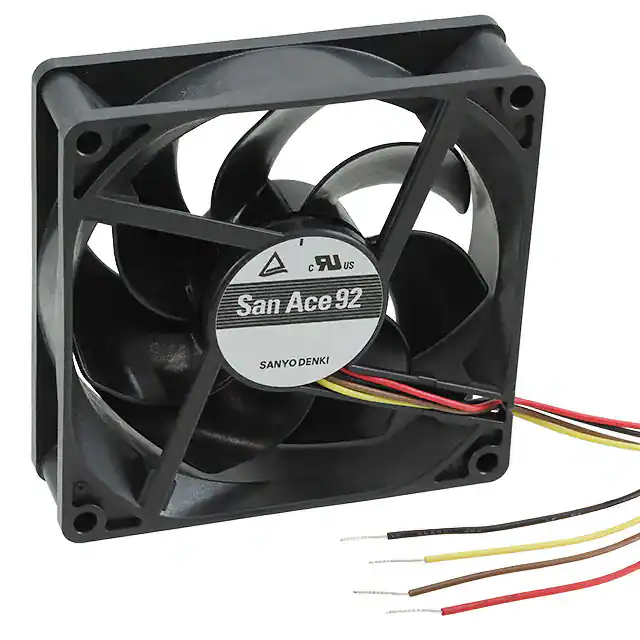

9GA0924P4J03FAN AXIAL 92X25MM 24VDC WIRE |
848 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 4.8 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
MS8038H24B1+6-FHR-2EMFAN AXIAL 80X38MM 24VDC WIRE |
180 |
|
Datasheet |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | - | 10000 RPM | - | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.391 lb (177.35 g) |
|
PFB0624GHE-TD88FAN AXIAL 60X38MM 24VDC WIRE |
1,350 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.5dB(A) | 10.32 W | 10000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.287 lb (130.18 g) |
|

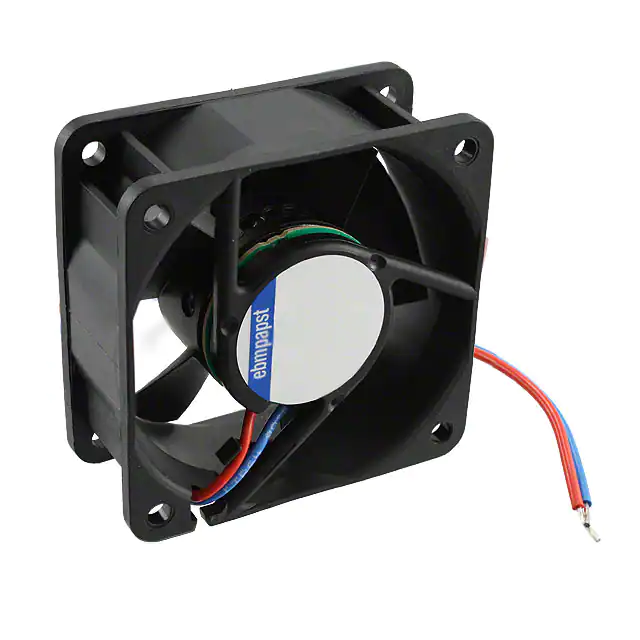

614NGHFAN AXIAL 60X25.4MM 24VDC WIRE |
276 |
|
Datasheet |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.3 CFM (0.708m³/min) | 0.363 in H2O (90.5 Pa) | Sintec | 25.40mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.0dB(A) | 2.5 W | 5600 RPM | CE, CSA, EAC, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|
OD1238-24LBFAN AXIAL 120X38.5MM 24VDC WIRE |
413 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 38.50mm | Tubeaxial | - | 33.0dB | 4 W | 1950 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

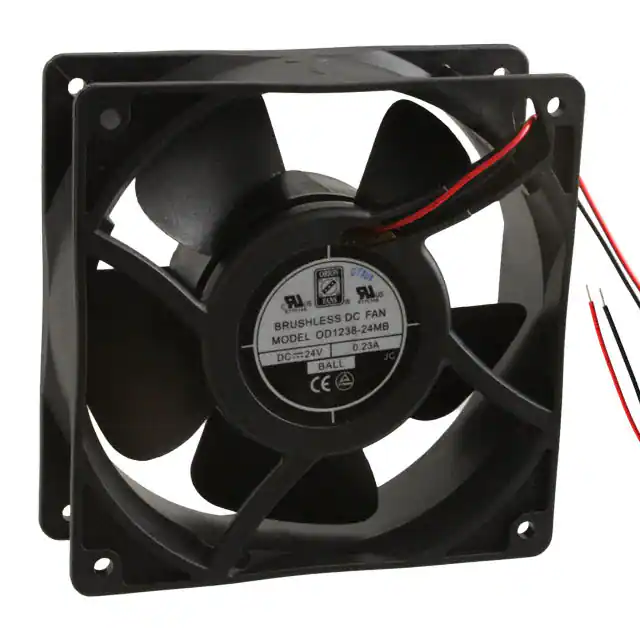

OD1238-24MBFAN AXIAL 120X38MM 24VDC WIRE |
192 |
|
Datasheet |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 38.00mm | Tubeaxial | - | 41.0dB | 6 W | 2540 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.72 lb (326.59 g) |
|

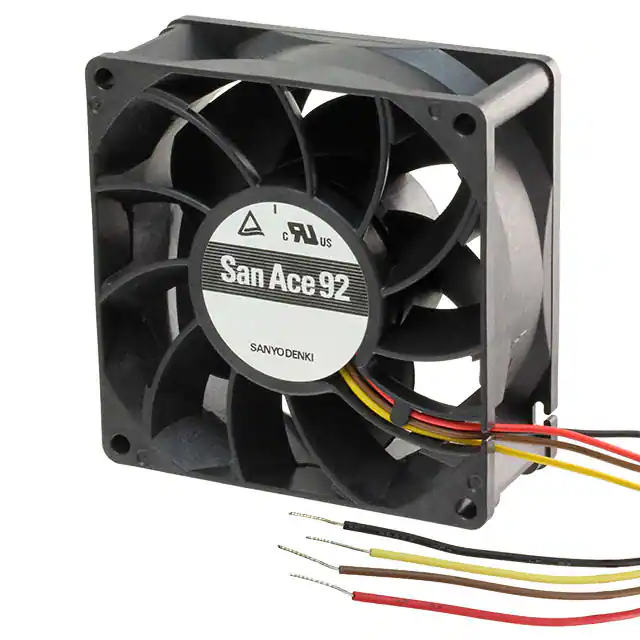

9GA0924P4G03FAN AXIAL 92X25MM 24VDC WIRE |
207 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 4400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.276 lb (125.19 g) |
|
OD8038-24HBIP69KFAN AXIAL 80X38MM 24VDC WIRE |
426 |
|
Datasheet |
OD8038-IP69K | Box | Active | 24VDC | Square - 80mm L x 80mm H | 71.0 CFM (1.99m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 49.0dB(A) | 7.2 W | 5000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
