DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-24HTBFAN AXIAL 120X38.5MM 24VDC TERM |
1,966 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 38.50mm | Tubeaxial | - | 43.0dB | 7 W | 2800 RPM | cURus, TUV | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
PFB0612EHEFAN AXIAL 60X38MM 12VDC WIRE |
210 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 7.56 W | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
MR9238E24B1+6-FSRFAN AXIAL 92X38MM 24VDC WIRE |
373 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.437 lb (198.00 g) |
|
PMD2408PMB1-A.(2).GNFAN AXIAL 80X38MM 24VDC WIRE |
1,143 |
|
Datasheet |
PMD | Box | Active | 24VDC | Square - 80mm L x 80mm H | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 38.00mm | Tubeaxial | - | 55.2dB(A) | 9.6 W | 5700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
9GA0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
980 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 5.04 W | 6800 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
9GA0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
133 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 7400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
OD1225-48HBFAN AXIAL 120X25MM 48VDC WIRE |
389 |
|
Datasheet |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.0dB | 4.5 W | 3100 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|
AFB0924SH-TZUHFAN AXIAL 92X25.4MM 24VDC WIRE |
1,936 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9.6 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.267 lb (121.11 g) |
|
412/2-036FAN AXIAL 40X20MM 12VDC WIRE |
526 |
|
Datasheet |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 900 mW | 6000 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

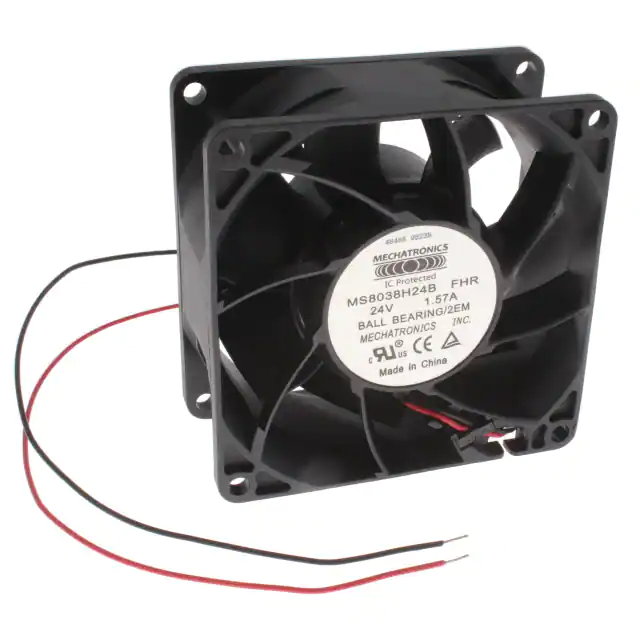

MS8038H24B-FHR-2EMFAN AXIAL 80X38MM 24VDC WIRE |
159 |
|
Datasheet |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 77.0dB(A) | - | 10000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.391 lb (177.35 g) |
|
9BMB24P2F01FAN BLOWER 97.1X33MM 24VDC WIRE |
969 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 36.7 CFM (1.03m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 4500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.419 lb (190.06 g) |
|
|
9GA0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
655 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 6.72 W | 7400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

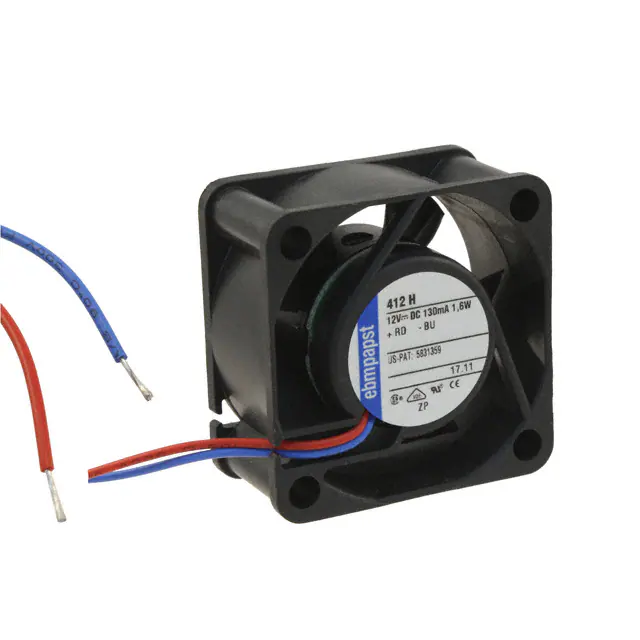

412HFAN AXIAL 40X20MM 12VDC WIRE |
425 |
|
Datasheet |
400 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.9 CFM (0.221m³/min) | - | Sintec | 20.00mm | Tubeaxial | - | 29.0dB(A) | 1.6 W | 8100 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.059 lb (26.76 g) |
|

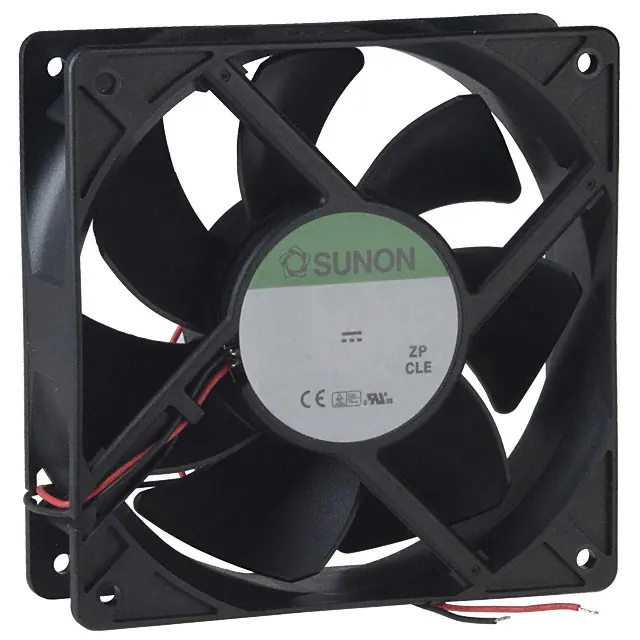

PMD2412PMB1-A(2).GNFAN AXIAL 120X38MM 24VDC WIRE |
2,057 |
|
Datasheet |
PMD | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 38.00mm | Tubeaxial | - | 54.0dB(A) | 18.2 W | 4200 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
9GA0612P1K60FAN AXIAL 60X38MM 12VDC WIRE |
226 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.710 in H2O (675.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 14800 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
|
9GA0824H7001FAN AXIAL 80X15MM 24VDC WIRE |
427 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.131 in H2O (32.6 Pa) | Ball | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.2 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
|
9GA0812P7G001FAN AXIAL 80X15MM 12VDC WIRE |
2,029 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 50.9 CFM (1.43m³/min) | 0.337 in H2O (83.9 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 3.48 W | 6100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
|
|
9GA0812P7S001FAN AXIAL 80X15MM 12VDC WIRE |
585 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.226 in H2O (56.4 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.04 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
|
|
9GA0824P7G001FAN AXIAL 80X15MM 24VDC WIRE |
517 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 50.9 CFM (1.43m³/min) | 0.337 in H2O (83.9 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 3.12 W | 6100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
|
|
9GA0824P7S001FAN AXIAL 80X15MM 24VDC WIRE |
276 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.226 in H2O (56.4 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1.92 W | 5000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
