DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0812EHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
800 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 10.8 W | 5700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
F6025X12B1+6-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
102 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.139 lb (63.05 g) |
|
FFB0412SHNFAN AXIAL 40X28MM 12VDC WIRE |
14,094 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection | 54.5dB(A) | 6 W | 13000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.071 lb (32.21 g) |
|
9GA0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
1,978 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 5.28 W | 16500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
|
9GA0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
1,897 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6.48 W | 18000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
9GA0424P3H001FAN AXIAL 40X28MM 24VDC WIRE |
393 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 3.84 W | 14500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
9GA0612P9G001FAN AXIAL 60X10MM 12VDC WIRE |
282 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.9 CFM (0.613m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.24 W | 6200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.078 lb (35.38 g) |
|

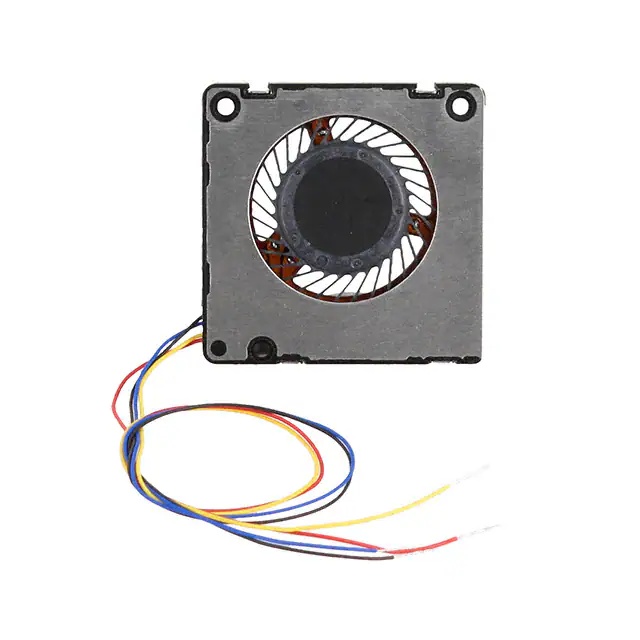

DB0300305H1A-BT0FAN BLOWER 30X3.2MM 5VDC WIRE |
1,253 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 0.696 CFM (0.019m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 3.20mm | Blower | PWM Control, Speed Sensor (Tach) | 34.1dB(A) | 500 mW | 9500 RPM | - | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.001 lb (0.45 g) |
|

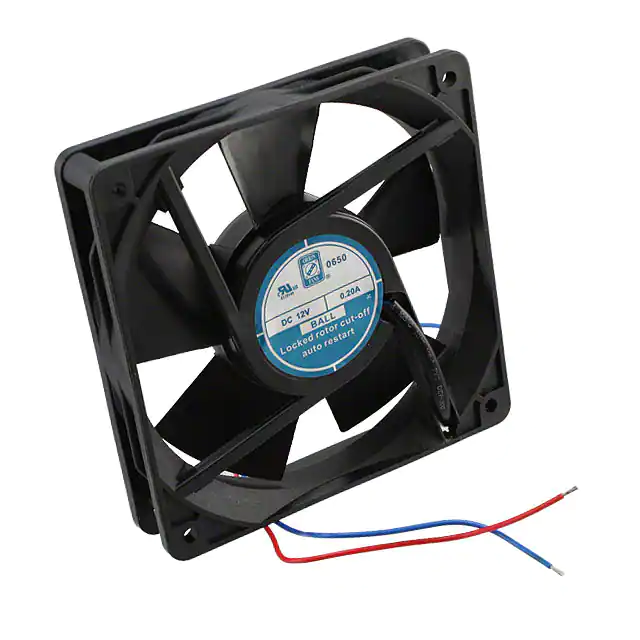

OD1225-12LBFAN AXIAL 120X25MM 12VDC WIRE |
797 |
|
Datasheet |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 25.0dB(A) | 2.5 W | 1900 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|

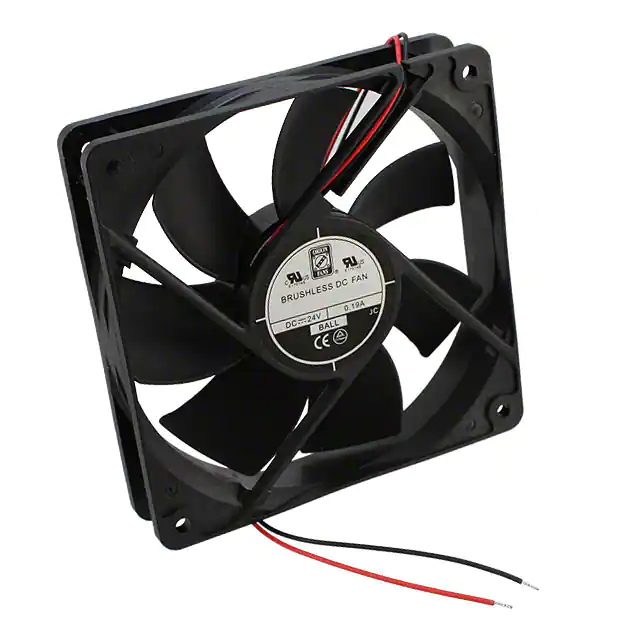

OD1225-24HBFAN AXIAL 120X25MM 24VDC WIRE |
725 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.0dB(A) | 7.7 W | 3100 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|
DB0300405H1A-2T0FAN BLOWER 30X4MM BALL 5VDC WIRE |
1,432 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 0.760 CFM (0.021m³/min) | 0.346 in H2O (86.2 Pa) | Ball | 4.00mm | Blower | - | 31.3dB(A) | 500 mW | 9500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.001 lb (0.45 g) |
|
AFB1224HFAN AXIAL 120X25.4MM 24VDC WIRE |
2,134 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 38.5dB(A) | 3.36 W | 2500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
AFB1212VHFAN AXIAL 120X25.4MM 12VDC WIRE |
793 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
AFB1212MFAN AXIAL 120X25.4MM 12VDC WIRE |
403 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 35.5dB(A) | 2.16 W | 2200 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
AFB1212HFAN AXIAL 120X25.4MM 12VDC WIRE |
304 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 38.5dB(A) | 2.76 W | 2500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
9GA0812P6G001FAN AXIAL 80X20MM 12VDC WIRE |
4,543 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 60.8 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 20.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 3.6 W | 5850 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
9GA0812P6M001FAN AXIAL 80X20MM 12VDC WIRE |
2,473 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 20.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 26.5dB(A) | 720 mW | 2900 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (79.83 g) |
|

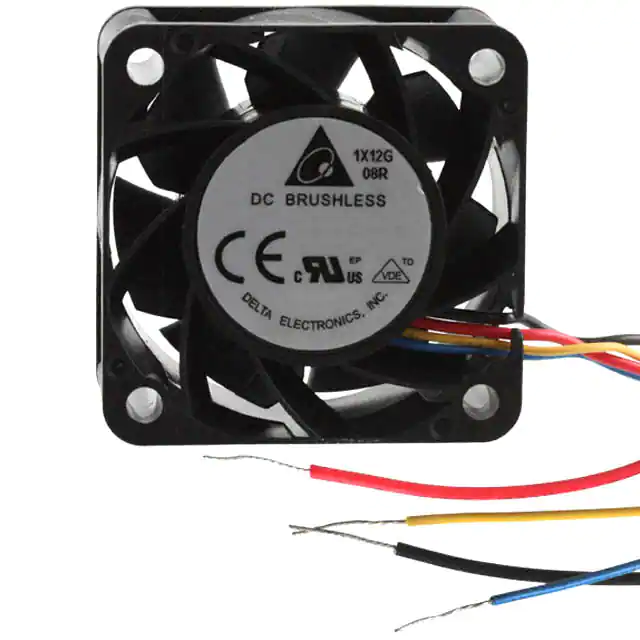

THA0412ADFAN AXIAL 40X20MM 12VDC WIRE |
565 |
|
Datasheet |
THA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.6 CFM (0.577m³/min) | 1.385 in H2O (345.0 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 5.16 W | 15600 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
MH4028H24B1+6-RSR-PCFAN AXIAL 40X28MM 24VDC WIRE |
320 |
|
Datasheet |
MH4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Parylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | - | 4 Wire Leads | - | - | 0.089 lb (40.37 g) |
|
PFB0624SHEFAN AXIAL 60X38MM 24VDC WIRE |
1,858 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 43.6 CFM (1.22m³/min) | 0.918 in H2O (228.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 50.5dB(A) | 6.72 W | 8000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.287 lb (130.18 g) |
