DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

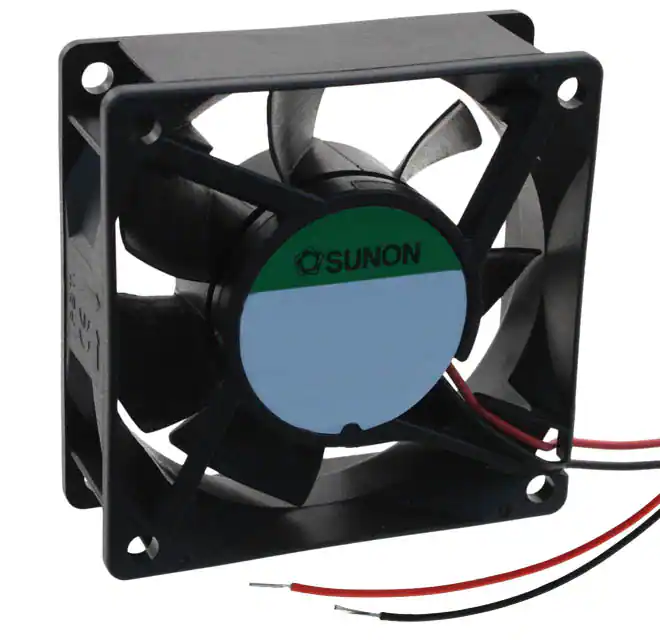

PMD2407PTB1-A.(2).GNFAN AXIAL 70X25MM 24VDC WIRE |
196 |
|
Datasheet |
PMD | Box | Active | 24VDC | Square - 70mm L x 70mm H | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 25.00mm | Tubeaxial | - | 45.0dB(A) | 4.6 W | 5100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
CFM-A238-23-10FAN AXIAL 120X38MM 24VDC WIRE |
2,559 |
|
Datasheet |
CFM-120 | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 61.5dB(A) | 21.12 W | 4600 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.624 lb (283.04 g) |
|

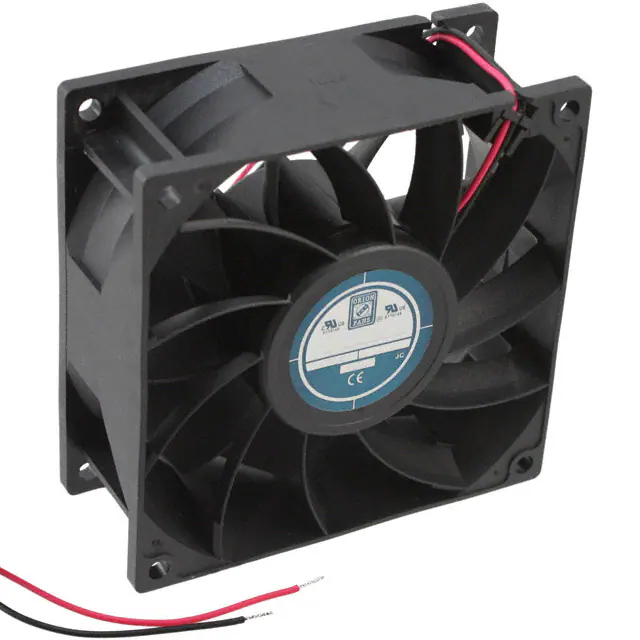

OD9238-48HBVXCFAN AXIAL 92.5X38MM 48VDC WIRE |
167 |
|
Datasheet |
OD9238 VA | Box | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 135.0 CFM (3.78m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 58.0dB | 17 W | 5400 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

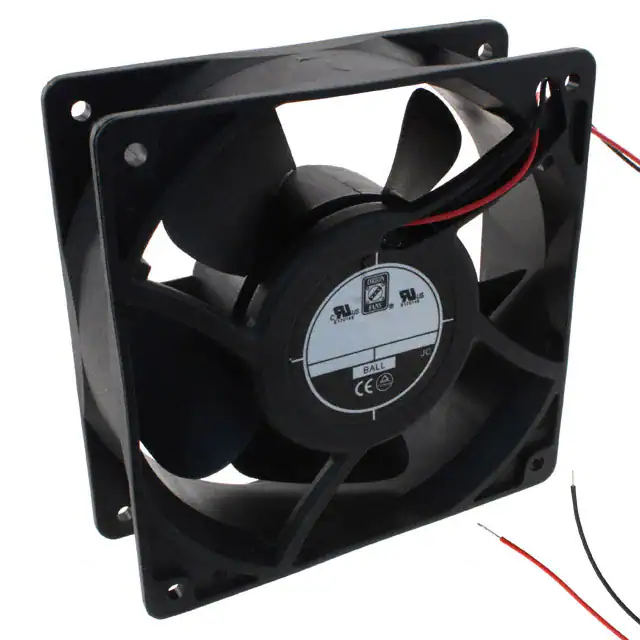

OD1238-24HBFAN AXIAL 120X38MM 24VDC WIRE |
1,996 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 12 W | 2895 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.572 lb (259.45 g) |
|

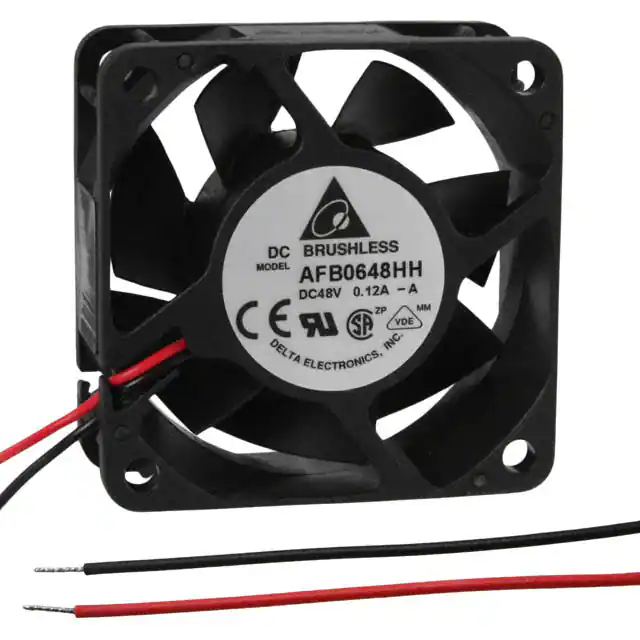

AFB0648HH-AFAN AXIAL 60X25.4MM 48VDC WIRE |
463 |
|
Datasheet |
AFB | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.294 in H2O (73.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 3.84 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|

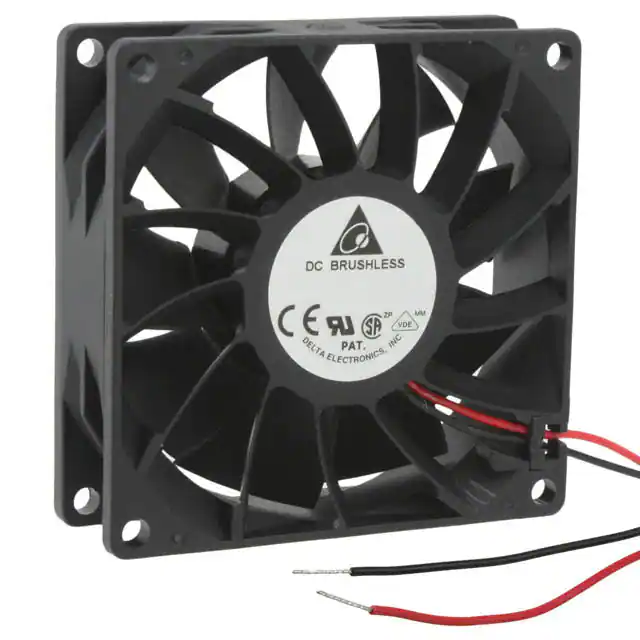

FFB0824SH-TZW1FAN AXIAL 80X25.4MM 24VDC WIRE |
6,577 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 48.6dB(A) | 5.76 W | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.254 lb (115.21 g) |
|

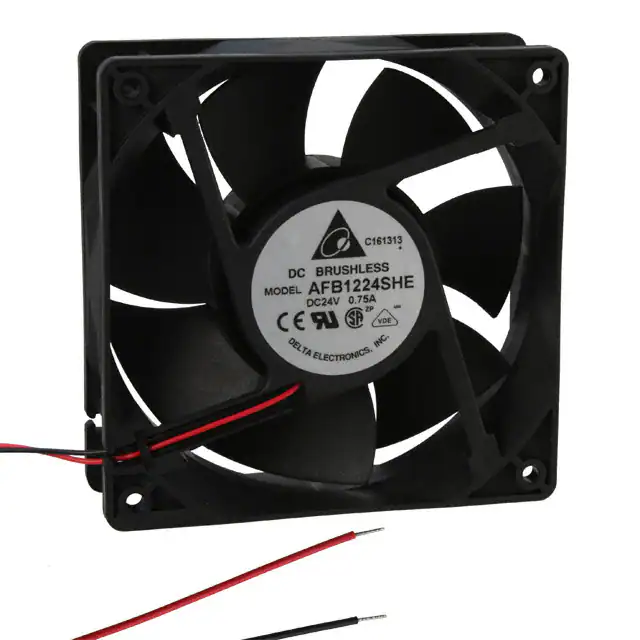

AFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE |
2,704 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12 W | 3700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
|
AFB1224VHEFAN AXIAL 120X38MM 24VDC WIRE |
1,644 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 9.12 W | 3200 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
|

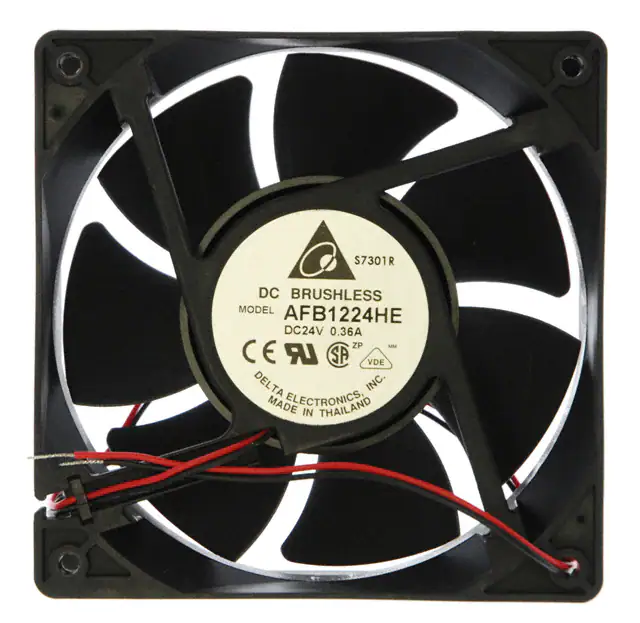

AFB1224HEFAN AXIAL 120X38MM 24VDC WIRE |
1,043 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.565 lb (256.28 g) |
|

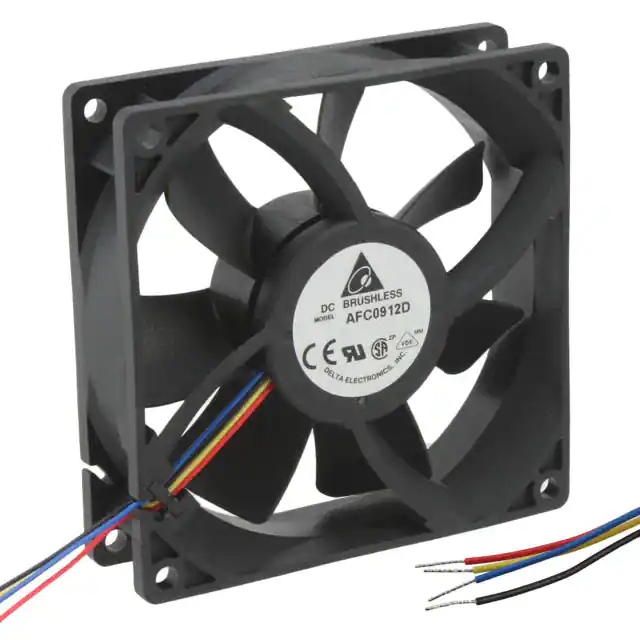

AFC0912D-AF00FAN AXIAL 92X25.4MM 12VDC WIRE |
119 |
|
Datasheet |
AFC | Box | Active | 12VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 9 W | 4800 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.265 lb (120.2 g) |
|
MD1238X24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
215 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | cUL, UL | 2 Wire Leads | - | - | 0.906 lb (410.95 g) |
|
612FHFAN AXIAL 60X15MM 12VDC WIRE |
107 |
|
Datasheet |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | - | Sintec | 15.00mm | Tubeaxial | - | 31.0dB(A) | 1.4 W | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.066 lb (29.94 g) |
|
PFB0512EHFFAN AXIAL 50X32MM 12VDC WIRE |
259 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 31.6 CFM (0.885m³/min) | 1.051 in H2O (261.8 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | 51.2dB(A) | 6.48 W | 10000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
MR1238E24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
130 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 67.9dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.838 lb (380.11 g) |
|

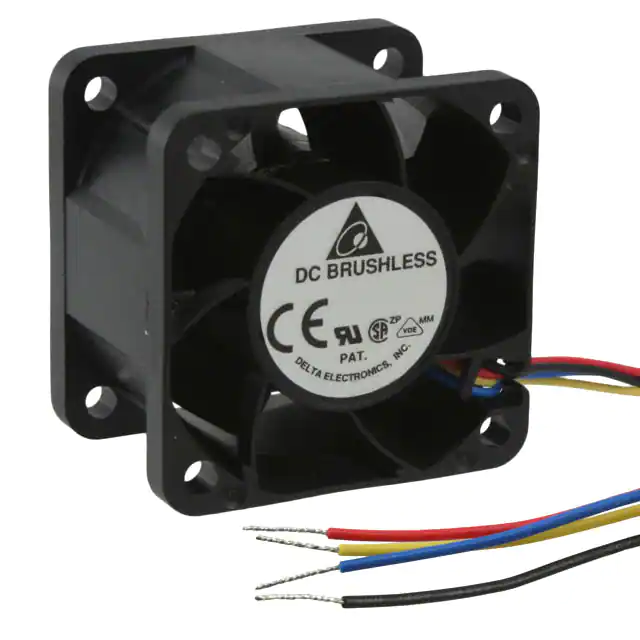

FFB0412UHN-SP4ZFAN AXIAL 40X28MM 12VDC WIRE |
2,480 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.5 CFM (0.742m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.9dB(A) | 10.08 W | 23000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
AFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
1,013 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 16.8 W | 6800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.344 lb (156.04 g) |
|
OD1225-12HB01AFAN AXIAL 120X25MM 12VDC WIRE |
1,572 |
|
Datasheet |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 5.4 W | 3100 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|
OD1225-24HB02AFAN AXIAL 120X25MM 24VDC WIRE |
952 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB(A) | 7.7 W | 3100 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.341 lb (154.67 g) |
|
9G1224H101FAN AXIAL 119X38MM 24VDC WIRE |
633 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
9GA0612P1H03FAN AXIAL 60X38MM 12VDC WIRE |
909 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 40.6 CFM (1.14m³/min) | 1.504 in H2O (374.6 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.6 W | 11500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
