DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0924SH-AF00FAN AXIAL 92X25.4MM 24VDC WIRE |
652 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9.6 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.267 lb (121.11 g) |
|
9GAX0412P3K001FAN AXIAL 40X28MM 12VDC WIRE |
624 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|
9S0812P4F011FAN AXIAL 80X25MM 12VDC WIRE |
751 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 2800 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|

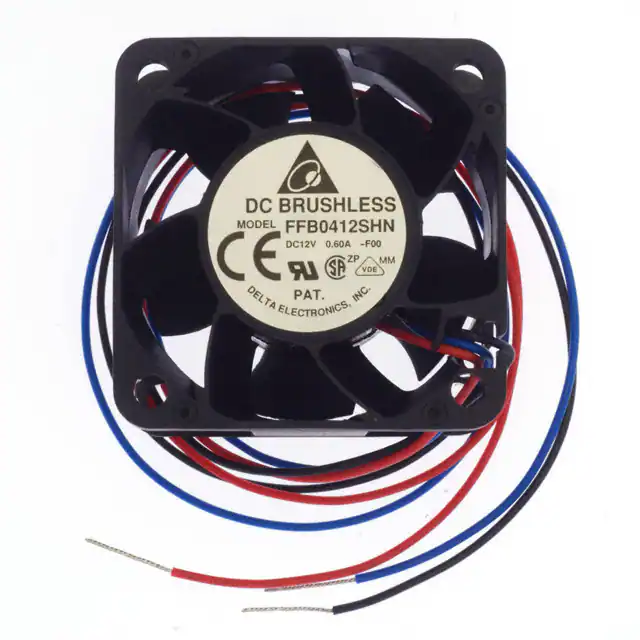

FFB0412SHN-F00FAN AXIAL 40X28MM 12VDC WIRE |
2,090 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.5dB(A) | 6 W | 13000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.071 lb (32.21 g) |
|
FFB0824EHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
2,856 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 12 W | 5700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
109R0812S401FAN AXIAL 80X25MM 12VDC WIRE |
754 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
04028DA-12T-AK-HAQFAN AXIAL 40X28MM 12VDC WIRE |
146 |
|
Datasheet |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 36.0 CFM (1.01m³/min) | 4.250 in H2O (1060.0 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.5dB | 18.6 W | 26500 RPM | CE, cULus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

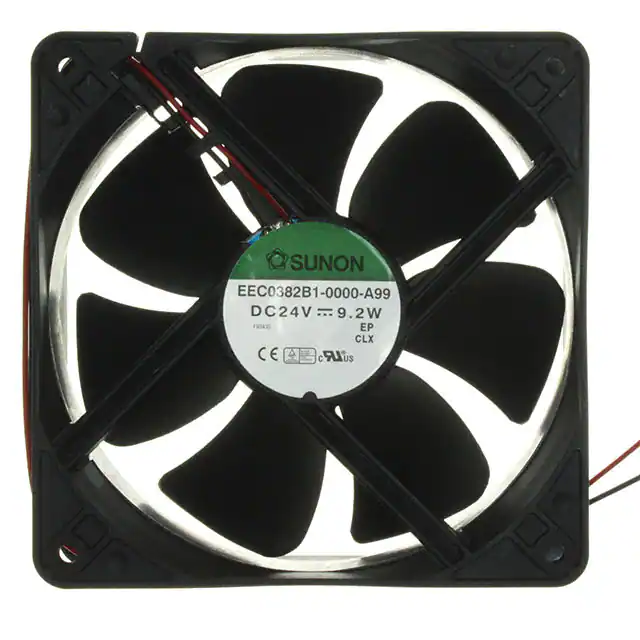

EEC0382B1-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,714 |
|
Datasheet |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 48.0dB(A) | 9.2 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|

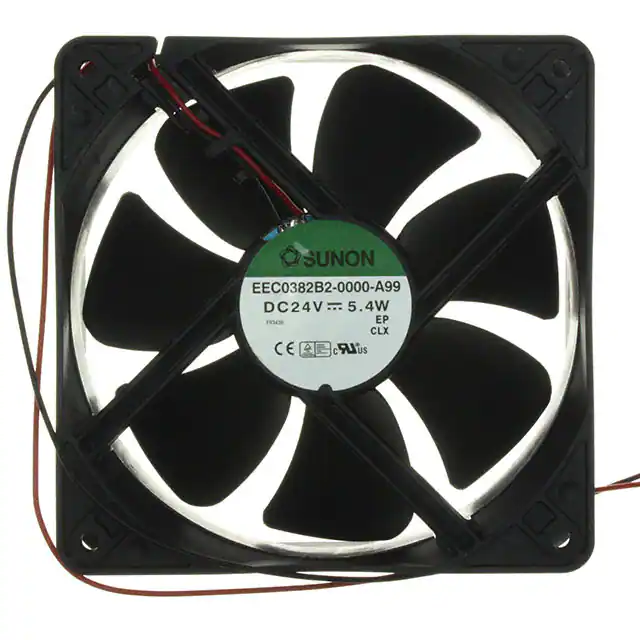

EEC0382B2-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,037 |
|
Datasheet |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.0dB(A) | 5.4 W | 2600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|
9GA0812H7001FAN AXIAL 80X15MM 12VDC WIRE |
727 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.131 in H2O (32.6 Pa) | Ball | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.08 W | 3800 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.143 lb (64.86 g) |
|
09225VA-24Q-CA-00FAN AXIAL 92X25MM 24VDC WIRE |
903 |
|
Datasheet |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 25.00mm | Tubeaxial | - | 51.0dB | 9.12 W | 6200 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 0.331 lb (150.14 g) |
|
09533GA-24M-AA-00FAN BLOWER 97X33MM 24VDC WIRE |
1,225 |
|
Datasheet |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 33.00mm | Blower | Auto Restart | 54.5dB(A) | 11.8 W | 3700 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
09533GA-12M-AA-00FAN BLOWER 97X33MM 12VDC WIRE |
654 |
|
Datasheet |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 33.00mm | Blower | Auto Restart | 54.5dB(A) | 12.4 W | 3700 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

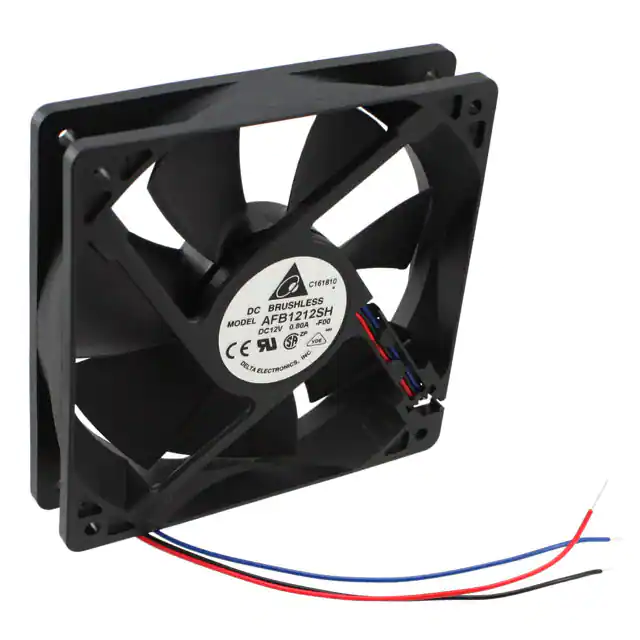

AFB1212SH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
6,057 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 6.36 W | 3400 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
|
109R0824G4011FAN AXIAL 80X25MM 24VDC WIRE |
1,822 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.8 W | 4500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.243 lb (110.22 g) |
|

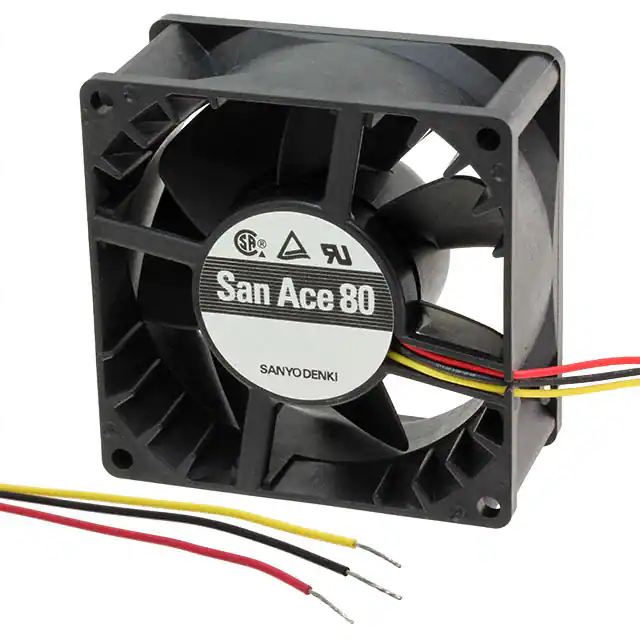

109R0824H401FAN AXIAL 80X25MM 24VDC WIRE |
694 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 2900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

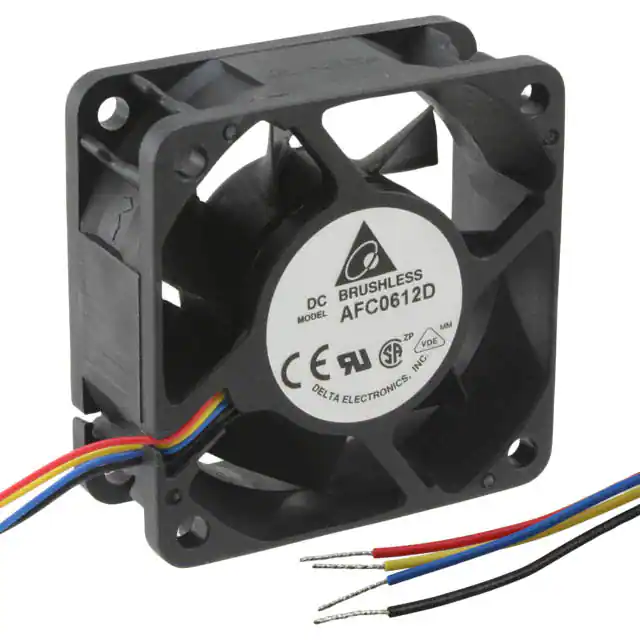

AFC0612D-SP07FAN AXIAL 60X25.4MM 12VDC WIRE |
383 |
|
Datasheet |
AFC | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 1.56 W | 4250 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|

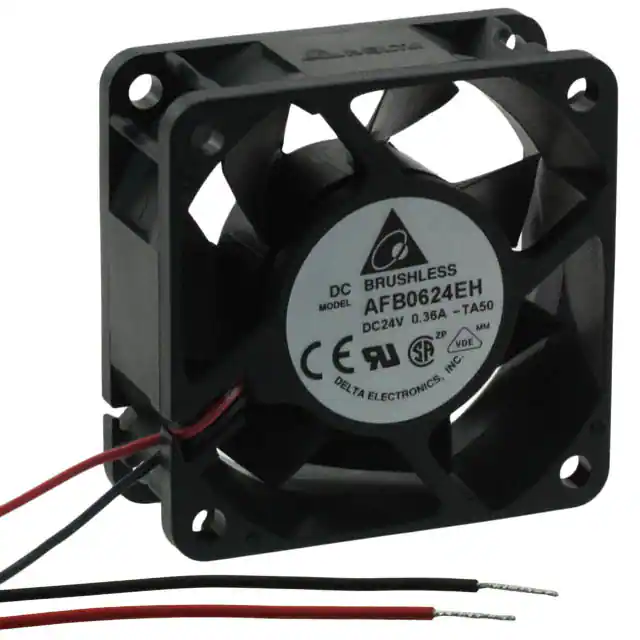

AFB0624EH-TA50FAN AXIAL 60X25.4MM 24VDC WIRE |
1,174 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 5.76 W | 6800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.176 lb (80.00 g) |
.jpg)
|
9GV0648P1H03FAN AXIAL 60X38MM 48VDC WIRE |
314 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 76.0 CFM (2.13m³/min) | 2.480 in H2O (617.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 24 W | 14500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|

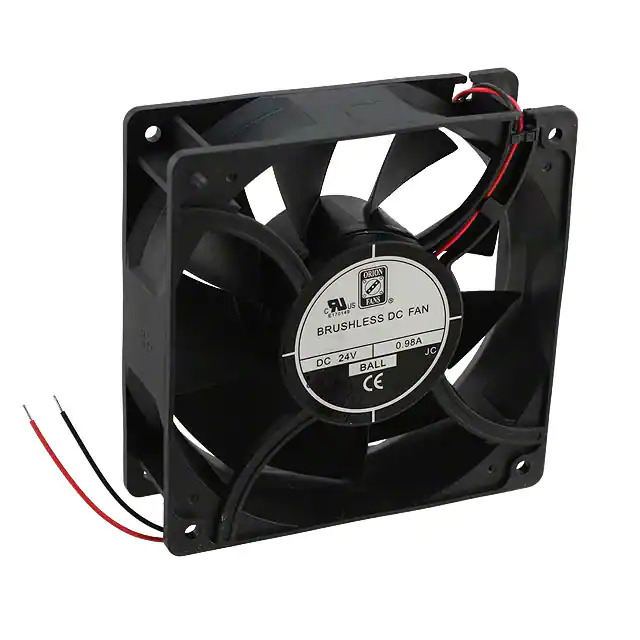

OD1238-24HBXCFAN AXIAL 120X38.5MM 24VDC WIRE |
674 |
|
Datasheet |
OD1238 XC | Box | Active | 24VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | 38.50mm | Tubeaxial | Auto Restart | 61.0dB | 19 W | 4300 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
