DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

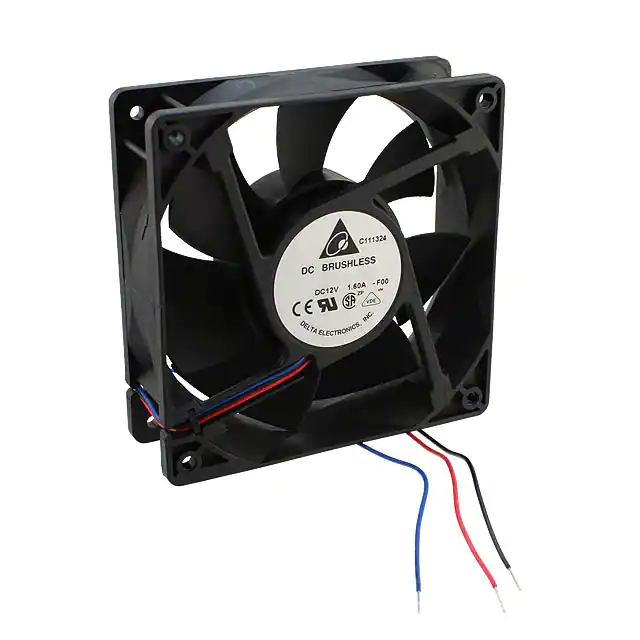

AFB1212SHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
4,245 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12.6 W | 3700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.564 lb (255.83 g) |
|

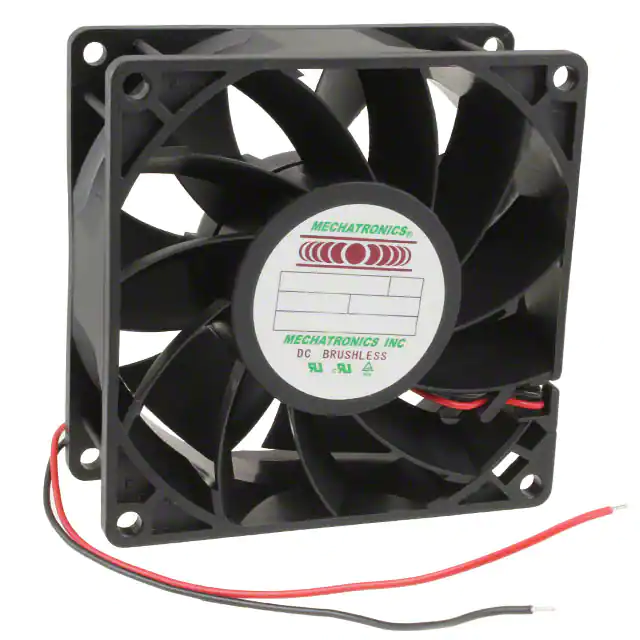

MD9238X24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
199 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 58.4dB(A) | - | 5400 RPM | CE, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
AFB0812SH-TP12FAN AXIAL 80X25.4MM 12VDC WIRE |
2,831 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 3.6 W | 4500 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.176 lb (80.00 g) |
|
9GA0312P3G001FAN AXIAL 38X28MM 12VDC WIRE |
1,965 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 15.9 CFM (0.445m³/min) | 1.850 in H2O (460.8 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 4 W | 19000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
BFB0512VHD-F00FAN BLOWER 52.1X20MM 12VDC WIRE |
8,678 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 52.1mm L x 53.3mm H | 6.8 CFM (0.190m³/min) | 0.732 in H2O (182.3 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.76 W | 5300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|

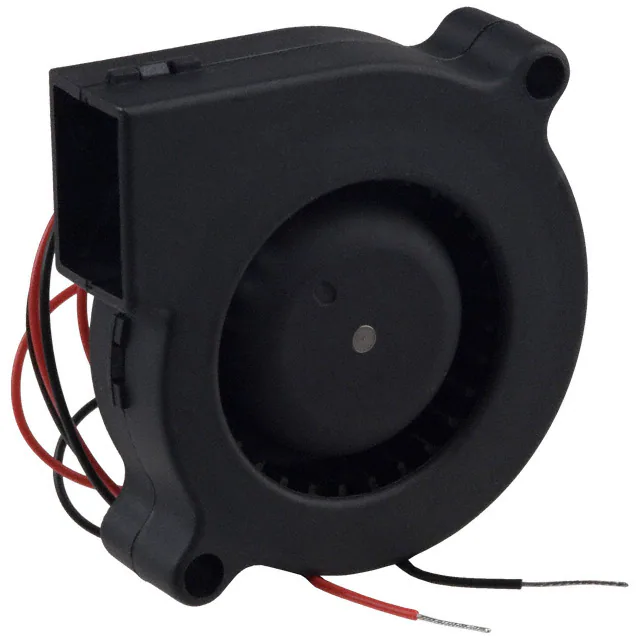

BFB0524HHFAN BLOWER 51.3X15MM 24VDC WIRE |
2,536 |
|
Datasheet |
BFB | Tray | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | 15.00mm | Blower | Locked Rotor Protection | 45.0dB(A) | 2.64 W | 6500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
EEC0251B2-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
2,756 |
|
Datasheet |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 40.5dB(A) | 3.4 W | 2700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.346 lb (156.94 g) |
|
|
EEC0251B1-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
2,519 |
|
Datasheet |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5.4 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.346 lb (156.94 g) |
|

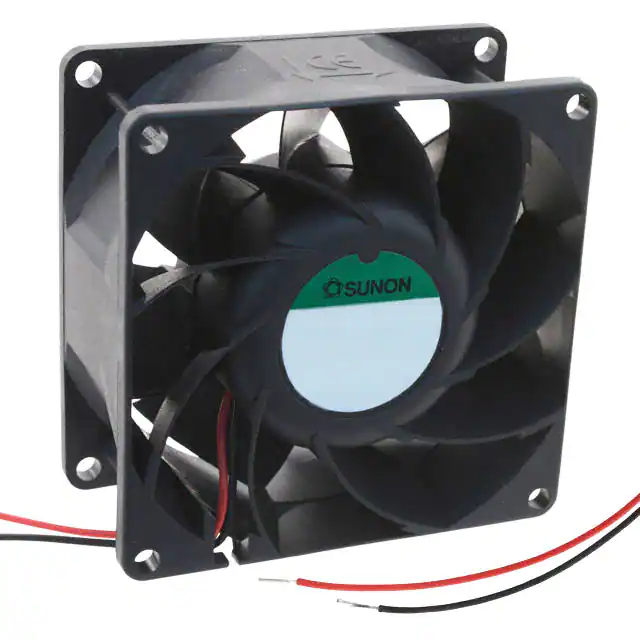

PMD2408PMB2-A(2).GNFAN AXIAL 80X38MM 24VDC WIRE |
3,166 |
|
Datasheet |
PMD | Box | Active | 24VDC | Square - 80mm L x 80mm H | 74.5 CFM (2.09m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 51.6dB(A) | 7.2 W | 4900 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.386 lb (175.09 g) |
|

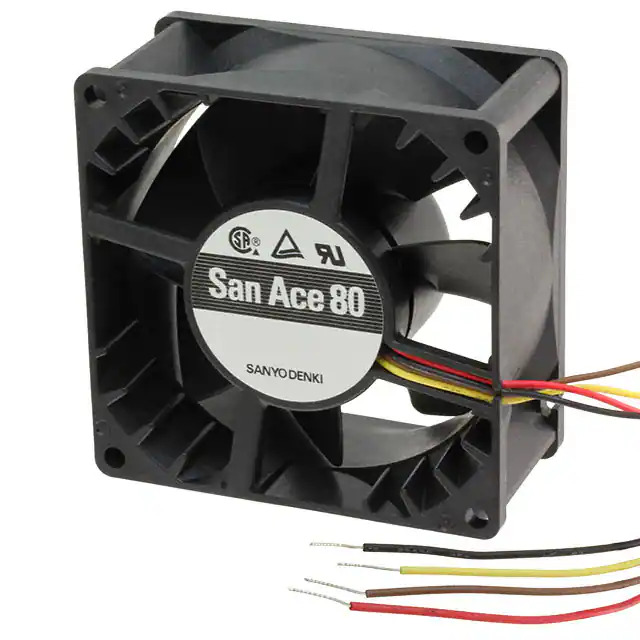

9GA0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
4,179 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 51.5 CFM (1.44m³/min) | 0.352 in H2O (87.7 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
FFB03612EHNYCLFAN AXIAL 36X28MM 12VDC WIRE |
3,207 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 36mm L x 36mm H | 21.0 CFM (0.588m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 7.56 W | 19000 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 176°F (-10 ~ 80°C) | - | 0.071 lb (32.21 g) |
|

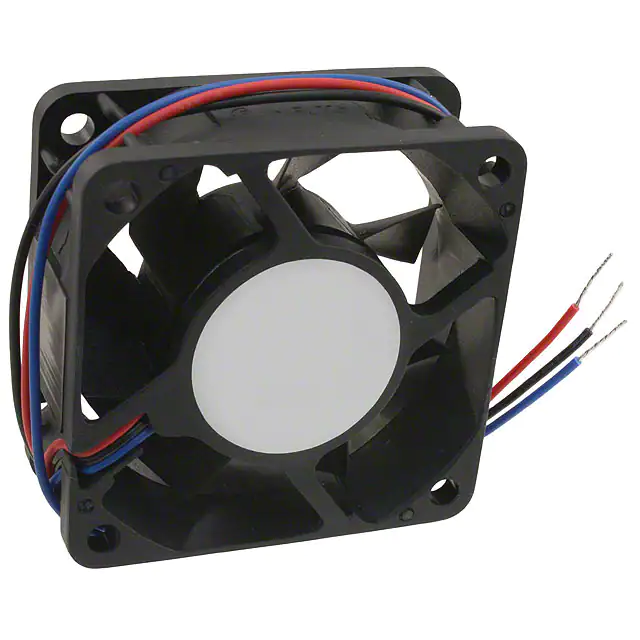

AFB0624EH-AF00FAN AXIAL 60X25.4MM 24VDC WIRE |
1,433 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 5.76 W | 6800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
9GA0412P3J01FAN AXIAL 40X28MM 12VDC WIRE |
847 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 5.88 W | 18000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
9GA0412P3G01FAN AXIAL 40X28MM 12VDC WIRE |
606 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 4.68 W | 16500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
|
9GA0412P3M01FAN AXIAL 40X28MM 12VDC WIRE |
495 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 2.52 W | 12500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
MEC0382V1-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,731 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Vapo-Bearing™ | 38.00mm | Tubeaxial | Auto Restart | 48.0dB(A) | 9.2 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
|

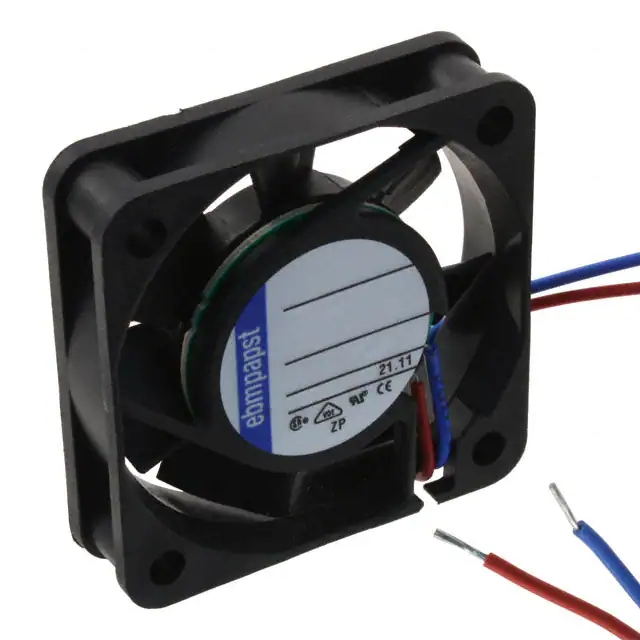

414FHFAN AXIAL 40X10MM 24VDC WIRE |
736 |
|
Datasheet |
400F | Box | Active | 24VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | - | Sintec | 10.00mm | Tubeaxial | - | 26.0dB(A) | 900 mW | 6000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|
405FFAN AXIAL 40X10MM 5VDC WIRE |
191 |
|
Datasheet |
400F | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 10.00mm | Tubeaxial | - | 22.1dB(A) | 700 mW | 5400 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|
AFB0612DH-TZUTFAN AXIAL 60X25.4MM 12VDC WIRE |
6,012 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 50.4 CFM (1.41m³/min) | 0.926 in H2O (230.7 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 10.08 W | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.176 lb (80.00 g) |
|
MR3010H12B1+6-RSRFAN AXIAL 30X10MM 12VDC WIRE |
658 |
|
Datasheet |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | - | 4 Wire Leads | - | - | - |
