DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0412VHNFAN AXIAL 40X28MM 12VDC WIRE |
974 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 1.92 W | 9500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
AFB0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
2,802 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.08 W | 4000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|

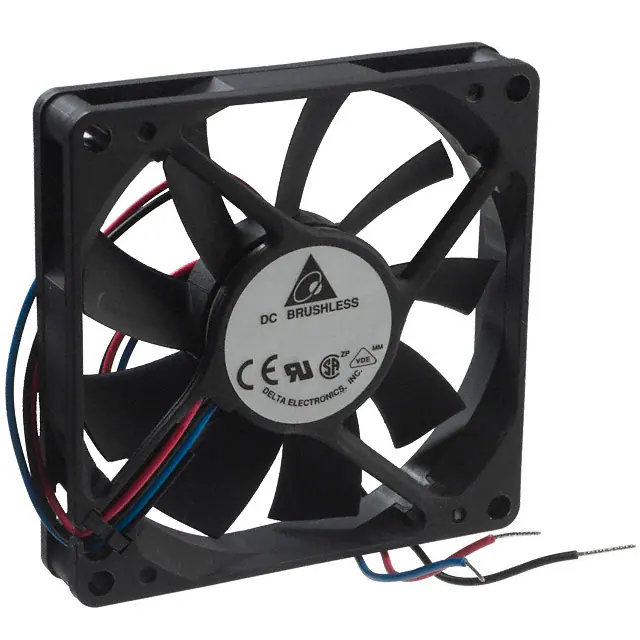

AFB0812VHB-F00FAN AXIAL 80X15MM 12VDC WIRE |
1,319 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 39.2 CFM (1.10m³/min) | 0.188 in H2O (46.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.5dB(A) | 2.28 W | 3700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
OD2510-12HBFAN AXIAL 25X10MM 12VDC WIRE |
1,365 |
|
Datasheet |
OD2510 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 31.0dB | 1.08 W | 12000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.022 lb (9.98 g) |
|
OD2510-05MBFAN AXIAL 25X10MM BALL 5VDC WIRE |
745 |
|
Datasheet |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 24.0dB | 600 mW | 10000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 122°F (-10 ~ 50°C) | - | 0.022 lb (9.98 g) |
|
|
OD2510-12MBFAN AXIAL 25X10MM 12VDC WIRE |
522 |
|
Datasheet |
OD2510 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | 10.00mm | Tubeaxial | Auto Restart | 24.0dB | 960 mW | 10000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.022 lb (9.98 g) |
|
MS8025H12B-FHR-2EMFAN AXIAL 80X25.2MM 12VDC WIRE |
269 |
|
Datasheet |
MS8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 25.20mm | Tubeaxial | Auto Restart | 50.0dB(A) | - | 5000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.172 lb (78.02 g) |
|
MS8025H24B-FHR-2EMFAN AXIAL 80X25.2MM 24VDC WIRE |
183 |
|
Datasheet |
MS8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 25.20mm | Tubeaxial | Auto Restart | 50.0dB(A) | - | 5000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.172 lb (78.02 g) |
|
AFB0812MD-AFAN AXIAL 80X20MM 12VDC WIRE |
4,449 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.161 lb (73.03 g) |
|
OD6025-12HBIP68FAN AXIAL 60X25MM 12VDC WIRE |
1,109 |
|
Datasheet |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (55.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.141 lb (63.96 g) |
|
109P0405H902FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,372 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 800 mW | 6200 RPM | CSA, TUV, UL | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.042 lb (19.05 g) |
|

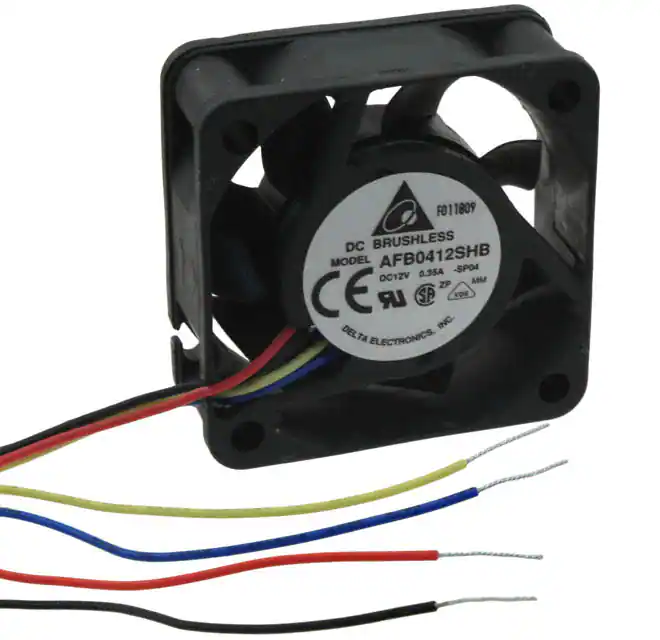

AFB0412SHB-SP04FAN AXIAL 40X15MM 12VDC WIRE |
443 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | 1.92 W | 11000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
MEC0381V3-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
3,420 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 38.00mm | Tubeaxial | Auto Restart | 37.0dB(A) | 2.9 W | 2100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
|
|
MEC0381V1-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
2,372 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Vapo-Bearing™ | 38.00mm | Tubeaxial | Auto Restart | 48.0dB(A) | 10 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
|
|
MEC0381V2-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
306 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | 38.00mm | Tubeaxial | Auto Restart | 44.0dB(A) | 5.1 W | 2600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
|
MFC0251V1-000U-A99Thermal Products |
696 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 4.2 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

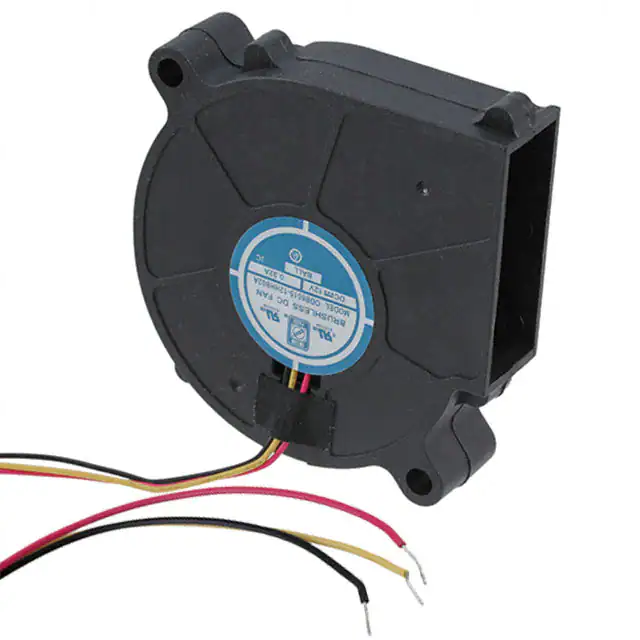

ODB6015-12HHB02AFAN BLOWER 57.25X15.2MM 12VDC |
503 |
|
Datasheet |
ODB6015 | Bulk | Active | 12VDC | Rectangular/Rounded - 57.25mm L x 50.37mm H | 7.4 CFM (0.207m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 15.20mm | Blower | Locked Rotor Sensor | 44.0dB | 3.84 W | 5000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.077 lb (34.93 g) |
|

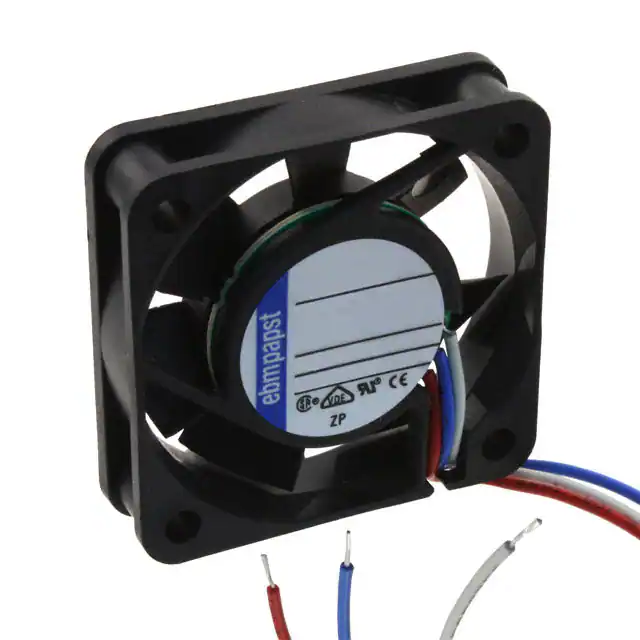

414 F/2FAN AXIAL 40X10MM 24VDC WIRE |
448 |
|
Datasheet |
400F | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 10.00mm | Tubeaxial | Speed Sensor (Tach) | 22.1dB(A) | 800 mW | 5400 RPM | CSA, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.038 lb (17.24 g) |
|
|
11925SA-24L-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
1,537 |
|
Datasheet |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 67.1 CFM (1.88m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB | 1.44 W | 1900 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11925SA-24Q-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
214 |
|
Datasheet |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.0dB | 4.8 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
