DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR6025X24B1+6-RSRFAN AXIAL 60X25.5MM 24VDC WIRE |
325 |
|
Datasheet |
MR6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 39.2 CFM (1.10m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 25.50mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | - | 8000 RPM | - | 4 Wire Leads | - | - | - |
|
OD6025-24HB02AFAN AXIAL 60X25MM 24VDC WIRE |
511 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB(A) | 2.8 W | 3975 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|
04028VA-24N-CA-00FAN AXIAL 40X28.1MM 24VDC WIRE |
164 |
|
Datasheet |
04028VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 28.10mm | Tubeaxial | - | 44.5dB | 2.4 W | 13000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 0.121 lb (54.88 g) |
.jpg)
|
9S0612P4H01FAN AXIAL 60X25MM 12VDC WIRE |
136 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 3900 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
109P0424H702FAN AXIAL 40X15MM 24VDC WIRE |
365 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.92 W | 7700 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
109P0624H701FAN AXIAL 60X15MM 24VDC WIRE |
182 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.44 W | 4100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|

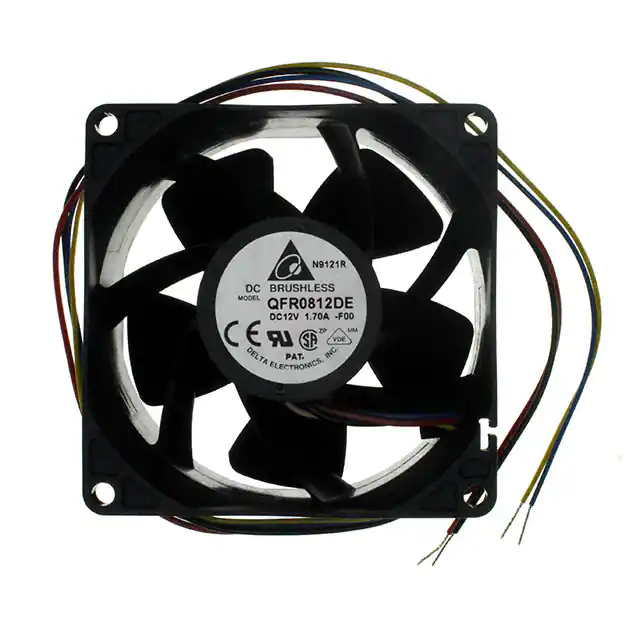

QFR0812UHEYDWFAN AXIAL 80X38MM 12VDC WIRE |
346 |
|
Datasheet |
QFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 13.8 W | 9000 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.353 lb (160.12 g) |
|

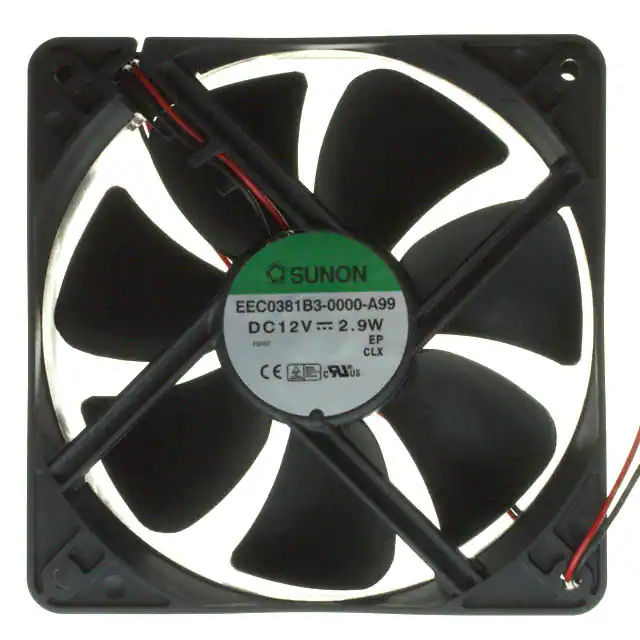

EEC0381B3-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
5,248 |
|
Datasheet |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 37.0dB(A) | 2.9 W | 2100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.472 lb (214.1 g) |
|

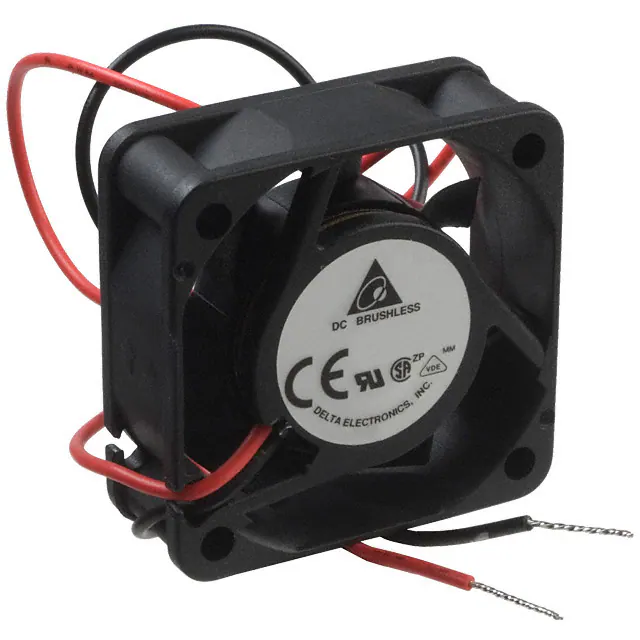

AFB0424HHBFAN AXIAL 40X15MM 24VDC WIRE |
2,022 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.359 in H2O (89.4 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.16 W | 8300 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
|
AFB0412HHBFAN AXIAL 40X15MM 12VDC WIRE |
1,063 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.359 in H2O (89.4 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.56 W | 8300 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|

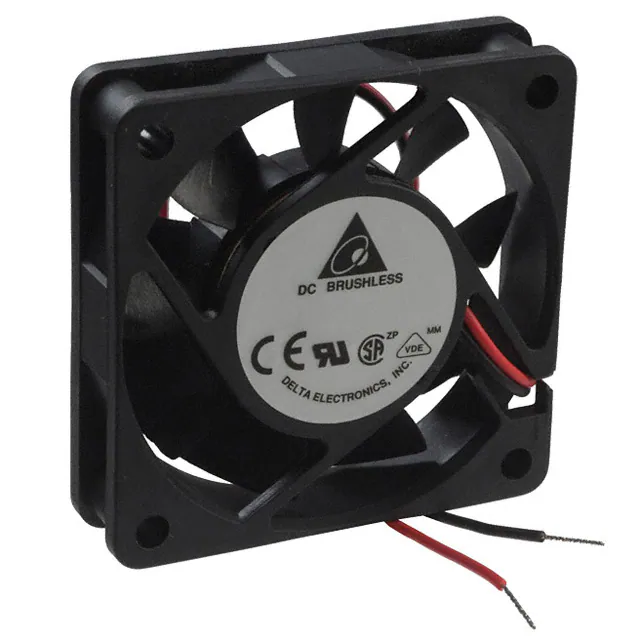

AFB0624HBFAN AXIAL 60X15MM 24VDC WIRE |
669 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.92 W | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.098 lb (44.45 g) |
|
|
AFB0412SHBFAN AXIAL 40X15MM 12VDC WIRE |
450 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 3 W | 11000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
109P0424J3013FAN AXIAL 40X28MM 24VDC WIRE |
6,419 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 4.32 W | 12500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.115 lb (52.16 g) |
|
109R0612S402FAN AXIAL 60X25MM 12VDC WIRE |
640 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
DC0251005H2B-BT0FAN 25X10MM 5VDC PWM/TACH |
623 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 400 mW | 13000 RPM | CE, cURus | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

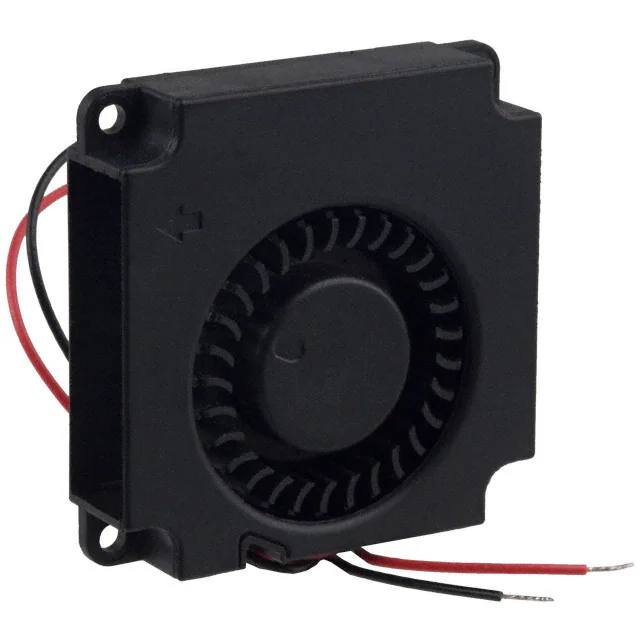

BFB0405HHA-AFAN BLOWER 40X10MM 5VDC WIRE |
297 |
|
Datasheet |
BFB | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 34.5dB(A) | 800 mW | 8500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.027 lb (12.25 g) |
|
MA2506M12C-RSRFAN AXIAL 25X6.1MM 12VDC WIRE |
288 |
|
Datasheet |
MA2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | 1 Ball/1 Sleeve | 6.10mm | Tubeaxial | Thermal Overload Protector (TOP) | 19.0dB(A) | - | 8500 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.018 lb (8.16 g) |
|

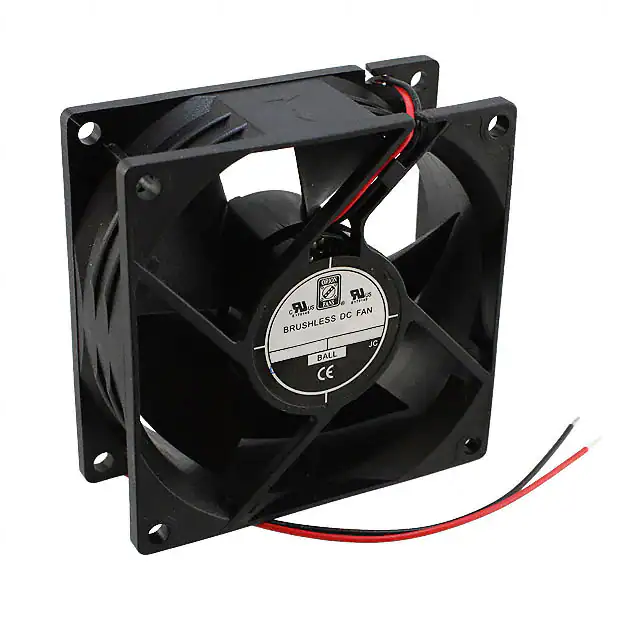

OD8032-24HBFAN AXIAL 80.5X32MM 24VDC WIRE |
858 |
|
Datasheet |
OD8032 | Box | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 50.0 CFM (1.40m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 32.00mm | Tubeaxial | - | 42.0dB | - | 3800 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

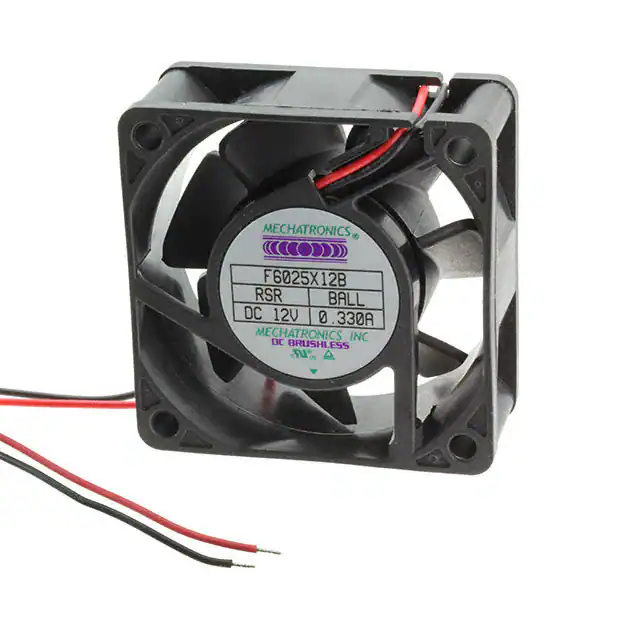

F6025X24B-RHR-EMFAN AXIAL 60X25MM 24VDC WIRE |
411 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.139 lb (63.05 g) |
|

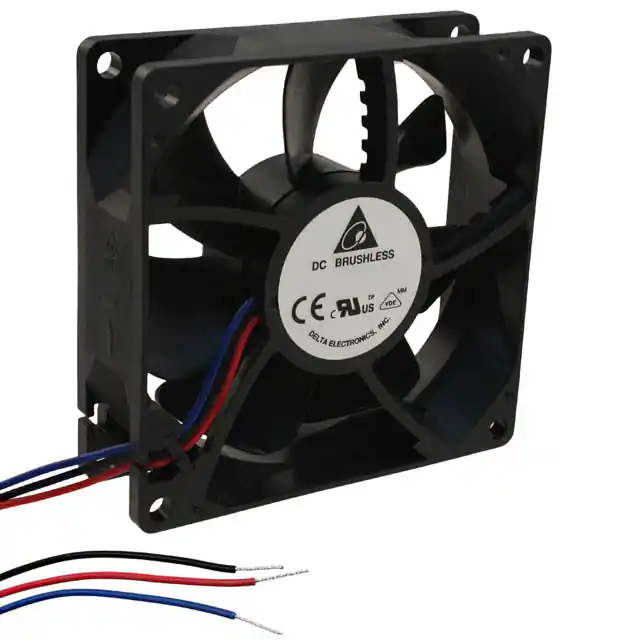

QFR0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
15,260 |
|
Datasheet |
QFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.2dB(A) | 3.96 W | 4300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.254 lb (115.21 g) |
