DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

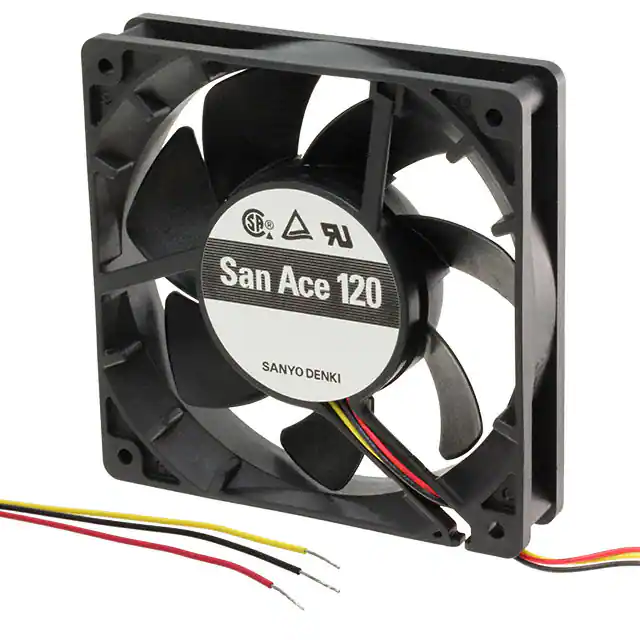

9G1224H1D01FAN AXIAL 119X38MM 24VDC WIRE |
2,101 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|

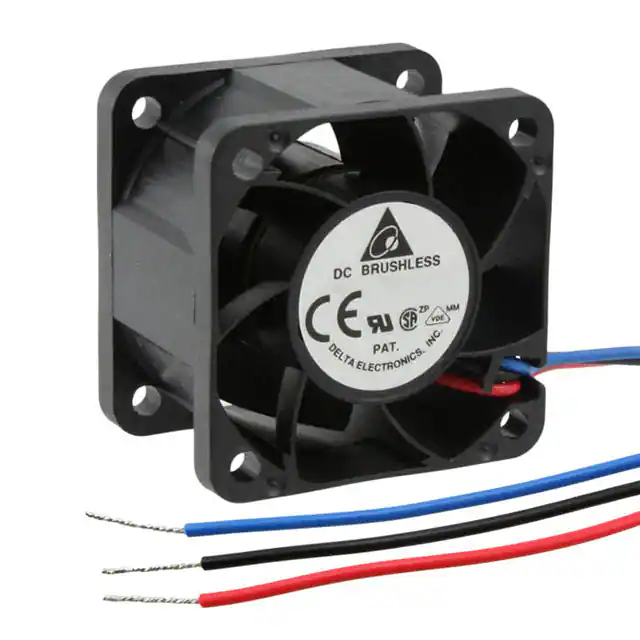

FFB0412VHN-F00FAN AXIAL 40X28MM 12VDC WIRE |
3,415 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 1.92 W | 9500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
MEC0251V1-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
6,005 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5.5 W | 3100 RPM | CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.357 lb (161.93 g) |
|
|
MEC0251V2-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
1,383 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 40.5dB(A) | 3.4 W | 2700 RPM | CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.357 lb (161.93 g) |
|

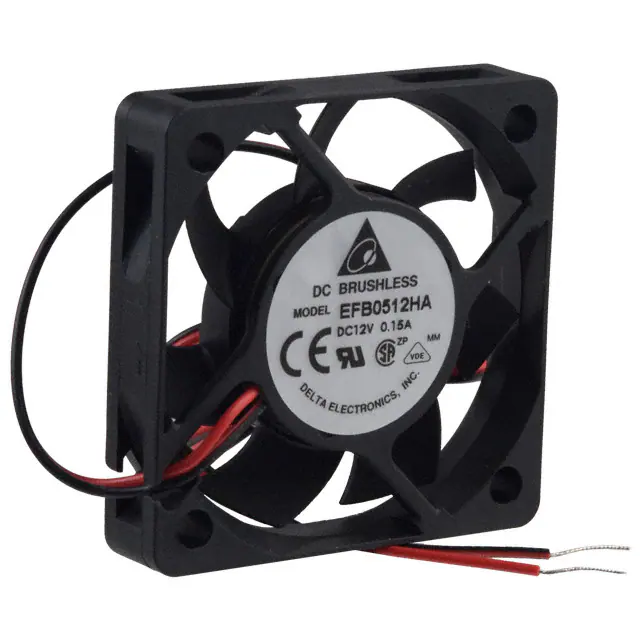

EFB0512HAFAN AXIAL 50X10MM 12VDC WIRE |
1,380 |
|
Datasheet |
EFB | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 11.4 CFM (0.319m³/min) | 0.167 in H2O (41.6 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.2 W | 5500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
UB5U3-500FAN BLOWER 30X3MM VAPO 5VDC WIRE |
1,494 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 5VDC | Square - 30mm L x 30mm H | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 36.0dB(A) | 360 mW | 9500 RPM | CE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.006 lb (2.72 g) |
|

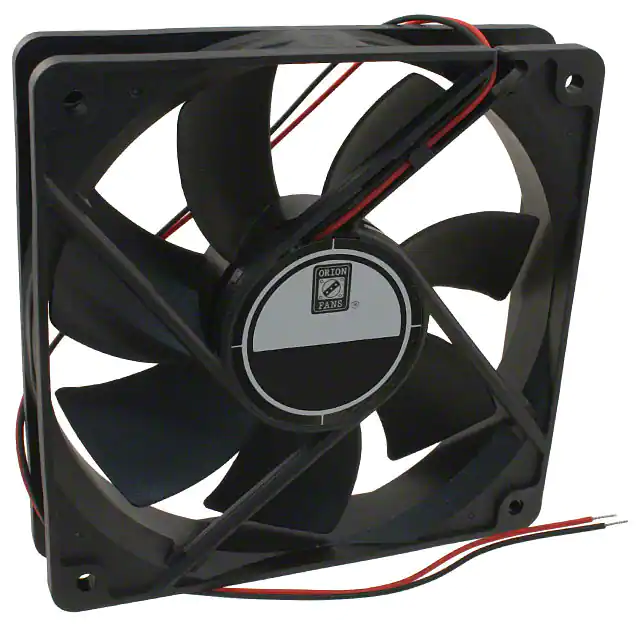

OD1225-24HSSFAN AXIAL 120X25MM 24VDC WIRE |
106 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | 25.00mm | Tubeaxial | Auto Restart | 42.0dB(A) | 7.7 W | 3100 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.341 lb (154.67 g) |
|
AFB03512HA-AF00FAN AXIAL 35X10MM 12VDC WIRE |
1,585 |
|
Datasheet |
AFB | Bulk | Not For New Designs | 12VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.08 W | 7000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
9GA0512P7G001FAN AXIAL 52X15MM 12VDC WIRE |
2,313 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 17.7 CFM (0.496m³/min) | 0.367 in H2O (91.5 Pa) | Ball | 15.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 1.56 W | 7800 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.088 lb (39.92 g) |
|

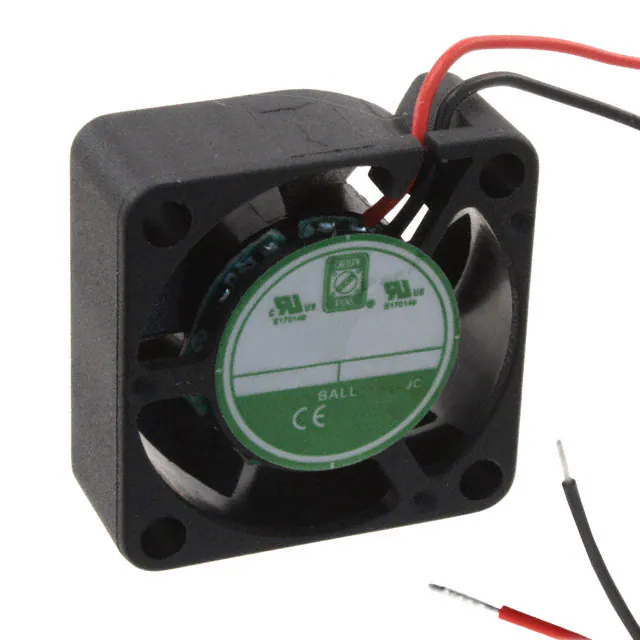

OD2510-05HBFAN AXIAL 25X10MM BALL 5VDC WIRE |
4,120 |
|
Datasheet |
OD2510 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 31.0dB | 700 mW | 12000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.022 lb (9.98 g) |
|

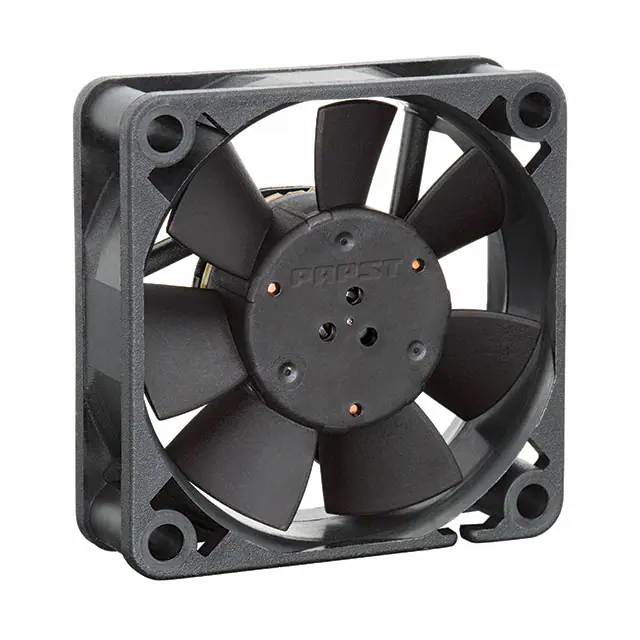

512FFAN AXIAL 50X15MM 12VDC WIRE |
1,220 |
|
Datasheet |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | - | Sintec | 15.00mm | Tubeaxial | - | 30.0dB(A) | 1 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.055 lb (24.95 g) |
|
MF40060V1-1000U-A99FAN AXIAL 40X6.5MM 5VDC WIRE |
2,691 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 29.3dB(A) | 440 mW | 7000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.015 lb (6.8 g) |
|
MF40060V2-1000U-A99FAN AXIAL 40X6.5MM 5VDC WIRE |
2,622 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.080 in H2O (20.0 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 25.3dB(A) | 330 mW | 6000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.015 lb (6.8 g) |
|
BFB0512HHA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
2,541 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 37.5dB(A) | 1.92 W | 5900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.05 lb (22.68 g) |
|
|
MF40060V1-1000U-G99FAN AXIAL 40X6.5MM 5VDC WIRE |
3,849 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.3dB(A) | 440 mW | 7000 RPM | CE, CUR, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.015 lb (6.8 g) |
|
109P0605M701FAN AXIAL 60X15MM BALL 5VDC WIRE |
103 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 750 mW | 3100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
9GA0412P3H01FAN AXIAL 40X28MM 12VDC WIRE |
5,100 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 3.36 W | 14500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|

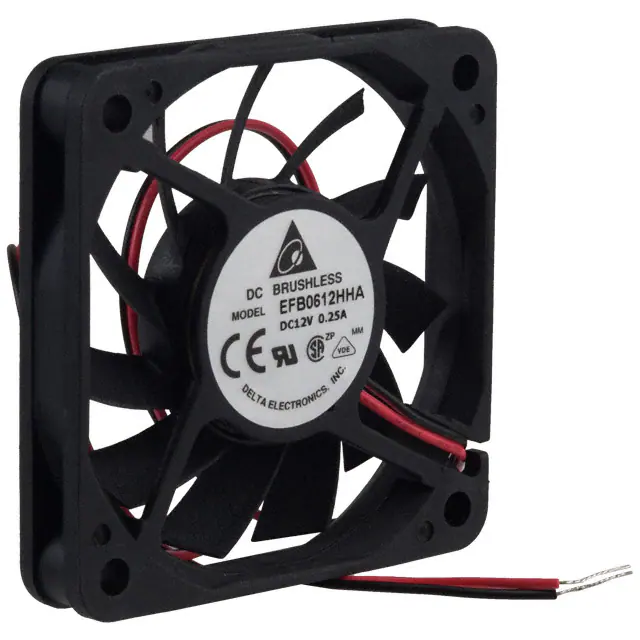

EFB0612HHAFAN AXIAL 60X10MM 12VDC WIRE |
4,139 |
|
Datasheet |
EFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 36.5dB(A) | 2.16 W | 4800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.062 lb (28.12 g) |
|

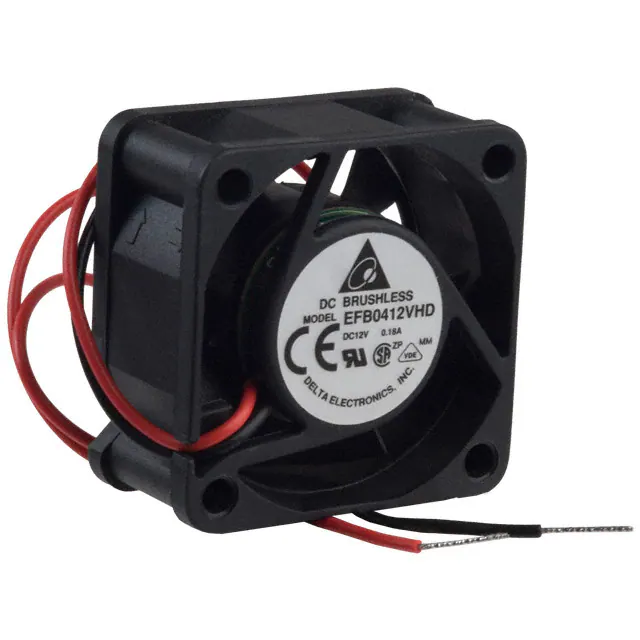

EFB0412VHDFAN AXIAL 40X20MM 12VDC WIRE |
1,326 |
|
Datasheet |
EFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.44 W | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
EFB0424VHDFAN AXIAL 40X20MM 24VDC WIRE |
886 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 2.16 W | 9000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
