DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

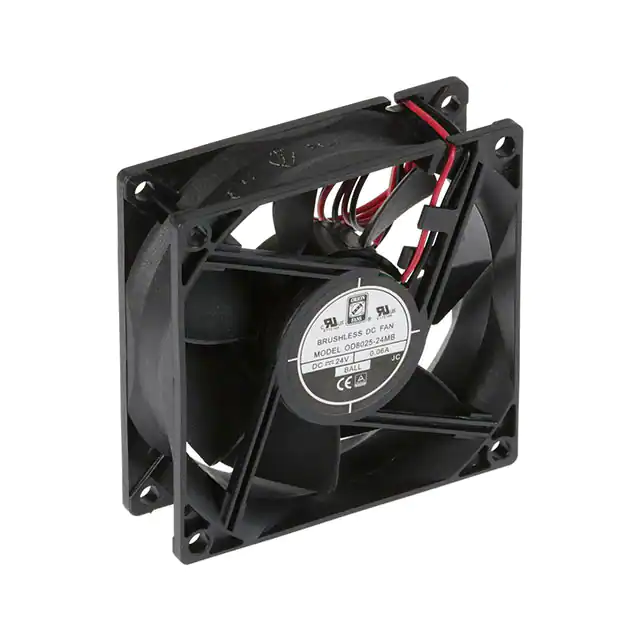

OD8025-24MBFAN AXIAL 80X25MM 24VDC WIRE |
1,202 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 28.0dB | 0.96 W | 2500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|

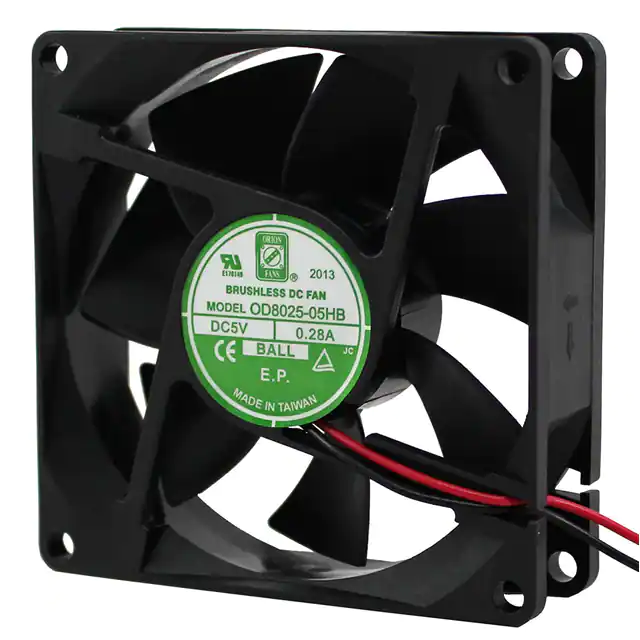

OD8025-05HBFAN AXIAL 80X25MM BALL 5VDC WIRE |
1,115 |
|
Datasheet |
OD8025-05 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 32.0dB | - | 2800 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.191 lb (86.64 g) |
|
OD6025-05HBFAN AXIAL 60X25MM BALL 5VDC WIRE |
1,108 |
|
Datasheet |
OD6025 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.8 W | 4500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.141 lb (63.96 g) |
|

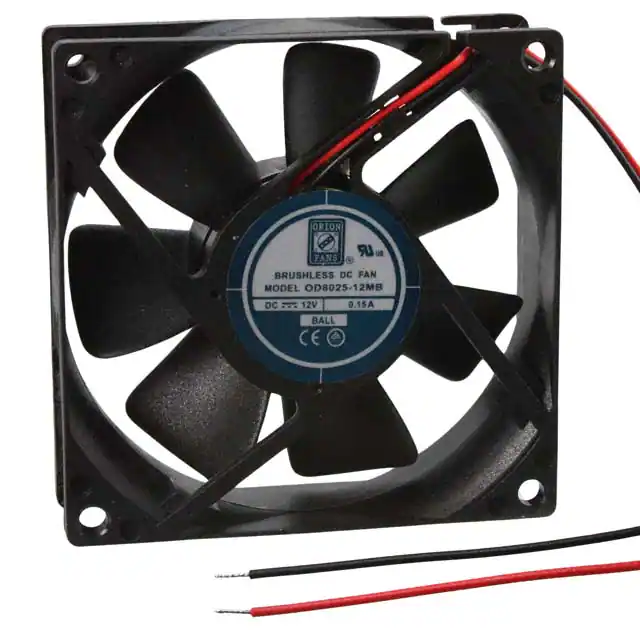

OD8025-12MBFAN AXIAL 80X25MM 12VDC WIRE |
922 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 28.0dB | 0.96 W | 2500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|
OD8015-12HBFAN AXIAL 80X15MM 12VDC WIRE |
862 |
|
Datasheet |
OD8015 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 15.00mm | Tubeaxial | - | 33.0dB | - | 3200 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
OD8015-24MBFAN AXIAL 80X15MM 24VDC WIRE |
836 |
|
Datasheet |
OD8015 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 15.00mm | Tubeaxial | - | 26.0dB | - | 2500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
OD6015-12HBFAN AXIAL 60X15MM 12VDC WIRE |
721 |
|
Datasheet |
OD6015 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.08 W | 4500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.079 lb (35.83 g) |
|
OD4015-12HBFAN AXIAL 40X15MM 12VDC WIRE |
720 |
|
Datasheet |
OD4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 15.00mm | Tubeaxial | - | 36.0dB | 1.8 W | 8000 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.053 lb (24.04 g) |
|
OD4020-12LBFAN AXIAL 40X20MM 12VDC WIRE |
398 |
|
Datasheet |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 24.1dB(A) | 980 mW | 5150 RPM | CE, cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

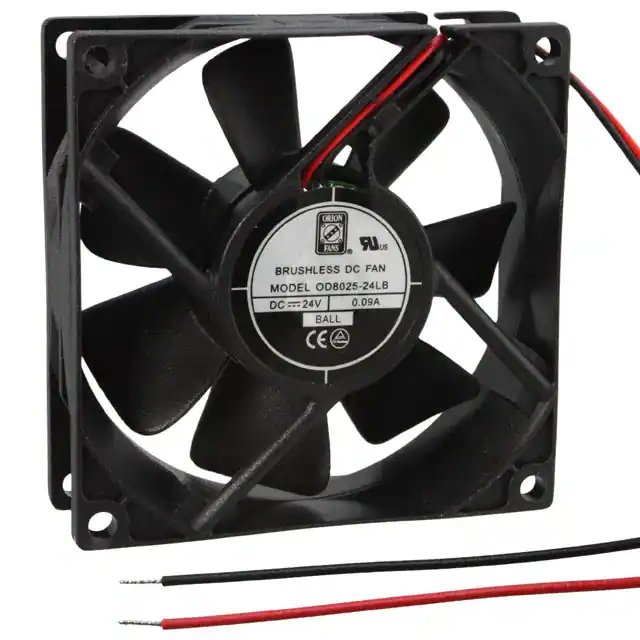

OD8025-24LBFAN AXIAL 80X25MM 24VDC WIRE |
163 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 23.0dB | 960 mW | 2100 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|

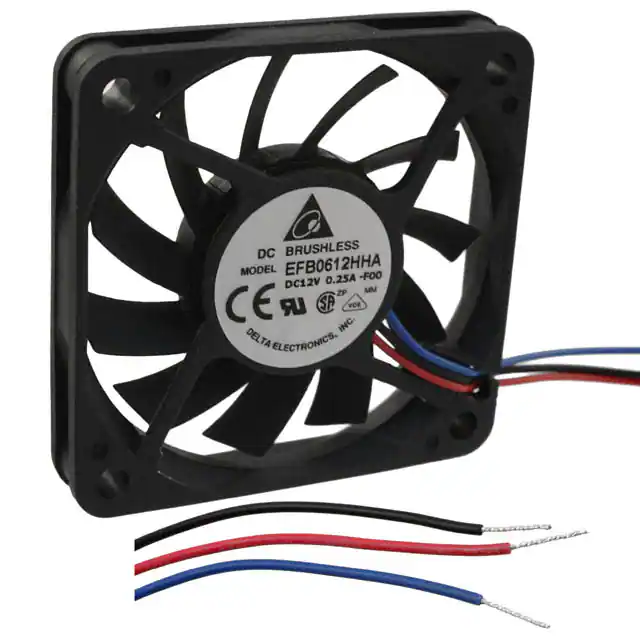

EFB0612HHA-F00FAN AXIAL 60X10MM 12VDC WIRE |
12,143 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.5dB(A) | 2.16 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
MD4028X24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
3,157 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|

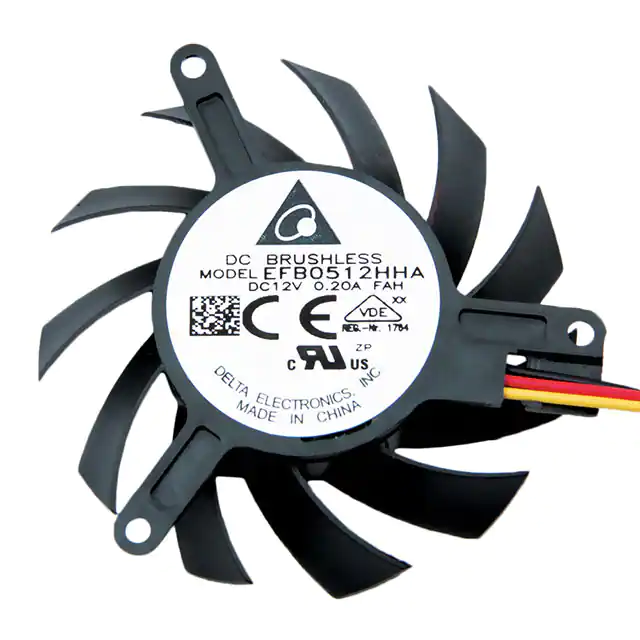

EFB0512HHAFAHFAN AXL FRAMELSS 45X9.8MM 12VDC |
727 |
|
Datasheet |
EFB - Frameless | Box | Active | 12VDC | Round - 45mm Dia | 7.5 CFM (0.210m³/min) | 0.056 in H2O (14.0 Pa) | Ball | 9.80mm | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 29.5dB(A) | 1.56 W | 5000 RPM | CE, cURus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.027 lb (12.25 g) |
|
EFB0612HHAF99FAN AXL FRAMELSS 56X10.7MM 12VDC |
272 |
|
Datasheet |
EFB - Frameless | Box | Active | 12VDC | Round - 56mm Dia | 15.0 CFM (0.420m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 10.70mm | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 4800 RPM | CE, cURus, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.038 lb (17.24 g) |
|

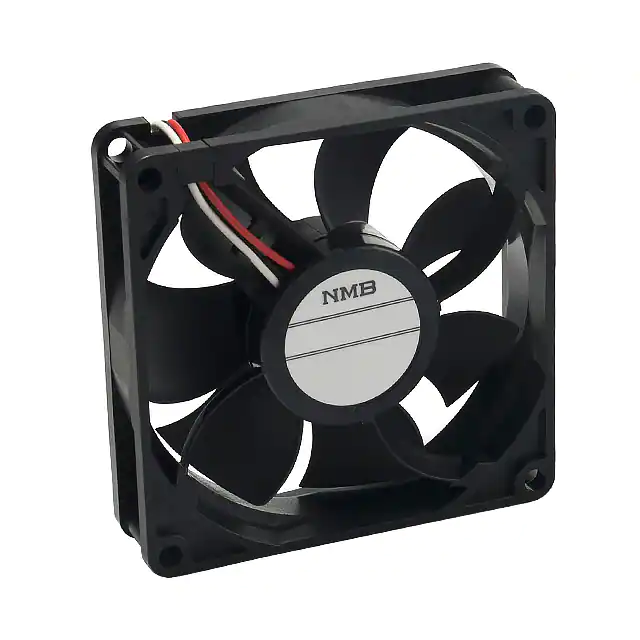

08020SA-24N-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
794 |
|
Datasheet |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 20.00mm | Tubeaxial | - | - | - | - | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
04020VA-12N-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
338 |
|
Datasheet |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 32.5dB | 1.3 W | 8500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AUB0812VH-SP00FAN AXIAL 80X25.4MM 12VDC |
102 |
|
Datasheet |
AUB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Superflo | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 2.28 W | 3600 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.219 lb (99.34 g) |
|

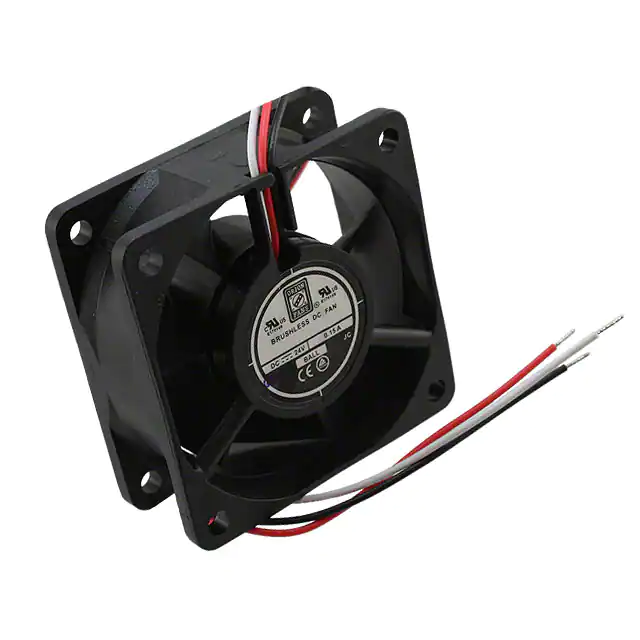

OD6025-24HB01AFAN AXIAL 60X25MM 24VDC WIRE |
5,835 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 2.8 W | 3975 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|

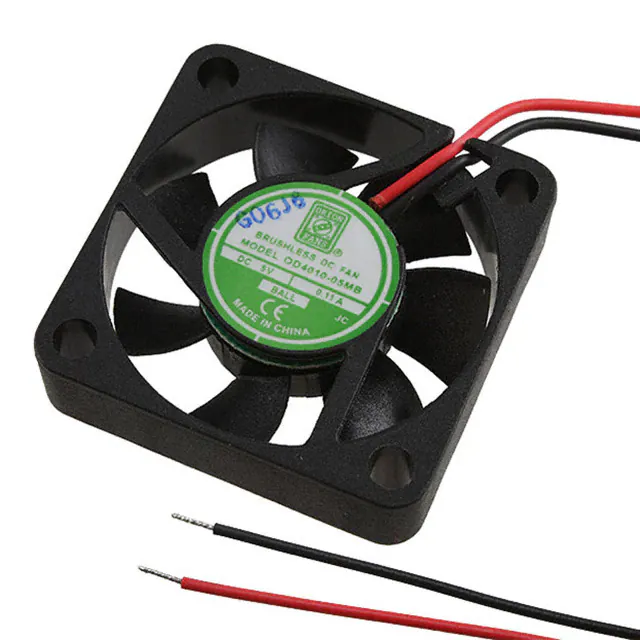

OD4010-05MBFAN AXIAL 40X10.5MM 5VDC WIRE |
161 |
|
Datasheet |
OD4010 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 26.3dB | - | 6000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

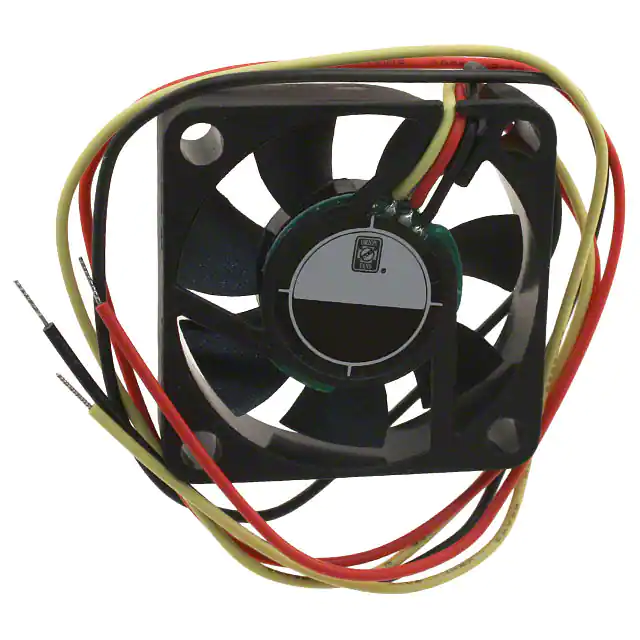

OD4010-24HB02AFAN AXIAL 40X10.5MM 24VDC WIRE |
16,239 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.4dB | 1.45 W | 8000 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
