DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F8025E24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
501 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
|
F8025X24B-FHRFAN AXIAL 80X25MM 24VDC WIRE |
251 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.182 lb (82.55 g) |
|
|
F8025E12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
130 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
MF30101V1-1000U-G99FAN AXIAL 30X10MM 12VDC WIRE |
1,116 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB(A) | 660 mW | 11500 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
DB0620505H1A-BT0FAN BLOWER 61.8X5.6MM 5VDC RECT |
266 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 61.8mm L x 57.3mm H | 2.7 CFM (0.076m³/min) | 0.783 in H2O (195.0 Pa) | Ball | 5.60mm | Blower | PWM Control, Speed Sensor (Tach) | 42.8dB(A) | 1.9 W | 7400 RPM | - | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.038 lb (17.24 g) |
|
MR8025E12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
596 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.2dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.119 lb (53.98 g) |
|
|
MR8025E24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
525 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.2dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.119 lb (53.98 g) |
|
UF3H3-710FAN AXIAL 17X3MM VAPO 3VDC WIRE |
2,855 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | 3.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.003 lb (1.36 g) |
|
MF17080V1-1000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE |
1,019 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 0.900 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 8.00mm | Tubeaxial | Auto Restart | 21.5dB(A) | 470 mW | 21000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.009 lb (4.08 g) |
|

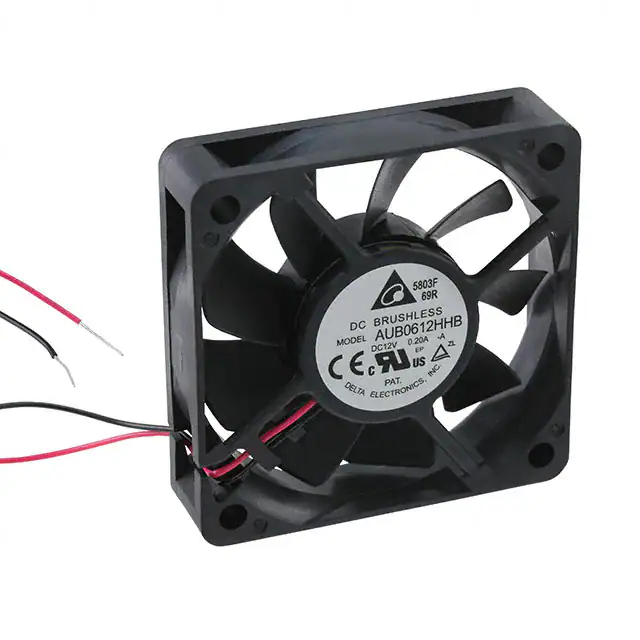

AUB0612HHB-AFAN AXIAL 60X15MM 12VDC WIRE |
2,301 |
|
Datasheet |
AUB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.190 in H2O (47.3 Pa) | Superflo | 15.00mm | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.56 W | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.084 lb (38.1 g) |
|
DC0401012V2B-2T0FAN AXIAL 40X10MM 12VDC WIRE |
269 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.04 W | 10000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06015KA-12N-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
608 |
|
Datasheet |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 34.0dB | 1.9 W | 4600 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
BFB0305HHA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
352 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.15 W | 8500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
|
BFB03505LA-CF00FAN BLOWER 35X10MM 5VDC WIRE |
279 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 450 mW | 5500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
AUB0912VH-CX09FAN AXIAL 92X25.4MM 12VDC |
7,102 |
|
Datasheet |
AUB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Superflo | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 4.56 W | 3800 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.219 lb (99.34 g) |
|
ASB0412SA-00FAN AXIAL 40X10.4MM 12VDC WIRE |
2,377 |
|
Datasheet |
ASB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.233 in H2O (58.0 Pa) | Sleeve | 10.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.5dB(A) | 840 mW | 8000 RPM | - | 3 Wire Leads | -4 ~ 194°F (-20 ~ 90°C) | - | 0.03 lb (13.61 g) |
|

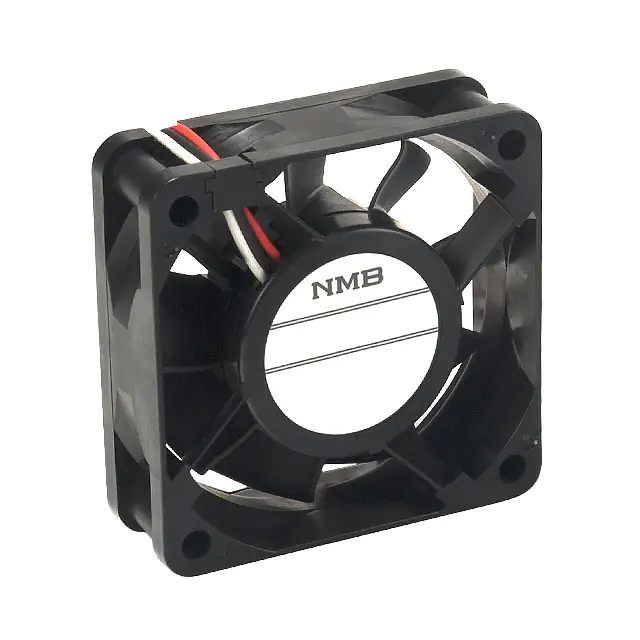

06020SA-12M-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
383 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 20.00mm | Tubeaxial | - | 28.5dB | 960 mW | 4000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|

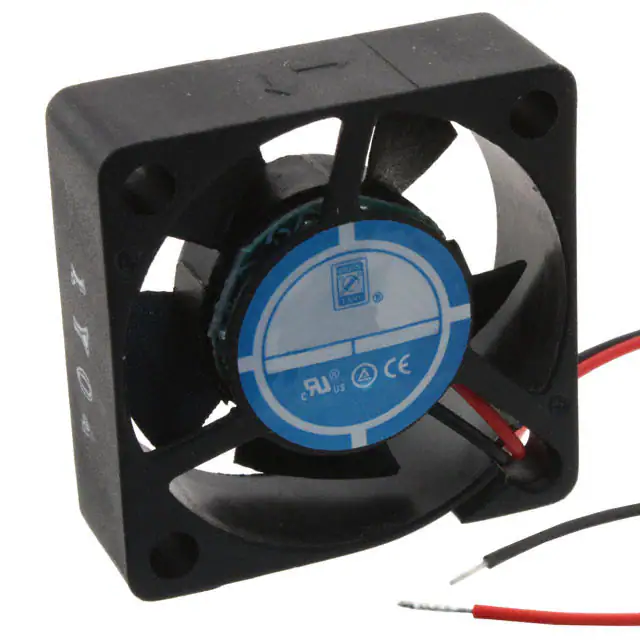

OD3010-12HBFAN AXIAL 30X10.2MM 12VDC WIRE |
7,608 |
|
Datasheet |
OD3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 10.20mm | Tubeaxial | - | 30.2dB(A) | - | 11000 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
3161/MEC0251V1-000U-G99FAN AXIAL 120X25MM VAPO 12VDC |
279 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial, Case Fan | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 5.4 W | 3100 RPM | CE, CUR, TUV, UL | LP4 Assembly | 14 ~ 158°F (-10 ~ 70°C) | - | 0.357 lb (161.93 g) |
|
UB5U3-700FAN BLOWER 30X3MM VAPO 5VDC WIRE |
6,076 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 5VDC | Square - 30mm L x 30mm H | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart | 36.0dB(A) | 360 mW | 9500 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.005 lb (2.27 g) |
