DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06025SA-12N-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,580 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.8 W | 4700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

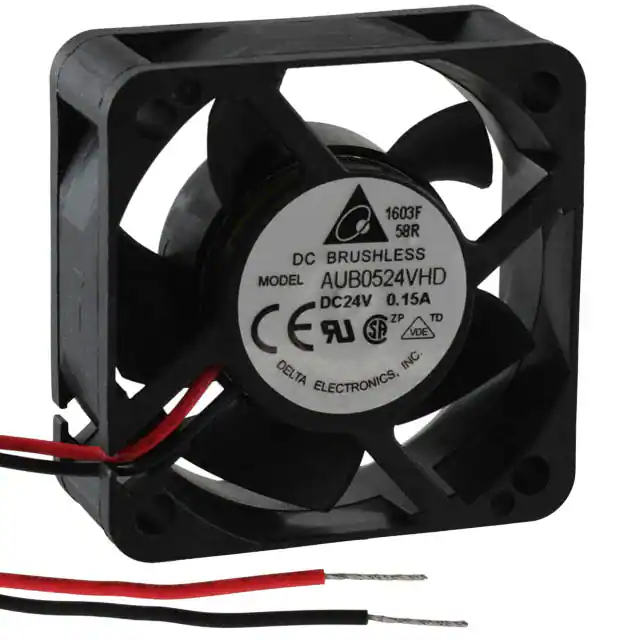

AUB0524VHDFAN AXIAL 50X20MM 24VDC WIRE |
1,269 |
|
Datasheet |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Superflo | 20.00mm | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 2.4 W | 7000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.085 lb (38.56 g) |
|
|
06025SA-24M-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,133 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 27.5dB | 1.4 W | 4000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24Q-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,117 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 35.0dB | 2.4 W | 5300 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06025SA-24N-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
471 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.9 W | 4700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
EE60251B1-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
6,564 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 25.00mm | Tubeaxial | - | 34.5dB(A) | 1.44 W | 4500 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|

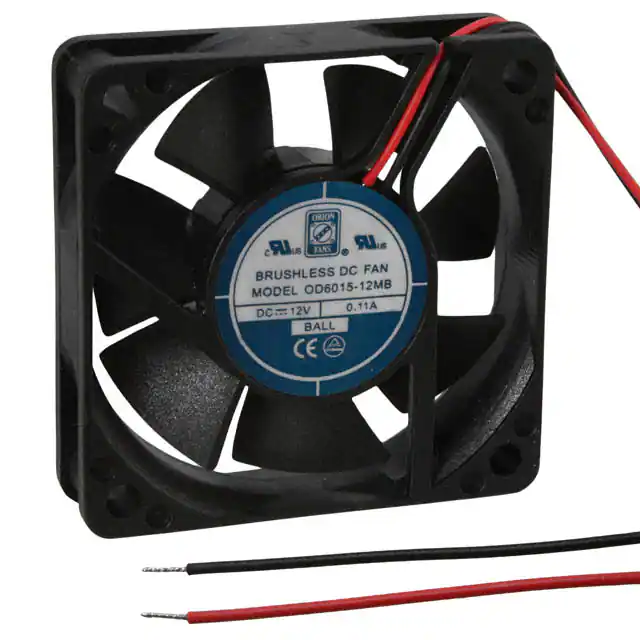

OD6015-12MBFAN AXIAL 60X15MM 12VDC WIRE |
655 |
|
Datasheet |
OD6015 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 29.0dB | - | 3900 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.079 lb (35.83 g) |
|
|
08025SA-12M-EA-D0FAN AXIAL 80X25MM 12VDC WIRE |
1,401 |
|
Datasheet |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 26.0dB | 1.08 W | 2700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-24M-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
1,326 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 26.0dB | 1.44 W | 2700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-12N-EA-D0FAN AXIAL 80X25MM 12VDC WIRE |
673 |
|
Datasheet |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB | 1.7 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

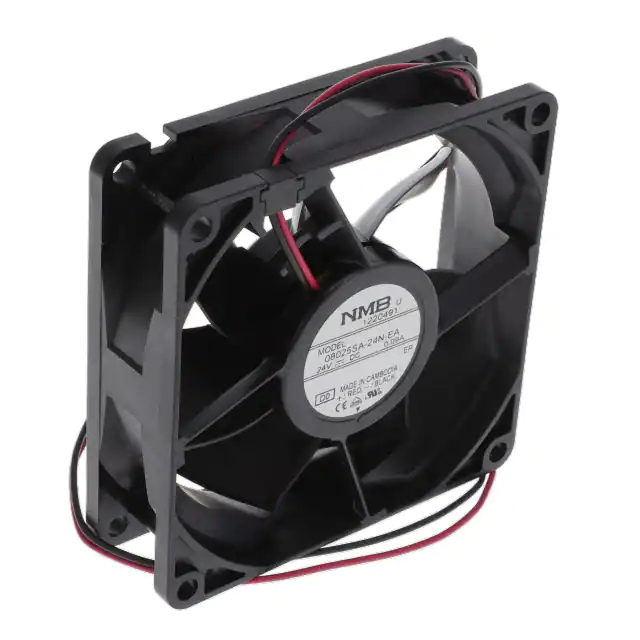

08025SA-24N-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
573 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB | 1.9 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD4020-24HBFAN AXIAL 40X20MM 24VDC WIRE |
8,004 |
|
Datasheet |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 32.1dB(A) | 1.72 W | 8190 RPM | CE, cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
DB0301005H1A-2T0FAN BLOWER 30X10MM 5VDC WIRE |
547 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 10.00mm | Blower | - | 28.0dB(A) | 1.1 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.019 lb (8.62 g) |
|

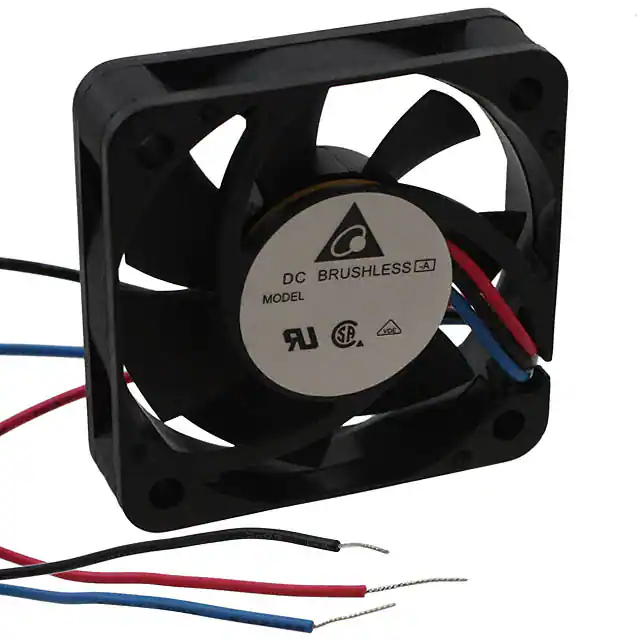

ASB0412VHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
2,815 |
|
Datasheet |
ASB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.253 in H2O (63.0 Pa) | Sleeve | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 960 mW | 8000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.03 lb (13.61 g) |
|
MF60252V1-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,217 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 27.0dB(A) | 1.2 W | 4500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.101 lb (45.81 g) |
|

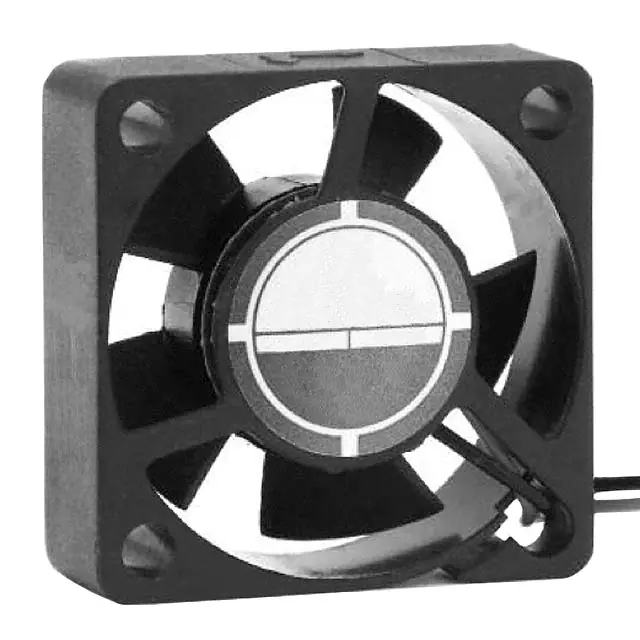

OD3010-05MBFAN AXIAL 30X10.2MM 5VDC WIRE |
3,367 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 10.20mm | Tubeaxial | - | 28.4dB(A) | - | 9000 RPM | CE, cURus | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
MF60252V3-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,378 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 16.7dB(A) | 530 mW | 3100 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.101 lb (45.81 g) |
|
|
MF25060V2-1000U-A99FAN AXIAL 25X6.5MM 5VDC WIRE |
3,985 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.160 in H2O (40.0 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 18.0dB(A) | 380 mW | 10000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.012 lb (5.44 g) |
|
MF25100V1-1000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
3,801 |
|
Datasheet |
MagLev® MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 23.0dB(A) | 530 mW | 13000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.016 lb (7.26 g) |
|
|
MF25100V2-1000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
1,962 |
|
Datasheet |
MagLev® MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 16.0dB(A) | 330 mW | 9800 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.016 lb (7.26 g) |
