DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF35100V1-1000U-A99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
413 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 28.0dB(A) | 680 mW | 10000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.024 lb (10.89 g) |
|

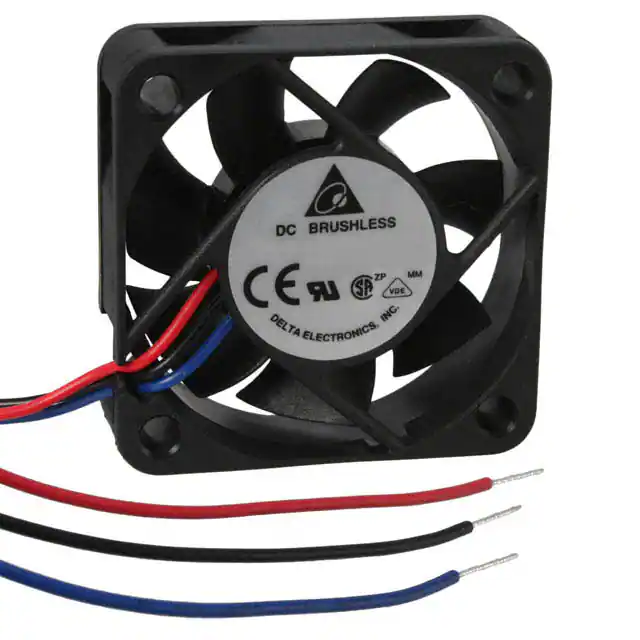

AFB0512HHB-F00FAN AXIAL 50X15MM 12VDC WIRE |
2,853 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.56 W | 6400 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
|
09225SA-24N-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
438 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 32.0dB | 1.92 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-12N-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
165 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 32.0dB | 1.9 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AFB0405LA-AFAN AXIAL 40X10MM BALL 5VDC WIRE |
4,714 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 150 mW | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.031 lb (14.06 g) |
|
|
MF50151V2-1B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
1,843 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 3.5 CFM (0.098m³/min) | 0.400 in H2O (99.6 Pa) | Vapo-Bearing™ | 15.00mm | Blower | Auto Restart | 32.6dB(A) | 540 mW | 4200 RPM | CCC, CE, cURus, TUV | 2 Wire Leads | - | - | - |
|
|
MF50151VX-1B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
1,495 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | 15.00mm | Blower | Auto Restart | 42.2dB(A) | 1.86 W | 6200 RPM | CCC, CE, cURus, TUV | 2 Wire Leads | - | - | - |
|
OD6025-12LBFAN AXIAL 60X25MM 12VDC WIRE |
5,806 |
|
Datasheet |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.080 in H2O (20.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 19.0dB(A) | 1 W | 2500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.141 lb (63.96 g) |
|
OD4020-12HBFAN AXIAL 40X20MM 12VDC WIRE |
3,772 |
|
Datasheet |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 32.1dB(A) | 1.3 W | 8190 RPM | CE, cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
OD6025-24HBFAN AXIAL 60X25MM 24VDC WIRE |
3,769 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 3.5 W | 3975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|
F16FB-05LLC /EFAN BLOWER 16X4.5MM 5VDC WIRE |
432 |
|
Datasheet |
F16FB | Bulk | Active | 5VDC | Square - 16mm L x 16mm H | 0.424 CFM (0.012m³/min) | 0.022 in H2O (5.5 Pa) | Sleeve | 4.50mm | Blower | - | 3.0dB(A) | 200 mW | 6000 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|
MF25100V1-1000U-G99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
2,507 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB(A) | 530 mW | 13000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.016 lb (7.26 g) |
|
02510SS-12P-AT-00FAN AXIAL 25X10MM 12VDC WIRE |
882 |
|
Datasheet |
02510SS | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 2.6 CFM (0.073m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | 10.00mm | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 840 mW | 13000 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
CFM-5010-03-10FAN AXIAL 50X10.6MM 5VDC WIRE |
3,221 |
|
Datasheet |
CFM-50 | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.60mm | Tubeaxial | Auto Restart | 37.2dB(A) | 1.4 W | 6100 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.046 lb (20.87 g) |
|
|
MF30060V2-1000U-A99FAN AXIAL 30X6.5MM 5VDC WIRE |
4,858 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 15.7dB(A) | 360 mW | 7100 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
|
MF30100V1-1000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
4,299 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 23.0dB(A) | 600 mW | 11000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
|
MF30060V1-1000U-A99FAN AXIAL 30X6.5MM 5VDC WIRE |
1,449 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 23.6dB(A) | 560 mW | 9100 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
FAD1-06025BBLW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE |
129 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 25.00mm | Tubeaxial | - | 18.9dB(A) | 1 W | 2500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
|
CFM-5010-13-22FAN AXIAL 50X10.6MM 12VDC WIRE |
3,541 |
|
Datasheet |
CFM-50 | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.60mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1.68 W | 6100 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.046 lb (20.87 g) |
|

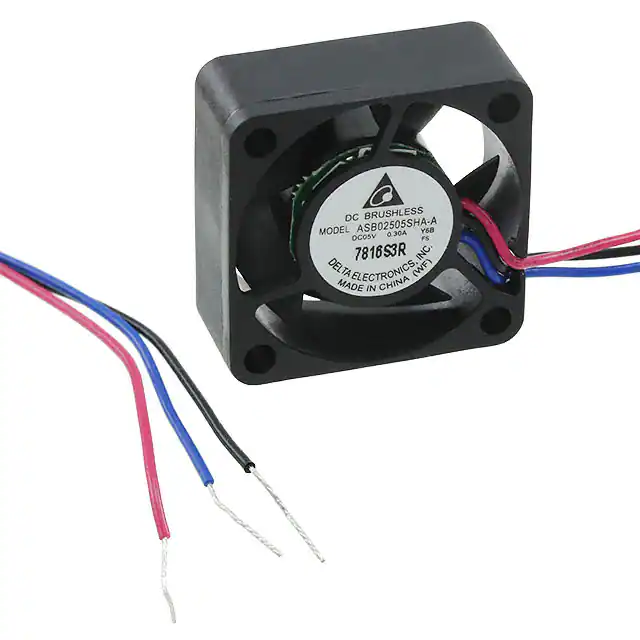

ASB02505SHA-AY6BFAN AXIAL 25X10MM 5VDC WIRE |
1,995 |
|
Datasheet |
ASB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 4.3 CFM (0.120m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 600 mW | 15000 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
