DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF25101V1-1000U-G99FAN AXIAL 25X10MM 12VDC WIRE |
3,616 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 3.8 CFM (0.106m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 600 mW | 14000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.015 lb (6.8 g) |
|
MF35101V2-1000U-G99FAN AXIAL 35X10MM 12VDC WIRE |
2,805 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.8dB(A) | 420 mW | 7500 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.024 lb (10.89 g) |
|
109P0424H7D01FAN AXIAL 40X15MM 24VDC WIRE |
2,707 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.92 W | 7700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
B5020L12B-BSRFAN BLOWER 51X20MM 12VDC WIRE |
1,663 |
|
Datasheet |
B5020 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 50mm H | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Blower | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | - | 2 Wire Leads | - | - | 0.049 lb (22.23 g) |
|
MR4020X12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
1,257 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 41.0dB(A) | - | 12000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.053 lb (24.04 g) |
|

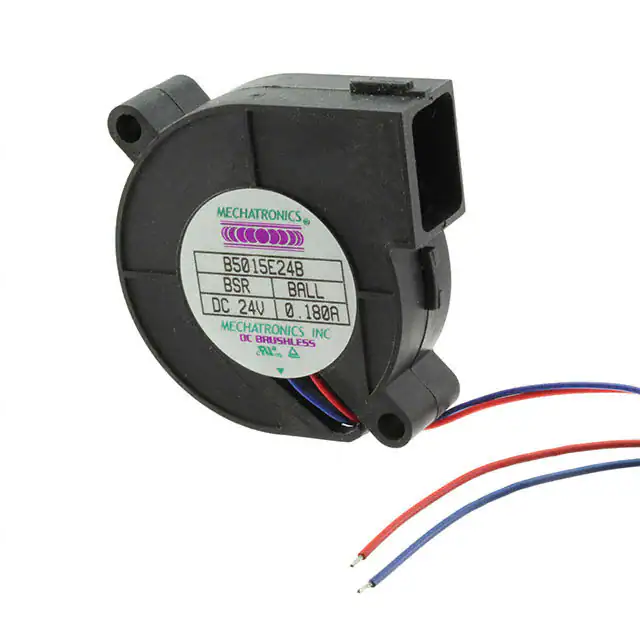

B5015E24B-BSRFAN BLOWER 51X15.7MM 24VDC WIRE |
511 |
|
Datasheet |
B5015 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 15.70mm | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.062 lb (28.12 g) |
|

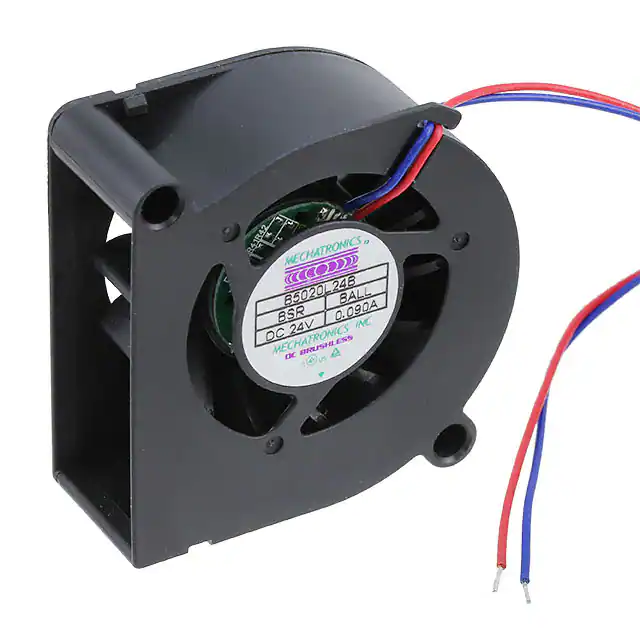

B5020L24B-BSRFAN BLOWER 51X20MM 24VDC WIRE |
267 |
|
Datasheet |
B5020 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 50mm H | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Blower | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | - | 2 Wire Leads | - | - | 0.049 lb (22.23 g) |
|

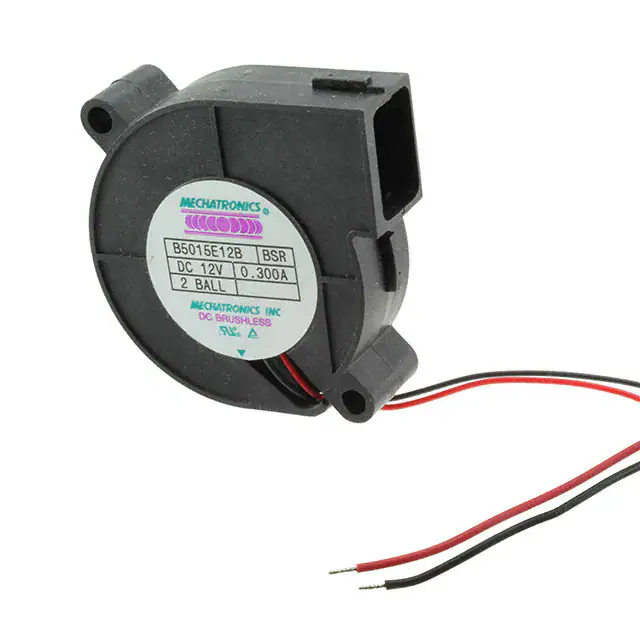

B5015E12B-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
150 |
|
Datasheet |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 15.70mm | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.062 lb (28.12 g) |
|

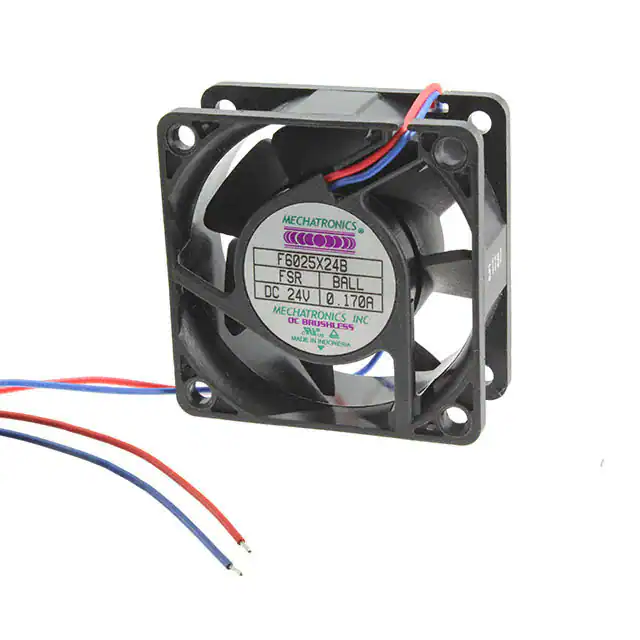

F6025X24B-FSRFAN AXIAL 60X25MM 24VDC WIRE |
640 |
|
Datasheet |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.0dB(A) | - | 5200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|

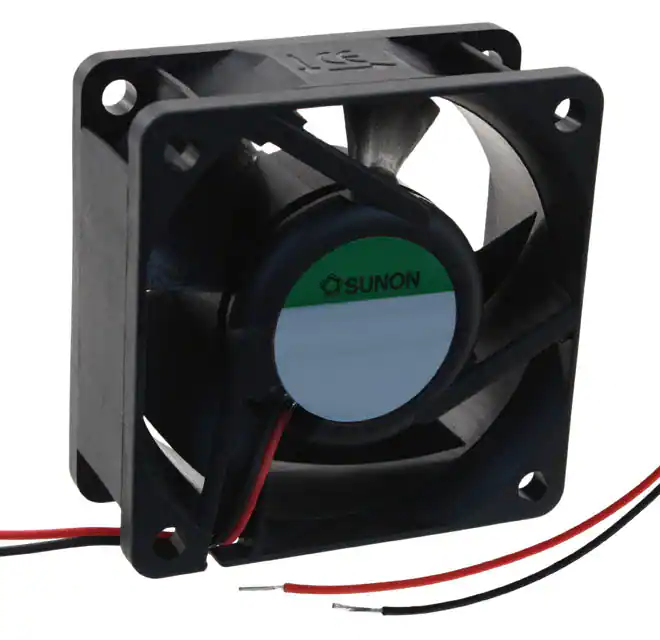

PMD2406PTVX-A U.GNFAN AXIAL 60X25MM 24VDC WIRE |
2,751 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 45.0dB(A) | 5 W | 7600 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
|
MF30101V1-1000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
3,702 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 23.0dB(A) | 660 mW | 11500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
MF30151V1-1000U-A99FAN AXIAL 30X15MM 12VDC WIRE |
1,588 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | Auto Restart | 27.0dB(A) | 780 mW | 9500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.022 lb (9.98 g) |
|
|
MF20080V2-1000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
1,010 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 20mm L x 20mm H | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 8.00mm | Tubeaxial | Auto Restart | 21.0dB(A) | 340 mW | 12000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.009 lb (4.08 g) |
|
|
MF20080V1-1000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
890 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 20mm L x 20mm H | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | Vapo-Bearing™ | 8.00mm | Tubeaxial | Auto Restart | 23.0dB(A) | 450 mW | 15000 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.009 lb (4.08 g) |
|
|
BFB03505HA-CFAN BLOWER 35X10MM 5VDC WIRE |
790 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 29.0dB(A) | 650 mW | 7500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
|
BFB03512HHA-CFAN BLOWER 35X10MM 12VDC WIRE |
409 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 31.0dB(A) | 1.32 W | 8500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
|
BFB0312HHA-CFAN BLOWER 30X10MM 12VDC WIRE |
292 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 31.0dB(A) | 1.08 W | 8500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|

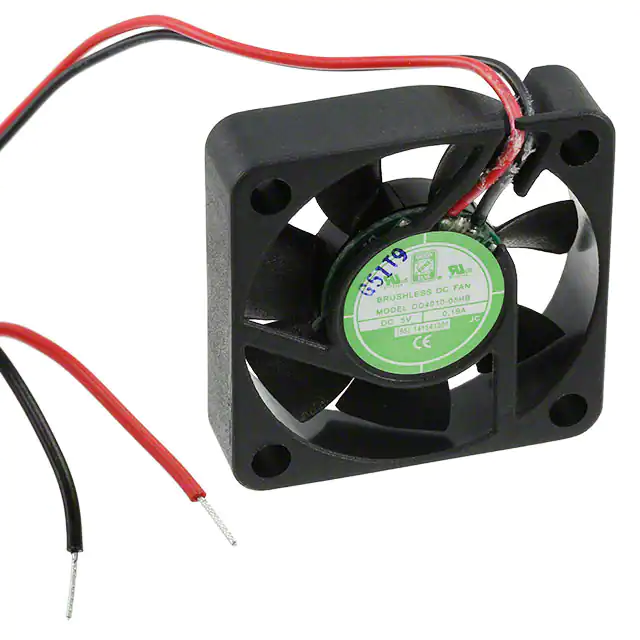

OD4010-05HB55FAN AXIAL 40X10.5MM 5VDC WIRE |
7,676 |
|
Datasheet |
OD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | - | Ball | 10.50mm | Tubeaxial | Auto Restart | 33.4dB | 500 mW | - | - | 2 Wire Leads | - | IP55 - Dust Protected, Water Resistant | 0.441 lb (200.00 g) |
|
F8025E24B-FHRFAN AXIAL 80X25MM 24VDC WIRE |
1,160 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.182 lb (82.55 g) |
|

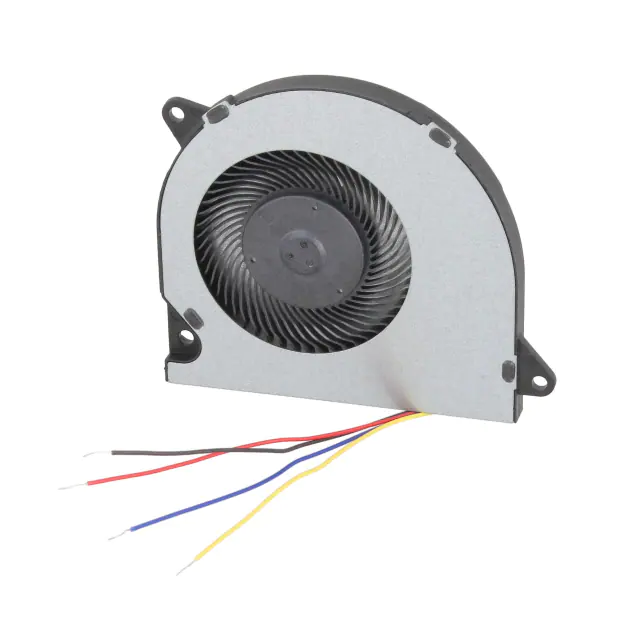

DB0590505H1A-BT0FAN BLOWER 59.3X5.6MM 5VDC RECT |
667 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 59.3mm L x 55.6mm H | 3.3 CFM (0.092m³/min) | 0.672 in H2O (167.4 Pa) | Ball | 5.60mm | Blower | PWM Control, Speed Sensor (Tach) | 41.1dB(A) | 1.9 W | 6700 RPM | - | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.045 lb (20.41 g) |
