DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

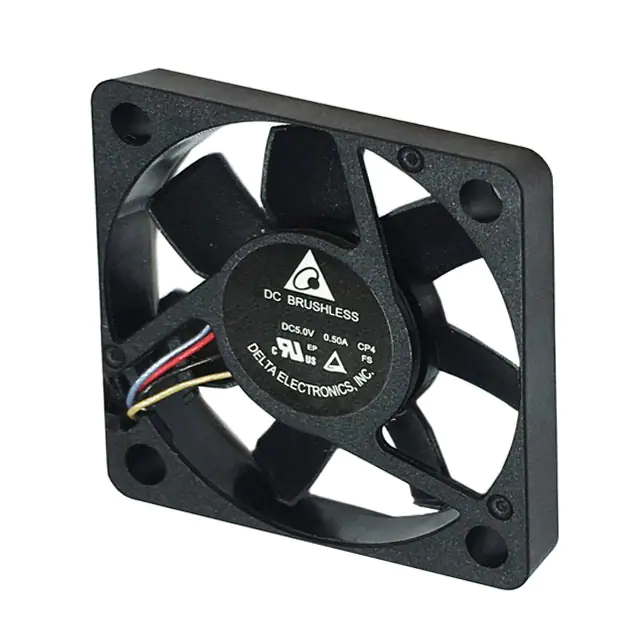

ASB0305HP-00FAN AXL 30X6.9MM 5VDC RECT CONN |
5,579 |
|
Datasheet |
ASB - Miniature | Box | Active | 5VDC | Square - 30mm L x 30mm H | 5.1 CFM (0.143m³/min) | 0.156 in H2O (38.8 Pa) | Superflo | 6.90mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | 1 W | 9500 RPM | cURus, TUV | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.01 lb (4.54 g) |
|
F6025X24B1-FSRFAN AXIAL 60X25MM 24VDC WIRE |
2,588 |
|
Datasheet |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | - | 5200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.139 lb (63.05 g) |
|

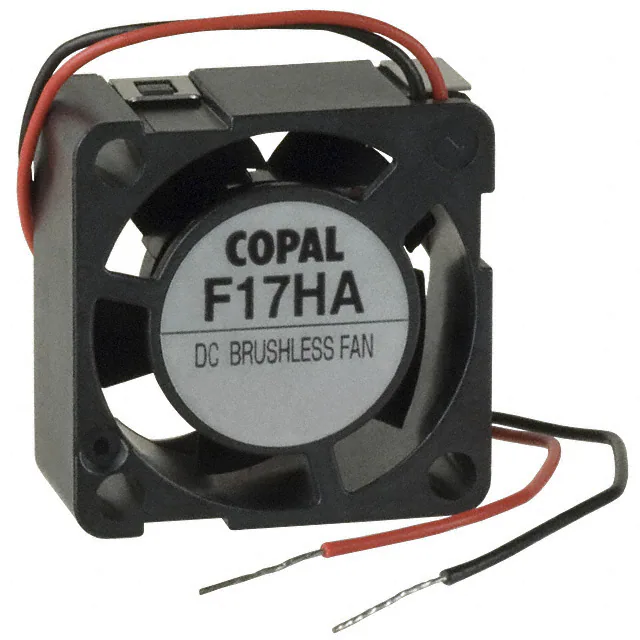

F17HA-05MCFAN AXIAL 17X8MM 5VDC WIRE |
605 |
|
Datasheet |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 0.530 CFM (0.015m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | 8.00mm | Tubeaxial | - | 7.0dB(A) | 150 mW | 8000 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.005 lb (2.27 g) |
|
G8015X12B-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
332 |
|
Datasheet |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.30mm | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.128 lb (58.06 g) |
|
|
AFB0405VHA-AFAN AXIAL 40X10MM BALL 5VDC WIRE |
3,700 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 35.5dB(A) | 550 mW | 8000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.031 lb (14.06 g) |
|
AFB0412VHA-AFAN AXIAL 40X10MM 12VDC WIRE |
1,182 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 35.5dB(A) | 720 mW | 8000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.031 lb (14.06 g) |
|
|
AFB0412HA-AFAN AXIAL 40X10MM 12VDC WIRE |
960 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 480 mW | 6000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.031 lb (14.06 g) |
|
4127/MF30060V1-1000U-A99FAN AXIAL 30X6.5MM VAPO 5VDC |
2,780 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 6.50mm | Tubeaxial | Auto Restart | 23.6dB(A) | 560 mW | 9100 RPM | cURus, TUV | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
EEC0252B1-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
504 |
|
Datasheet |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 44.5dB(A) | 5 W | 3100 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.346 lb (156.94 g) |
|
109P0412J3013FAN AXIAL 40X28MM 12VDC WIRE |
1,860 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 4.2 W | 12500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.115 lb (52.16 g) |
|

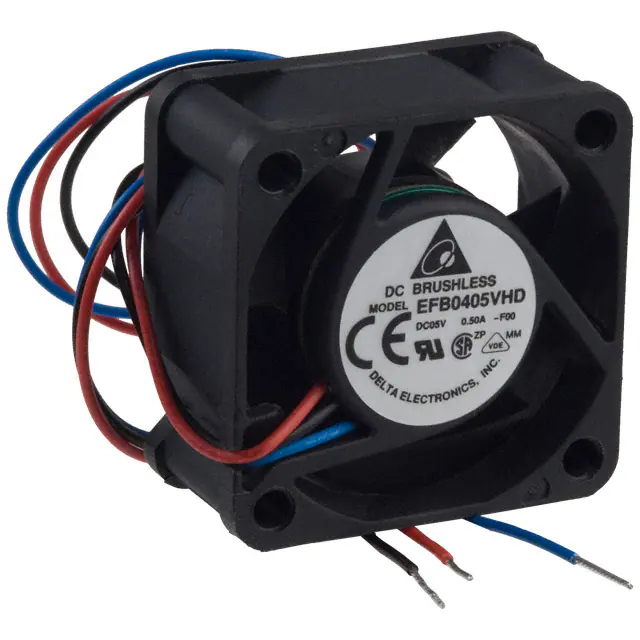

EFB0405VHD-F00FAN AXIAL 40X20MM BALL 5VDC WIRE |
11,152 |
|
Datasheet |
EFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 1.6 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|

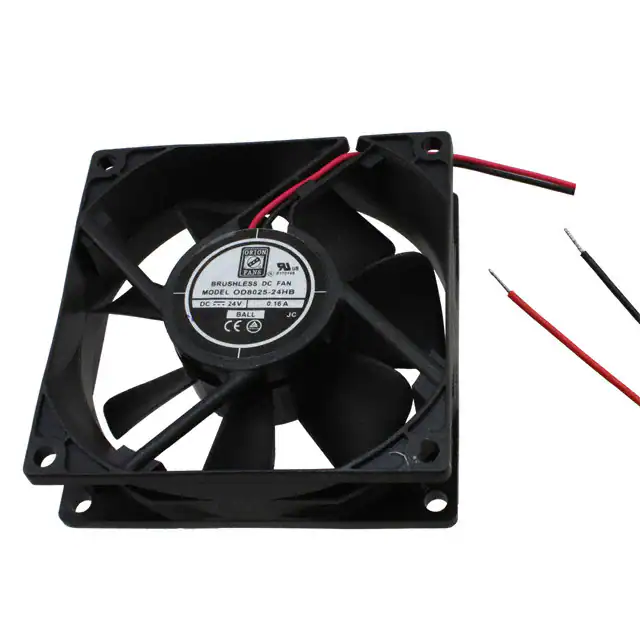

OD8025-24HBFAN AXIAL 80X25MM 24VDC WIRE |
3,251 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 35.0dB | 1.44 W | 3100 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|

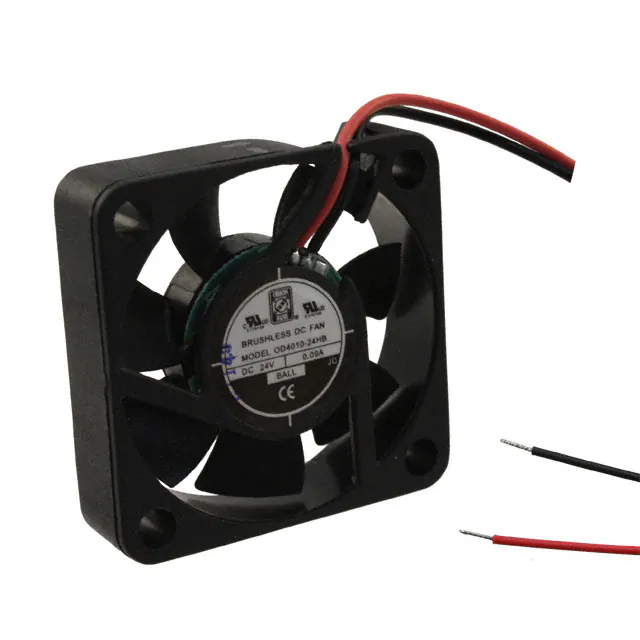

OD4010-24HBFAN AXIAL 40X10.5MM 24VDC WIRE |
3,224 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 33.4dB | 1.45 W | 8000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|
OD6025-12HBFAN AXIAL 60X25MM 12VDC WIRE |
3,016 |
|
Datasheet |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|

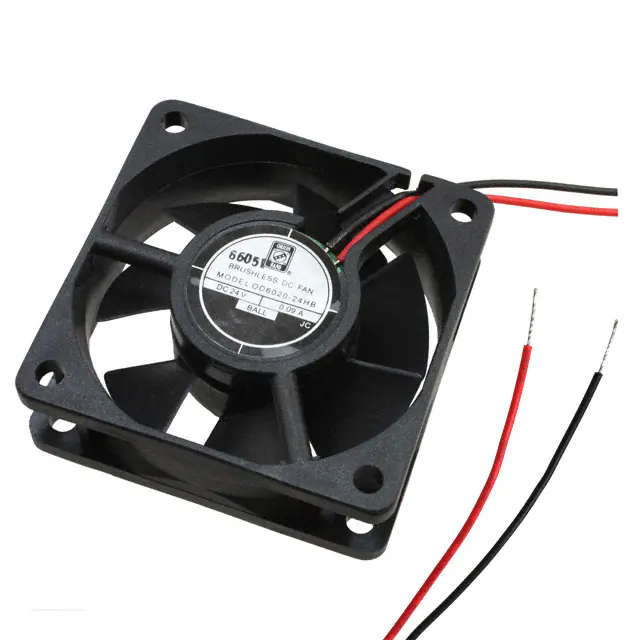

OD6020-24HBFAN AXIAL 60X20MM 24VDC WIRE |
2,553 |
|
Datasheet |
OD6020 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 20.00mm | Tubeaxial | - | 30.0dB | - | 4500 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

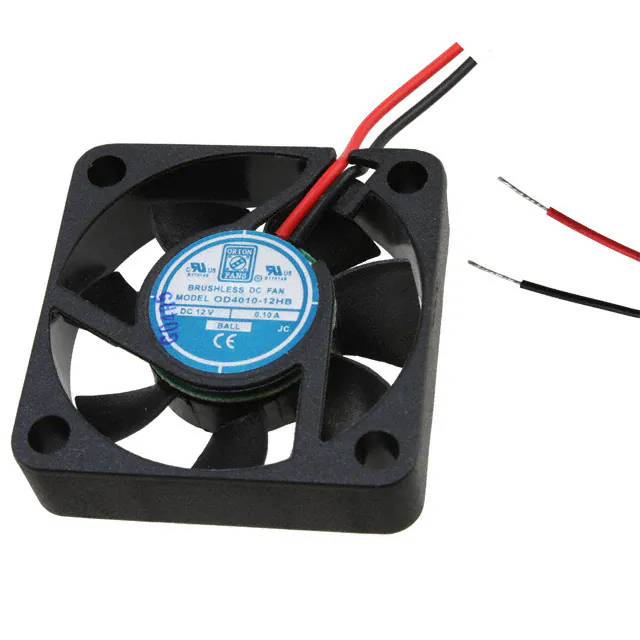

OD4010-12HBFAN AXIAL 40X10.5MM 12VDC WIRE |
2,421 |
|
Datasheet |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 33.4dB | 720 mW | 8000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

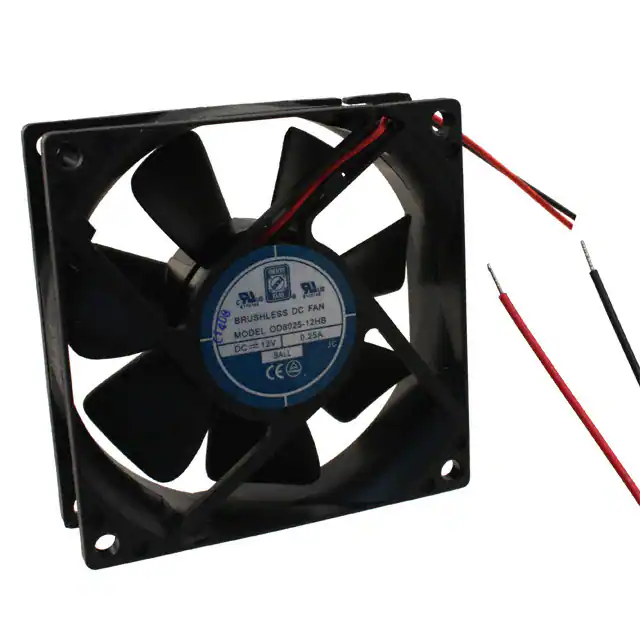

OD8025-12HBFAN AXIAL 80X25MM 12VDC WIRE |
1,675 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 35.0dB | 1.8 W | 3100 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.191 lb (86.64 g) |
|

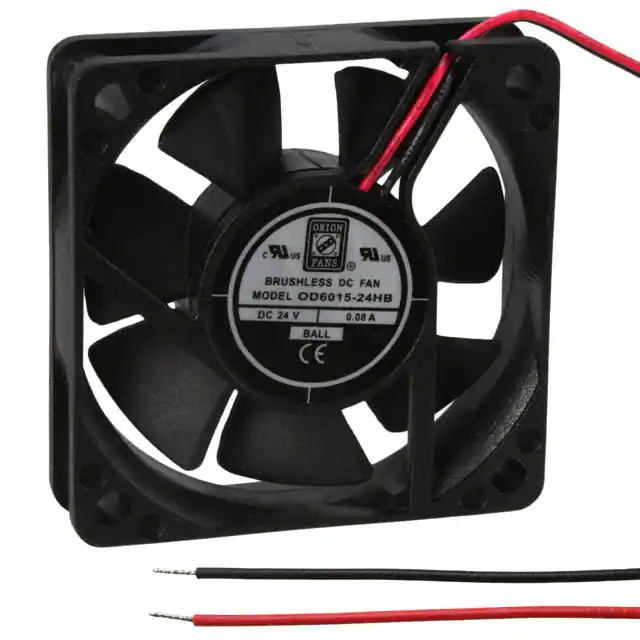

OD6015-24HBFAN AXIAL 60X15MM 24VDC WIRE |
1,588 |
|
Datasheet |
OD6015 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.2 W | 4500 RPM | cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.079 lb (35.83 g) |
|
OD6025-24HHBFAN AXIAL 60X25MM 24VDC WIRE |
1,279 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 32.0 CFM (0.896m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 32.0dB(A) | 2.8 W | 4390 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.141 lb (63.96 g) |
|

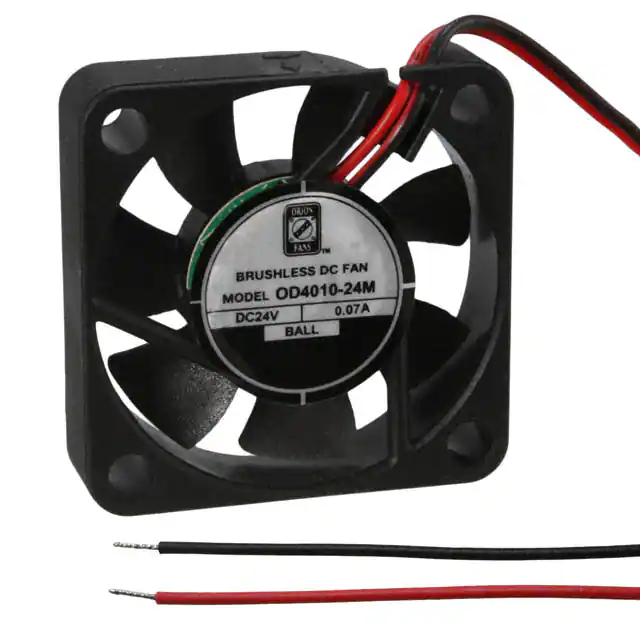

OD4010-24MBFAN AXIAL 40X10.5MM 24VDC WIRE |
1,208 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart | 26.3dB | 1.2 W | 6000 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
