DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR8032H24B-FSRFAN AXIAL 80X32MM 24VDC WIRE |
1,741 |
|
Datasheet |
MR8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 48.6dB(A) | - | 6000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.32 lb (145.15 g) |
|
DC0251012H2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
169 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 13000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|

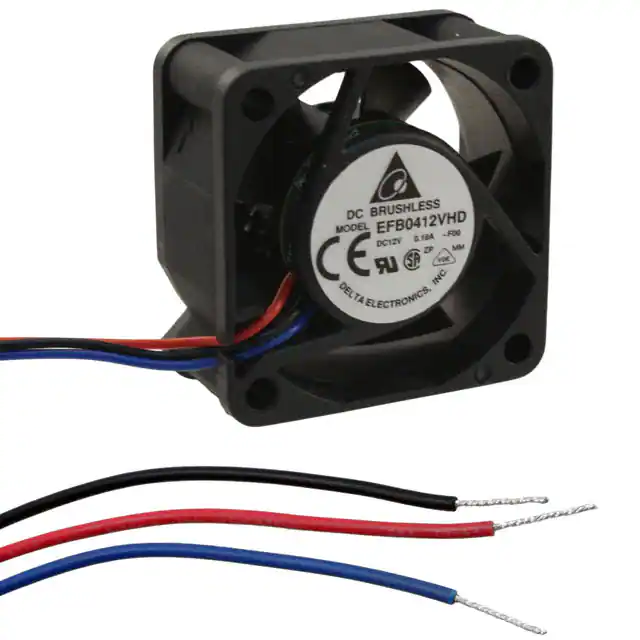

EFB0412VHD-F00FAN AXIAL 40X20MM 12VDC WIRE |
4,553 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 1.44 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
109P0424H602FAN AXIAL 40X20MM 24VDC WIRE |
2,477 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 20.00mm | Tubeaxial | - | 35.0dB(A) | 1.68 W | 8300 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.101 lb (45.81 g) |
|
9GA0412G7001FAN AXIAL 40X15MM 12VDC WIRE |
138 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 2.04 W | 13100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
|
109P0412H3013FAN AXIAL 40X28MM 12VDC WIRE |
3,143 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.34 W | 8700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
109P0524A701FAN AXIAL 52X15MM 24VDC WIRE |
1,064 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.64 W | 6800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.122 lb (55.34 g) |
|
|
109P0412B3013FAN AXIAL 40X28MM 12VDC WIRE |
163 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.574 in H2O (143.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.36 W | 10300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.115 lb (52.16 g) |
|
OD4010-24HB01AFAN AXIAL 40X10.5MM 24VDC WIRE |
692 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.4dB | 1.45 W | 8000 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

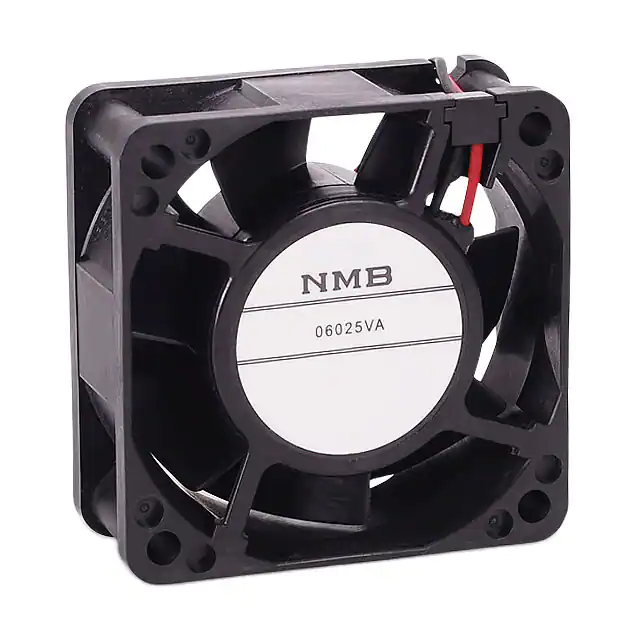

06025VA-24Q-CA-00FAN AXIAL 60X25MM 24VDC WIRE |
3,521 |
|
Datasheet |
06025VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 39.2 CFM (1.10m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 25.00mm | Tubeaxial | - | 54.0dB | 6.5 W | 9200 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 0.198 lb (89.81 g) |
|
DC0802512U2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
226 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 83.6 CFM (2.34m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 12 W | 6500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.188 lb (85.28 g) |
|
MR3010E12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE |
11,506 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | - | 11500 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.018 lb (8.16 g) |
|

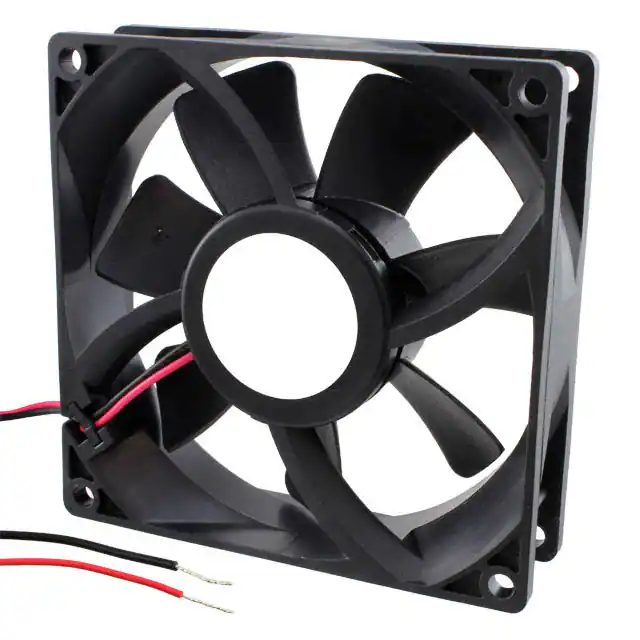

AUB0924VH-AFAN AXIAL 92X25.4MM 24VDC |
4,880 |
|
Datasheet |
AUB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 81.5 CFM (2.28m³/min) | 0.345 in H2O (85.9 Pa) | Superflo | 25.40mm | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 6 W | 3800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.267 lb (121.11 g) |
|
PF92381BX-000U-S99FAN AXIAL 92X38MM 12VDC WIRE |
2,873 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 182.4 CFM (5.11m³/min) | 2.940 in H2O (732.3 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.1dB(A) | 48 W | 13000 RPM | CE, CUR, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.463 lb (210.01 g) |
|
G4020E12B-RSR-EMFAN AXIAL 40X20MM 12VDC WIRE |
418 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 20.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.062 lb (28.12 g) |
|
MR4028W12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
862 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 32.6 CFM (0.913m³/min) | 3.650 in H2O (909.2 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 19.2 W | 24000 RPM | - | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

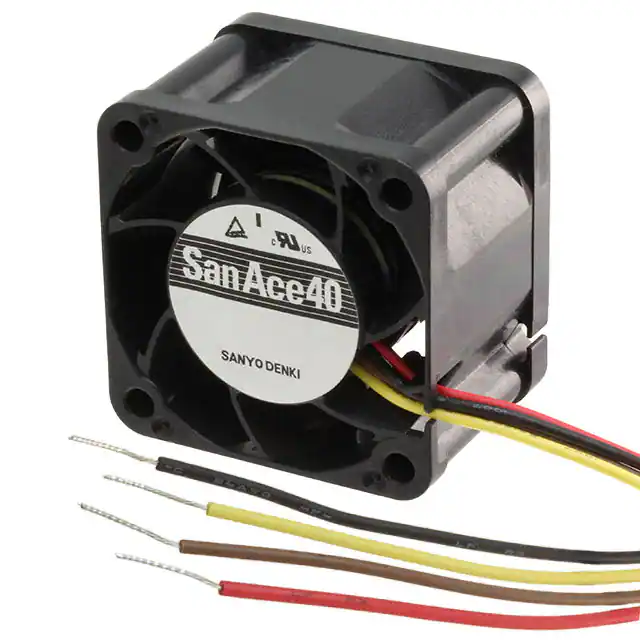

9GA0424P3J0011FAN AXIAL 40X28MM 24VDC WIRE |
2,006 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6.48 W | 18000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
|
109P0412G601FAN AXIAL 40X20MM 12VDC WIRE |
1,310 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.4 CFM (0.347m³/min) | 0.618 in H2O (153.8 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 3.36 W | 12500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.101 lb (45.81 g) |
|

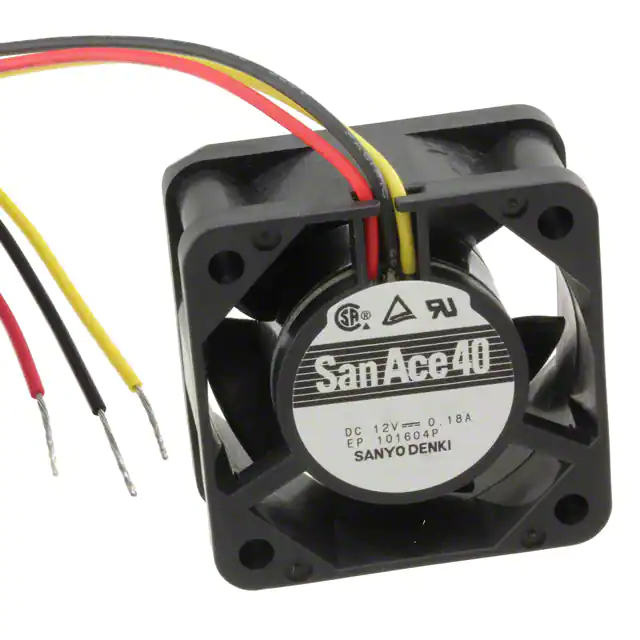

109P0412D601FAN AXIAL 40X20MM 12VDC WIRE |
749 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 2.16 W | 11000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.101 lb (45.81 g) |
|
|
109P0424H601FAN AXIAL 40X20MM 24VDC WIRE |
364 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 1.68 W | 8300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.101 lb (45.81 g) |
